Product Overview

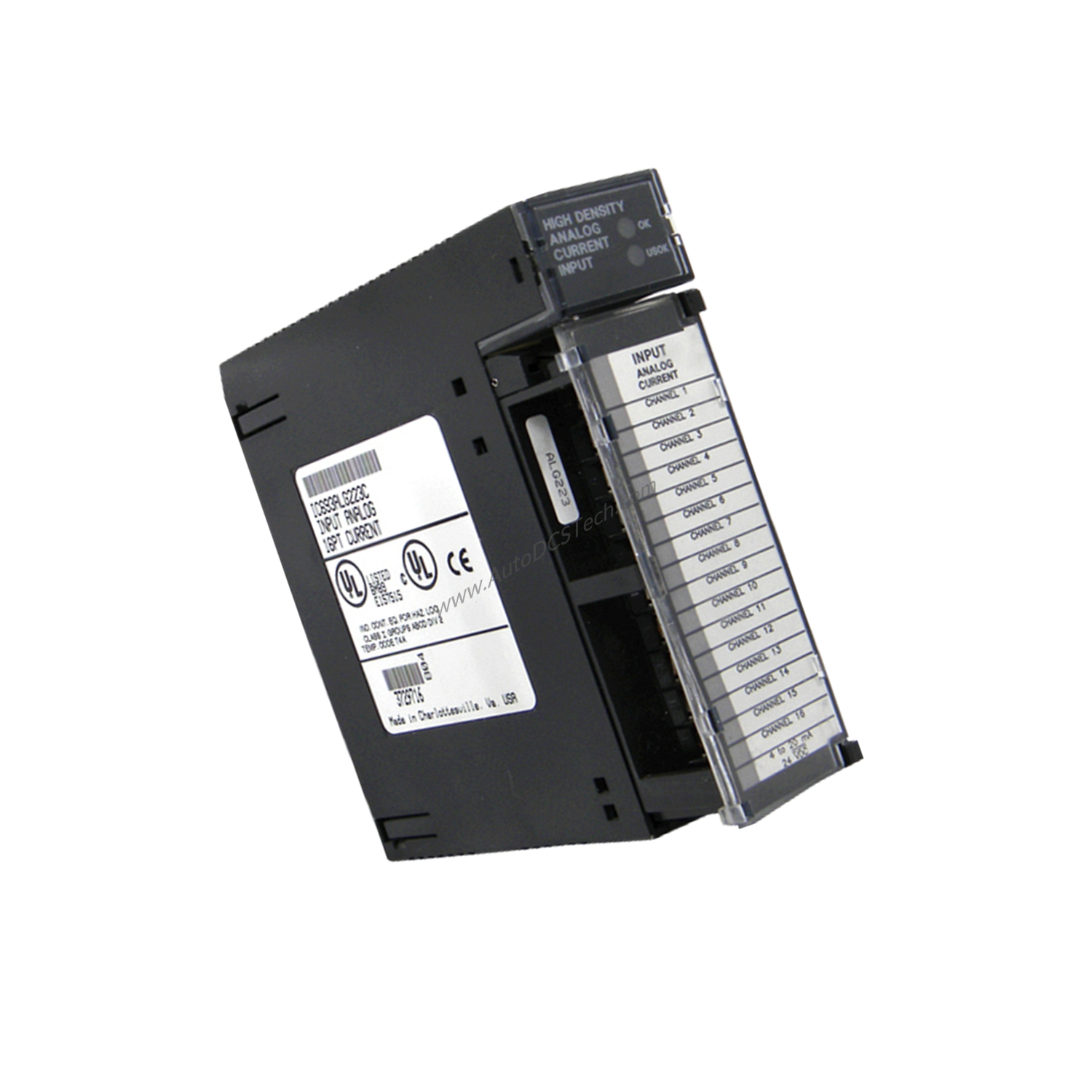

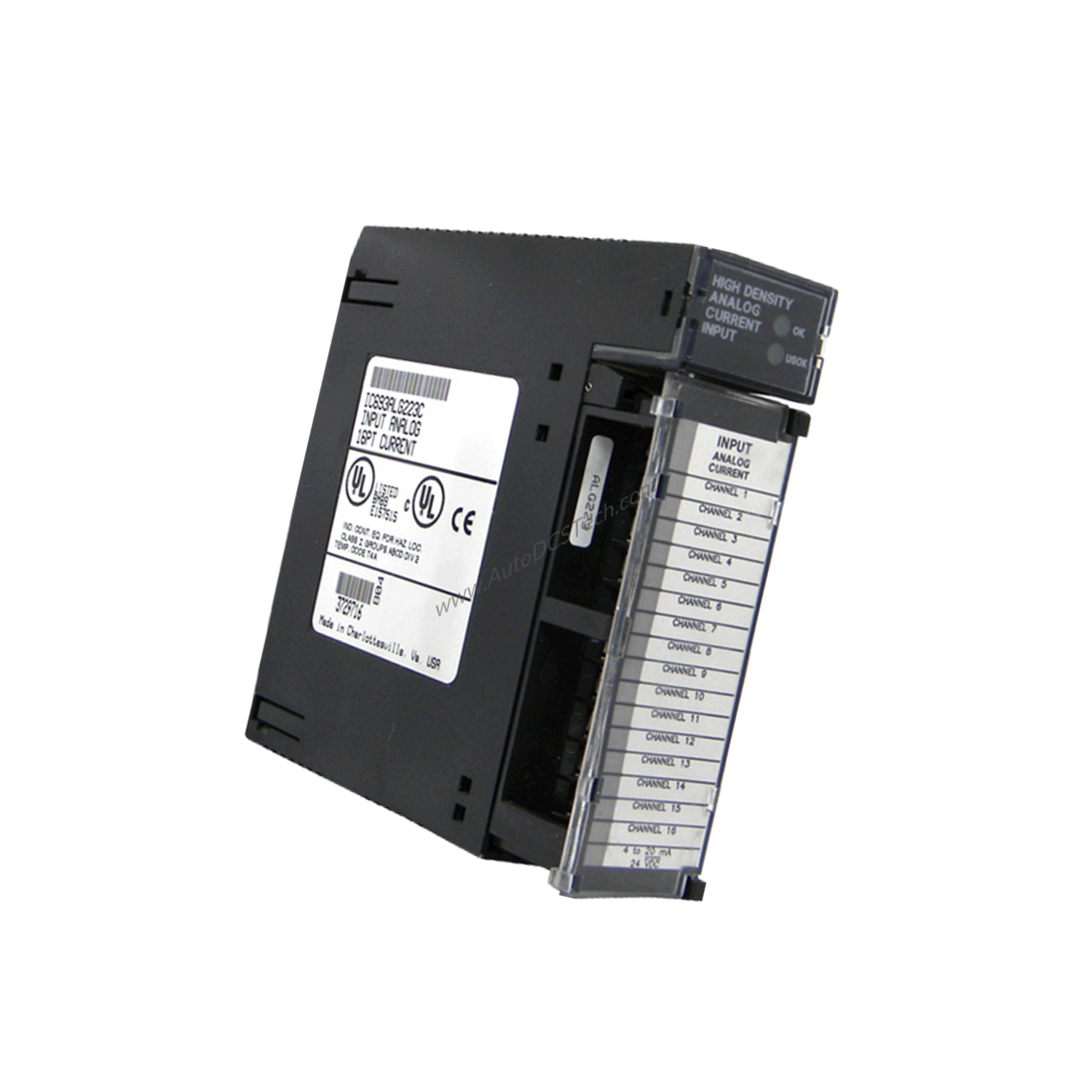

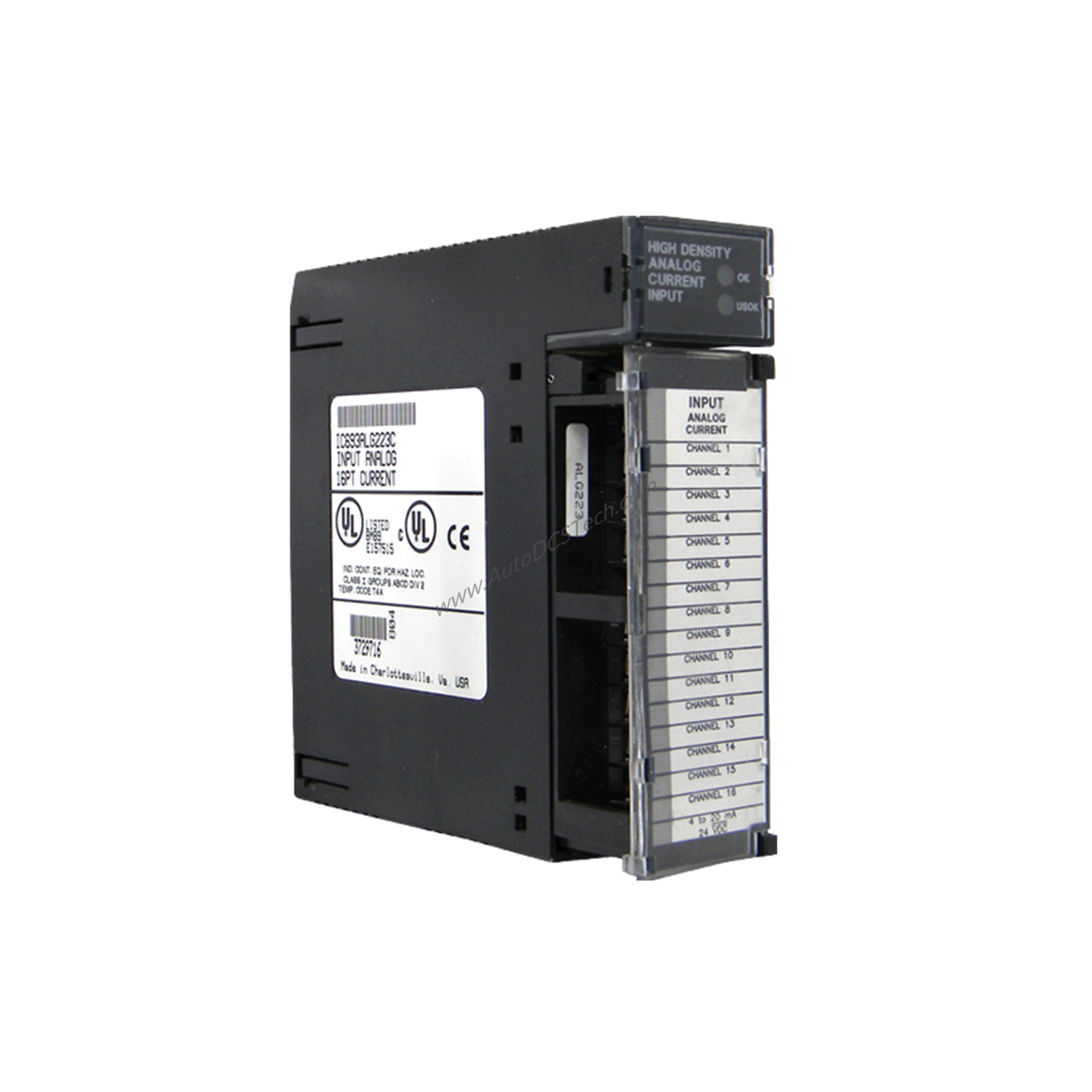

When your process demands precise monitoring of analog signals from transmitters, flow sensors, or temperature devices, the GE Fanuc IC693ALG223 delivers reliable performance. This Series 90-30 module is an analog current input module featuring sixteen single-ended input channels. It accepts 0-20 mA, 4-20 mA, and 4-20 mA enhanced input signals, making it a versatile choice for diverse industrial applications. With 12-bit resolution, the IC693ALG223 ensures accurate data acquisition for your control system.
Technical Specifications Breakdown
The IC693ALG223 offers several key specifications that define its performance. The module provides 16 input channels, each configurable for 0-20 mA or 4-20 mA ranges. Accuracy is rated at 0.25% at 25 degrees Celsius, ensuring reliable measurements under stable conditions. The update rate is 13 ms for all channels, allowing quick response to process changes. Input impedance is 250 ohms, and the input filter response is 200 Hertz. The module provides 1500 volts RMS isolation between the field side and the logic side, protecting your PLC from electrical noise and surges. Internal power consumption is 120 mA at 5 VDC, plus 65 mA from the user-supplied 24 VDC external power.
Industry Applications
The IC693ALG223 excels in applications requiring precise current loop signal acquisition. For example, in a chemical processing plant, the module can interface with 4-20 mA transmitters monitoring tank levels, pressures, and temperatures. The 12-bit resolution and 0.25% accuracy ensure that small process variations are captured. In a water treatment facility, the module can accept 0-20 mA signals from flow meters, providing data for pump control and chemical dosing. The 1500 V isolation protects the PLC from ground loops and transient voltages common in industrial environments.
Installation & Setup Guidance
Install the IC693ALG223 into any slot of a Series 90-30 5-slot or 10-slot baseplate. The module occupies a single slot. Ensure the baseplate is properly powered and grounded before insertion. Connect field wiring to the terminal board, observing polarity for current loop signals. The external power supply must provide 24 VDC to the module. Verify that the supply voltage is within the specified range to avoid damage. After installation, configure the input range for each channel via the programming software to match your field devices.
Maintenance & Reliability
The IC693ALG223 is designed for long-term reliability in industrial settings. To maintain optimal performance, periodically inspect the module and its connections for signs of corrosion or loose wiring. Keep the baseplate and surrounding area clean and free of dust. The module's solid-state design minimizes wear, but environmental factors like temperature and humidity can affect accuracy. Ensure the operating environment stays within the module's specified limits. Regular calibration checks against a known current source can verify the module's accuracy over time.
Compatibility & Integration
The IC693ALG223 is compatible with Series 90-30 PLC systems using CPUs 311, 313, 323, 331, 340, 341, 351, and 352. The maximum number of analog current input modules varies by CPU: up to 4 modules with CPUs 311, 313, and 323; up to 8 modules with CPU 331; up to 12 modules with CPUs 340 and 341; and up to 51 modules with CPUs 351 and 352. The module integrates seamlessly with the Series 90-30 backplane and can be configured using standard programming tools.
Selection Guide & Purchasing Advice
Before purchasing the IC693ALG223, verify that your system uses a Series 90-30 baseplate with available slots. Confirm that your CPU supports the required number of analog modules. Ensure you have a 24 VDC external power supply available. Contact SpareTechPLC for current availability and lifecycle status. Our team can help you confirm compatibility and provide replacement options if needed. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
