Product Overview

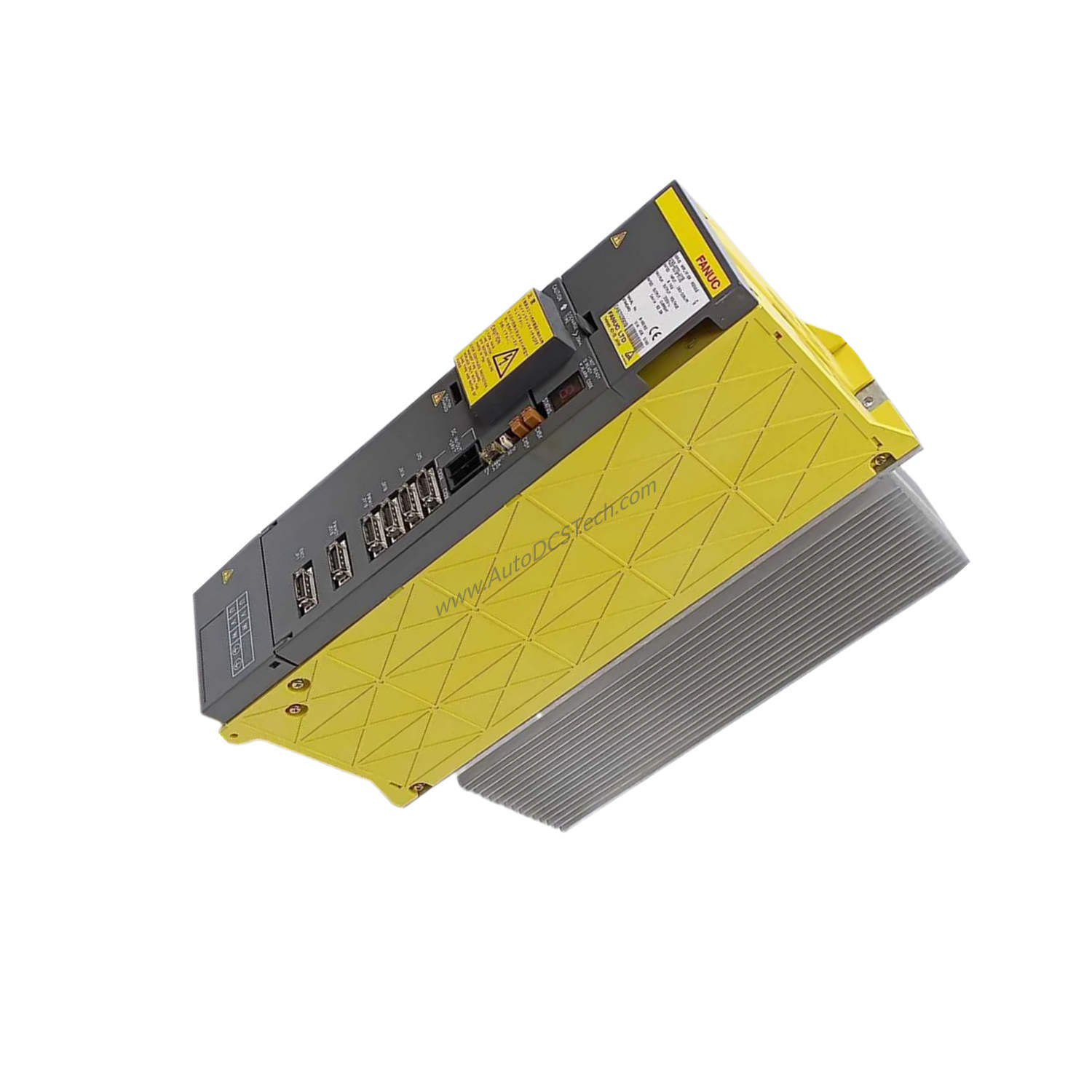

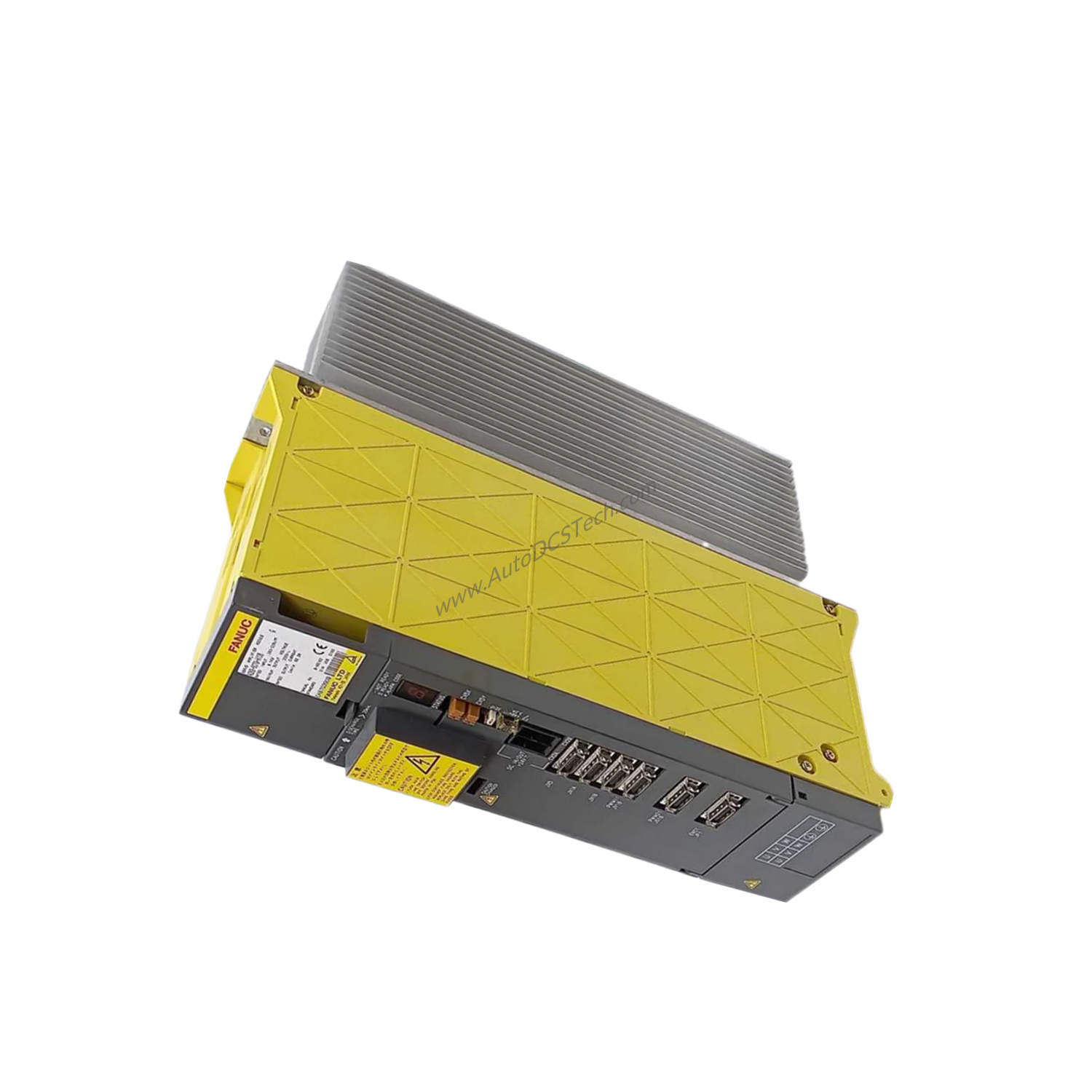

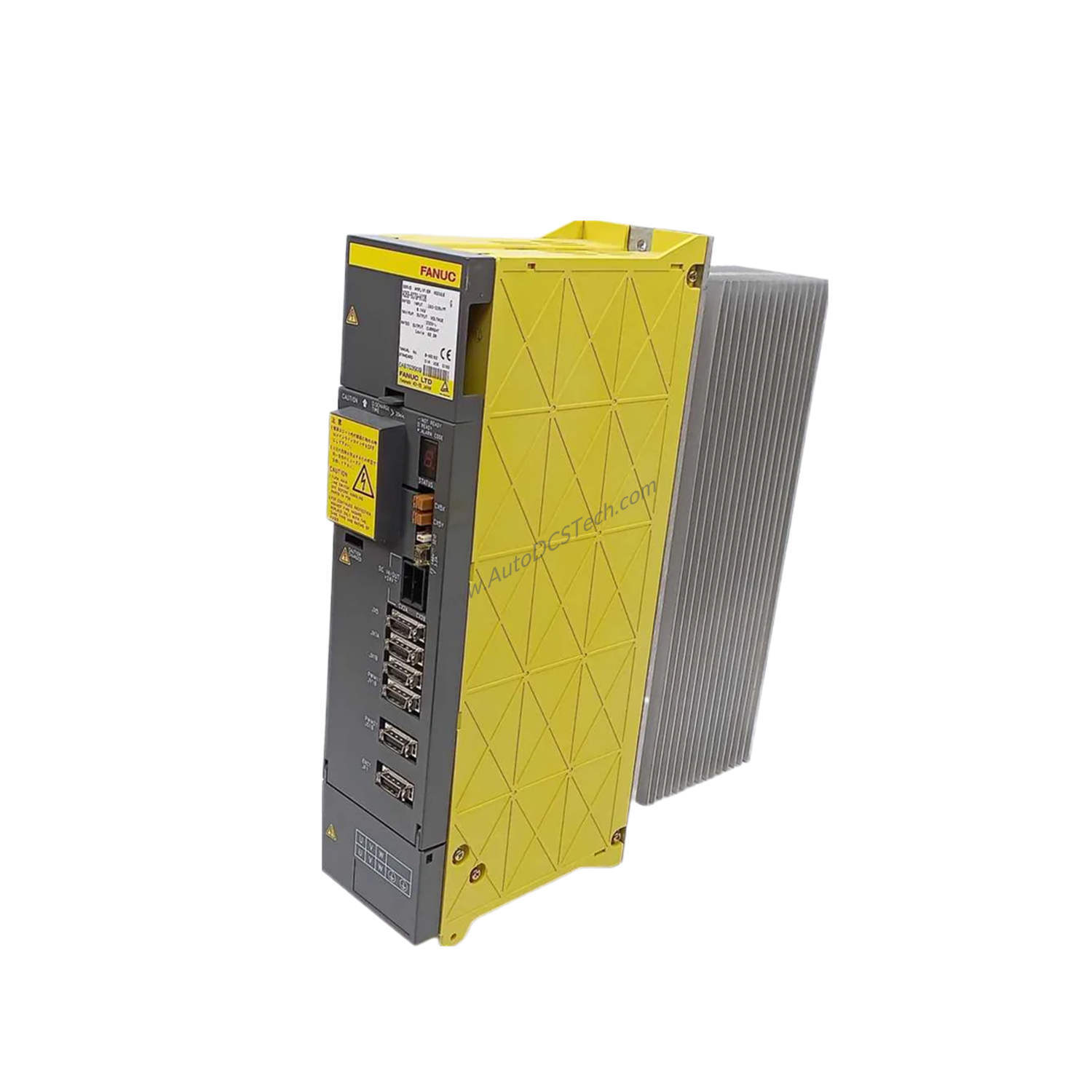

When CNC machining centers demand precise motion control and high reliability, the FANUC A06B-6079-H106 Servo Amplifier provides a cost-effective solution. This servo amplifier, part of the A06B series, converts control signals into accurate motor movements, reducing scrap and rework costs. Its air-cooled design minimizes thermal management expenses while maintaining consistent performance.
Key Technical Specifications
The FANUC A06B-6079-H106 operates with an input voltage of 283-325 V, allowing flexible integration into various facility power systems without expensive voltage conversion. Supporting 50/60 Hz line frequencies, this drive adapts to global power standards, lowering infrastructure upgrade costs. With a rated current of 52.2 A, it delivers ample power for medium to large servo motors, reducing the need for multiple drives in multi-axis systems.
A PWM (Pulse Width Modulation) interface ensures precise torque and speed control, enhancing machining accuracy and reducing energy waste. The operating temperature range of 0°C to 55°C enables deployment in unconditioned factory environments, cutting cooling system expenses. Built-in protection against overload, overcurrent, and overvoltage safeguards both the drive and connected equipment, preventing costly downtime and repair bills.
Industry Applications
In CNC milling and turning centers, the A06B-6079-H106 drives axis and spindle motors with high precision. For example, in a three-axis machining center, this amplifier handles continuous heavy cutting loads while maintaining positional accuracy, reducing cycle times and tool wear costs. In high-speed routing applications, its PWM control minimizes energy consumption per part, improving overall operational efficiency.
Installation and Mounting
The FANUC A06B-6079-H106 supports vertical or wall mounting, simplifying cabinet layout and reducing installation labor hours. Its compact footprint (weight 15.00 lbs / 6.80 kg) allows placement in tight spaces, maximizing cabinet utilization. Ensure adequate airflow around the unit for the air-cooled system to function effectively, avoiding thermal derating that could impact production throughput.
Maintenance and Reliability
To maximize return on investment, schedule periodic inspection of the cooling fan and air intake vents. Clean any accumulated dust to maintain airflow efficiency, preventing overheating that can degrade performance. The robust protection features reduce the risk of unexpected failures, extending service life and lowering total cost of ownership. Verify that ambient temperature stays within the 0°C to 55°C range to avoid thermal stress.
Selection and Purchasing Advice
Before ordering, confirm that your CNC controller outputs a compatible PWM signal and that the input voltage matches your facility's supply (283-325 V). The A06B-6079-H106 is designed for CNC systems; verify motor compatibility for optimal performance. SpareTechPLC stocks this servo amplifier and can advise on current lifecycle status and availability. Contact our team to ensure this model meets your application requirements.
Frequently Asked Questions
Q1: What is the input voltage range for the FANUC A06B-6079-H106?
A: The input voltage range is 283-325 V, as specified in the technical data.
Q2: What cooling method does this servo amplifier use?
A: It uses air cooling, which helps maintain thermal performance without additional liquid cooling infrastructure.
Q3: What protection features are included?
A: The amplifier includes overload, overcurrent, and overvoltage protection to safeguard the drive and connected equipment.
Q4: What is the rated current of the A06B-6079-H106?
A: The rated current is 52.2 A, suitable for driving medium to large servo motors in CNC applications.
Q5: Can this drive be mounted in different orientations?
A: Yes, it supports vertical or wall mounting, offering flexibility for cabinet layout.
