Introduction

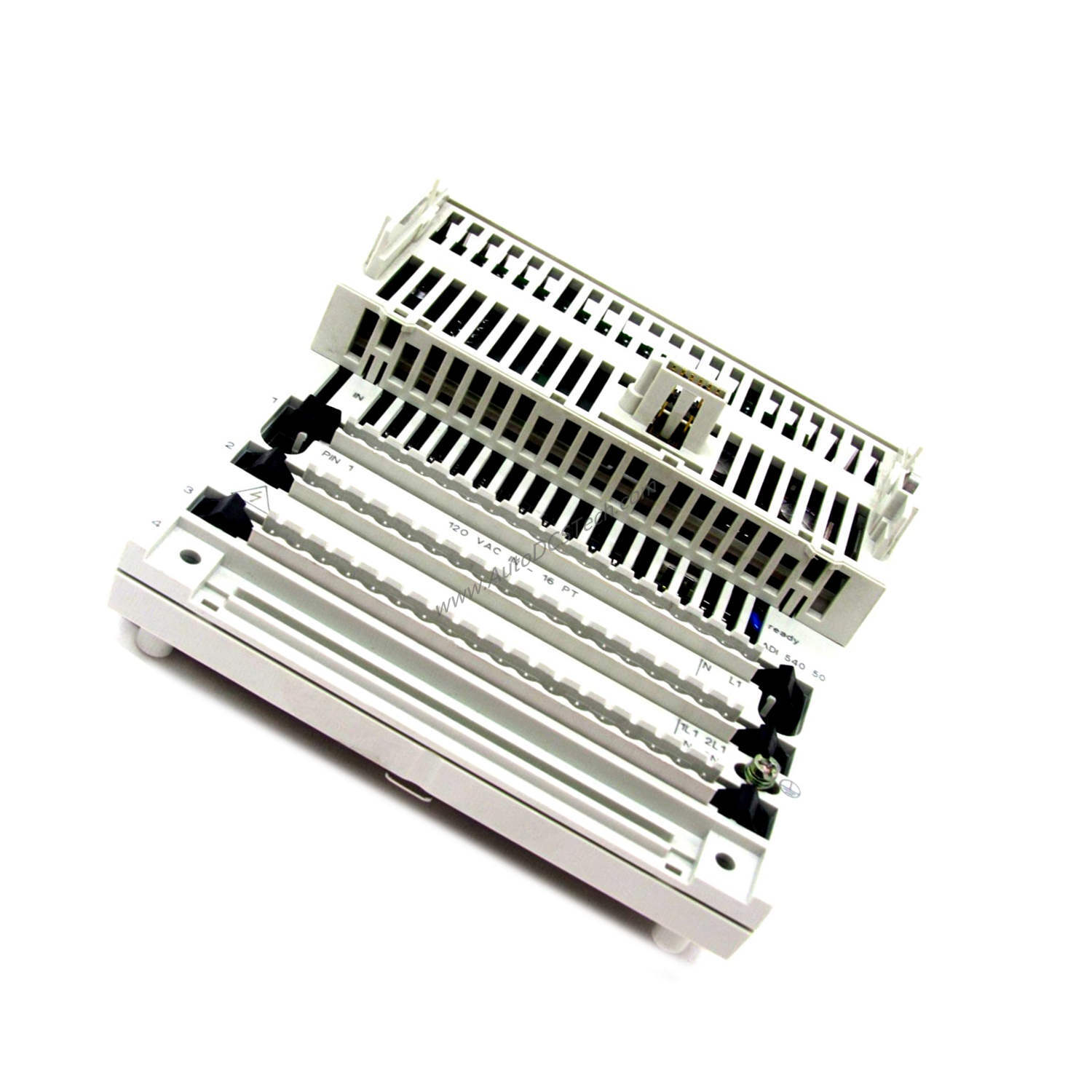

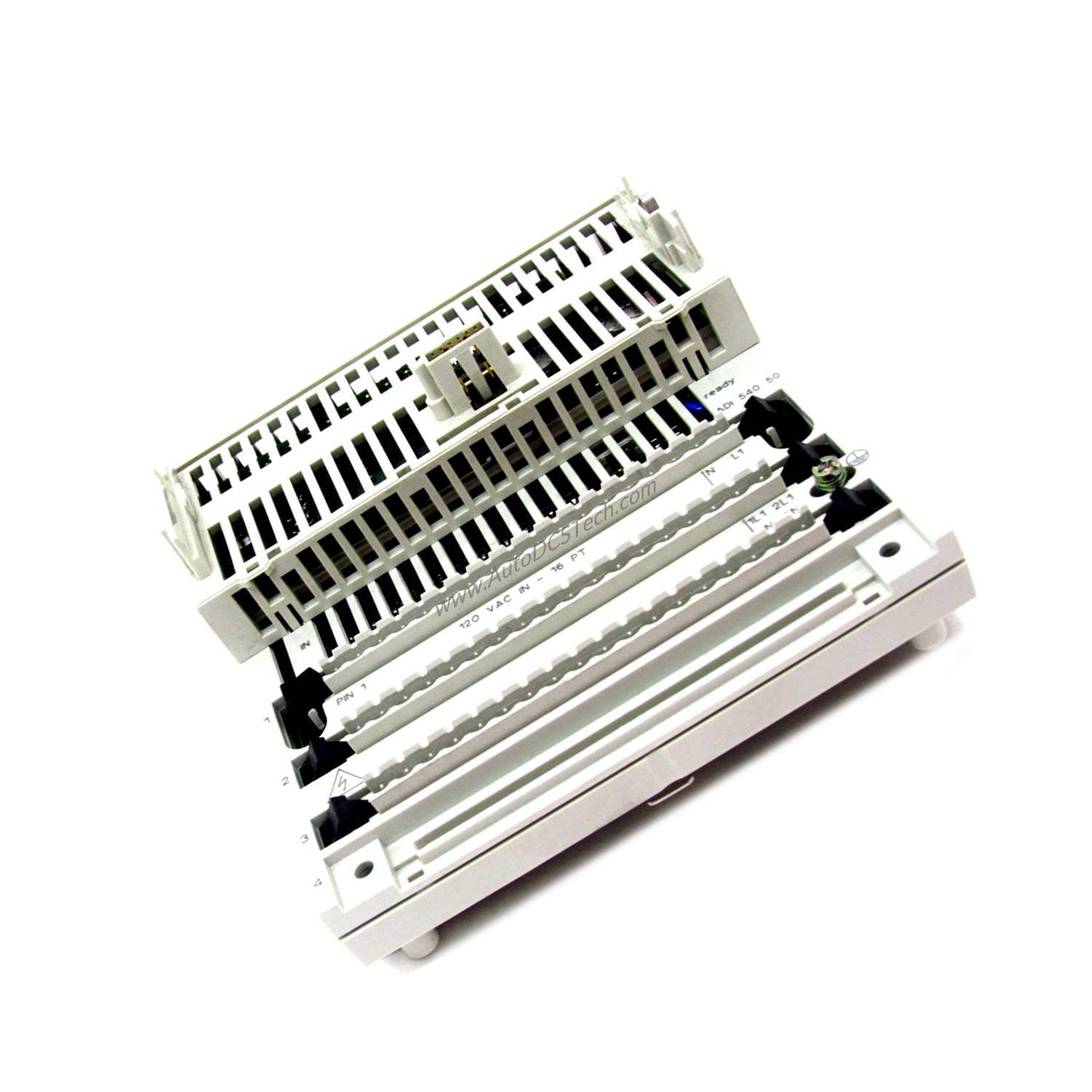

When a maintenance engineer needs a reliable discrete input base for a Modicon Momentum automation platform, the Schneider 170ADI54050 delivers consistent performance. This 16-channel unit splits into two groups of eight inputs, simplifying wiring and troubleshooting in control panels. Designed for 120V AC discrete input voltages, it handles standard industrial signals with ease.
Technical Specifications Breakdown
Channel Configuration: 16 channels arranged as 2 groups with 8 inputs each. This grouping allows independent power and signal management, reducing cross-talk and simplifying fault isolation.
Input Voltage and Logic: The discrete input voltage is 120V AC, with limits from 85 to 132V AC. Input logic is positive, meaning the input is active when voltage is present. This matches many legacy and modern PLC systems.
Environmental Resilience: Operating temperature range is 0°C to 60°C, storage from -40°C to 85°C. Maximum relative humidity is 95% without condensation. The TC protective treatment adds extra resistance to harsh conditions.
Isolation: Isolation between groups is 1780V AC, and between channels and bus is also 1780V AC, ensuring safe separation of circuits.
Industry Applications
Manufacturing Line Monitoring: In a factory, the 170ADI54050 connects limit switches and proximity sensors on a conveyor system. The two-group design lets engineers separate safety inputs from status signals, simplifying diagnostics.
HVAC Control: In building automation, this base handles 120V AC signals from thermostats and pressure switches. The wide frequency range (47 to 63 Hz) ensures compatibility with varying power quality.
Installation & Setup Guidance
Mount the 170ADI54050 on a DIN rail within the Modicon Momentum backplane. Ensure the input voltage is within 85 to 132V AC before powering. Connect field devices to the terminal block using the provided pinout: terminals 1-16 correspond to inputs IN_DIS#1 through IN_DIS#16, with power terminals (N)PW and (L1)PW. Use shielded cable for long runs to reduce noise. Verify positive logic operation by applying voltage and checking the corresponding LED indicator.
Maintenance & Reliability
From a maintenance perspective, the 170ADI54050 requires minimal upkeep. Periodically inspect the 16 channel status LEDs to confirm proper operation. Check that ambient temperature stays within 0°C to 60°C and humidity below 95% without condensation. The TC protective treatment reduces corrosion risk, but keep the enclosure clean and free of debris. If a channel fails, the group isolation allows you to swap the base without rewiring the entire panel.
Compatibility & Integration
This discrete input base is part of the Modicon Momentum automation platform. It integrates seamlessly with Momentum processors and I/O modules. The positive logic and 120V AC input make it compatible with many existing field devices. No special communication protocols are required—just standard wiring to the terminal block.
Frequently Asked Questions
Q: Can I use the 170ADI54050 with 24V DC signals?
A: No, this base is designed for 120V AC discrete inputs only. Using DC or lower voltage may damage the module.
Q: How do I know which input is active?
A: Each channel has a dedicated LED that illuminates when the input voltage is present (positive logic).
Q: What is the isolation between groups?
A: Isolation between groups is 1780V AC, and between channels and bus is also 1780V AC.
Q: Can I use this base in a high-humidity environment?
A: Yes, up to 95% relative humidity without condensation. The TC protective treatment helps.
Q: Is the 170ADI54050 still in production?
A: Please verify current lifecycle status and availability with SpareTechPLC before ordering.
