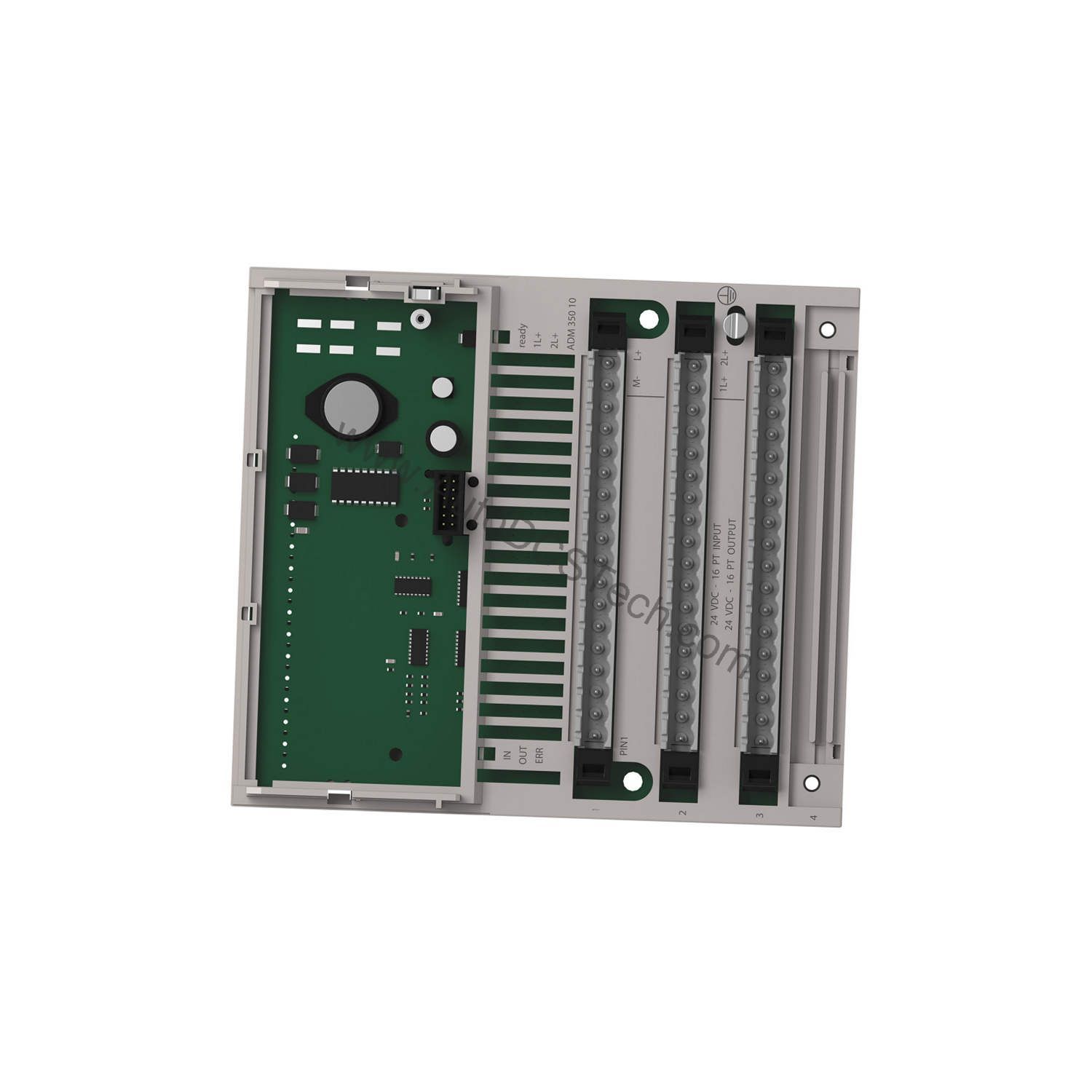

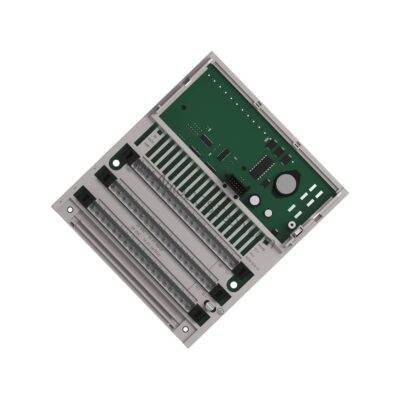

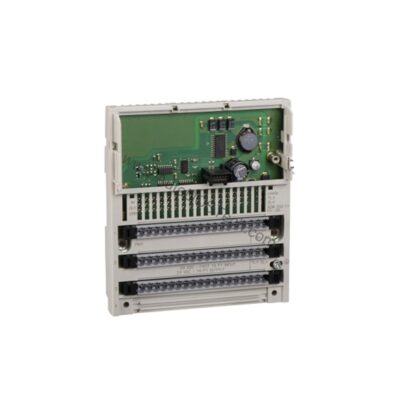

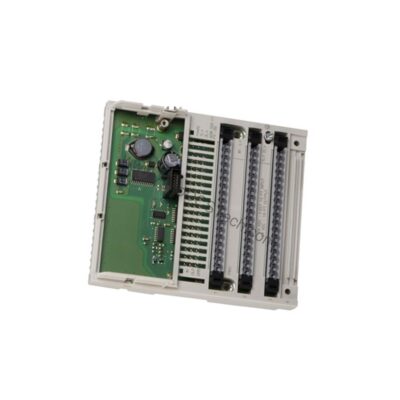

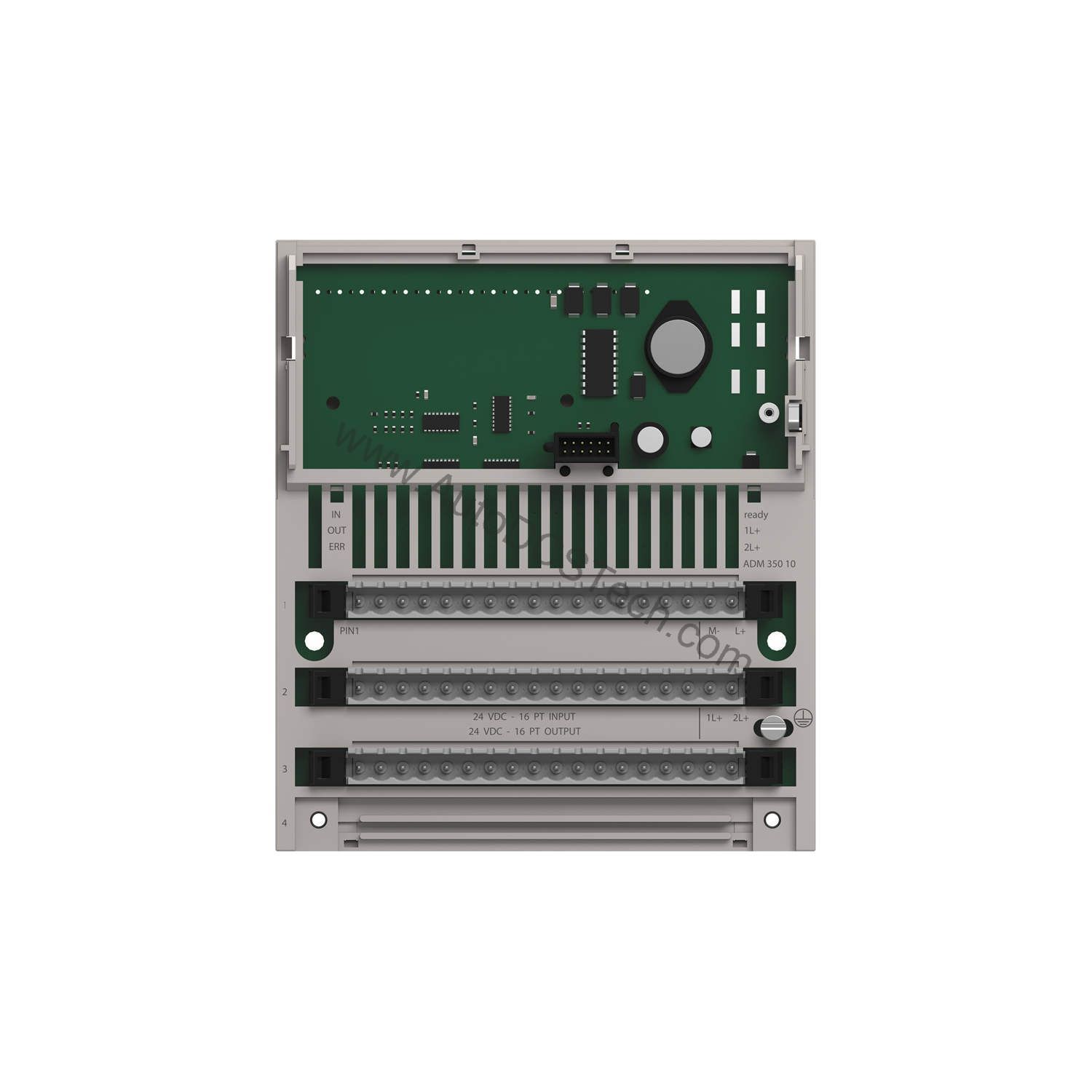

Schneider 170ADM39030C Modicon Momentum Discrete Relay I/O Base Module

Technical Specifications Breakdown

Key parameters for the 170ADM39030C are listed below for quick reference:

Industry Applications

For example, in conveyor sorting stations, the 10 discrete inputs can monitor sensor feedback from 11 to 30 VDC, while the 8 relay outputs switch motor contactors or solenoid valves at 24 to 230 VAC. The mechanical durability of 30 million cycles ensures long-term operation in high-cycle packaging lines. Another application is in HVAC building management, where the module interfaces with DC proximity sensors and AC fan drives, reducing the need for separate interface relays.

Installation & Setup Guidance

Mount the 170ADM39030C on a standard DIN rail within an enclosure. Ensure the 24 VDC rated supply voltage is clean and within tolerance. Wire inputs according to positive logic (sourcing) as specified. For relay outputs, observe the voltage range: 20 to 115 VDC or 24 to 230 VAC. Use appropriate fusing for each output circuit. The conformal coating (Humiseal 1A33) protects against humidity, but avoid condensation during installation.

Maintenance & Reliability

Inspect the module periodically for signs of overheating or relay chatter. Given the electrical durability of 100,000 cycles under inductive loads, plan preventive replacement in high-cycle applications before reaching this limit. Keep the ambient environment within standard industrial limits; the conformal coating provides additional protection against corrosive atmospheres.

Solving Signal Control Challenges with the Modicon Momentum I/O Base Module

In industrial automation, managing discrete signals reliably in mixed-voltage environments is a common engineering challenge. The Schneider Electric 170ADM39030C, part of the Modicon Momentum automation platform, addresses this need with a discrete relay I/O base design. It provides 10 discrete inputs and 8 relay outputs, making it suitable for applications requiring robust switching and signal isolation.

Compatibility & Integration

The 170ADM39030C integrates with the Modicon Momentum automation platform via the I/O bus. It is compatible with Momentum processors and adapters that support discrete relay I/O bases. The isolation of 500 V AC between channels and bus ensures reliable signal integrity in noisy industrial environments.

Selection Guide & Purchasing Advice

When selecting this module, verify your input voltage range (11 to 30 VDC) and output requirements (relay, AC/DC). AutoDCSTech stocks this module and can advise on availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If outputs fail to energize, check the relay coil supply and output voltage range. For input issues, measure the input voltage at the terminals; it must be within 11 to 30 VDC. Erratic operation may indicate a failing relay—monitor cycle count against the 100,000-cycle inductive durability rating. Always power down before inspecting connections.
