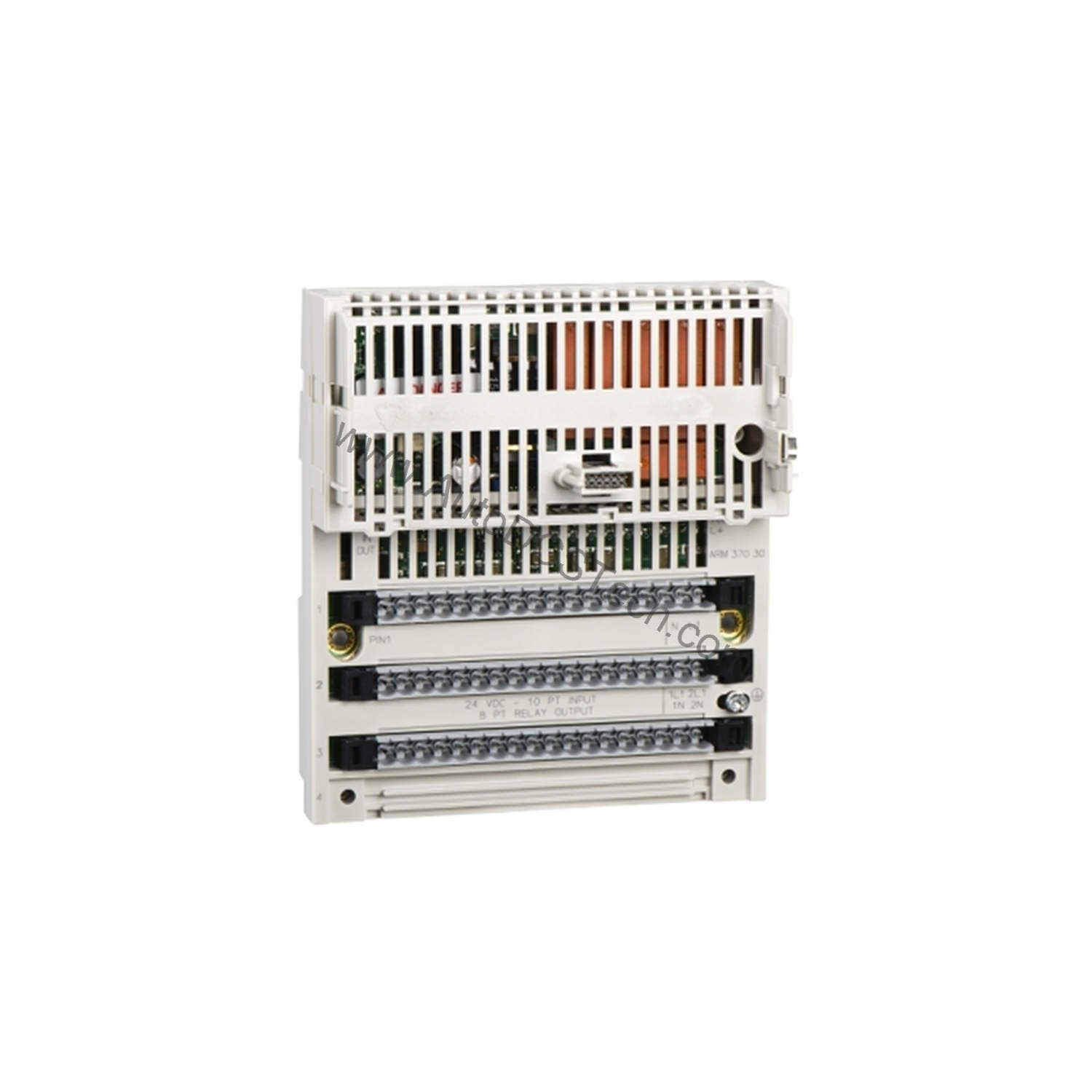

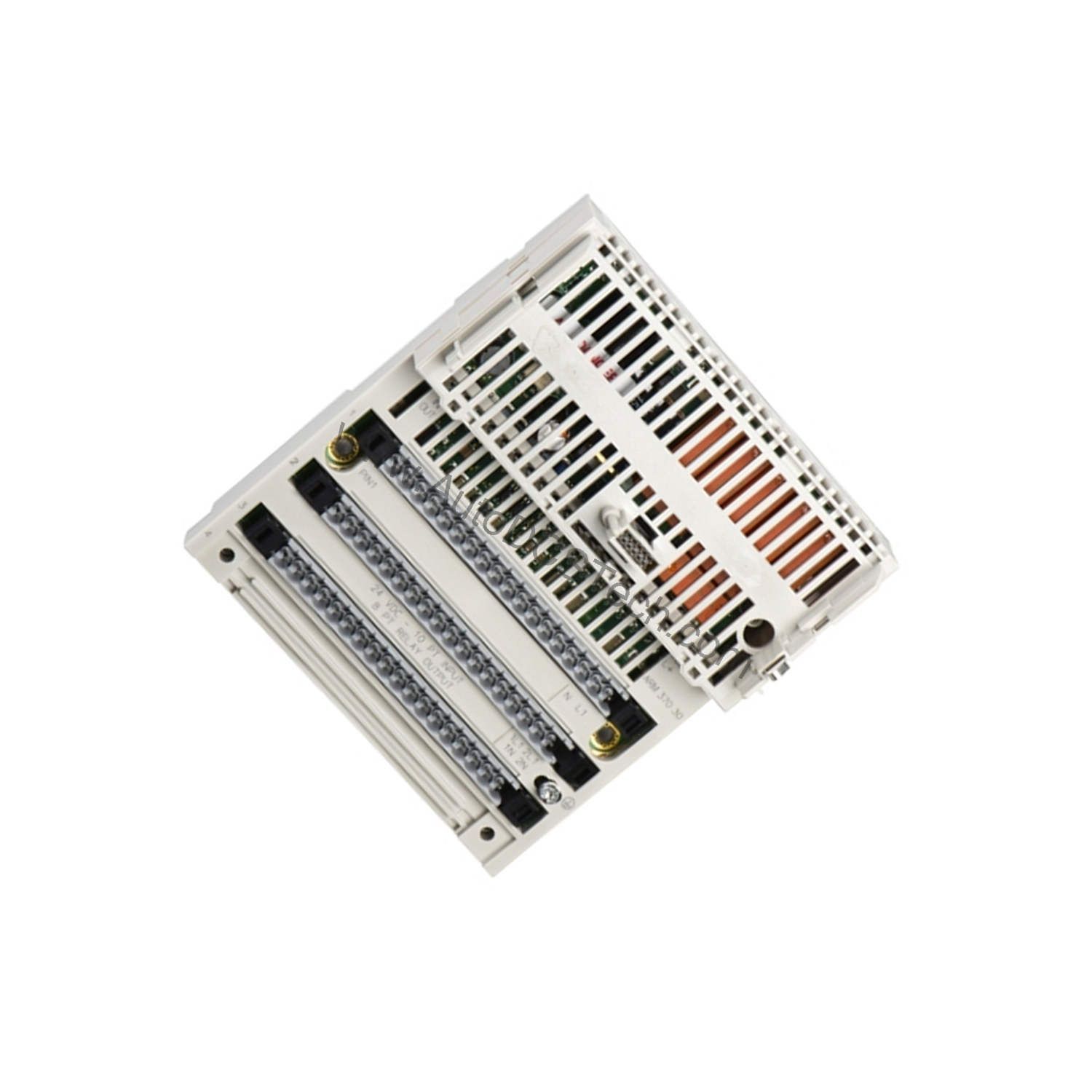

Schneider Modicon 170ARM37030 Discrete Relay I/O Base for Automation

Technical Specifications Breakdown

Key parameters for the 170ARM37030 are listed below for quick reference:

Industry Applications

For example, in conveyor sorting lines, the 10 inputs monitor photoelectric sensors, while the 8 outputs control motor contactors. The 1780 V AC isolation between I/O groups reduces noise in electrically harsh environments, such as welding cells. In packaging machinery, the module’s positive logic input simplifies integration with PLCs, minimizing programming overhead. Its compact footprint (4.9 x 5.6 x 1.9 inches) fits control cabinets with limited space.

Installation and Setup Guidance

Mount the 170ARM37030 on a DIN rail within the Modicon Momentum platform. Ensure the bus connector is properly aligned before tightening the locking screws. For AC inputs, use twisted-pair wiring to mitigate electromagnetic interference. Verify that the input voltage stays within 3–30 V for logic signals, while the main supply matches the 24–230 V AC rating. Do not exceed the 8.5 W power dissipation limit; provide adequate ventilation if installed in enclosed panels. Always disconnect power before wiring.

Maintenance and Reliability

The protective treatment TC coating guards against moisture and dust, making the module suitable for light industrial environments. Inspect connections annually for signs of corrosion or loosening. The isolation barriers (1780 V AC between channels, 500 V AC to bus) reduce the risk of ground loops. If the module operates near maximum temperature, consider forced air cooling. No field-replaceable fuses exist; replace the unit if outputs fail to switch.

The Evolution of Industrial Control: Why the 170ARM37030 Stands Out

Industrial automation has evolved from simple relay panels to sophisticated digital systems, yet the need for reliable discrete control remains constant. The Schneider Electric Modicon 170ARM37030 discrete relay I/O base embodies this balance, offering a proven solution for managing on/off signals in demanding environments. As factories modernize, components like this module bridge legacy and future-proof designs, ensuring uptime without complexity.

Compatibility and Integration

This base is part of the Modicon Momentum automation platform, designed for distributed I/O architectures. It communicates via the Momentum bus, requiring a compatible bus interface or adapter. The 10 inputs comply with IEC 1131-2 Type 1, ensuring interoperability with standard 24 V AC sensors. The 8 discrete outputs are relay-based, suitable for AC loads up to 230 V. For system design, refer to the Momentum platform manual for addressing and configuration.

Selection Guide and Purchasing Advice

When selecting the 170ARM37030, confirm your application needs 10 inputs and 8 outputs with AC voltage range. For higher density or DC-only systems, consider other Momentum modules. AutoDCSTech stocks this unit with fast shipping. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
