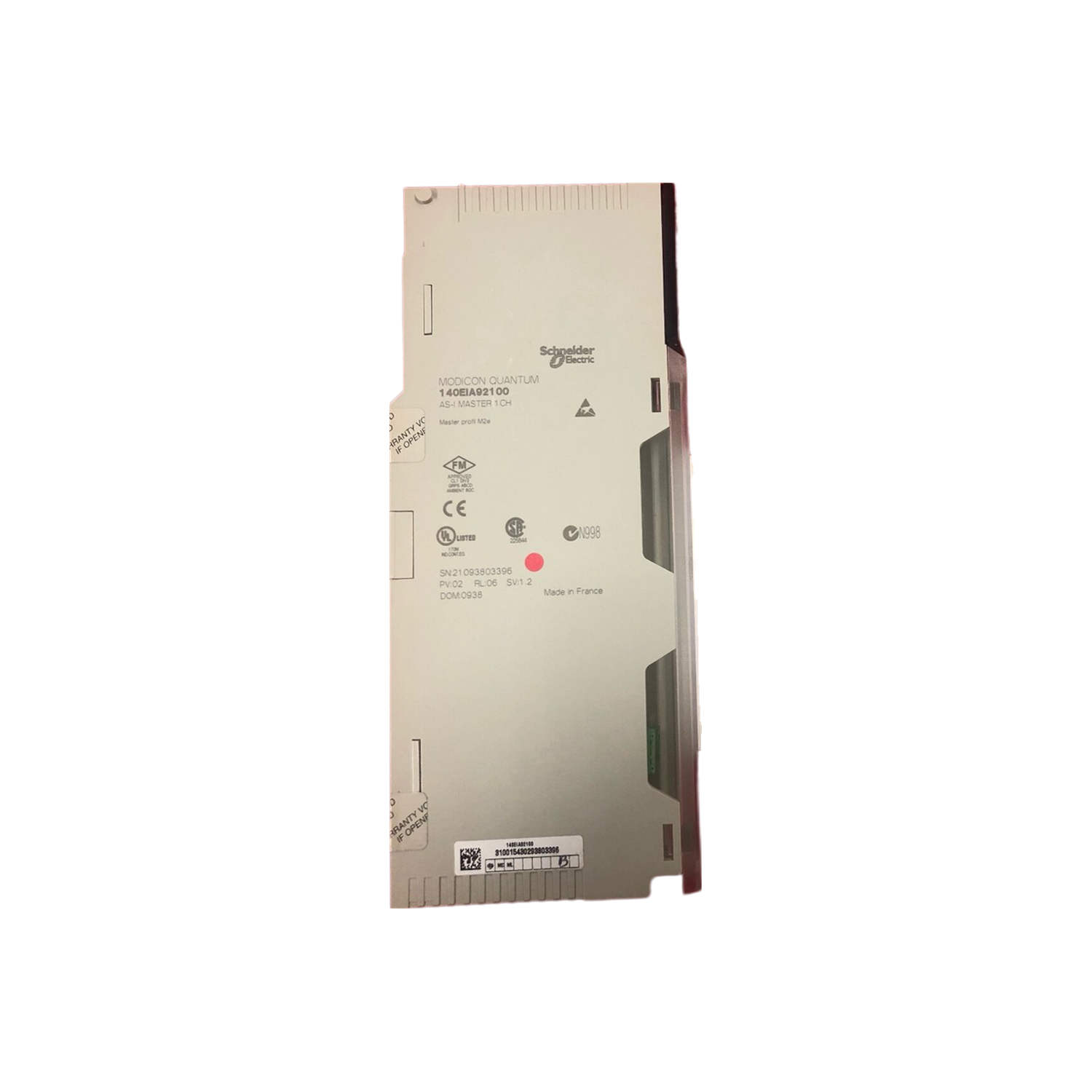

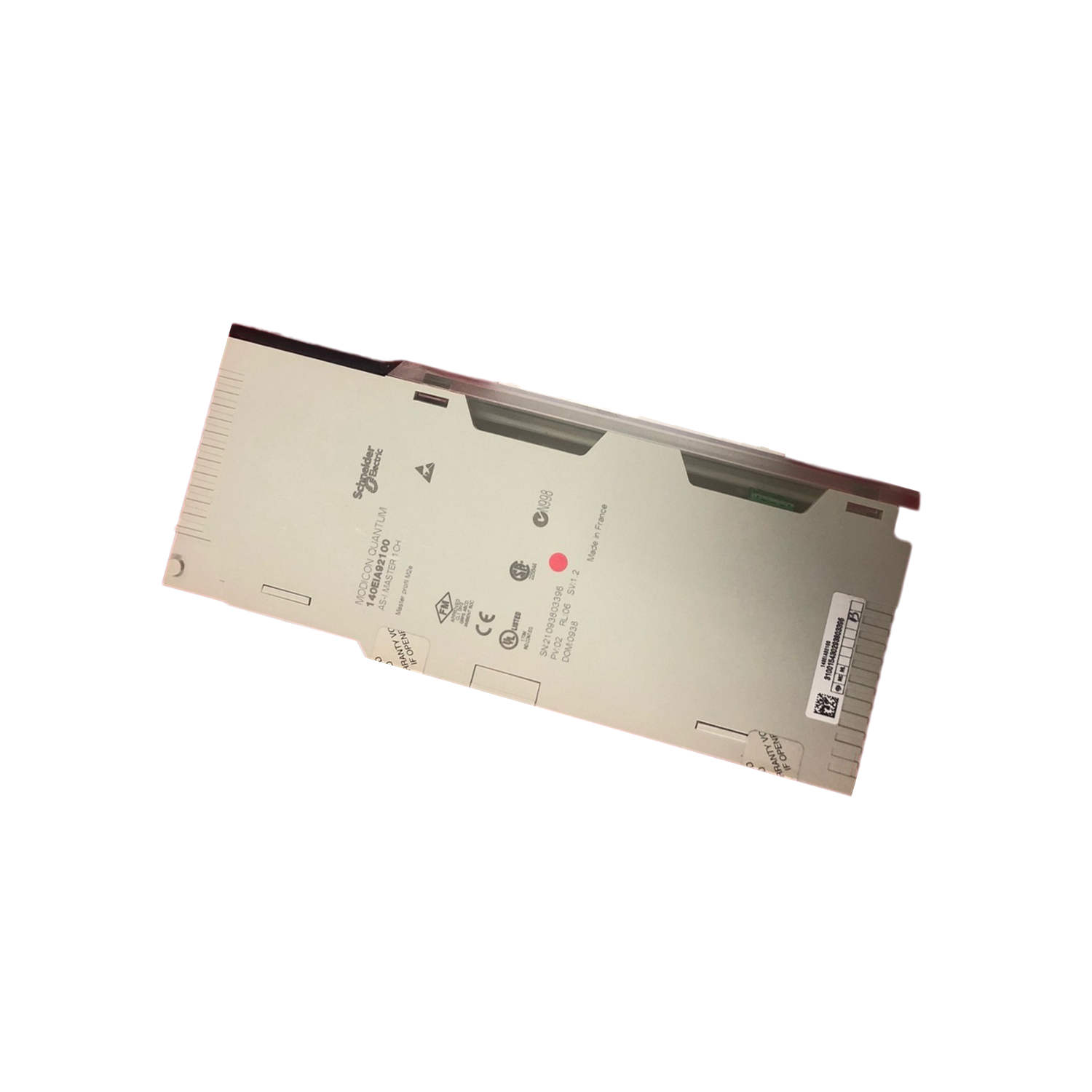

Optimize Your Automation Network with the Schneider 140EIA92100C AS-Interface Master Module
In modern industrial environments, efficient data exchange between sensors, actuators, and controllers is critical. The Schneider Electric 140EIA92100C AS-Interface master module, part of the Modicon Quantum automation platform, delivers reliable, high-speed communication for discrete control applications. Designed for AS-i version V1 with standard addressing, this module handles up to 124 discrete inputs and 124 discrete outputs, communicating with up to 31 server devices. Its maximum cycle time of just 5 milliseconds ensures rapid response for real-time tasks, while the transmission rate of 167 kbit/s maintains smooth data flow.
Technical Specifications Breakdown
Key parameters for the 140EIA92100C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | AS interface master module |
| AS-i Version | V1 |
| Addressing | Standard |
| Maximum Cycle Time | 5 ms |
| Discrete Inputs | 124 |
| Discrete Outputs | 124 |
| Server Devices | 31 |
| Transmission Rate | 167 kbit/s |
| Reverse Polarity Protection | Internal |
| Current Consumption | <= 100 mA |
| Marking | CE |
| Protection Class | IP20 |
| Ambient Temperature | 0 to 60 °C |
Industry Applications
This master module excels in discrete manufacturing lines, packaging machinery, and material handling systems where numerous on/off sensors and actuators need centralized control. For example, in a bottling plant, it can coordinate conveyor belt sensors, fill-level detectors, and valve actuators with deterministic timing. The 5 ms cycle time and 124 I/O capacity make it ideal for high-speed sorting or assembly stations, reducing downtime through efficient data handling.
Installation & Setup Guidance
Mount the module in a Quantum rack and connect it to the AS-Interface cable via the SUB-D 3-pin male connector. Ensure the bus length does not exceed 100 meters without a repeater. Power is supplied through the AS-Interface line at 30 V DC. The module supports up to 2 units per Quantum PLC distributed drop, 4 per local drop, and 4 per remote drop. Configure slave addresses using the 32 onboard LEDs for visual status feedback.
Maintenance & Reliability
The IP20 protection class makes this module suitable for clean indoor environments with limited dust. Operate within the 0 to 60 °C ambient temperature range to ensure reliable performance. Periodically inspect the SUB-D connector and AS-Interface cable for wear. The internal reverse polarity protection safeguards against wiring errors during installation or maintenance.
Compatibility & Integration
This module is designed for the Modicon Quantum automation platform and fully compatible with the AS-Interface cabling system. It supports up to 31 server devices and uses standard addressing. The CE marking confirms compliance with European directives, and certifications include UL, FM, C-Tick, CSA, and GOST.
Selection Guide & Purchasing Advice
When selecting an AS-Interface master module for your Quantum system, verify that your application requires V1 standard addressing and 124 I/O points. The 140EIA92100C offers a proven balance of speed and capacity. For lifecycle status and availability, contact SpareTechPLC before ordering. We stock this module and can assist with replacements or upgrades.
Troubleshooting & Common Issues
If communication errors occur, check the AS-Interface cable length (max 100 m without repeater) and verify that the 30 V DC supply is stable. Use the 32 status LEDs to identify unresponsive slave devices. Ensure no more than 31 server devices are connected. If current exceeds 100 mA, inspect for short circuits on the line.
Frequently Asked Questions
Q: What is the maximum cycle time of the 140EIA92100C?
A: The maximum cycle time is 5 ms.
Q: How many discrete inputs and outputs does this module support?
A: It supports 124 discrete inputs and 124 discrete outputs.
Q: What is the transmission rate of the AS-Interface link?
A: The transmission rate is 167 kbit/s.
Q: What is the operating temperature range?
A: The ambient temperature range for operation is 0 to 60 °C.
Q: Does the module have reverse polarity protection?
A: Yes, it includes internal reverse polarity protection.
