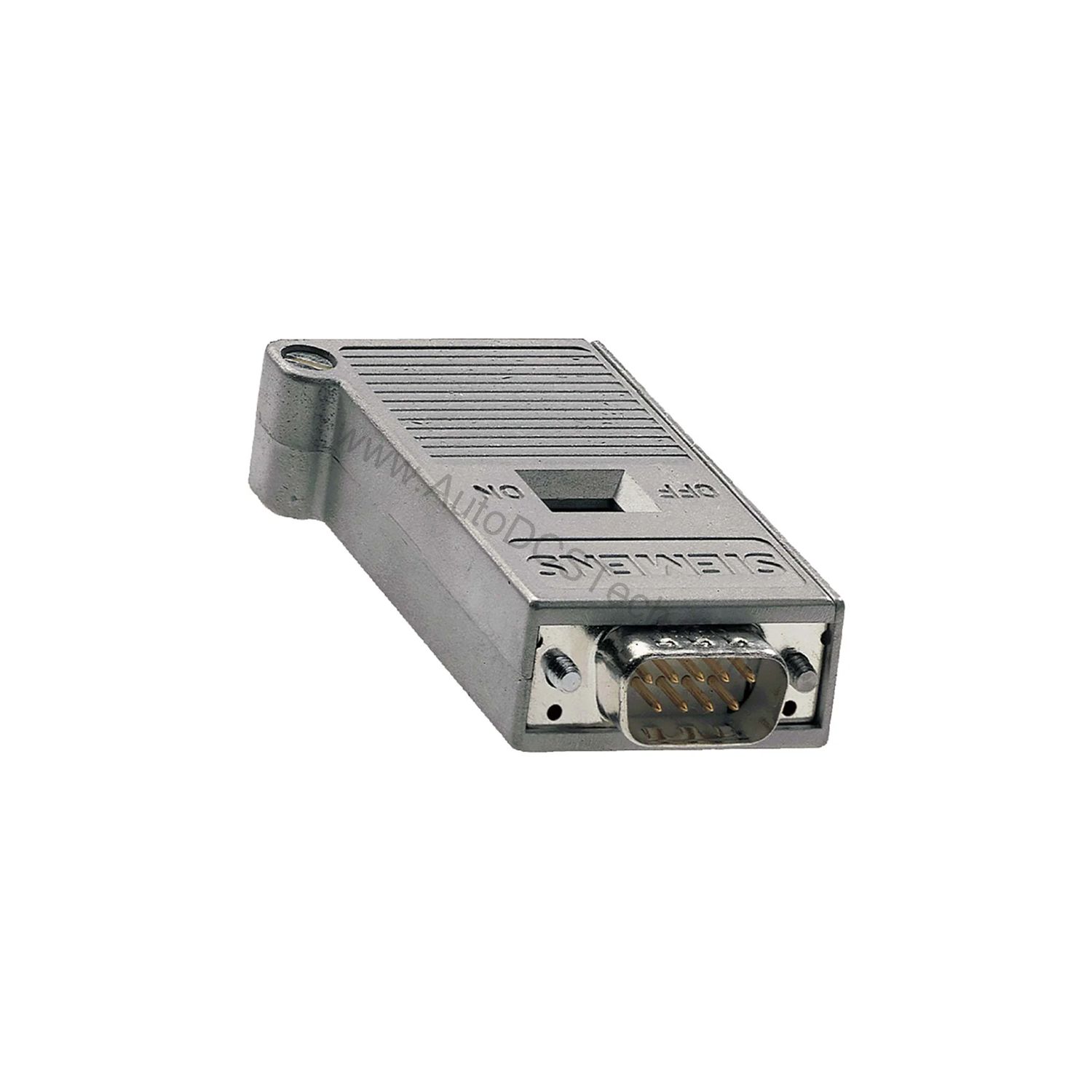

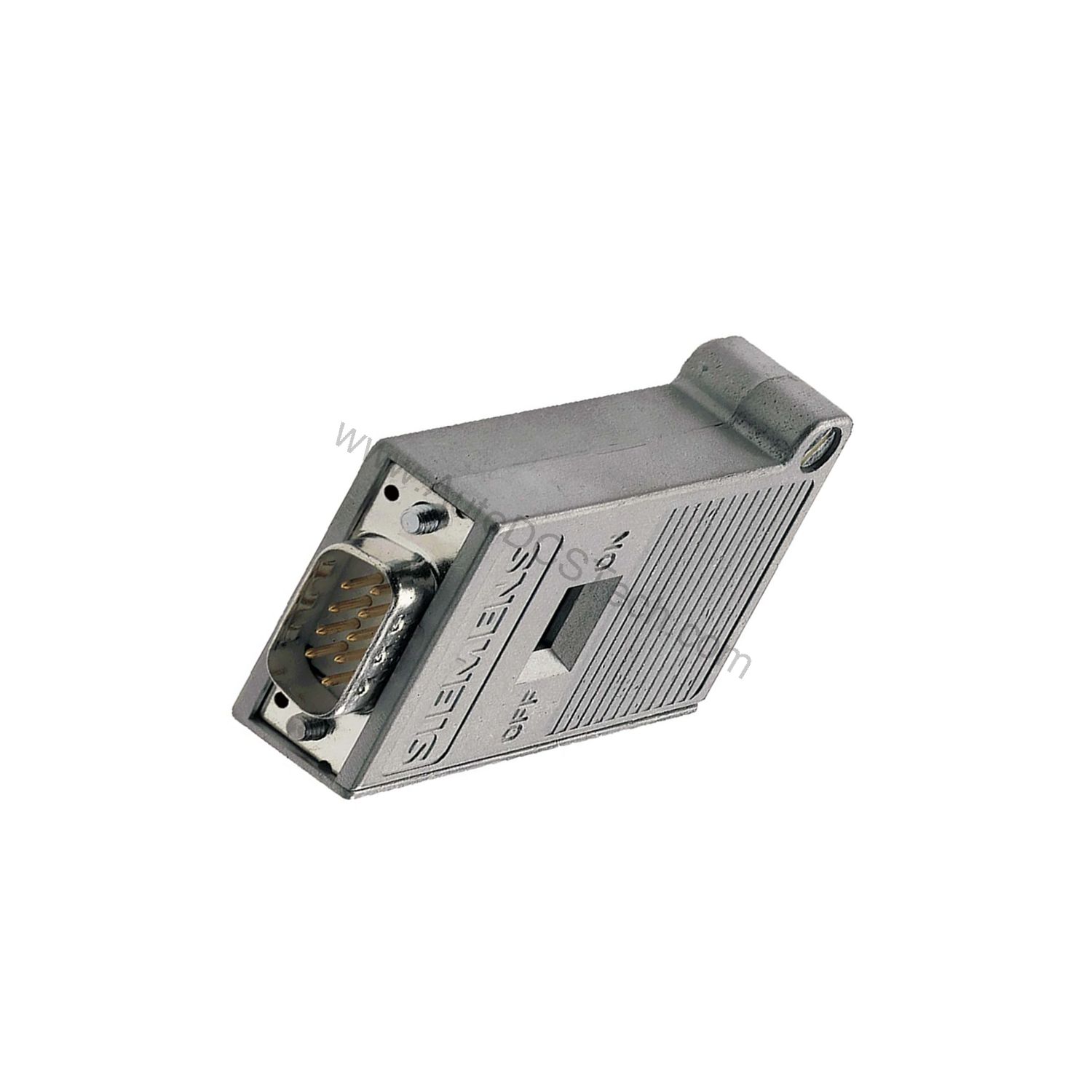

Introduction to the Siemens 6GK1500-0EA02
When a production line suffers intermittent communication dropouts, the Siemens 6GK1500-0EA02 PROFIBUS bus connector provides a robust solution. It supports transmission rates from 9.6 kbit/s up to 12 Mbit/s, ensuring compatibility with both legacy and high-speed PROFIBUS networks.
The metal enclosure offers durability in harsh environments, while the integrated terminating resistor with isolating function simplifies network termination. Whether you are connecting SIMATIC OPs, industrial PCs, or optical link modules (OLMs), this connector delivers consistent performance.
Key Features and Technical Specifications
- Transmission rate: 9.6 kbit/s to 12 Mbit/s in PROFIBUS networks.
- Connectors: 2 terminal blocks for PROFIBUS cables and 1 SUB-D plug (9-pin) for network components.
- Terminating resistor: Integrated, switchable via slide switch; provides bus isolation when engaged.
- Housing material: Metal for enhanced shielding and mechanical strength.
- Cable outlet: 180° axial design for space-saving installation.
- Dimensions: 15 mm width, 57 mm height, 39 mm depth; net weight 100 g.
- Ambient temperature: Operating 0 to 60 °C; storage and transport -25 to +80 °C.
- Relative humidity: Max 75% at 25 °C during operation (non-condensing).
- Degree of protection: IP20.
- Certifications: RoHS-compliant; no UL or cULus approval.
The isolating function of the terminating resistor is a distinctive feature: when the resistor is connected, it separates the disconnected bus segment, preventing signal reflections and ensuring stable communication. This is critical for maintaining data integrity in multi-drop PROFIBUS installations.
Real-World Application Scenarios
In a typical automotive assembly line, the 6GK1500-0EA02 connects a SIMATIC OP to a PROFIBUS DP network. The axial cable outlet allows the connector to fit into a compact control cabinet, while the metal housing resists vibration and electromagnetic interference. The switchable terminating resistor simplifies network commissioning, as technicians can enable termination without opening the connector.
Another use case involves retrofitting an older PROFIBUS segment with higher-speed devices. The connector's support for 12 Mbit/s ensures future-proofing, and the isolating function helps isolate faulty nodes without shutting down the entire line.
Installation and Setup Guidance
Proper installation of the 6GK1500-0EA02 begins with verifying the cable type. The connector uses terminal blocks for PROFIBUS cables, so strip the cable insulation carefully and secure the wires firmly. For the SUB-D connection to network components, ensure the plug is fully seated and the fixing screw is tightened to prevent accidental disconnection.
When using the terminating resistor, set the slide switch to the 'on' position only at the physical ends of the PROFIBUS segment. This prevents signal reflections and ensures reliable communication. Always power down the bus before making or breaking connections to avoid damage.
Maintenance and Reliability Tips
Regular inspection of the connector is recommended, especially in high-vibration environments. Check that the fixing screw remains tight and that the cable jacket is not cracked or worn. The metal housing provides protection, but periodic visual checks help catch issues early.
Because the connector is RoHS-compliant and silicone-free, it is suitable for applications with strict environmental requirements. The IP20 rating means it should be installed in a protected enclosure to avoid dust and moisture ingress.
Compatibility and Integration
The 6GK1500-0EA02 is designed for PROFIBUS networks, working with Siemens SIMATIC OPs, industrial PCs, and OLMs. It supports PROFIBUS DP and FMS protocols, as well as MPI (Multi-Point Interface) when used with appropriate devices. The connector is not FastConnect compatible, so standard PROFIBUS cables with terminal block termination are required.
For troubleshooting, if communication errors occur, verify that the terminating resistors are correctly placed at both ends of the bus. Also, check that the transmission rate setting on all devices matches the network configuration. The connector's isolating function can help isolate a faulty segment for testing.
Product Support and Availability
The Siemens 6GK1500-0EA02 is available at AutoDCSTech. We ensure prompt delivery and reliable support for your automation needs.
Availability & Condition at AutoDCSTech
| Part Number | 6GK1500-0EA02 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
