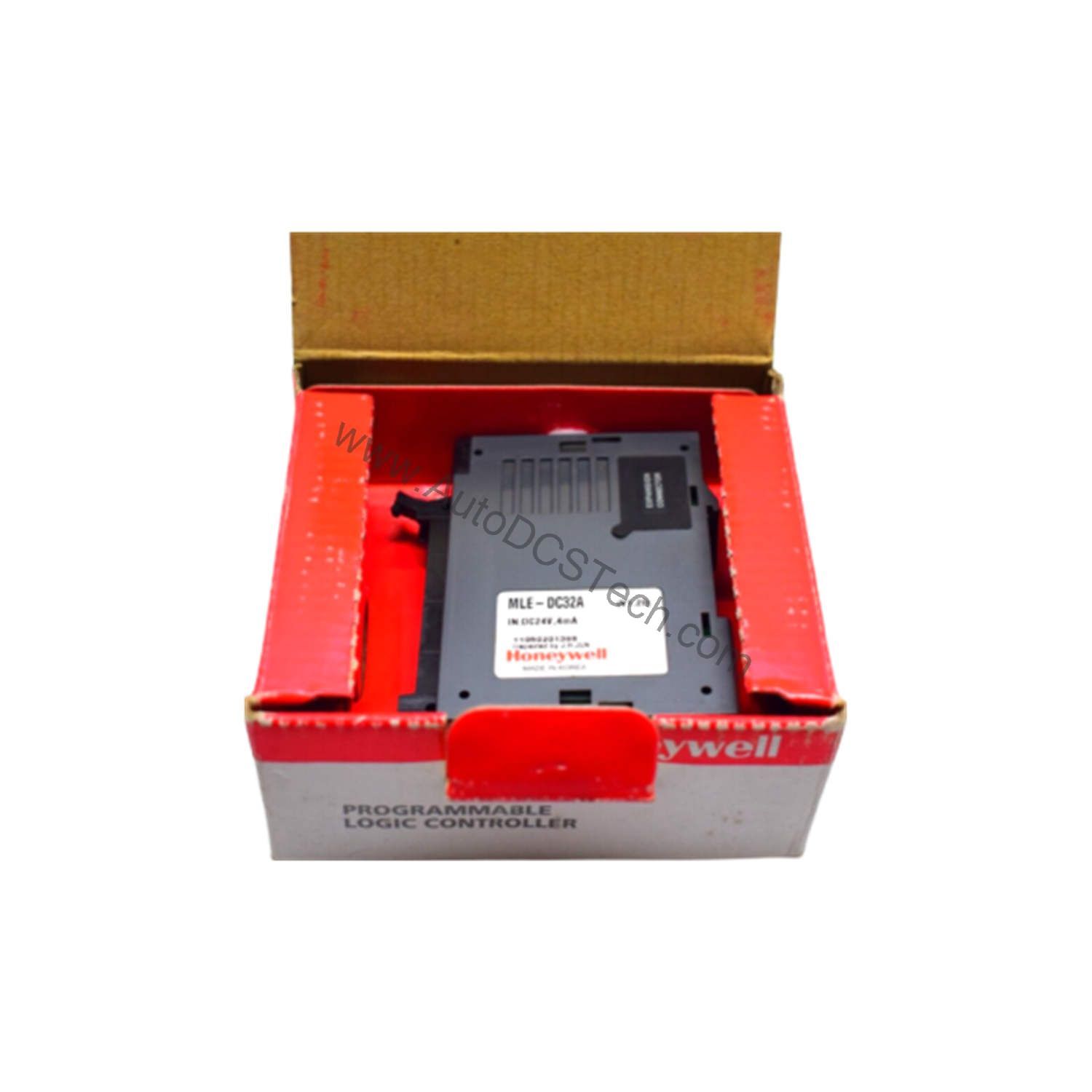

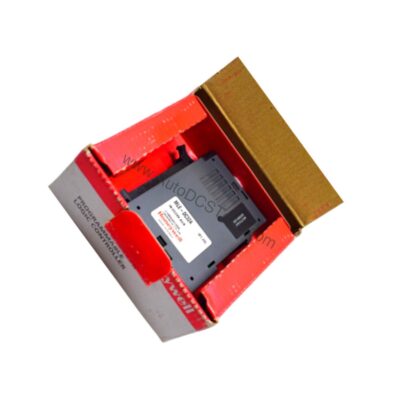

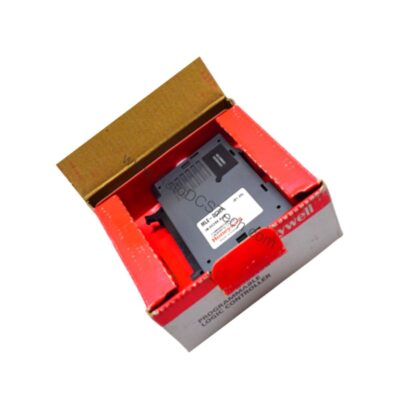

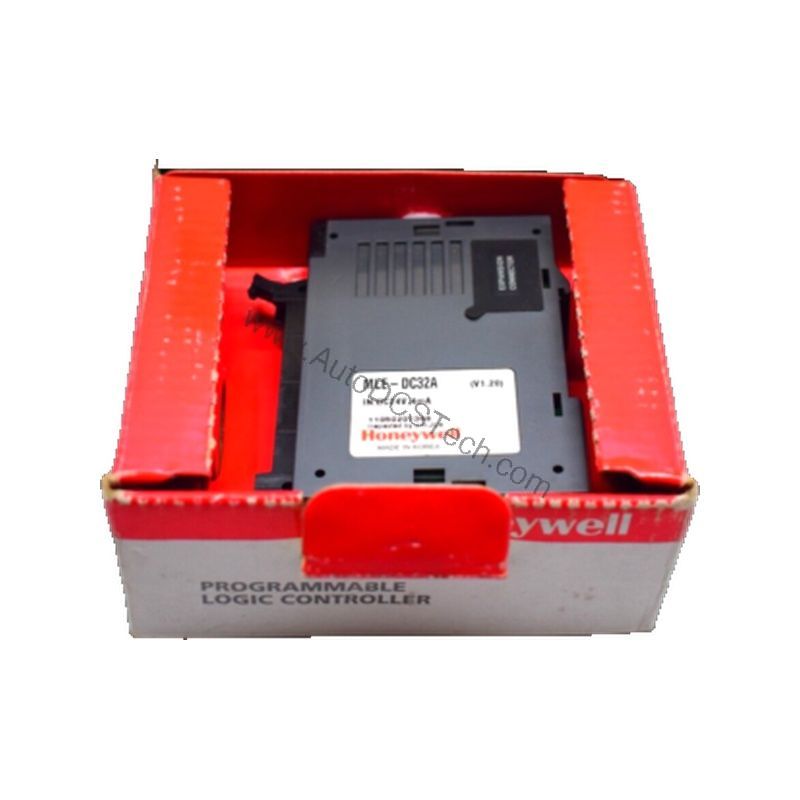

Honeywell MLE-DC32A Digital Input Module – 24 VDC, 32-Channel

Technical Specifications Breakdown

Key parameters for the MLE-DC32A are listed below for quick reference:

Industry Applications

This digital input module is well-suited for a variety of automation tasks. In manufacturing, it can monitor limit switches, proximity sensors, and pushbuttons, feeding critical status data to the PLC. In process control, it handles discrete signals from valves and relays, ensuring accurate state detection. The configurable response times (1ms to 100ms) allow engineers to tailor the module to specific application needs, balancing speed with noise immunity.

Installation & Setup Guidance

When installing the MLE-DC32A, ensure the power supply meets the rated input voltage of DC24V and stays within the operation voltage range of DC20.4~28.8V. Verify that the ripple rate is below 5% to avoid false triggering. Connect the field wiring to the appropriate terminals, respecting the common method of 32 points per COM. Configure the response times via the CPU parameters to match your process requirements. Always follow the manufacturer's guidelines for proper grounding and shielding.

Honeywell MLE-DC32A Digital Input Module: Precision and Reliability

Industrial control systems demand precise signal acquisition and dependable performance. The Honeywell MLE-DC32A is a 32-channel digital input module engineered for 24 VDC applications, offering a robust solution for monitoring discrete signals in demanding environments.

Maintenance & Reliability

Periodic inspection of the module and its connections is recommended to maintain reliable operation. Check for loose terminals, signs of corrosion, or damage to the wiring. Ensure the operating environment stays within acceptable temperature and humidity limits (not specified, but typical for industrial electronics). The insulation resistance should be tested periodically with a megger to confirm it remains above 10MΩ.

Compatibility & Integration

The MLE-DC32A is designed to work within Honeywell control systems. It provides a standard digital input interface, making it compatible with Honeywell PLCs and DCS platforms that support 24 VDC input modules. For specific compatibility details, consult your system documentation or contact AutoDCSTech for assistance.

Selection Guide & Purchasing Advice

When selecting a digital input module, consider the number of channels, voltage rating, and response time flexibility. The MLE-DC32A offers 32 channels and a wide range of configurable response times, making it a versatile choice. For availability and lifecycle status, please verify with AutoDCSTech before ordering. AutoDCSTech is your reliable partner for industrial automation parts, offering genuine components and expert support.

Troubleshooting & Common Issues

If the module fails to read inputs correctly, first check the input voltage and current against the specified on/off thresholds. Ensure the input signal meets the required levels (DC19V or higher for ON, DC6V or lower for OFF). Verify that the response time settings are appropriate for the signal frequency. If problems persist, inspect the wiring for shorts or opens, and confirm that the common connection is properly established.
