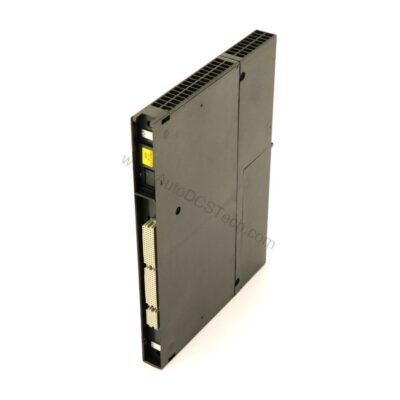

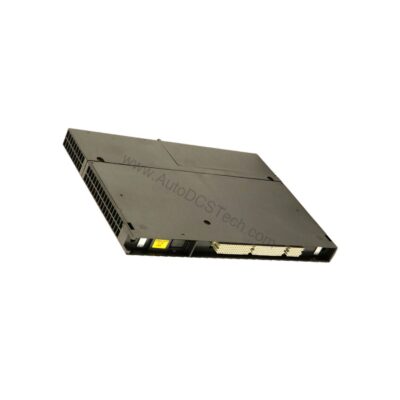

6ES7461-0AA00-0AA0 Receiver Interface Module | Siemens

Key Features and Technical Specifications

The 6ES7461-0AA00-0AA0 is designed for centralized connection without PS transmission, making it a cost-effective choice for many applications. It includes a K bus terminator, which is essential for proper signal termination in the bus system. The module is part of the IM461-0 series, specifically the F/CENT.LINK 3M (R) revision, indicating its compatibility with central link configurations up to 3 meters.

• Receiver interface module for centralized connection without PS transmission

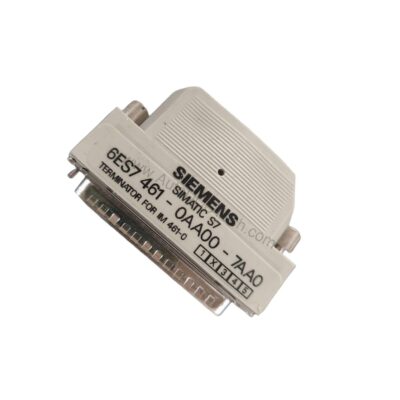

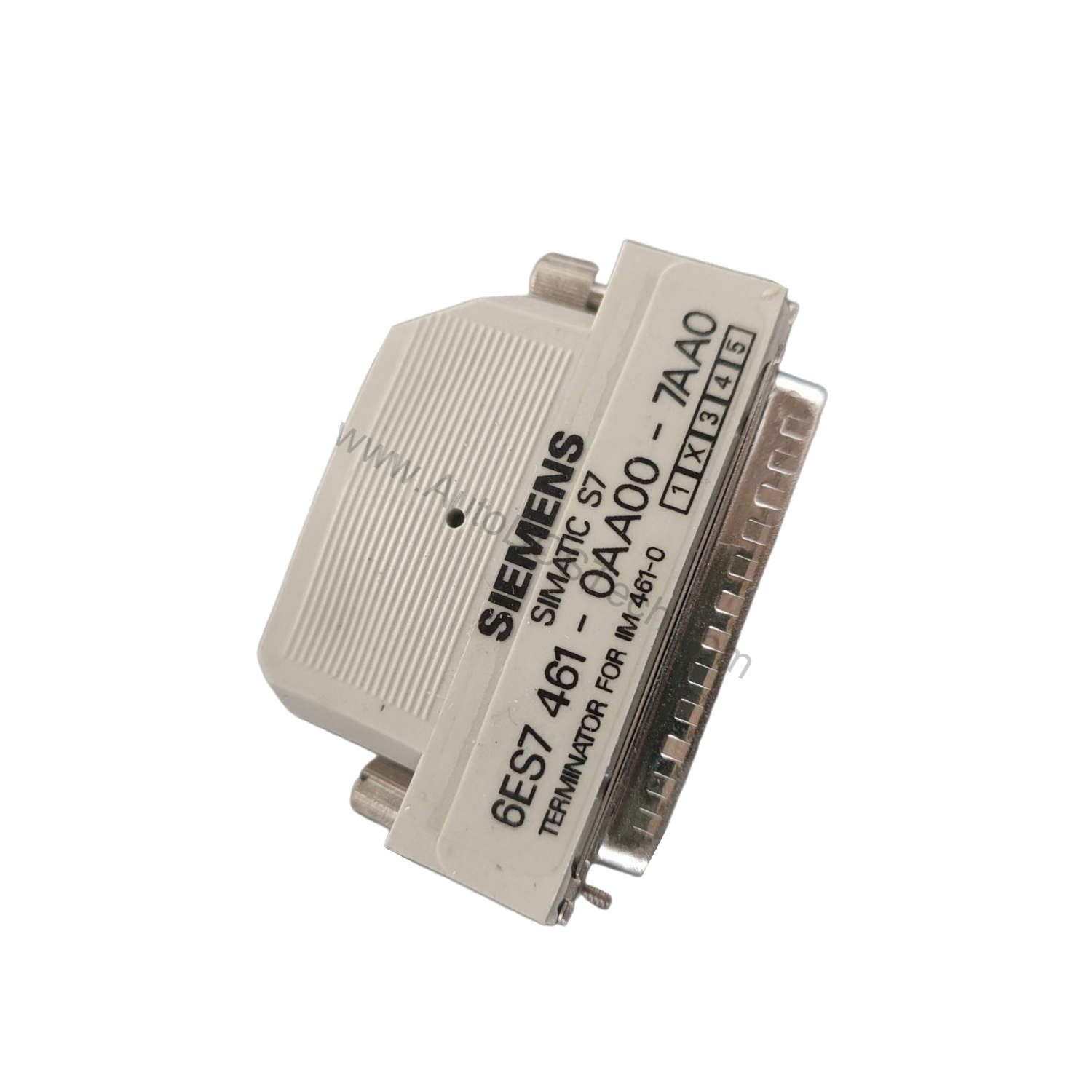

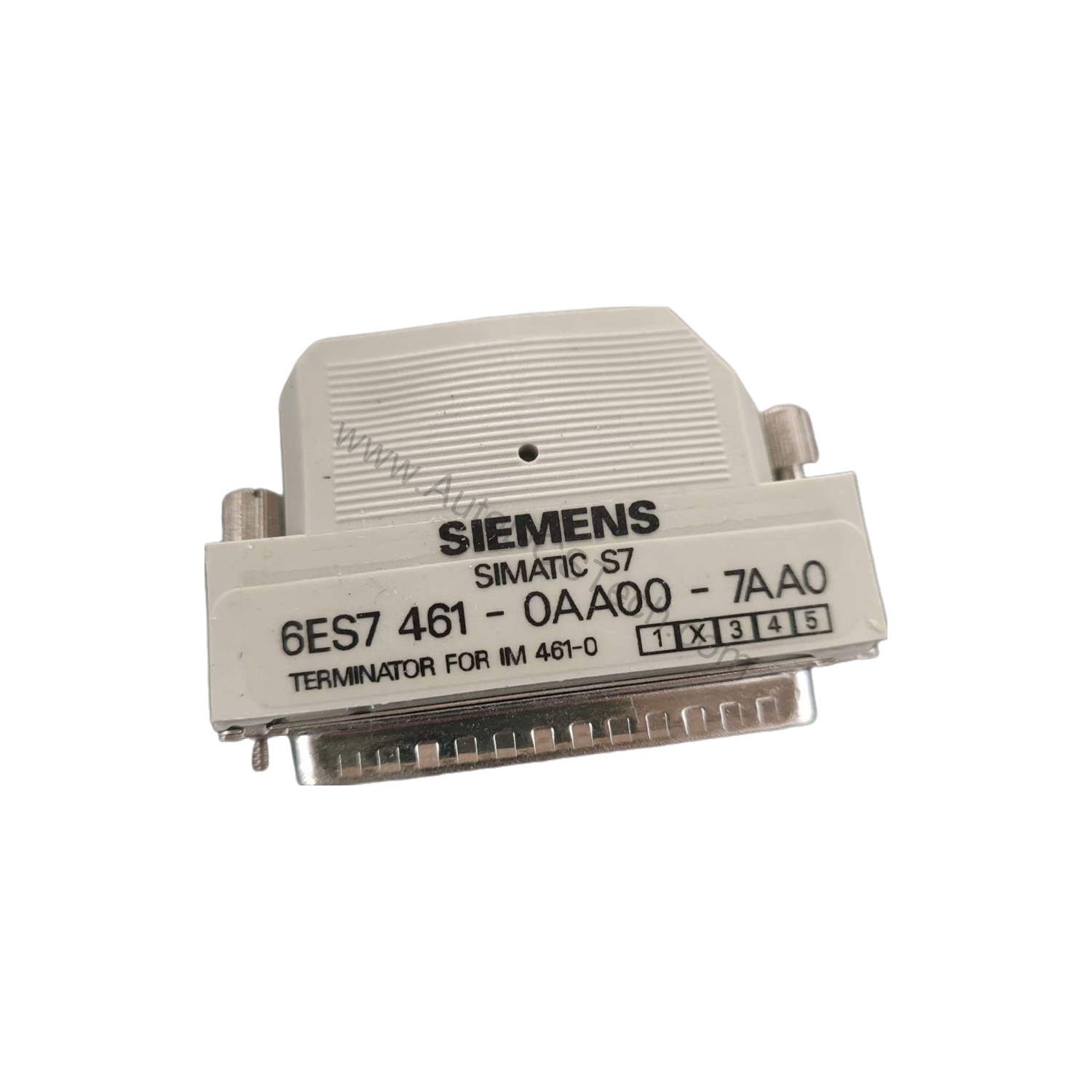

• Includes K bus terminator for reliable bus operation
• Revision IM461-0 F/CENT.LINK 3M (R) ensures specific compatibility
• Designed for use in Siemens S7-400 systems

This module simplifies your setup by eliminating the need for separate power supply transmission, reducing wiring complexity and potential failure points. The integrated terminator ensures signal integrity, which is critical for maintaining communication stability.

Applications and Use Cases

In industrial automation, the 6ES7461-0AA00-0AA0For example, in a manufacturing plant with a central control cabinet, this module connects remote I/O racks efficiently. Consequently, engineers can achieve reliable data exchange without additional power infrastructure.

Installation and Setup

Installing the 6ES7461-0AA00-0AA0 is straightforward, but careful attention to the bus terminator is essential. Ensure the terminator is correctly seated to avoid signal reflections. Additionally, verify that the central link cable length does not exceed the specified 3 meters to maintain optimal performance. Always follow Siemens installation guidelines for your specific S7-400 rack configuration.

Maintenance and Reliability

Regular inspection of the module's connections and the K bus terminator is recommended to prevent intermittent faults. Since the module operates without PS transmission, there are fewer components to wear out, enhancing long-term reliability. Periodically check for dust accumulation on the connectors and ensure proper ventilation around the rack to maintain stable operating temperatures.

Compatibility and Integration

The 6ES7461-0AA00-0AA0 is part of the Siemens S7-400 family, ensuring seamless integration with other S7-400 components. It is designed for centralized connection, making it compatible with standard S7-400 racks and backplanes. For detailed integration guidance, consult the official Siemens documentation or contact AutoDCSTech for expert advice.

Troubleshooting and Common Issues

If communication errors occur, first check the K bus terminator seating and the central link cable integrity. A loose terminator can cause intermittent signal issues. Also, verify that the module is firmly inserted into the rack and that all locking mechanisms are engaged. If problems persist, refer to Siemens diagnostic tools to isolate the fault.

Product Support and Availability

The 6ES7461-0AA00-0AA0 is available from AutoDCSTech, a trusted industrial automation parts supplier. Contact our team to confirm current stock and lead times. We are ready to assist with your automation needs.
