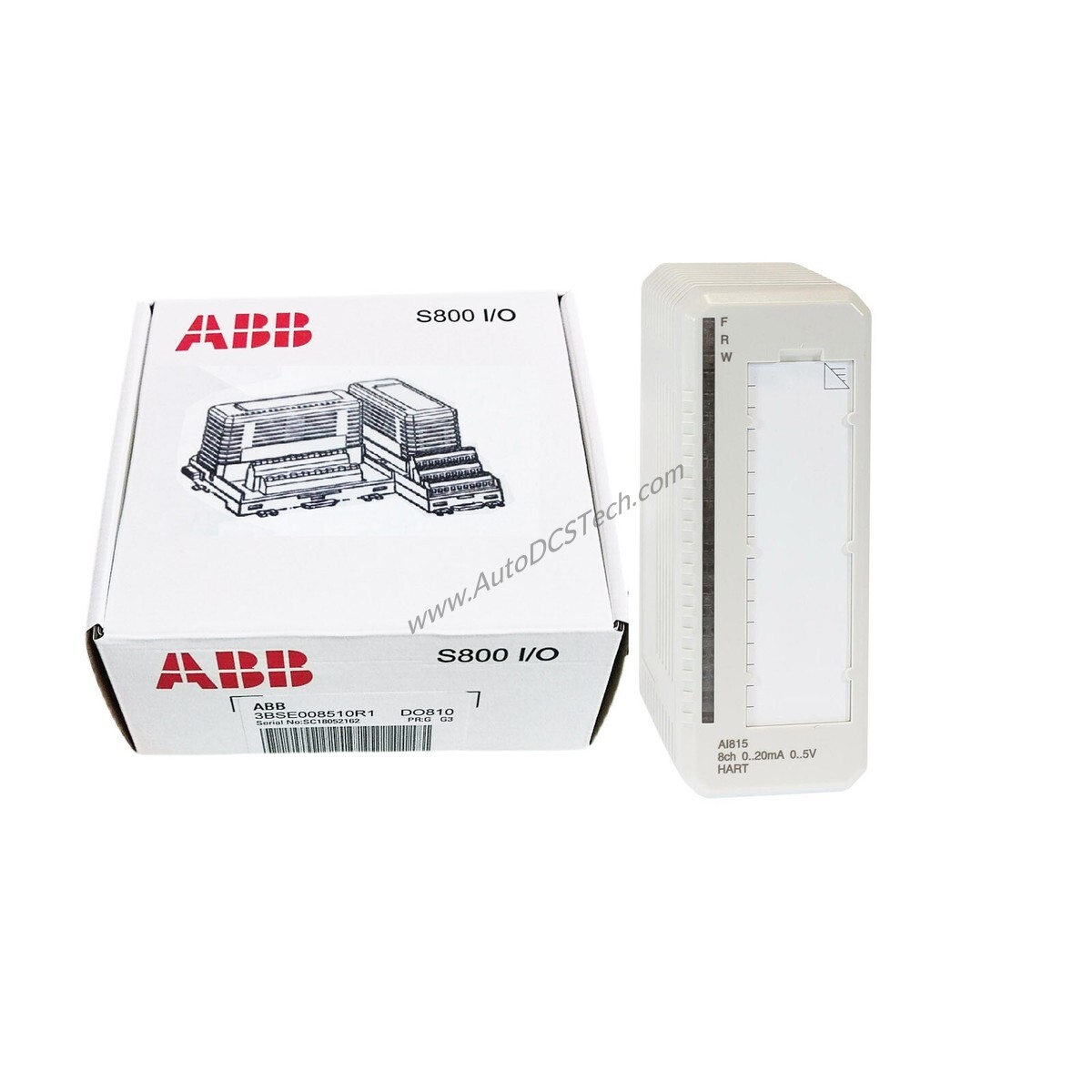

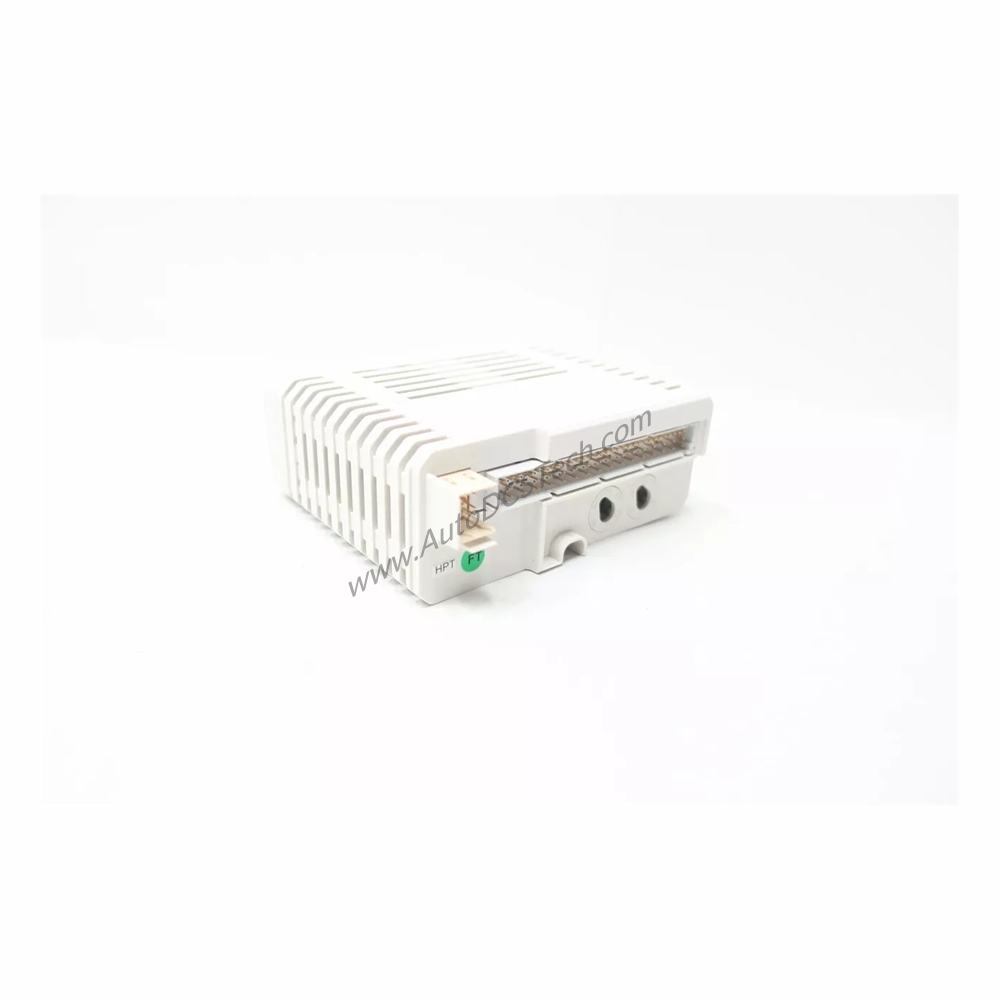

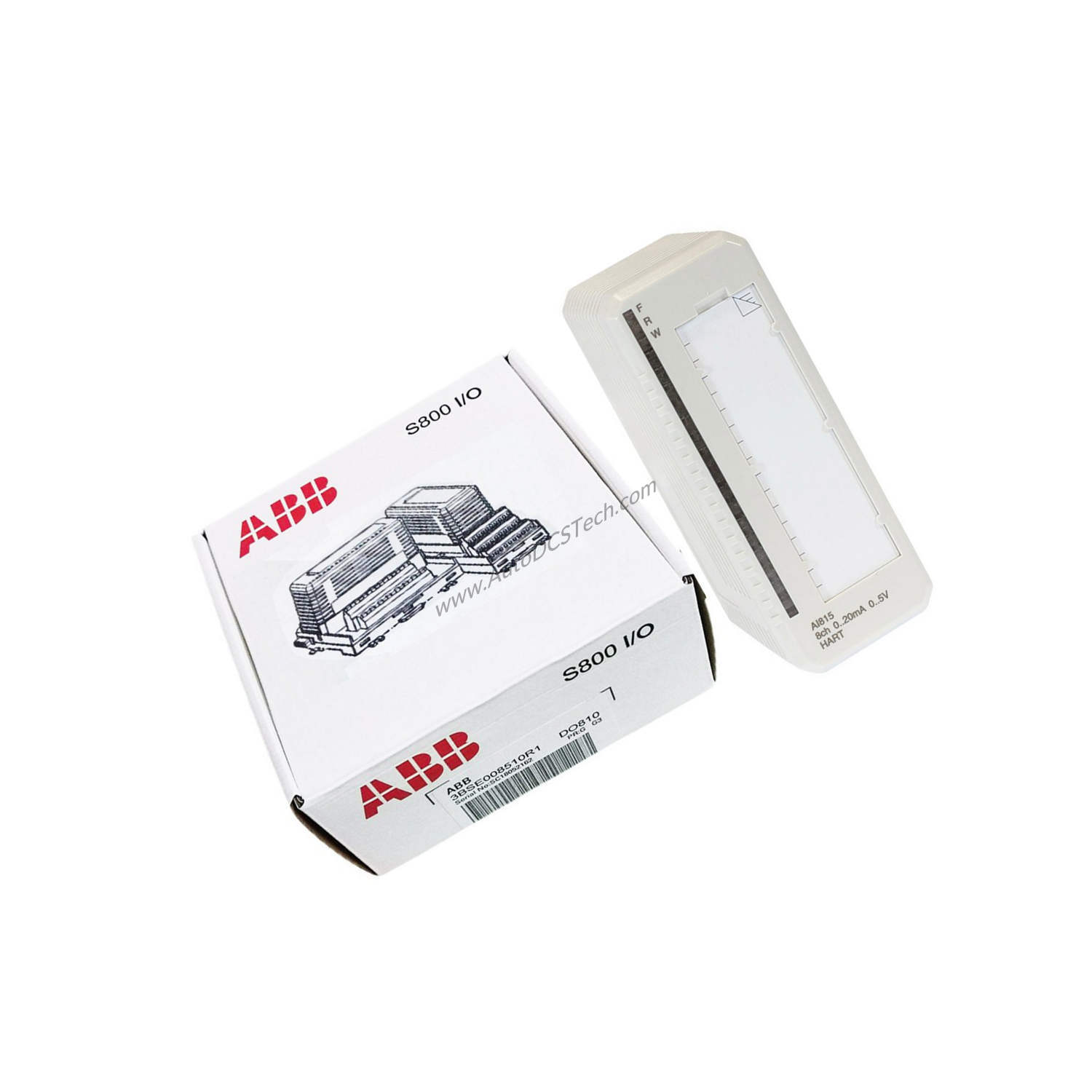

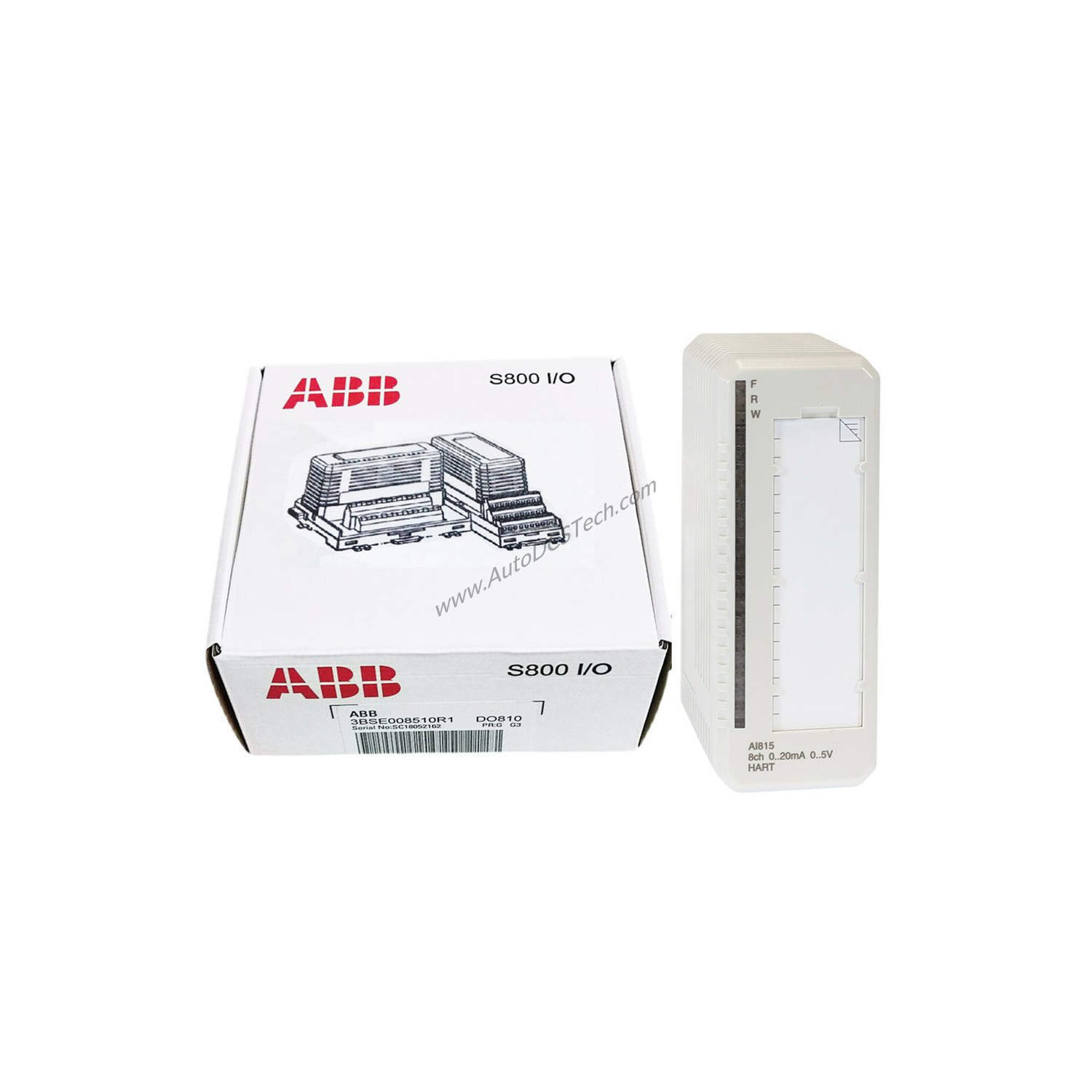

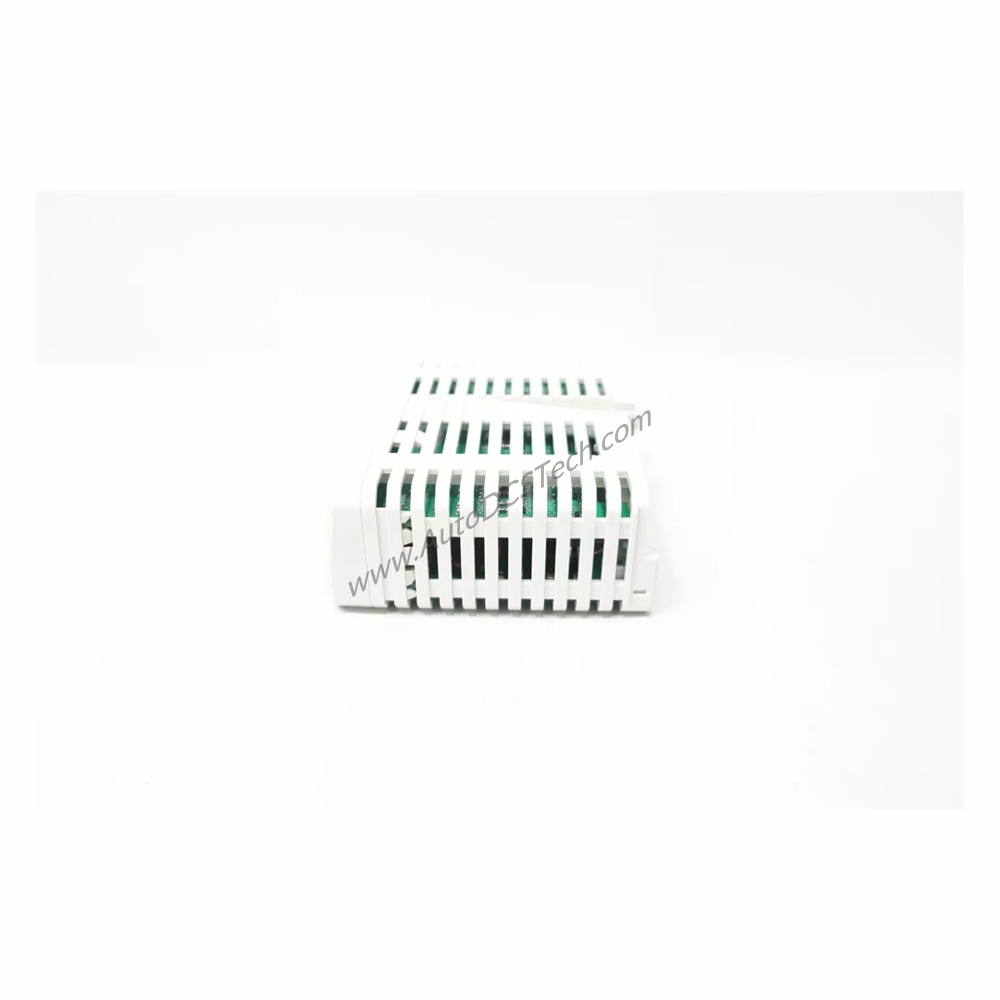

What Is the ABB AI815 Analog Input Module?
Struggling with signal accuracy and transmitter integration in your process control system? The ABB AI815 Analog Input Module delivers a reliable solution for demanding industrial environments. This 8-channel module accepts unipolar single-ended inputs for 0...20 mA, 4...20 mA, 0...5 V, or 1...5 V d.c. signals. It features built-in HART pass-through communication, enabling seamless integration with smart transmitters. The AI815 belongs to the ABB S800 I/O family, ensuring compatibility with ABB control systems.
Technical Specifications Breakdown
The AI815 provides 12-bit resolution for precise measurement. Input impedance is greater than 10 MΩ for voltage inputs and 250 Ω for current inputs. The module offers groupwise isolation from ground for one group of eight channels. It withstands overvoltage or undervoltage of at least 11 V d.c. Key performance specs include a maximum error of 0.1%, temperature drift of 50 ppm/°C, and an update cycle time of 10 ms. The input filter has a rise time of 0-90% at 290 ms. Power dissipation is 3.5 W, with current consumption of 100 mA on the +5 V Modulebus and 50 mA on the +24 V Modulebus. External +24 V consumption reaches a maximum of 265 mA. The module supports HART pass-through and includes a current-limited transmitter supply per channel.
Industry Applications
In chemical processing plants, the AI815 monitors critical parameters like pressure and temperature via 4...20 mA loops, ensuring accurate data for safety systems. Its HART capability allows remote configuration and diagnostics of smart transmitters, reducing maintenance visits. In water treatment facilities, the module handles 0...20 mA signals from flow meters, providing reliable data for regulatory compliance. The ability to withstand overvoltage conditions protects against transient faults, minimizing downtime.
Installation and Setup Guidance
Mount the AI815 on a suitable S800 mounting terminal unit (MTU) such as TU810, TU812, TU814, TU830, TU833, TU835, or TU838. Ensure the module is properly keyed with code CC. Connect field wiring to the MTU terminals, respecting polarity for current inputs. For voltage inputs, use shielded cables to reduce noise. The maximum field cable length is 600 meters (656 yards). Do not mix voltage and current signals on the same module. Verify the external power supply is HART compatible if used for feeding HART transmitters.
Maintenance and Reliability
The AI815 includes front LEDs for fault (F), run (R), and warning (W) status. Supervision monitors module errors such as analog readback, reference voltage, internal power supply, checksum, watchdog, and memory errors. External channel errors detect low external power supply or transmitter power issues. Operate the module within 0 to +55 °C (+32 to +131 °F) for standard use, and store between -40 to +70 °C (-40 to +158 °F). The IP20 protection class suits clean indoor environments. Regular inspection of connections and environmental conditions ensures long-term reliability.
Compatibility and Integration
The AI815 integrates with ABB control systems via the S800 I/O bus. It works with MTUs like TU810V1 and other listed models. The module supports HART pass-through communication, allowing configuration tools to access smart field devices. For redundancy or high-integrity applications, note that this module does not support redundancy or high integrity configurations. Always verify compatibility with your specific controller and software version.
Selection Guide and Purchasing Advice
Before ordering the ABB AI815 (article number 3BSE052604R1), confirm your system requires an 8-channel analog input module with HART capability. Verify the MTU type and keying code CC match your backplane. Consider environmental factors like temperature and humidity. SpareTechPLC offers this module with detailed specifications to help you make an informed choice. Contact our team for availability and lifecycle status.
Frequently Asked Questions
Can the AI815 handle both voltage and current inputs simultaneously?
No, the module cannot mix voltage and current signals on the same I/O module. You must configure all channels for either voltage or current input.
What is the maximum cable length for field wiring?
The maximum field cable length is 600 meters (656 yards). Use appropriate cable types to maintain signal integrity.
Does the AI815 support HART communication?
Yes, the module includes HART pass-through communication, enabling digital communication with HART-compatible transmitters.
What is the resolution of the AI815?
The module provides 12-bit resolution, offering adequate precision for most process control applications.
What certifications does the AI815 hold?
It carries CE mark, electrical safety certifications per EN 61010-1 and UL 61010-1, hazardous location approvals (C1 Div 2, C1 Zone 2, ATEX Zone 2), and marine certifications from BV, DNV, and LR.
