Product Overview

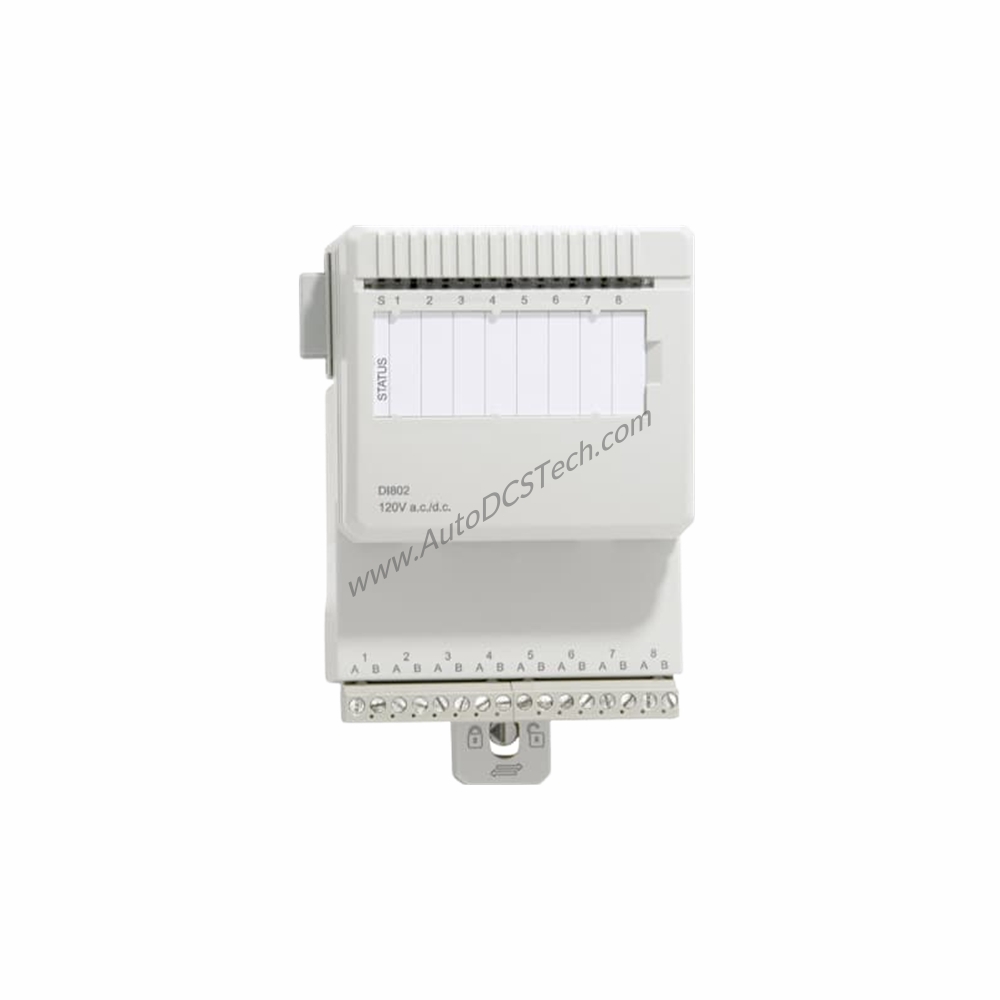

When industrial automation systems demand reliable signal acquisition from field devices, the ABB DI802 digital input module delivers a cost-effective solution. This 8-channel module accepts 120 V AC/DC inputs, making it ideal for high-voltage sensing in harsh environments. Part of the S800 I/O family, the DI802 provides individually isolated channels to eliminate ground loops and reduce wiring errors—directly lowering installation and troubleshooting costs.
Technical Specifications Breakdown
The DI802 offers precise input ranges that ensure compatibility with common industrial signals. For AC inputs, the voltage range spans 77 to 130 V, with a typical input current of 10 mA at 120 V AC. For DC inputs, the range is 75 to 145 V, drawing only 2.8 mA at 110 V DC. This low current consumption (typ. 2.8 W power dissipation) reduces energy costs over the module's lifetime. Each channel features a 12 kΩ impedance for AC and 39 kΩ for DC, minimizing signal loading. The module supports selectable digital filter times of 2, 4, 8, or 16 ms, allowing you to balance noise immunity with response speed—avoiding false triggers that cause costly downtime.
Industry Applications
In manufacturing plants, the DI802 monitors limit switches, push buttons, and proximity sensors on 120 V AC circuits. Its individually isolated channels prevent a single fault from disabling multiple inputs, improving system availability. For process industries, the module handles DC signals from valve position feedback or level switches. The voltage supervision on channel 8 alerts operators to field power loss, preventing undetected failures that could halt production. By using the DI802, facilities reduce spare parts inventory—one module covers both AC and DC applications.
Installation & Setup Guidance
Mount the DI802 on an S800L base unit (mechanics type S800L). Use detachable connectors for process wiring, supporting solid wires from 0.05 to 2.5 mm² (30-12 AWG) or stranded wires from 0.05 to 1.5 mm² (30-12 AWG). Recommended torque is 0.5-0.6 Nm, with a stripping length of 6-7.5 mm (0.24-0.30 inches). Keep field cable length within 200 meters for AC (100 pF/m) and 600 meters for DC to maintain signal integrity. Proper installation minimizes noise-induced errors that cause rework and scrap.
Maintenance & Reliability
The DI802 includes built-in diagnostics: front LEDs indicate channel status (0 or 1) and module status (run or fault). Supervision of process voltage on channel 8 generates Module Error, Module Warning, or Channel Error alerts. This proactive monitoring reduces unplanned maintenance by catching issues early. The module operates from 0 to +55 °C (+32 to +131 °F) and stores from -40 to +70 °C (-40 to +158 °F), with IP20 protection. Its corrosion protection meets ISA-S71.04 G3, extending service life in aggressive environments. Regular inspection of connectors and LED indicators ensures long-term reliability, lowering total cost of ownership.
Compatibility & Integration
The DI802 integrates seamlessly with ABB S800 I/O systems via the Modulebus, consuming 50 mA from the +5 V bus. It supports AC frequencies from 47 to 63 Hz. The module is CE marked and complies with electrical safety standards EN 61010-1 and UL 61010-1. Marine certifications include ABS, BV, DNV, and LR. For new installations or upgrades, the DI802's standard form factor (86.1 mm width, 58.5 mm depth, 110 mm height; 0.24 kg weight) fits existing cabinets without modification, saving engineering time.
Selection Guide & Purchasing Advice
Before ordering the DI802 (article number 3BSE022360R1), verify your system's voltage requirements: the module accepts 77-130 V AC and 75-145 V DC. Ensure your base unit supports S800L mechanics. For applications needing redundancy or high integrity, note that this module does not support those features. Contact SpareTechPLC for current availability and lifecycle status. We stock genuine ABB modules to keep your operations running without delay.
