Product Overview

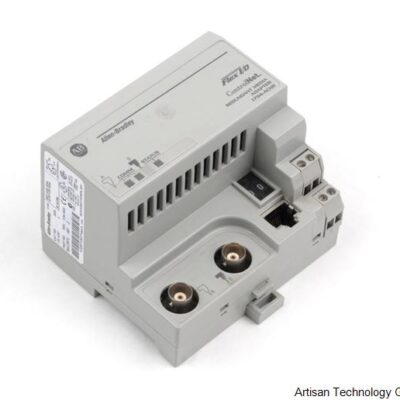

The Allen-Bradley 1794-VHSC is a Flex I/O Very High Speed Counter Module designed for precise high-speed counting in demanding industrial environments. Manufactured by Rockwell Automation, this module provides two input channels, each with two groups of three inputs, enabling flexible encoder and counter configurations. Its robust design supports reliable operation in programmable controller systems with EtherNet capability, making it a key component for motion control and position feedback applications.
Technical Specifications Breakdown
Key parameters for the 1794-VHSC are listed below for quick reference:
| Feature | Specification |
|---|---|
| Input Channels | 2 |
| Inputs per Counter | 2 Groups of 3 |
| Input Voltage | 5V DC |
| Input Off-state Voltage | <1.8V DC |
| Input Off-state Current | <0.25 mA |
| Input On-state Current | >5mA |
| Outputs | 2 Isolated Groups of 2 |
| Output Supply Voltage Range | 10-31V DC |
| Power Dissipation | 5.0W @ 31.2V DC max. |
| Thermal Dissipation | 17.1 BTU/hr. @ 31.2V DC max. |
Industry Applications
This module excels in high-speed counting tasks such as monitoring conveyor belt speeds, measuring rotational encoder pulses in packaging machinery, and tracking part counts in assembly lines. Its two isolated output groups allow direct control of actuators or alarms, reducing response time. For engineers seeking to optimize throughput, the 1794-VHSC offers a cost-effective solution by integrating counting and output control in a single module, minimizing additional hardware and wiring costs.
Installation & Setup Guidance
Mount the 1794-VHSC on a compatible 1794-TB3G or 1794-TB3GS terminal base unit. Ensure the external power supply is within 19.2-31.2V DC nominal (24V DC) and provides at least 100mA at 24V DC. Configure the module's input channels for 5V DC termination based on the terminal base wiring. Use the key-switch position to prevent incorrect insertion. Verify isolation between groups (50V basic insulation type, tested at 850V DC for 1 second) to maintain signal integrity.
Maintenance & Reliability
Operate the module within 0 to 55 °C (32 to 131 °F) and 5-95% humidity for optimal reliability. Periodically inspect the terminal base connections for tightness and cleanliness. The module's solid-state design requires minimal maintenance, but environmental factors like dust or vibration should be monitored to prevent performance degradation.
Compatibility & Integration
The 1794-VHSC integrates with programmable controllers supporting EtherNet connectivity via the Flex I/O backplane. It communicates using the Flexbus, drawing 75mA at 5V DC. The module supports up to 1 MHz input frequency, compatible with various incremental encoders and high-speed sensors. Ensure the controller firmware supports very high-speed counter modules for seamless configuration.
Selection Guide & Purchasing Advice
When selecting the 1794-VHSC, verify your system's input voltage requirements (5V DC) and output supply range (10-31V DC). For applications needing higher output current, consider external drivers. SpareTechPLC offers this module with reliable availability and expert support. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If the module fails to count, check the input off-state voltage (5mA) against sensor specifications. Verify the external power supply voltage (19.2-31.2V DC) and Flexbus current (75mA at 5V DC). For output issues, confirm the output supply voltage is within 10-31V DC and load current does not exceed 0.5A at 5V DC or 1.0A at 12-24V DC. Inspect terminal base wiring for loose connections.
