Problem: Ground Loops Corrupt Analog Signals in Mixed I/O Systems

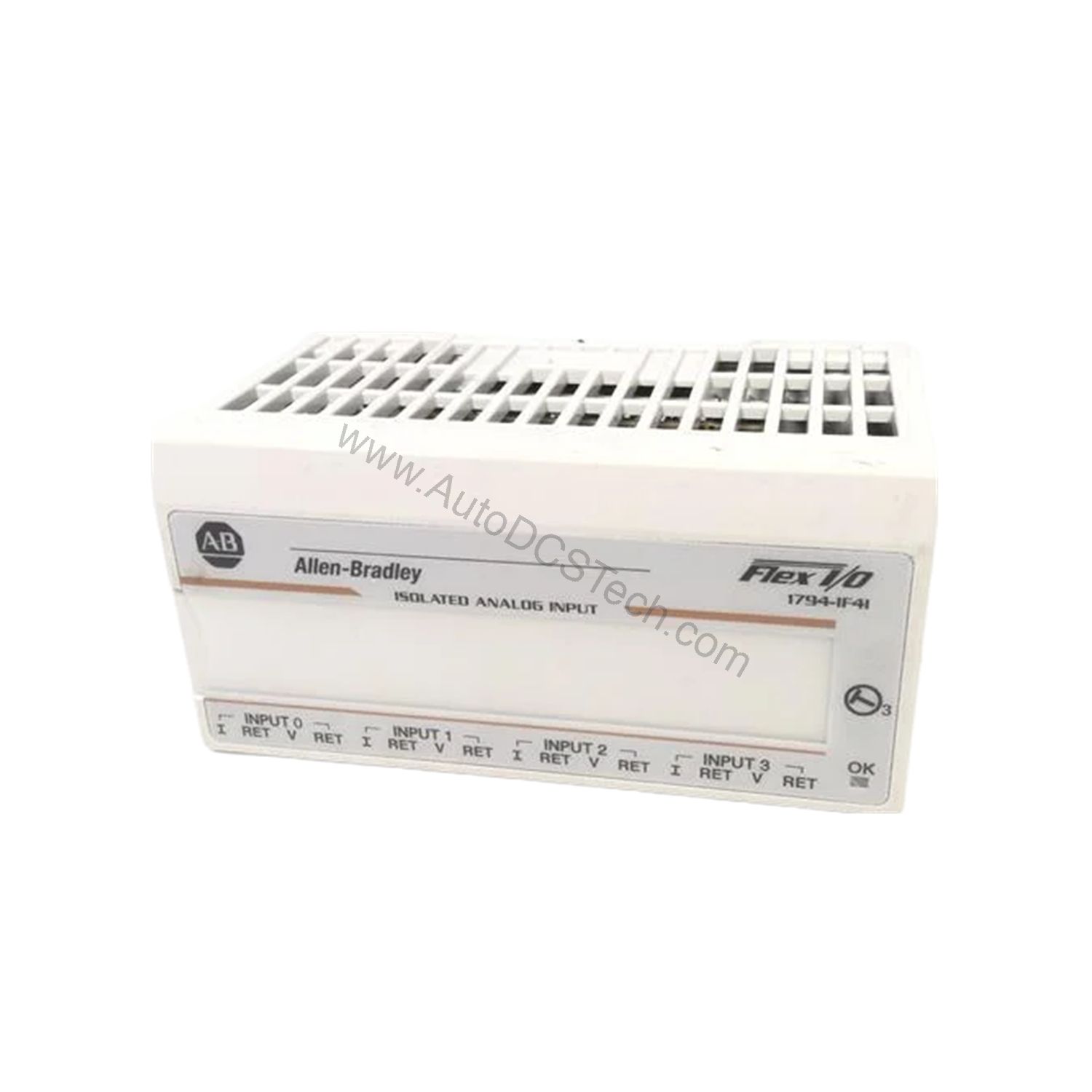

Mixed analog systems often fail when input and output commons share a single reference. Ground loops then inject noise into every channel. Consequently, process readings drift and control outputs become unreliable. The Allen-Bradley 1794-IF2XOF2I addresses this directly. It is an isolated analog combination module in the FLEX I/O (Bulletin 1794) family. Specifically, it provides two isolated analog inputs and two isolated analog outputs. Each channel therefore conditions its signal independently. As a result, noise on one loop cannot degrade another.
1794-IF2XOF2I Signal Handling and Conversion Accuracy
Input resolution is 16-bit. Output resolution is 15-bit plus sign. These ratings support fine process control across the full signal range. The module accepts 4-20mA, 0-20mA, plus/minus 10V, and 0-10V signals. Because the input and output sections are isolated, field wiring stays separated from the system side. This engineering-grade precision suits loops where exact scaling matters. In addition, the module requires an external 24V DC supply. The adapter side operates at 24V DC nominal with an input range of 19.2-31.2V DC. Field-side voltage remains model-dependent, so verify loop power against your specific wiring plan.
Key Specifications at a Glance
- Channels: 2 isolated analog inputs plus 2 isolated analog outputs
- Input Resolution: 16-bit
- Output Resolution: 15-bit plus sign
- Signal Ranges: 4-20mA, 0-20mA, plus/minus 10V, 0-10V
- Supply: External 24V DC
- Product Type: Analog Combination I/O Module (Isolated)
- Series: FLEX I/O / Bulletin 1794
Problem: Mounting and Backplane Complexity
FLEX I/O modules snap together and mount on a DIN rail. Each I/O module, however, requires a 1794-TBx terminal base. That base snaps to the rail and provides field wiring plus backplane connections. The backplane bus is FlexBus, and terminal bases link to form the bus. The 1794-IF2XOF2I connects through FlexBus and its terminal base. One adapter assembly supports a maximum of 8 I/O modules. It can handle up to 256 digital or 96 analog points per assembly. Therefore, plan module count and base ordering together.
Problem: Environmental Stress Reduces Service Life
Standard FLEX I/O modules operate from 0 to 55 C. Storage range is -40 to 85 C. The FLEX I/O-XT variant is rated -20 to 70 C. Heat, vibration, and contaminated air are the main wear factors. Inspect terminal base connections periodically and confirm enclosure ventilation. Because isolation limits fault propagation, a single field fault is less likely to damage adjacent channels. This reduces unplanned downtime and replacement cost over the module's service life.
Integration and Compatibility Notes
The module fits FLEX I/O adapter assemblies using the FlexBus backplane. It provides basic insulation from field to system. Isolation voltage is specified per module or per terminal base, not as a single family value. When wiring into a fieldbus network, an external gateway or connection module may be required. Confirm cables and gateways with the supplier before installation.
Support and Availability
AutoDCSTech supplies the 1794-IF2XOF2I for FLEX I/O systems. Contact AutoDCSTech with your exact requirements for precise matching.
