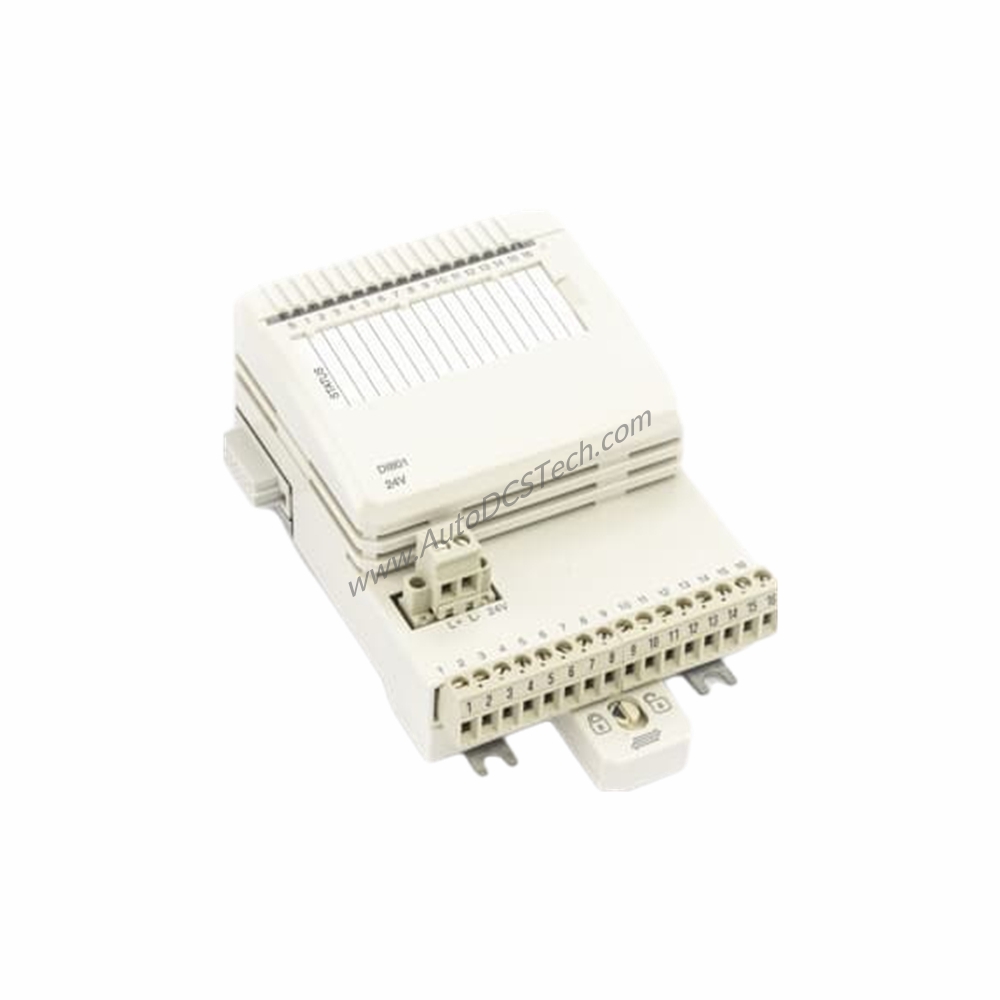

What Is the ABB DI801?
Struggling with reliable digital signal acquisition in industrial environments? The ABB DI801 offers a robust solution. This 16-channel 24V digital input module is part of the S800 I/O family, designed to handle 16 digital inputs with current sinking. Each channel includes current limiting, EMC protection, an input status LED, and optical isolation for reliable operation.
Key Technical Specifications
- Input Voltage Range: 18 to 30 V DC, with logic "0" at -30 to +5 V and logic "1" at 15 to 30 V.
- Input Current: 6 mA at 24 V.
- Input Impedance: 3.5 kΩ.
- Isolation: Groupwise isolated from ground; one isolated group of 16 channels.
- Channel 16: Can be used for voltage supervision input.
- Filter Times: Selectable digital filter times of 2, 4, 8, or 16 ms.
- Power Dissipation: Typically 2.2 W.
- Current Consumption: 70 mA from +5 V Modulebus; 0 mA from +24 V Modulebus.
- Supported Wire Sizes: Solid 0.05-2.5 mm² (30-12 AWG), stranded 0.05-1.5 mm² (30-12 AWG).
- Dimensions: 86.1 mm width, 58.5 mm depth, 110 mm height; weight 0.24 kg.
- Environmental: Operating temperature 0 to +55 °C, storage -40 to +70 °C, IP20 protection.
Industry Applications
In manufacturing and process control, the DI801 reliably captures discrete signals from sensors, push buttons, and limit switches. Its voltage supervision on channel 16 helps monitor power supply integrity, reducing unexpected downtime. The module's EMC protection and group isolation suit electrically noisy environments like automotive assembly lines.
Installation & Setup Guidance
Mount the DI801 on an S800L base unit. Connect field wiring using detachable connectors with the recommended torque of 0.5-0.6 Nm. Strip wires to 6-7.5 mm (0.24-0.30 inch). Ensure the 24 V DC supply is within 18-30 V. Select the appropriate digital filter time (2, 4, 8, or 16 ms) based on signal speed requirements.
Maintenance & Reliability
Regularly inspect the front LEDs for status indication (run/fault and channel states). Verify process voltage supervision on channel 16 to catch power issues early. The module's IP20 protection requires installation in a clean, dry enclosure. Periodic checks of connector tightness and environmental conditions help maintain long-term reliability.
Compatibility & Integration
The DI801 integrates seamlessly with ABB S800 I/O systems. It communicates via the Modulebus, consuming 70 mA from +5 V. The module supports CE marking, UL 61010-1, and hazardous location approvals (C1 Div 2, ATEX Zone 2).
Selection Guide & Purchasing Advice
Before ordering, confirm your system uses S800 I/O and requires a 16-channel 24V digital input module with current sinking. Verify the article number 3BSE020508R1. SpareTechPLC stocks the DI801 and can advise on availability and lifecycle status.
Frequently Asked Questions
Q1: Can the DI801 handle 24V AC inputs?
No, the DI801 is designed for 24V DC inputs only, with an input voltage range of 18 to 30 V DC.
Q2: How do I use channel 16 for voltage supervision?
Channel 16 can monitor the group's supply voltage. When configured for supervision, it indicates if the voltage falls outside the valid range.
Q3: What is the maximum field cable length?
The maximum field cable length is 600 meters (656 yards).
Q4: Is the DI801 suitable for SIL-rated safety applications?
The provided data does not indicate SIL certification. For safety applications, consult the manufacturer's guidelines.
Q5: What does the "S" LED indicate?
The front S(tatus) LED shows run or fault conditions of the module.
