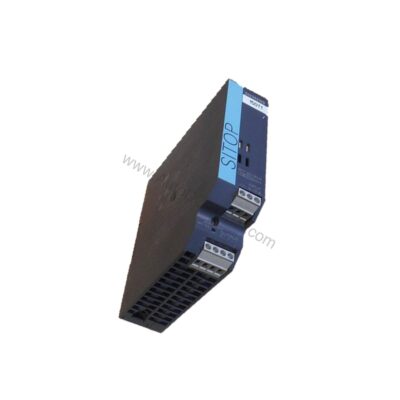

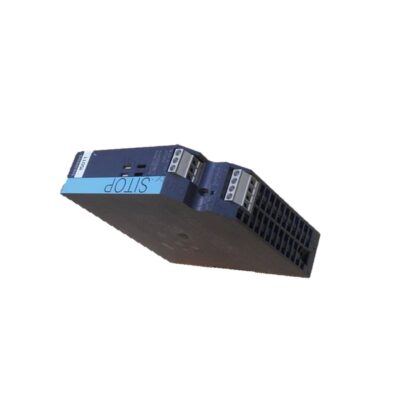

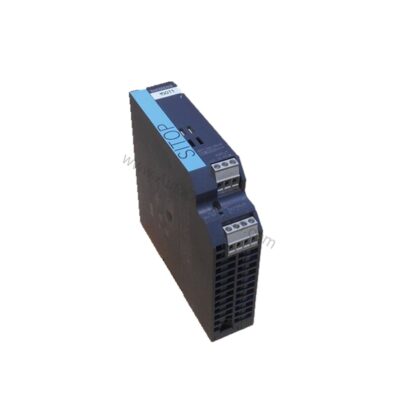

6EP1322-1SH03 12V 4.5A Power Supply

Introduction: Evolution of Compact Power Supplies

Industrial control cabinets have evolved dramatically over the past decades. Earlier power supplies were bulky, inefficient, and often required separate components for different voltage ranges. Today, engineers demand compact, efficient, and versatile units that can handle a wide range of input conditions while delivering stable output. The 6EP1322-1SH03 from Siemens LOGO!POWER series addresses these needs with a stabilized 12V DC output at 4.5A, packaged in a space-saving 72mm enclosure.

This power supply accepts both AC and DC inputs, making it suitable for global applications. Its wide-range input capability simplifies inventory and installation, reducing downtime and engineering effort. Whether you are upgrading an existing panel or designing a new machine, the 6EP1322-1SH03 offers a reliable power solution.

Key Features and Technical Specifications

The 6EP1322-1SH03 is engineered for performance and safety. Below are the critical parameters that define its operation.

• Input voltage: 100-240V AC (85-264V AC range) or 110-300V DC, wide-range input.
• Output: 12V DC, 4.5A rated current, adjustable from 10.5V to 16.1V via potentiometer.
• Efficiency: Approximately 85% at rated output, minimizing heat and energy loss.
• Protection: Short-circuit proof with constant current characteristic, output overvoltage protection per EN 60950-1.
• Isolation: Safety extra-low output voltage (SELV) per EN 60950-1 and EN 50178, primary/secondary isolation.
• Derating: Above +55°C, derate 2% per Kelvin up to +70°C.
• Status indication: Green LED for output voltage OK.

One distinctive feature is the wide input range. This allows the supply to operate on 120V or 230V AC systems without manual switching, reducing installation errors. The adjustable output voltage provides flexibility for applications requiring non-standard voltages.

Real-World Applications

Thanks to its compact size and robust design, the 6EP1322-1SH03 fits into various industrial settings. The wide input range makes it suitable for equipment exported to different countries, eliminating the need for multiple SKUs.

Moreover, the unit's ability to operate on DC input (110-300V DC) is valuable in applications with DC bus systems or battery-backed supplies. This feature enables seamless integration into renewable energy systems or mobile equipment where AC mains may not be available.

Installation and Mounting

Mounting the 6EP1322-1SH03 is straightforward. It snaps onto a standard DIN rail (EN 60715 35x7.5/15), allowing quick installation and removal. The screw-type terminals accept wires from 0.5 to 2.5 mm², ensuring secure connections. Ensure adequate ventilation around the unit, especially when operating at higher ambient temperatures, to maintain derating performance.

For parallel operation to increase output power, up to two units can be connected in parallel. This feature is useful for redundancy or higher current demands, though proper configuration is required.

Maintenance and Reliability

Routine maintenance is minimal for this power supply. Periodically inspect the unit for dust accumulation and ensure the ventilation slots are clear. Check terminal tightness to prevent loose connections. The unit's high efficiency reduces heat stress, extending component life. With a wide operating temperature range of -20°C to +70°C, it is built for demanding environments.

Compatibility and Integration

The 6EP1322-1SH03 is part of the Siemens LOGO!POWER family, designed to work with LOGO! PLCs and other industrial controllers. Its clean DC output with low ripple (max 200mV peak-peak) ensures stable power for sensitive electronics. The unit meets EMC standards (EN 55022 Class B, EN 61000-6-2), reducing interference in industrial environments.

Troubleshooting Common Issues

If the output voltage is missing, check the input supply and the green LED. If the LED is off, verify that the input voltage is within the specified range. For overload conditions, the unit enters current limitation; reduce the load or check for short circuits. If the unit trips repeatedly, inspect the connected equipment for faults.

In case of output voltage deviation, adjust the potentiometer within the 10.5V to 16.1V range. Remember that derating applies above +55°C, so ensure ambient temperature is within limits.

Product Support and Availability

The 6EP1322-1SH03 is available from AutoDCSTech. Contact our team for current stock and pricing.
