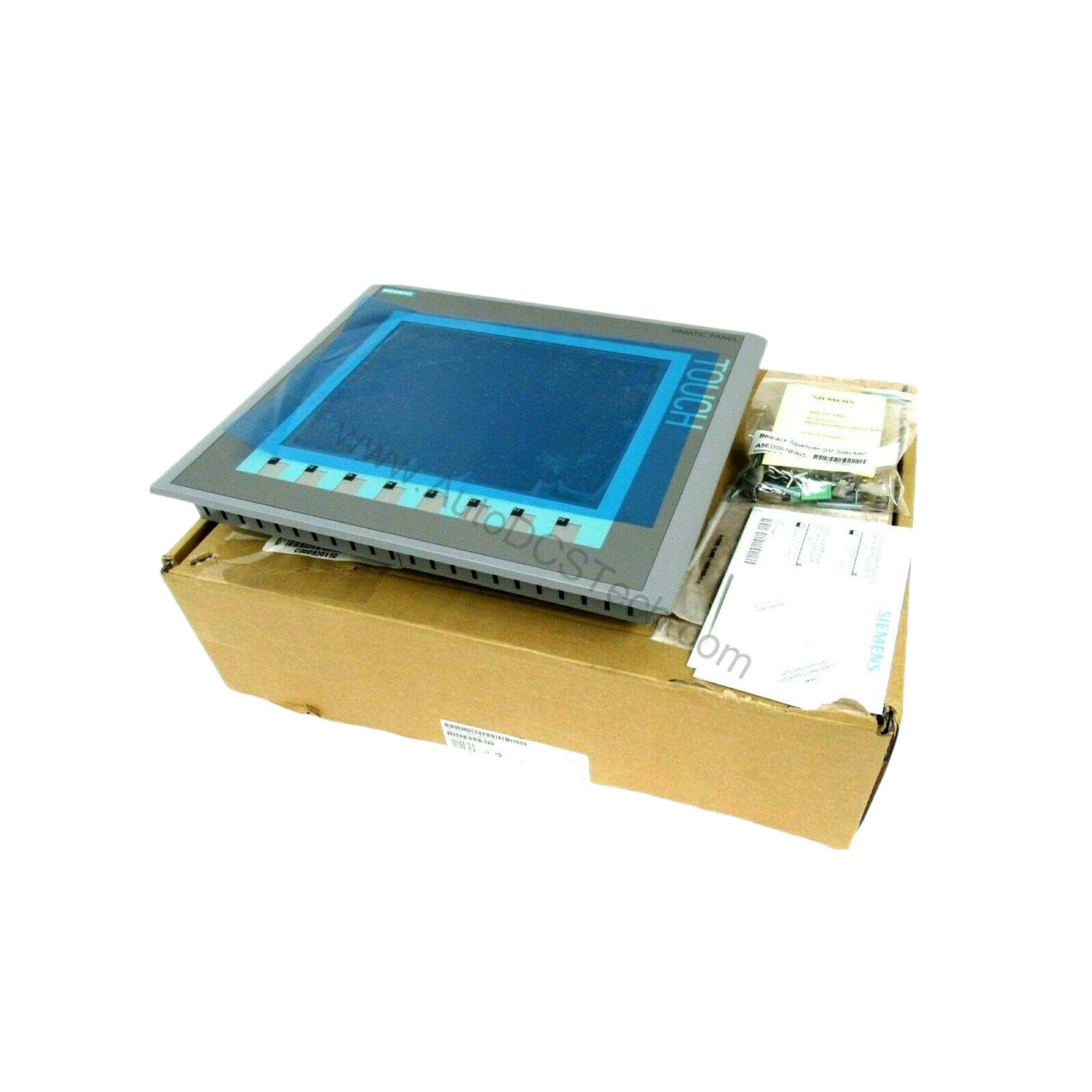

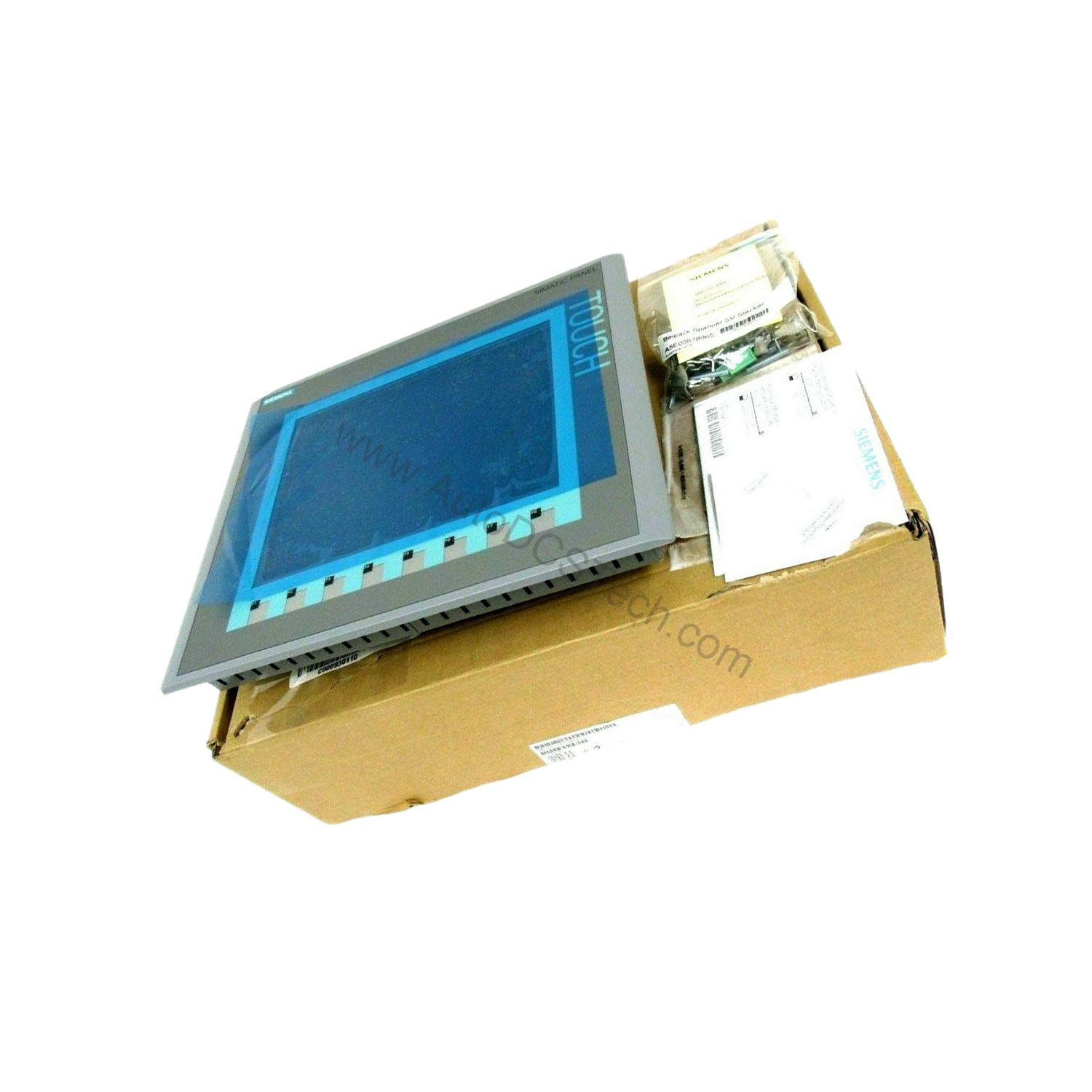

6AV6647-0AF11-3AX0 10.4" TFT Siemens HMI

Key Features and Technical Specifications

The 6AV6647-0AF11-3AX0 is engineered for performance and durability. Below are the core specifications extracted from the official datasheet:

• Display: 10.4-inch TFT, 256 colors, 640 x 480 pixels
• Input Voltage: 24 V DC (range 19.2 V to 28.8 V)
• Current Consumption: 0.6 A (rated)
• Power Consumption: 15 W (typical)
• Processor: RISC 32-bit (ARM)
• Memory: Flash/RAM, 2 MB user memory
• Interfaces: 1x Industrial Ethernet (PROFINET)
• Protocols: PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MODBUS TCP/IP, EtherNet/IP
• Protection: IP65 front, IP20 back
• Operating Temperature: 0°C to 50°C (vertical installation)

One standout feature is the 2 MB user memory, which provides ample space for screens, recipes, and alarms. This capacity is particularly beneficial for applications requiring multiple process displays or data logging. The PROFINET interface enables seamless integration into modern industrial networks, supporting real-time data exchange with PLCs.

Real-World Applications

In packaging machinery, the 6AV6647-0AF11-3AX0 serves as a central operator panel, allowing workers to monitor line speed, fault status, and production counts. Its 256-color display makes it easy to distinguish between normal operation and alarm conditions. In material handling systems, the HMI can display conveyor status and trigger manual overrides when needed.

Furthermore, the device supports multiple communication protocols, including MODBUS TCP/IP and EtherNet/IP, making it compatible with a wide range of PLCs such as Siemens S7-1200, S7-1500, and Allen Bradley controllers. This flexibility reduces integration costs and simplifies system architecture.

Installation and Setup

Mounting the 6AV6647-0AF11-3AX0 is straightforward. The panel is designed for horizontal installation, with a maximum tilt angle of 35 degrees for optimal viewing. Ensure the ambient temperature stays within 0°C to 50°C for vertical mounting; if tilted, the upper limit drops to 40°C. The device requires a 24 V DC power supply with a tolerance of 19.2 V to 28.8 V, so verify your power source meets these limits to avoid operational issues.

For network connectivity, connect the PROFINET interface to your industrial switch or PLC. The HMI supports DHCP for automatic IP assignment, but for fixed IP setups, you can configure static addresses via the control panel. Always refer to the SIMATIC HMI manual for detailed wiring diagrams and grounding recommendations.

Maintenance and Reliability

To ensure long-term reliability, periodically inspect the front panel for dust or debris that could obscure the display. The IP65 front rating protects against water jets and dust, but regular cleaning with a soft, dry cloth is recommended. Check the backlight MTBF of 50,000 hours at 25°C—this indicates a long service life, but if the display dims, plan for a replacement.

The device has no hardware clock, so time synchronization via the network is essential for accurate alarm logging. Use the software clock and enable synchronization to maintain consistent timestamps. Also, the fanless design reduces mechanical wear, but ensure proper ventilation to avoid overheating.

Compatibility and Integration

The 6AV6647-0AF11-3AX0 is designed to work with Siemens TIA Portal software, including WinCC Basic, Comfort, Advanced, and Professional versions. It also supports WinCC flexible Compact, Standard, and Advanced. This broad compatibility allows you to reuse existing projects or migrate from older systems.

For PLC connectivity, the HMI supports S7-1200, S7-1500, S7-200, S7-300/400, LOGO!, and WinAC. Additionally, it can communicate with Allen Bradley (EtherNet/IP) and Mitsubishi (MC TCP/IP) controllers, making it a versatile choice for mixed-vendor environments.

Troubleshooting Common Issues

If the HMI fails to communicate with the PLC, first check the Ethernet cable and switch connections. Verify that the IP addresses are in the same subnet and that the PROFINET device name matches the configured name. If the display shows a blank screen, ensure the backlight is functioning and the power supply is within the specified range.

For alarm-related issues, confirm that the message buffer is not full; the device supports 256 entries. If recipes are not saving correctly, check the internal recipe memory capacity (40 kbyte) and the number of datasets (20 per recipe).

Product Support and Availability

The 6AV6647-0AF11-3AX0 is available through AutoDCSTech, a trusted supplier of industrial automation parts. For technical assistance or lifecycle status, contact our team—we are ready to help you integrate this HMI into your system.
