Introduction: Evolution of Industrial HMIs
Industrial automation has evolved from simple push-button panels to sophisticated human-machine interfaces (HMIs) that provide real-time data and control. The 6AV6643-0BA01-1AX0 from Siemens represents a key step in this evolution, offering a compact yet powerful operator panel designed for demanding applications. This SIMATIC OP 277 6" panel bridges the gap between traditional controls and modern visualization, delivering reliable performance in a familiar form factor.
Key Features & Technical Specifications

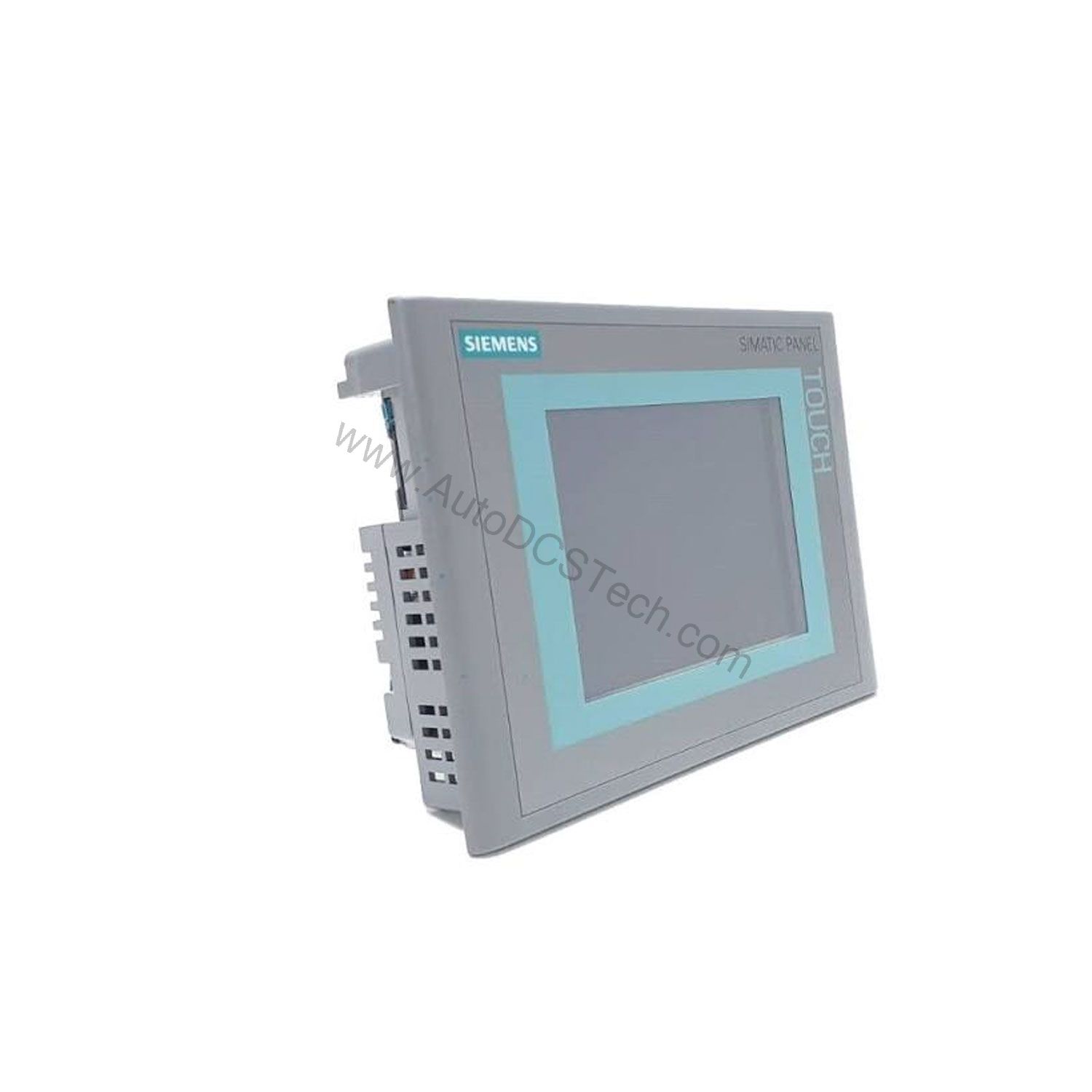

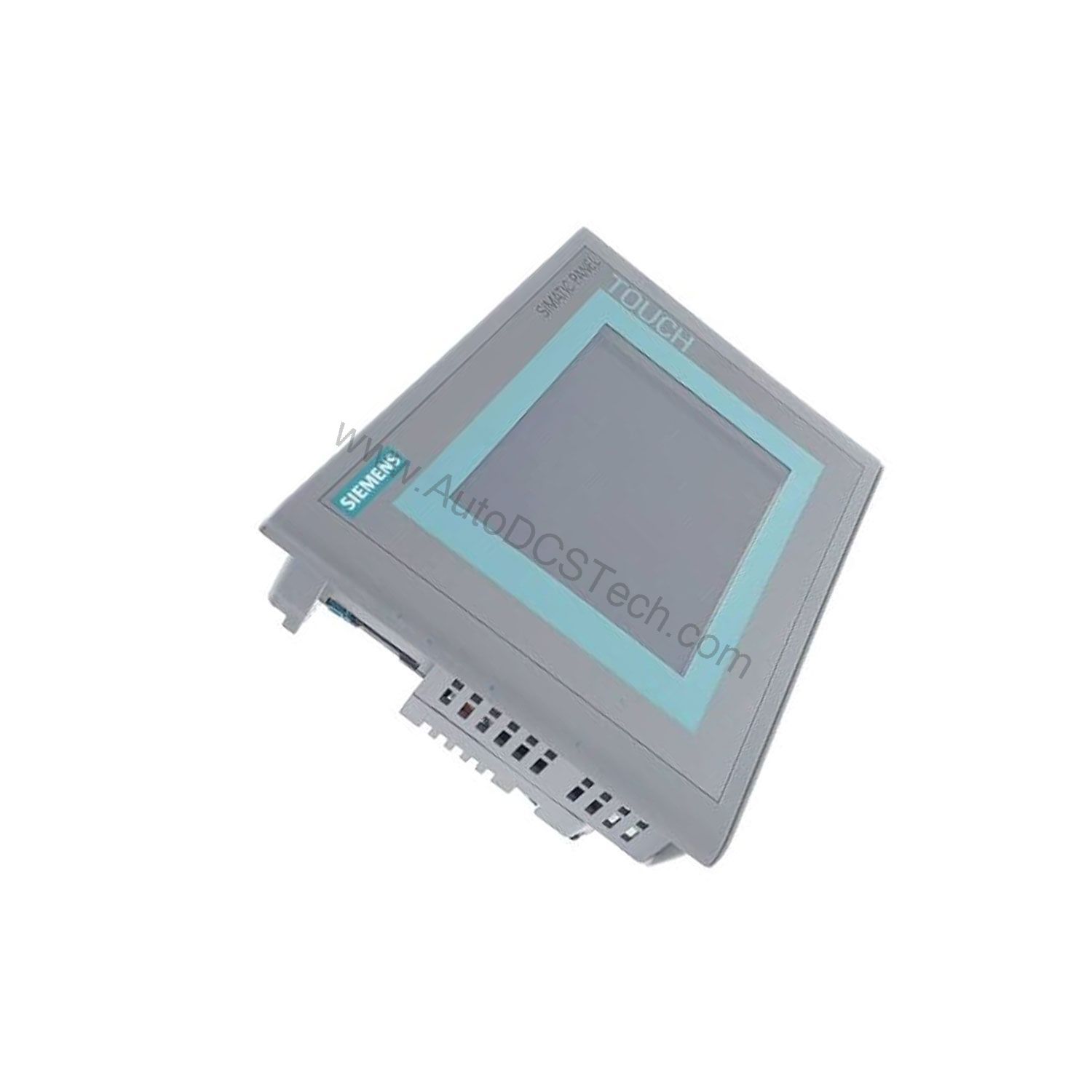

The 6AV6643-0BA01-1AX0 is built around a 5.7-inch TFT color display with 256 colors and a resolution of 320 x 240 pixels. This clear, vibrant screen ensures operators can easily monitor processes and respond quickly to alarms. The panel is equipped with a membrane keyboard, including 24 function keys (18 with LEDs), providing tactile and visual feedback for efficient operation.
Memory and data handling are robust for its class. It offers 4 Mbytes of user memory and a maximum main memory capacity of 64 Mbytes. Additionally, a Multimedia Card (MMC) slot supports up to 128 MB for data logging and recipe storage. The device runs on Windows CE, ensuring a stable and familiar environment for HMI applications.
- Display: 5.7-inch TFT, 256 colors, 320 x 240 pixels
- Control: Membrane keyboard with 24 function keys (18 LED)
- Memory: 4 MB user data, 64 MB max main memory
- Interfaces: 1x RS422, 1x RS485, 1x Ethernet (RJ45), 1x USB
- Protocols: PROFIBUS, PROFINET IO, MODBUS, TCP/IP
- Protection: IP65 front, IP20 rear
- Dimensions: 308 x 204 x 59 mm (WxHxD)
- Weight: 1.19 kg
Applications & Use Cases
The 6AV6643-0BA01-1AX0 is suited for a wide range of industrial applications, from machine control to process monitoring. For example, in a packaging line, the HMI can display machine status, allow operators to input parameters, and trigger alarms—all from a single, user-friendly interface. Furthermore, its support for PROFIBUS and PROFINET IO enables seamless integration into existing Siemens automation architectures.
Installation & Setup
Mounting the 6AV6643-0BA01-1AX0 is straightforward. The device is designed for vertical mounting, and the required cutout dimensions are 281 mm x 177 mm. Ensure the panel is properly sealed to maintain its IP65 front protection. For electrical connections, use the RS422/RS485 interfaces for serial communication and the RJ45 Ethernet port for network connectivity. The USB port allows for easy connection of a mouse, keyboard, or barcode reader. Always refer to the official Siemens manual for detailed wiring and configuration instructions.
Maintenance & Reliability
To ensure long-term reliability, periodic inspection of the HMI is recommended. Check the backlighting, which has an MTBF of 60,000 hours at 25°C, and verify that all connections remain secure. The device operates in ambient temperatures from 0°C to 50°C and can be stored between -20°C and 60°C. Relative humidity during operation should not exceed 80%. Following these guidelines helps prevent downtime and extends the life of the panel.
Compatibility & Integration
The 6AV6643-0BA01-1AX0 supports multiple communication protocols, making it highly versatile. It is compatible with PROFIBUS and PROFINET IO, and also supports MODBUS and TCP/IP over Ethernet. This allows integration with a variety of PLCs and other industrial devices. Configuration is performed using WinCC flexible Standard 2005 SP1 or higher (ordered separately), which provides a comprehensive set of tools for creating HMI applications.
Troubleshooting & Common Issues
Common issues with HMI panels include display problems, communication errors, and memory issues. If the display appears dim, the backlight may be nearing the end of its life. Check the backlight MTBF and consider replacement if necessary. For communication errors, verify the RS485/RS422 wiring and ensure the correct protocol settings. If the device fails to boot, check the memory card and power supply. For persistent issues, consult the Siemens documentation or contact AutoDCSTech for support.
Product Support & Availability
The 6AV6643-0BA01-1AX0 is available from AutoDCSTech. Please note that this product has been blocked for delivery as of 2015-01-01 and is no longer available as a new part. For successor information, refer to SIMATIC Update ID 62977695. Contact AutoDCSTech for availability and alternative options.
Availability & Condition at AutoDCSTech
| Part Number | 6AV6643-0BA01-1AX0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
