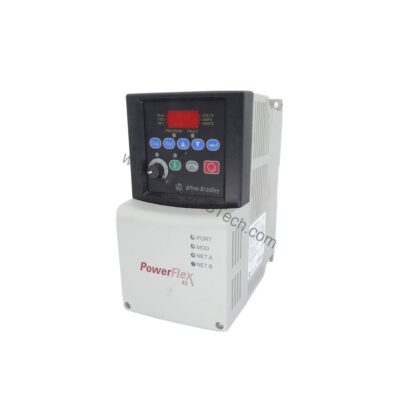

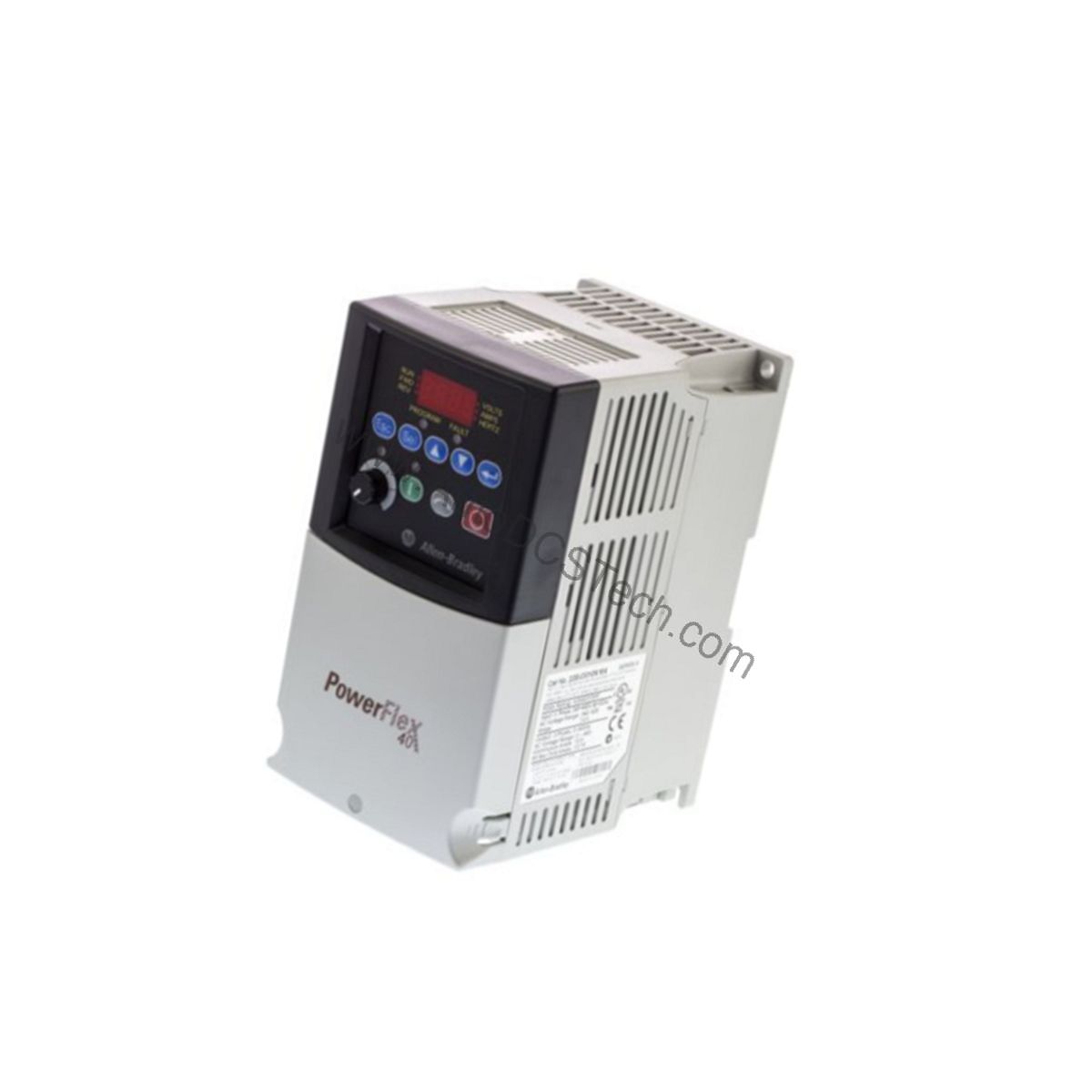

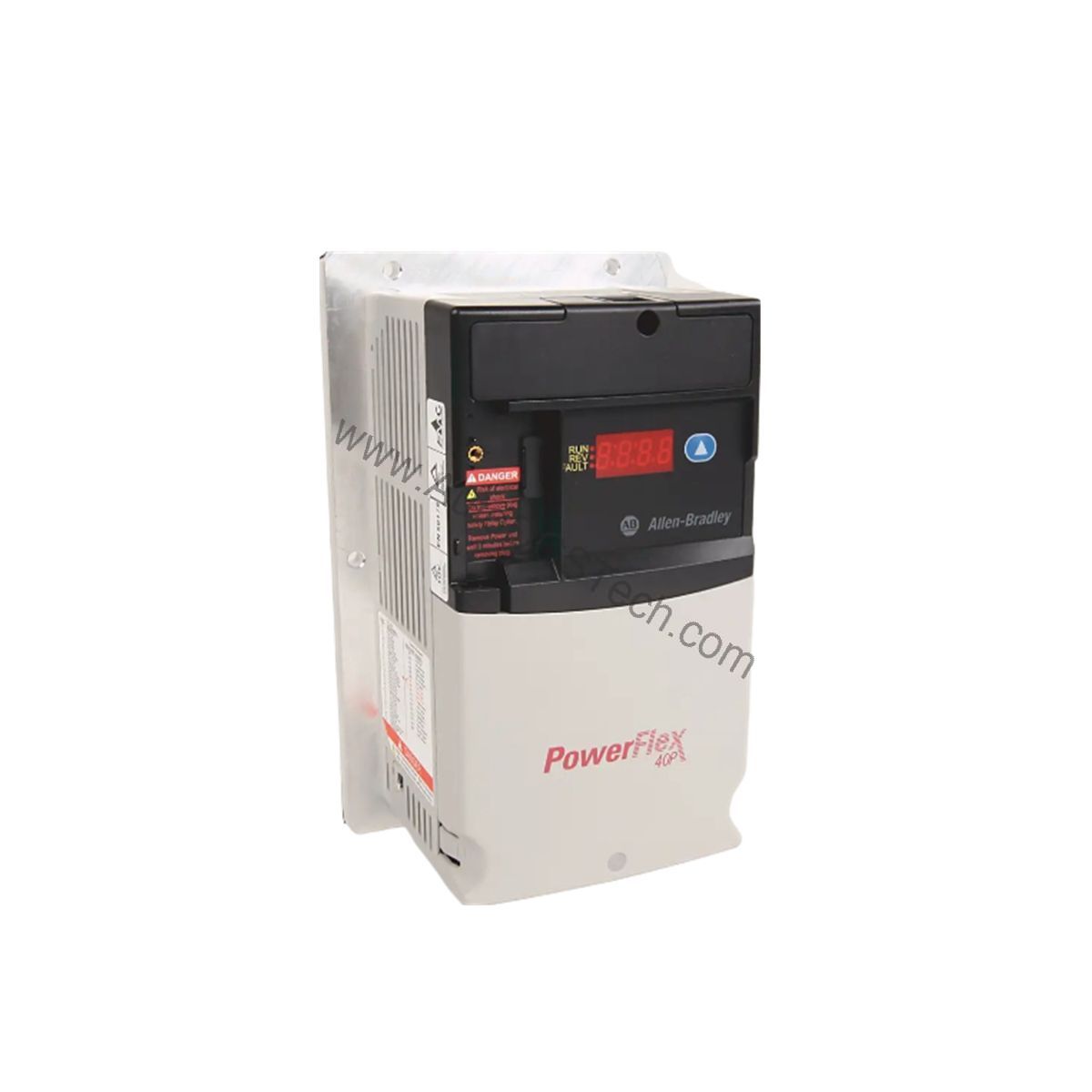

Allen-Bradley 22D-B012H204 PowerFlex 40P AC Drive 2.2 kW

Technical Specifications Breakdown

Key parameters for the 22D-B012H204 are listed below for quick reference:

Industry Applications That Benefit from Closed-Loop Precision

Consider a packaging line where precise tension control prevents film breakage and material waste. The sensorless vector control of the 22D-B012H204 maintains accurate speed even under varying loads, reducing scrap and rework costs. Similarly, in material handling conveyors, the drive's safe-off feature (Category 3) enhances operator safety during maintenance, potentially reducing liability and downtime. For fan and pump applications, the sinusoidal PWM control reduces motor noise and vibration, extending equipment life and lowering maintenance expenses. These real-world scenarios show how the drive's technical features translate into measurable operational savings.

Installation and Setup Guidance for Maximum ROI

Proper installation directly affects the lifecycle cost of any drive. The PowerFlex 40P offers flexible mounting options, including IP 30, IP 66, and plate drive enclosures. The Zero Stacking mounting option allows minimal inter-drive spacing, which can reduce the overall panel footprint by up to 75% in dissipated power. This space saving can lower enclosure costs and improve airflow. When installing, ensure the ambient temperature stays within the specified range: -10 to 50 °C for IP 20 and -10 to 40 °C for IP 30 enclosures. Use the integrated display and reset button for local parameter changes. For remote configuration, connect via the resident DSI port using PC-based software like DriveExplorer or DriveTools SP. Always follow the user manual for wiring and safety precautions. Correct setup minimizes energy consumption and maximizes process uptime.

Maintenance and Reliability: Protecting Your Investment

Regular maintenance is essential to preserve the drive's performance and avoid unplanned shutdowns. The PowerFlex 40P includes features that simplify upkeep, such as a removable MOV and relay pre-charge. These components can be inspected periodically to ensure they are in good condition. The integrated brake resistor helps manage regenerative energy, reducing wear on mechanical brakes. Check the surrounding air temperature and ensure it remains within the rated limits. Keep the enclosure clean and free of dust, as contamination can reduce heat dissipation and shorten component life. A simple preventive maintenance schedule—quarterly visual inspections and annual thermal checks—can extend the drive's service life and reduce total cost of ownership.

Compatibility and Integration for Seamless Operations

The 22D-B012H204 is designed to integrate easily into existing automation systems. It shares common accessories and options with the PowerFlex 40 series, simplifying spare parts inventory. The integrated RS-485 port allows for drive programming and communication with PLCs or HMIs. For advanced monitoring and control, use external HMI or PC-based software such as Pocket DriveExplorer, DriveTools SP, and DriveExplorer. These tools leverage the resident DSI connection, enabling fast setup and real-time diagnostics. External filters are available to meet EN55011 Class A and B EMC requirements, ensuring reliable operation in electrically noisy environments. This compatibility reduces engineering time and integration costs, making the drive a smart choice for both new installations and retrofits.

Selection Guide and Purchasing Advice

When selecting a drive, evaluate your motor's power rating and the required control performance. The 22D-B012H204 is rated for 2.2 kW (3 Hp), making it suitable for a wide range of small to medium applications. Verify the input voltage class (240V, 480V, or 600V AC) matches your facility's supply. Consider the enclosure type needed for your environment—IP 20 for general indoor use, IP 66 for washdown areas. For applications requiring safe-off functionality, this drive provides Category 3 compliance, enhancing operator safety. At AutoDCSTech, we offer genuine Allen-Bradley parts and expert guidance to help you choose the right drive for your needs. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can also advise on compatible accessories and software to optimize your system's performance.

Troubleshooting Common Issues Without Downtime

Even reliable drives can encounter issues. Common problems include communication errors, parameter misconfiguration, or overheating. If the drive fails to communicate with the PC software, check the RS-485 connection and ensure the correct port is selected. For display errors, use the integrated reset button to clear faults after correcting the cause. Overheating often results from high ambient temperature or blocked airflow; verify the enclosure rating and ambient conditions. The removable MOV protects against voltage spikes—if it fails, replace it with an identical component. For persistent issues, consult the user manual or contact AutoDCSTech for technical support. Quick diagnosis and corrective action minimize downtime and keep your operations running efficiently.

Cost-Effective Closed-Loop Control in a Compact Package

Industrial operations constantly balance performance against capital and energy costs. The Allen-Bradley PowerFlex 40P series addresses this challenge directly. The 22D-B012H204 is a 2.2 kW (3 Hp) AC drive designed for applications requiring Category 3 safe-off and closed-loop control without the footprint or price tag of larger drives. By integrating these advanced features into a compact, economical design, this drive helps you reduce panel space, lower installation costs, and maintain precise process control.
