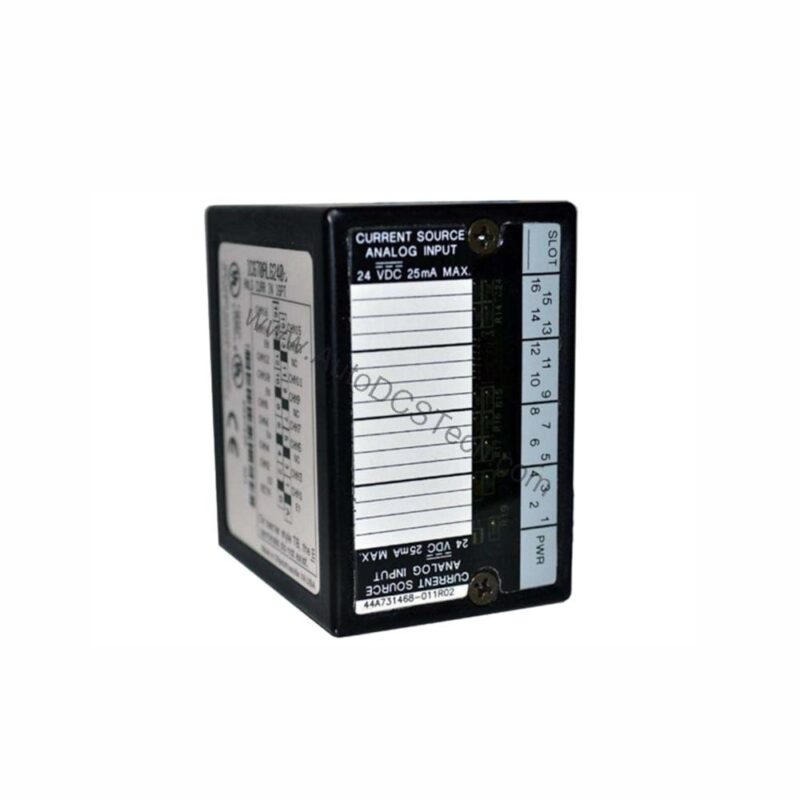

IC670PBI001: Profibus Bus Interface
The IC670PBI001 is the Profibus Bus Interface covered on this page. The attribute that decides whether it fits the existing installation without modification is 4.45 Watts.
On this unit profibus bus interface is the figure that decides fit and function. A communication or network module is judged by the protocol it carries and the bus it joins, not by its catalogue headline. profibus bus interface sets which controllers and field devices it can bridge, and the isolation and termination it provides. Matching 4.45 Watts against the existing network topology avoids a module that fits the rack but cannot talk to the rest of the system.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC670PBI001 |
| Series | Field Control |
| Part Number | IC670PBI001 |
| Product Type | Profibus Bus Interface |
| Rated Input Voltage | 24 Volts DC |
| Voltage Range | 18-30 Volts DC |
| Input Power | 7.7 watts |
| Power Dissipation | 4.45 Watts |
| Transmission Speed | 9.6, 19.2, 93.75, 187.5, 500, 1500 Kbits, 3 Mbits, 6 Mbits, 12 Mbits |
| Supported Protocols | Profibus |
| No. of Ports | Profibus: One (1) 9-pin D-sub connector, Programmer: One (1) 9-pin D-sub connector |
| No. of supported I/O modules | up to Eight (8) modules |
| No. of stations per Profibus segment | 32 |
| Profibus topology | Linear bus topology |
| Network medium | Shielded twisted pair cable |
| Status LEDs | PWR, RUN, OK |
| Ambient Operating Temperature | 0-55 degrees Celsius |
| Mounting | DIN Rail / Panel mount via BIU terminal block |
| Reliability | 180,000 hours MTBF |
| Holdup Time | 10 ms max |
| Addressing | via embedded DIP switches |
| Programming | via Hand-Held Programmer |
| Supported functions | I/O forcing, Diagnostic display, Program upload/download |
| HHP Connector | Yes |
| Noise Resistance | Yes. |
Datasheet & Downloads
Specification sheet for IC670PBI001. For lead time, condition and price, contact our team.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic670gbi002-field-control-bus-interface-unit-discontinued | confirm the configuration against your installation |
| ge-fanuc-ic670alg230-analog-input-module-for-field-control | confirm the configuration against your installation |
| ge-ic670alg240-16-channel-analog-current-input-module-for-field-control | confirm the configuration against your installation |
| ge-ic670alg310-analog-output-module-for-rx7i-pacsystem | confirm the configuration against your installation |
| ge-ic670alg320-4-point-analog-current-voltage-source-output-module | confirm the configuration against your installation |
| ge-ic670alg330-8-point-analog-current-source-output-module | confirm the configuration against your installation |
| ge-fanuc-ic670alg620-field-control-rtd-input-module-overview | confirm the configuration against your installation |
| ge-fanuc-ic670alg621-analog-rtd-input-field-control-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC670PBI001 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
