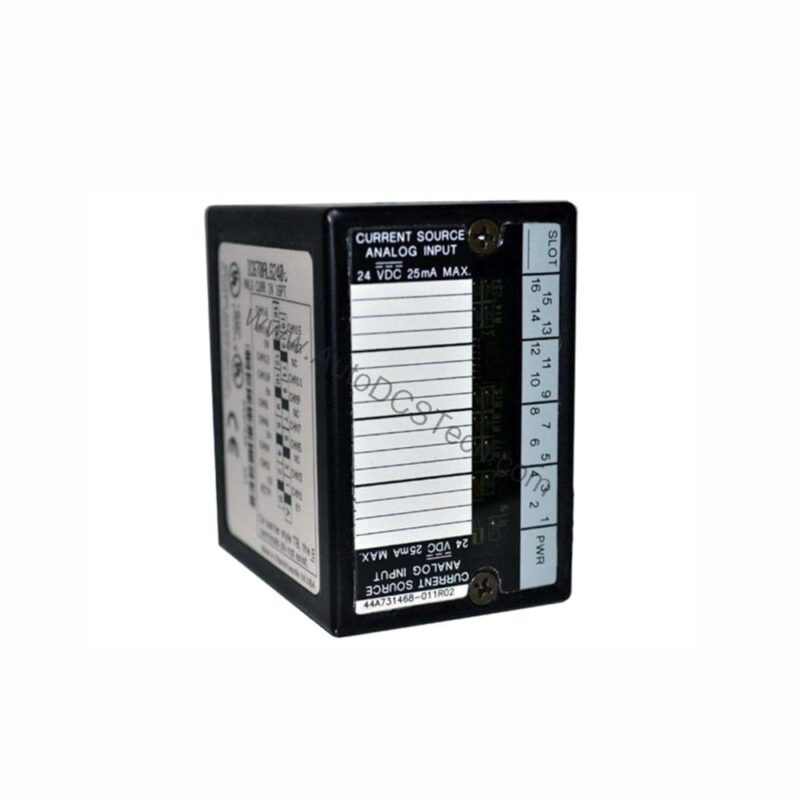

IC670ALG230: Analog Input Module for Field Control
The IC670ALG230 is the Analog Input Module for Field Control covered on this page. The attribute that decides whether it fits the existing installation without modification is 0-20 mA.
What separates this variant from its siblings is analog input module for field control. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. analog input module for field control sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0-20 mA against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC670ALG230 |
| Series | Field Control |
| Part Number | IC670ALG230 |
| Number of Channels | Eight (8) |
| Input Signal | 0-20 mA |
| Digital Resolution | 12 bits |
| Analog Resolution | 5.0 µA |
| Conversion Time | 60 µs per channel |
| Input Impedance | 2.87 kiloohms |
| Isolation | 1500 VAC for 1 minute, 250 VAC continuous |
| Power Supply | 18-30 VDC |
| Current Draw | 51 mA max from BIU |
| Non-linearity | +/- 0.025% of full scale |
| Lifecycle | Discontinued/Obsolete |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic670alg240-16-channel-analog-current-input-module-for-field-control | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC670ALG230 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
