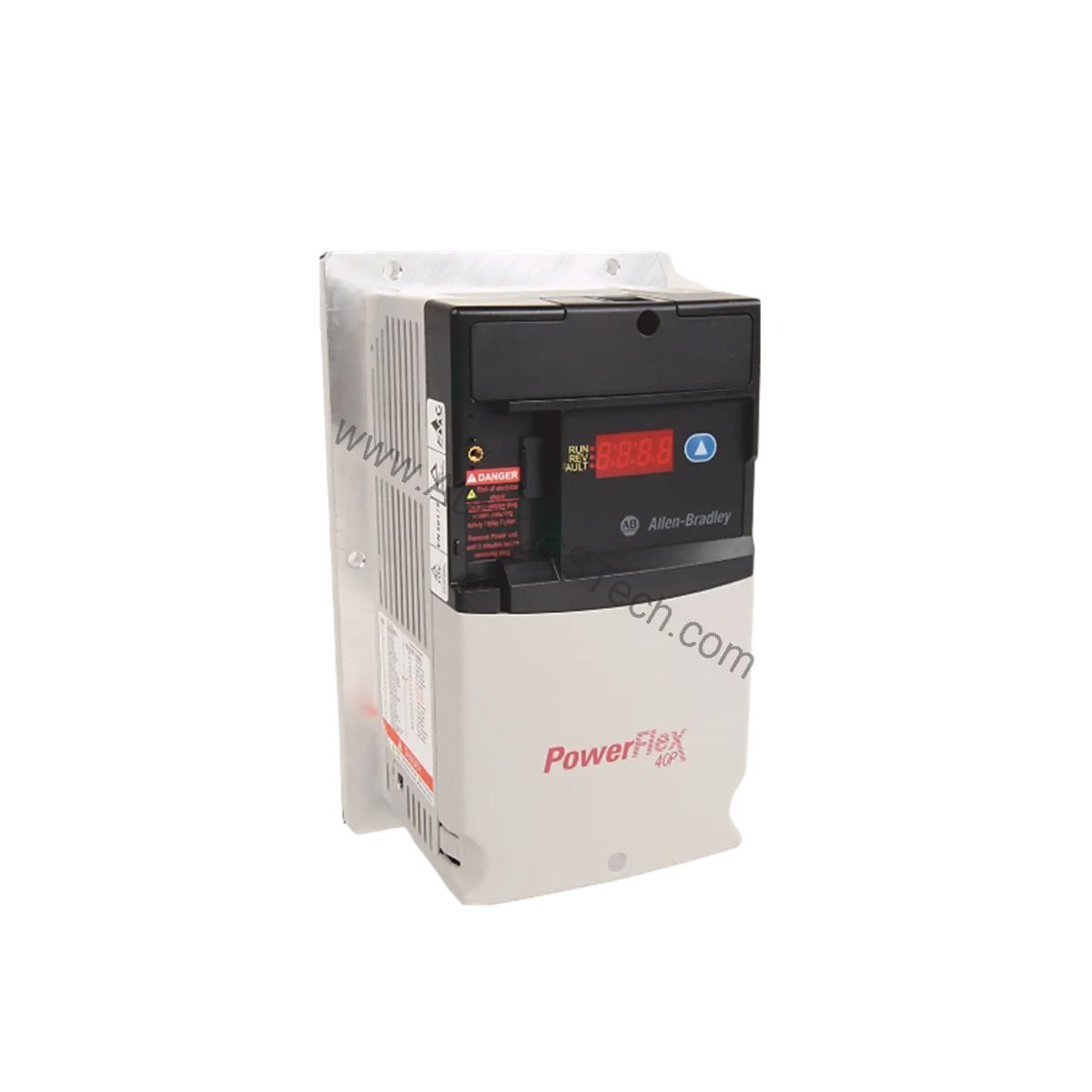

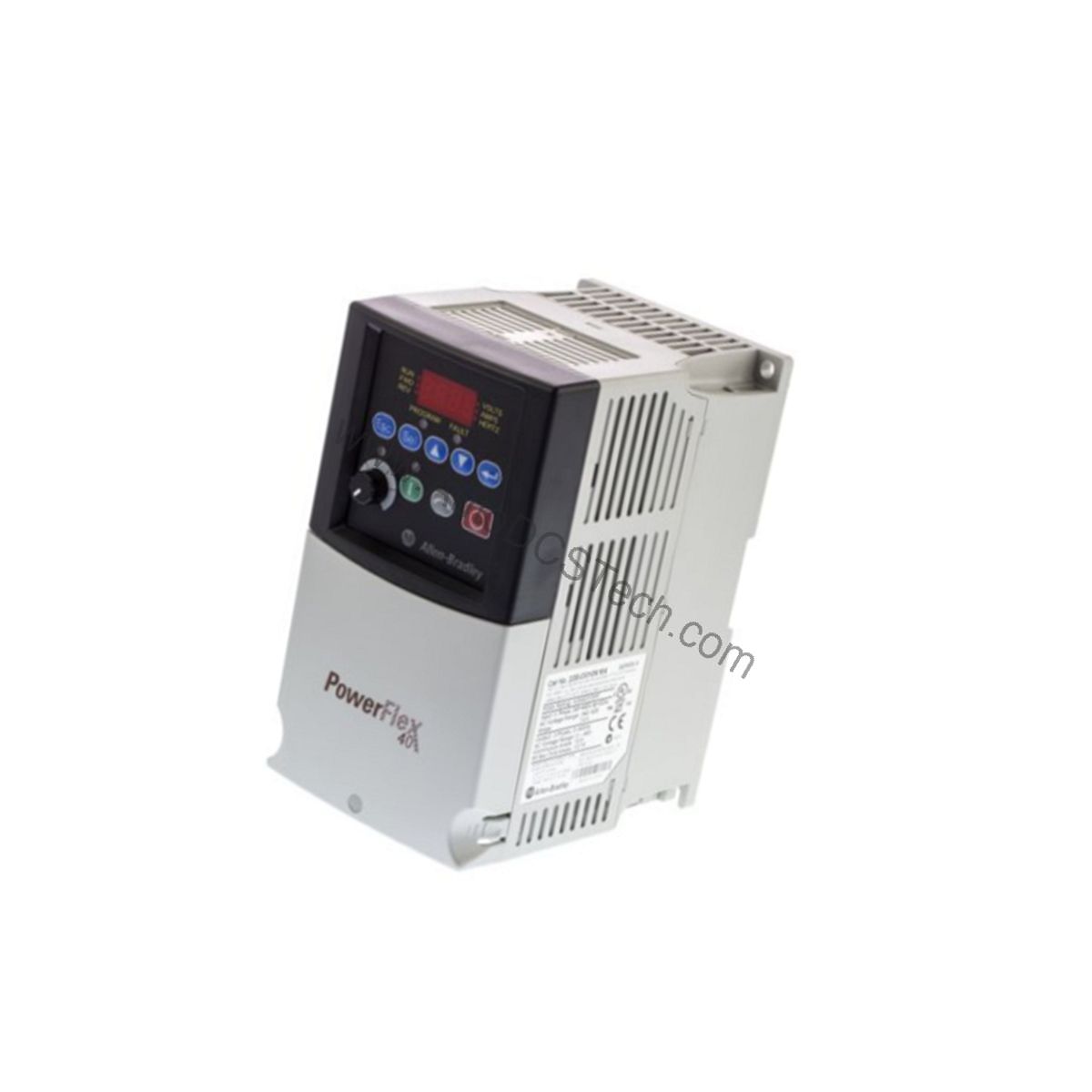

Allen-Bradley 22D-B012N104 PowerFlex 40P Drive, 3 HP, 240V AC

PowerFlex 40P Adjustable Frequency Drive Overview

Industrial operations often face the challenge of maintaining precise motor speed and torque across varying load conditions. The Allen-Bradley 22D-B012N104 from the PowerFlex 40P series addresses this need with a compact, panel-mount design that delivers reliable performance. This adjustable frequency drive operates on a three-phase 240 Volts AC input and provides up to 3 Horsepower (2.2 kilowatts) of output power, making it suitable for a wide range of light-to-medium duty applications.

Built with a standard type enclosure rated Open NEMA Type – Panel Mount (IP20), the 22D-B012N104 is designed for installation inside control cabinets where environmental protection is provided by the surrounding enclosure. The drive uses a B frame size, which contributes to its space-saving footprint. Its 12.0 A amperage rating ensures compatibility with appropriately sized motors and branch circuits.

Technical Specifications Breakdown

Key parameters for the 22D-B012N104 are listed below for quick reference:

Industry Applications

The 22D-B012N104 is well-suited for a variety of industrial applications. The sensorless vector control ensures smooth operation even with varying loads, while the dynamic braking capability supports applications requiring controlled stops. In material handling, the drive can manage belt conveyors with precise speed regulation. In HVAC systems, it can drive supply and exhaust fans, optimizing energy consumption. The drive's ability to handle 150% load minimum during acceleration, as depicted in the manual, ensures it can handle momentary overloads without tripping.

Installation and Setup Guidance

When installing the 22D-B012N104, ensure the enclosure provides adequate ventilation and meets the IP20 protection requirements. Mount the drive on a flat, vertical surface using the provided slots for the B frame size. Verify that the input voltage matches the 240V AC rating and that the supply is three-phase. Connect the motor leads to the appropriate output terminals, ensuring the motor is compatible with the drive's output. Before power-up, review the manual for proper grounding and wiring practices. The autotune feature should be run with the motor disconnected to allow the drive to learn the motor's electrical characteristics. For applications using encoder feedback, configure the closed-loop settings according to the manual.

Robust Protection and Reliability

Reliability is a cornerstone of the PowerFlex 40P design. The 22D-B012N104 includes built-in protective features that simplify installation and extend equipment life. Electronic motor overload protection increases motor longevity by preventing thermal damage. Ground fault protection ensures reliable operation during start-up and running conditions. The drive also features 6000 V transient protection, which enhances robustness for system voltages ranging from 380-480V AC. This transient immunity helps safeguard the drive and connected equipment from voltage spikes common in industrial environments.

Maintenance and Reliability

To maintain optimal performance, periodically inspect the drive for dust accumulation and ensure the cooling fan (if present) is operational. Check all power and control connections for tightness, especially after initial installation. The drive's protective features, such as electronic overload and ground fault protection, should be tested according to the manufacturer's recommendations. Environmental conditions should be kept within the specified operating range, avoiding excessive moisture or corrosive atmospheres. Regular maintenance will extend the life of the drive and prevent unexpected downtime.

Control Performance and Motor Adaptation

The 22D-B012N104 employs sensorless vector control, which delivers high torque across the entire speed range and provides exceptional speed regulation. This control method is particularly beneficial for applications that require consistent torque at low speeds, such as conveyors and mixers. The built-in autotune feature allows the drive to adapt to individual motor characteristics, ensuring optimal performance and efficiency. Additionally, the drive supports closed-loop operation with encoder feedback, which replaces slip compensation with trim for improved regulation and speed range. This capability is essential for applications demanding precise speed holding, such as winding or positioning systems.

Dynamic Braking and Inrush Current Limiting

The drive includes an integral brake resistor, providing dynamic braking capability. This feature is critical for applications that require rapid deceleration or frequent stopping, such as centrifuges or indexing tables. The relay pre-charge circuit limits inrush current during power-up, reducing stress on the drive and upstream components. For ungrounded distribution systems, the removable MOV (Metal Oxide Varistor) can be detached to ensure trouble-free operation, a valuable option for facilities with specific grounding configurations.

Selection and Purchasing Advice

When selecting a replacement or new drive, verify that the 22D-B012N104 meets your voltage, horsepower, and enclosure requirements. The PowerFlex 40P series is known for its flexibility and ease of use. AutoDCSTech offers this model with fast shipping and competitive pricing. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with compatibility questions and provide technical support to ensure you choose the right drive for your application.
