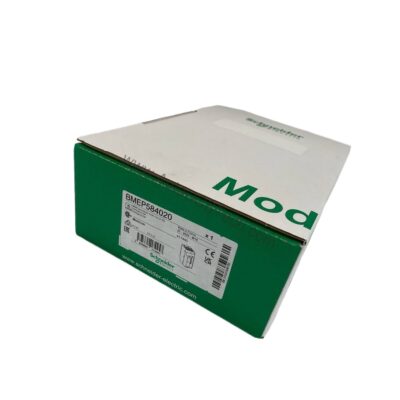

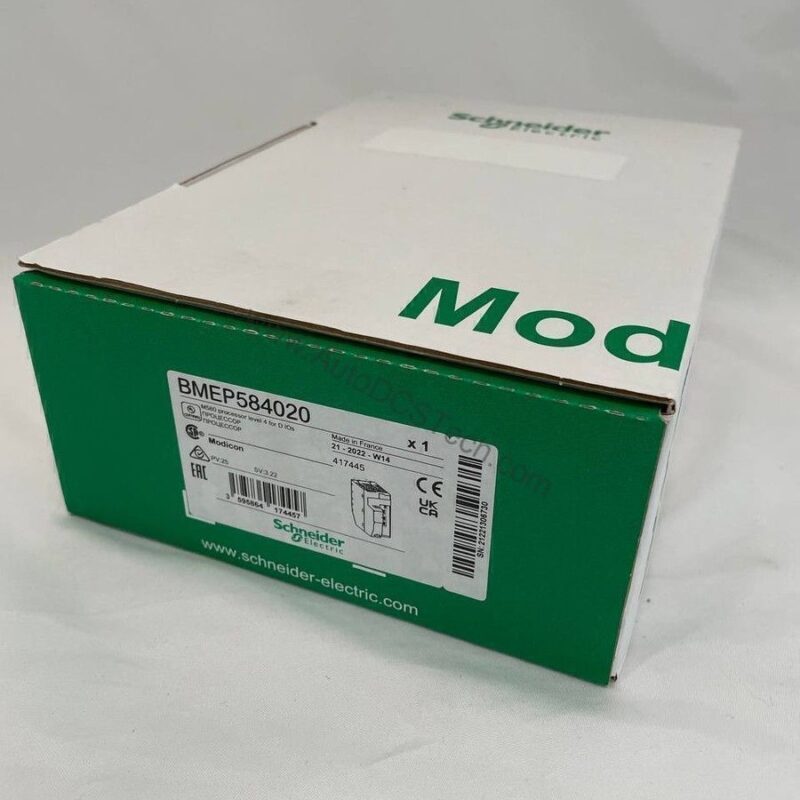

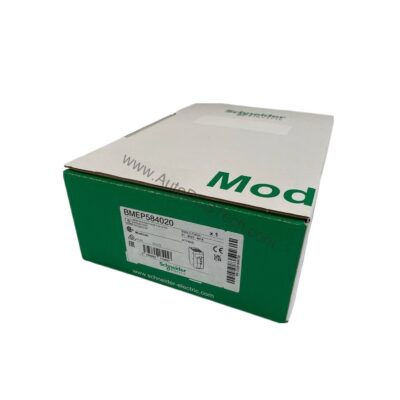

BMEP584020: Modicon M580 Standalone Processor Module 16MB
The BMEP584020 is the Modicon M580 Standalone Processor Module 16MB covered on this page. The attribute that decides whether it fits the existing installation without modification is 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean.
What separates this variant from its siblings is modicon m580 standalone processor module 16mb. A processor or controller is selected on memory, scan time and platform compatibility before anything else. modicon m580 standalone processor module 16mb sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | BMEP584020 |
| Range of Product | Modicon M580 |
| Product or Component Type | Processor module |
| Number of racks | 8 |
| Local I/O processor capacity (discrete) | 4096 I/O |
| Local I/O processor capacity (analog) | 1024 I/O |
| Integrated connection type | 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB type mini B |
| Number of distributed equipment | 128 |
| Communication module processor capacity | 8 AS-Interface module, 4 Ethernet communication module |
| Communication Service | DIO scanner |
| Memory description | Expandable flash, 4 GB data storage |
| Integrated RAM | 10 kB system memory, 16 MB program, 2048 kB data |
| Application structure | 1 cyclic/periodic master task, 2 auxiliary tasks, 1 periodic fast task, 128 event tasks |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean |
| Current consumption | 295 mA 24 V DC |
| MTBF reliability | 775000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Environmental characteristic | Hazardous location class I division 2 |
| Supply | Internal power supply via rack |
| Net Weight | 1.872 lb(US) (0.849 kg) |
| GTIN | 3595864174457 |
| Country of origin | FR |
| Package 1 Height | 3.54 in (9.000 cm), Width: 7.09 in (18.000 cm), Length: 9.84 in (25.000 cm), Weight: 30.829 oz (874.000 g) |
| Package 2 Height | 11.81 in (30.000 cm), Width: 11.81 in (30.000 cm), Length: 15.75 in (40.000 cm), Weight: 12.630 lb(US) (5.729 kg). |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-bmep584040-modicon-m580-processor-module-standalone-controller | confirm the configuration against your installation |
| schneider-bmep584040s-modicon-m580-standalone-safety-processor-16mb | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | BMEP584020 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
