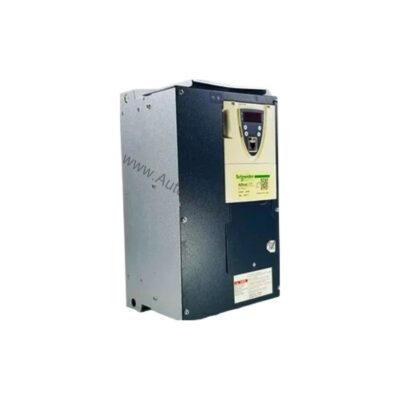

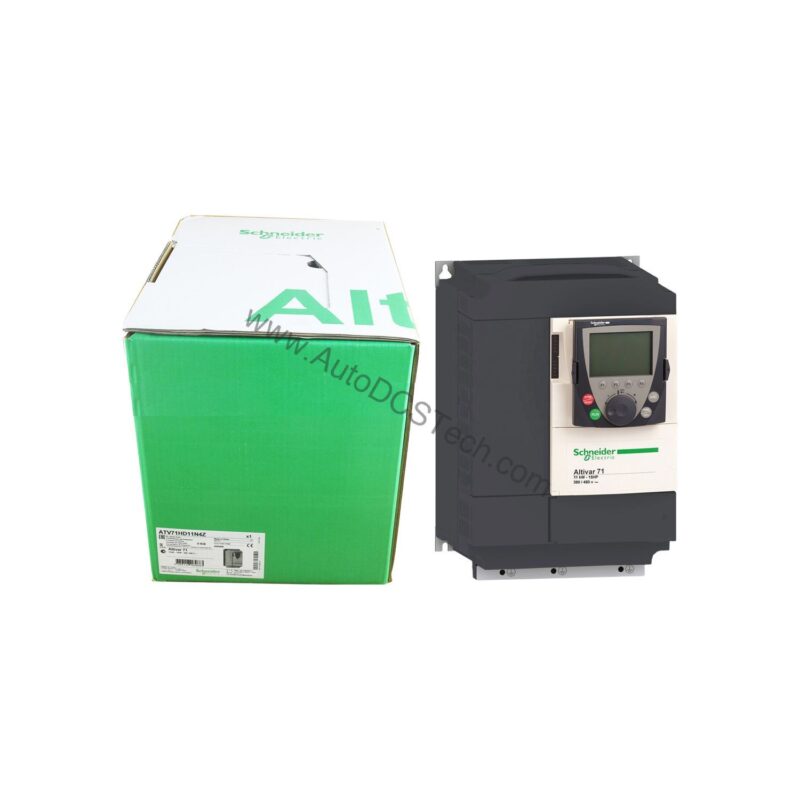

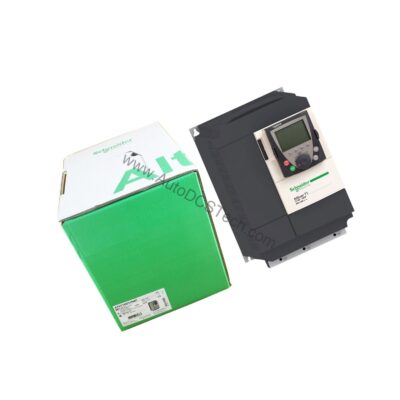

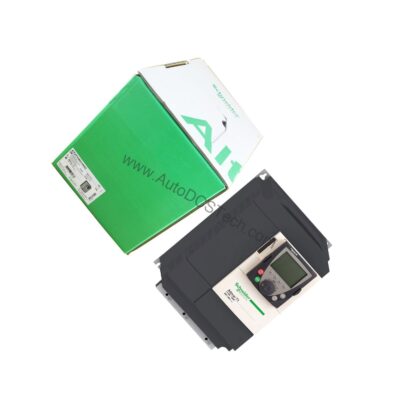

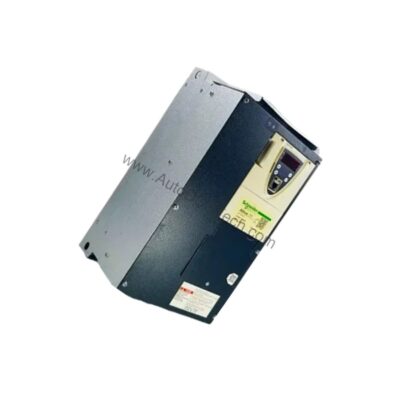

ATV71HC25N4: Variable Speed Drive (VSD)
The ATV71HC25N4 is the Variable Speed Drive (VSD) covered on this page. The attribute that decides whether it fits the existing installation without modification is 3-phase, 380–480 VAC.
What separates this variant from its siblings is variable speed drive (vsd). A variable-speed or soft-start device is specified by the motor it must control and the starting or speed regime it must deliver. variable speed drive (vsd) sets the current or power rating, the control method and the enclosure or network option — the things that decide whether the device starts the load without tripping and integrates with the existing control. Verifying 3-phase, 380–480 VAC against the motor nameplate and the control architecture prevents a drive that fits the panel but cannot carry the load.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | ATV71HC25N4 |
| Product Type | Variable Speed Drive (VSD) |
| Product Line | Altivar 71 |
| Part Number | ATV71HC25N4 |
| EAN | 3389119201087 |
| Weight | 442.00 lbs (200.49 kg) |
| Power Rating | 220 / 250 kW (continuous/max) |
| Input Voltage | 3-phase, 380–480 VAC |
| Enclosure Rating | IP20 (Open Type) |
| Horsepower Equivalent | ~400 HP |
| Frequency | 50/60 Hz |
| Control Method | Sensorless Vector, Vector, V/f, and Synchronous |
| EMC Filter | Integrated EMC Filter |
| Display Interface | Graphic Terminal (HMI) |
| Cooling Method | Forced Air Cooling |
| Output Frequency | 0.1 – 599 Hz |
| Motor Compatibility | Asynchronous & Synchronous Motors |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-atv71hc11n4-variable-frequency-drive-110-kw-480-v-ac | confirm the configuration against your installation |
| schneider-atv71hc11n4d-altivar-71-variable-speed-drive-150-hp | confirm the configuration against your installation |
| schneider-atv71hc16n4-altivar-71-variable-speed-drive-160-kw | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | ATV71HC25N4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
