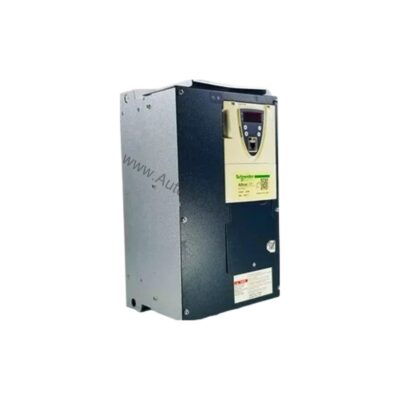

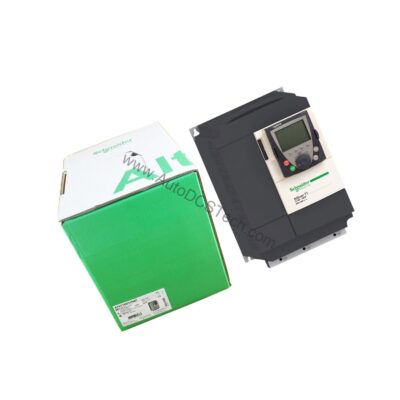

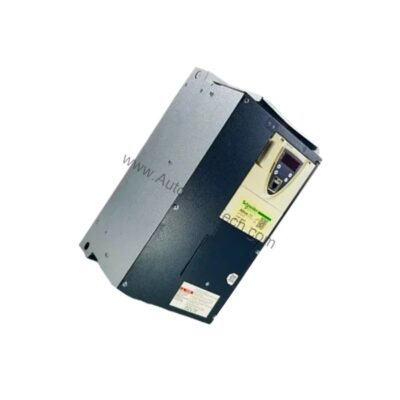

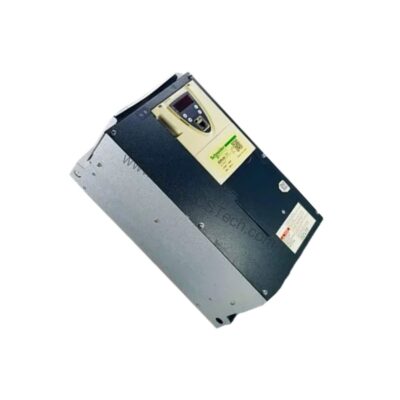

Schneider ATV71HC11N4D Altivar 71 Variable Speed Drive 150 HP

Optimizing High-Power Motor Control with the Schneider ATV71HC11N4D

In demanding industrial environments, selecting a variable speed drive that balances robust performance with precise control is critical. The Schneider ATV71HC11N4D, part of the Altivar 71 series, is engineered for complex, high-power machines requiring reliable speed and torque management. This drive delivers 150 horsepower with a rated current of 163 A, operating on a three-phase 380–480 V AC supply. Its integrated EMC filter and IP54-rated enclosure make it suitable for installations where dust and water exposure are concerns.

Technical Specifications Breakdown

Key parameters for the ATV71HC11N4D are listed below for quick reference:

Real-World Applications for High-Torque Demands

For example, in conveyor systems handling heavy bulk materials, the ATV71HC11N4D provides smooth acceleration and deceleration via adjustable linear ramps (0.01 to 9000 s) and DC injection braking for controlled stops. In crane and hoist operations, its transient overtorque capability—170 % for 60 seconds—handles peak loads during lifting. The integrated CANopen and Modbus protocols allow seamless integration into existing automation networks, reducing commissioning time.

Installation and Setup Guidance

Mount the unit in a vertical position (within ±10 degrees) using the door-mount design. Ensure adequate clearance for the heat sink assembly, as the drive relies on convection cooling. For power wiring, use copper cables rated for 75 °C or 90 °C as specified. Connect the three-phase supply to terminals L1/R, L2/S, L3/T, and the motor to U/T1, V/T2, W/T3. Tighten power terminals to 212.4 lbf.in (24 N.m). Configure the drive via the integrated Modbus port using the RJ45 connector on the front face. Set the motor nameplate parameters (voltage, current, frequency) in the control menu before first run.

Maintenance and Reliability

The IP54 lower enclosure protects against dust and water jets, making it suitable for washdown areas. Periodically inspect the cooling fan and heat sink for dust accumulation. The drive includes comprehensive protection: thermal overload, overcurrent, input phase loss, and DC bus overvoltage. Ambient operating temperature should remain between 14 °F and 122 °F (-10 °C to 50 °C) without derating. For altitudes above 3280 ft, derate current by 1 % per 100 m.

Compatibility and Integration

This drive supports CANopen and Modbus communication protocols via RJ45 and SUB-D connectors. It can be integrated with programmable logic controllers (PLCs) and human-machine interfaces (HMIs) using these fieldbus networks. The analog I/O (2 inputs, 1 output) and 7 discrete inputs allow direct connection of sensors and actuators. For advanced control, optional communication cards (EtherNet/IP, Profibus DP, DeviceNet) can be added.

Selection Guide and Purchasing Advice

When selecting a variable speed drive for a 150 HP motor, verify that the motor's full-load current does not exceed 163 A. The ATV71HC11N4D is suitable for both asynchronous and synchronous motors. For applications requiring encoder feedback, use the closed-loop flux vector control mode. AutoDCSTech stocks this model and can advise on lifecycle status and availability. Contact our team to confirm compatibility with your existing system.
