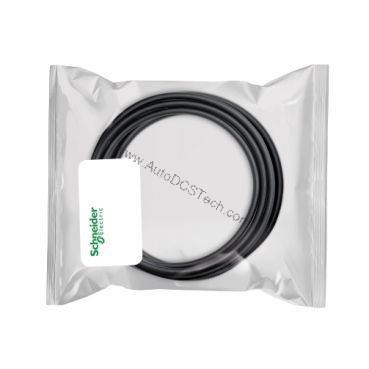

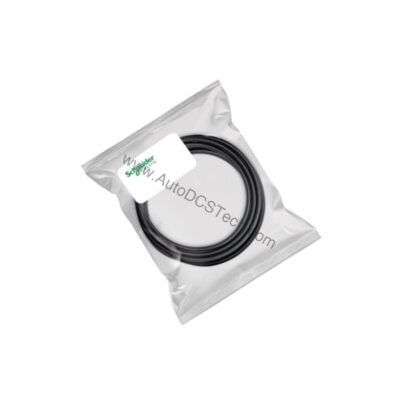

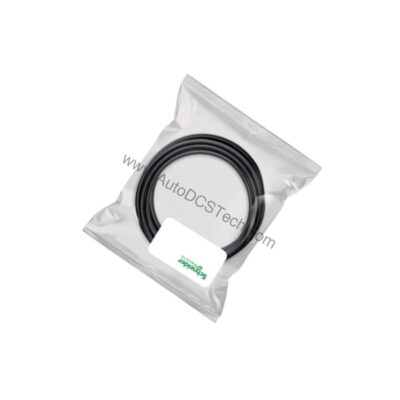

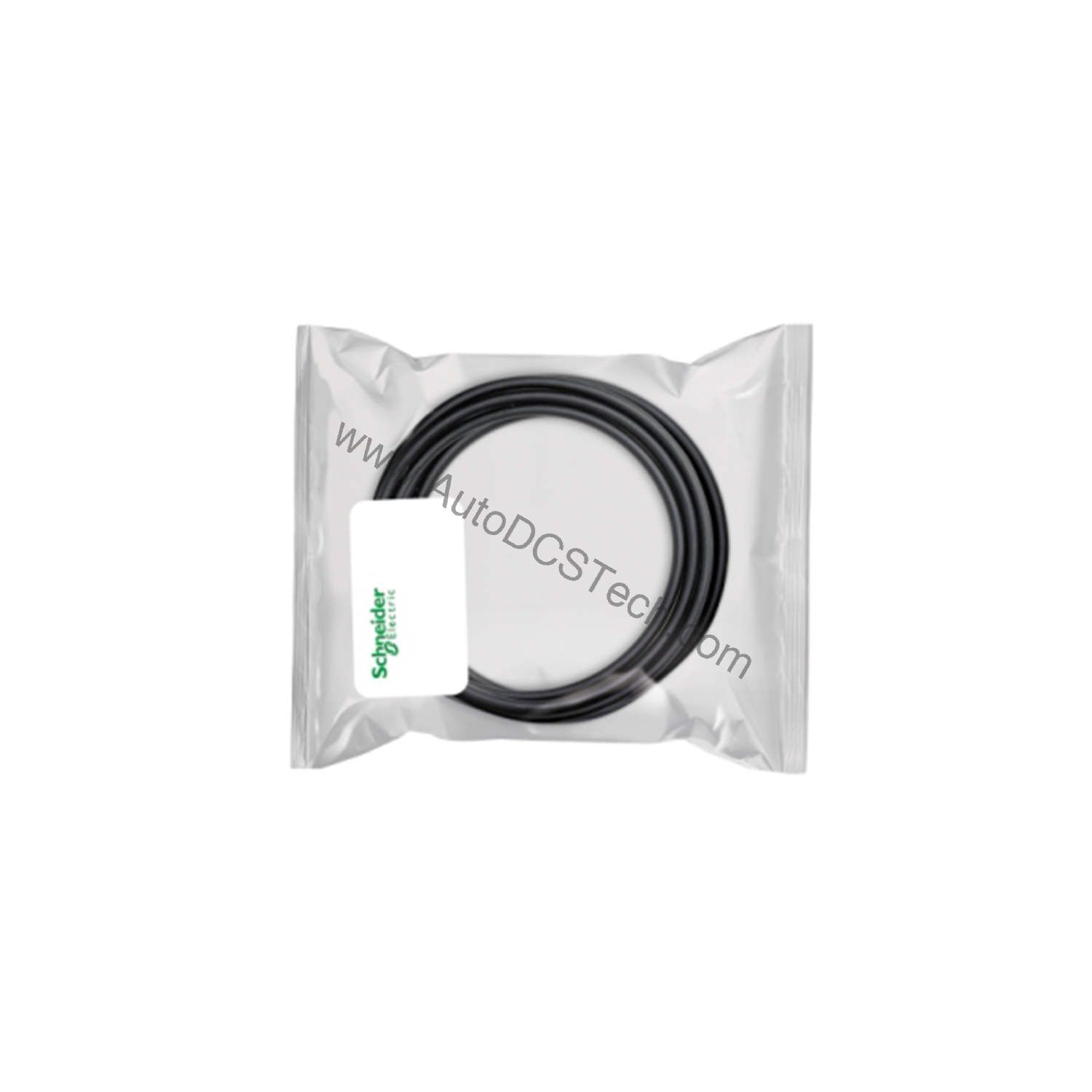

Schneider 990XCA65609 Duplex Fiber Optic Cable for Modicon Quantum

Technical Specifications Breakdown

Key parameters for the 990XCA65609 are listed below for quick reference:

Industrial Applications and Use Cases

Typical applications include connecting remote I/O racks to a Modicon Quantum controller, linking distributed control system nodes, and creating high-speed data highways between PLCs and drives. The multi-mode fiber with 850-1300 nm wavelength range supports standard industrial communication protocols over moderate distances, offering a cost-effective upgrade path from copper.

Installation and Setup Guidance

When installing the 990XCA65609, ensure the cable is routed away from high-voltage power lines to maintain signal purity. The PVC jacket provides basic mechanical protection, but avoid sharp bends that could exceed the fiber's minimum bend radius. For panel or rack mounting, use appropriate cable ties or clips to secure the cable without compressing it. Always verify that the connectors are clean and properly seated before powering up the system.

Maintenance and Reliability

Periodic inspection of the fiber optic cable and connectors is recommended to ensure optimal performance. Check for physical damage, dust accumulation on connector ends, and any signs of wear at stress points. The operating temperature range of -20°C to 70°C allows deployment in most industrial environments, but avoid exposure to extreme temperatures or moisture beyond these limits. The EMI-resistant shielding helps maintain data integrity even near motors or variable frequency drives.

Reliable Optical Data Transmission for Industrial Networks

Industrial automation systems demand robust and interference-free data communication. The Schneider Electric 990XCA65609 fiber optic cable addresses this need by providing a dedicated duplex fiber optic link for the Modicon Quantum automation platform. This component ensures consistent signal integrity in electrically noisy environments, making it a critical accessory for maintaining uptime in manufacturing and process control applications.

Compatibility and Integration

The 990XCA65609 is specifically designed for the Modicon Quantum automation platform and is compatible with the 140CHS21000 module. The duplex fiber optic type supports bidirectional communication, making it suitable for redundant or high-availability network topologies.

Selection Guide and Purchasing Advice

When selecting a fiber optic cable for your Modicon Quantum system, the 990XCA65609 offers a proven solution with standardized industrial length and robust construction. AutoDCSTech stocks this Schneider Electric accessory to support your automation infrastructure needs. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
