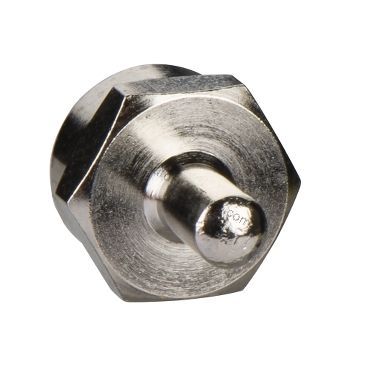

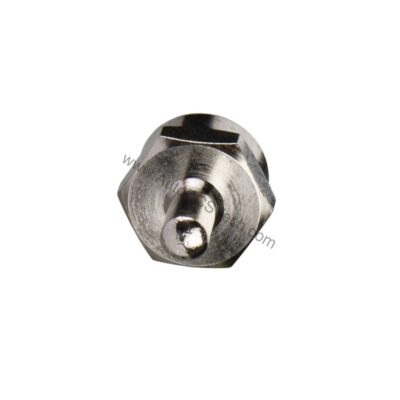

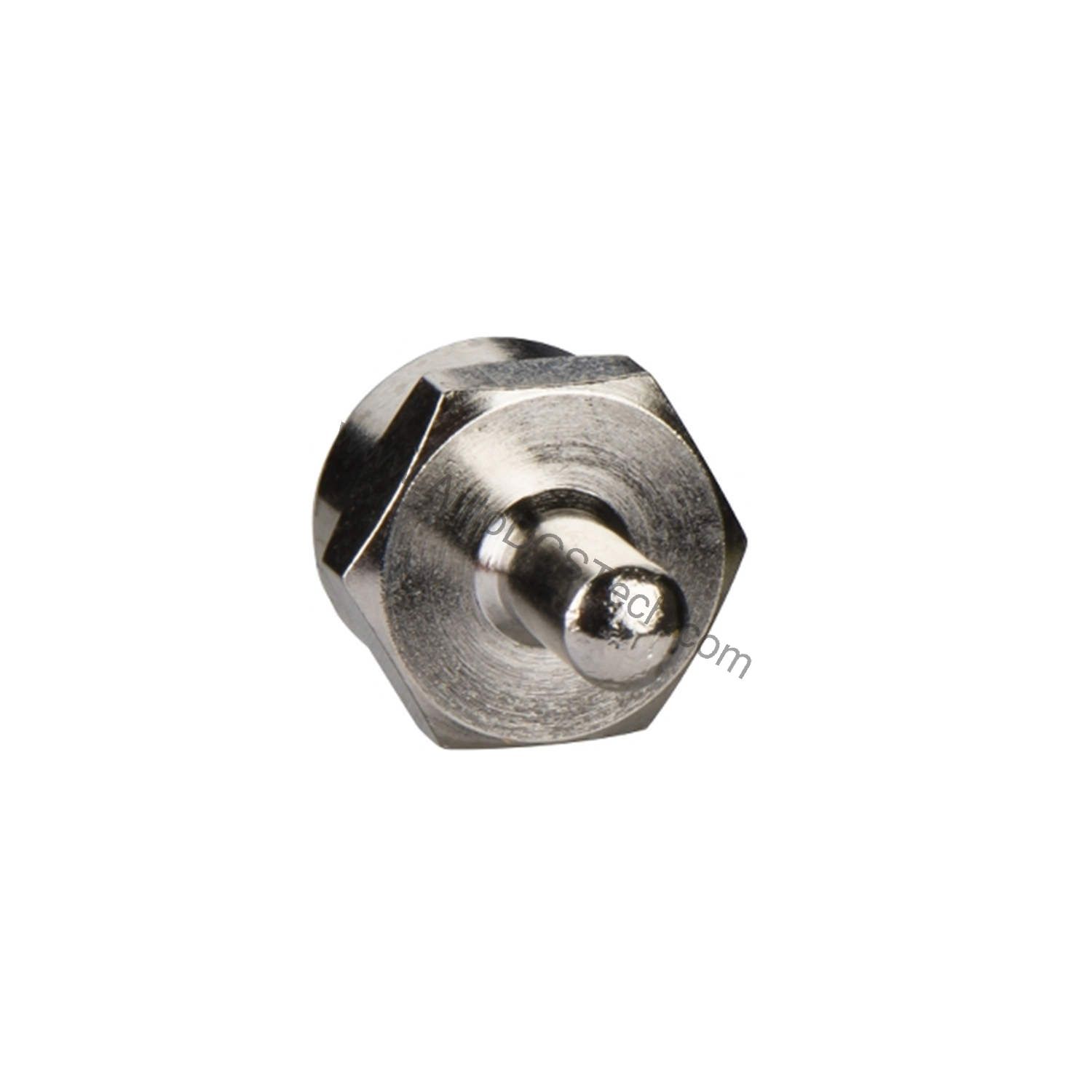

Schneider 52-0402-000 Modicon Quantum Tap Terminator for RS-485/Modbus

Technical Specifications Breakdown

Key parameters for the 52-0402-000 are listed below for quick reference:

Industry Applications

Terminating Unused Drop Locations

In large Modicon Quantum installations, multiple drop points are often wired for future expansion. An unterminated drop can cause signal reflections, leading to data corruption or network timeouts. The 52-0402-000 provides proper termination at these unused locations, maintaining signal integrity without requiring a full node. This prevents costly downtime and troubleshooting.

RS-485/Modbus Network Stability

RS-485 networks require proper termination at both ends of the bus to prevent reflections. In a distributed control system (DCS) using Modbus RTU, this tap terminator ensures the physical layer remains stable. Its surge protection adds resilience against voltage spikes common in industrial environments, reducing the risk of damage to connected devices.

Compact Integration in Control Panels

Weighing only 0.2 oz (5.0 g) and measuring 0.47 x 1.97 x 3.54 inches, this terminator fits easily into crowded control cabinets. Its DIN rail or panel mounting options simplify installation, while screw or plug-in terminal blocks allow flexible wiring.

Installation & Setup Guidance

Mount the 52-0402-000 on a DIN rail or directly on a panel using the provided slots. Connect the RS-485/Modbus signal wires to the screw or plug-in terminal blocks as per the network wiring diagram. Ensure the 24V DC power supply is connected with correct polarity. The LED indicators will illuminate to confirm power and communication status. For unused drop locations, simply terminate the cable and leave the device connected.

Maintenance & Reliability

The tap terminator is designed for low-maintenance operation. Periodically inspect the LED indicators to verify power and network status. Keep the unit within the specified environmental ranges: -20°C to 70°C operating and -40°C to 85°C storage. Ensure relative humidity stays between 5% and 95% non-condensing. The surge protection feature helps guard against transient overvoltages, but regular inspection of wiring and connections is recommended.

Reliable Termination for Modicon Quantum Networks

In a busy manufacturing plant, a Modicon Quantum remote I/O network was experiencing intermittent communication errors. After hours of troubleshooting, the root cause was an unterminated drop location causing signal reflections. The solution was simple: install the Schneider Electric 52-0402-000 tap terminator. This compact device provides proper line termination for RS-485/Modbus segments, ensuring reliable data transmission across the network.

The 52-0402-000 is a dedicated tap terminator within the Modicon Quantum series, designed to terminate unused drop locations on the automation platform. It operates at 24V DC with a current consumption of 40 mA, making it energy-efficient for continuous use. The device supports digital communication via RS-485/Modbus protocols, handling cable lengths from 0 to 100 meters.

Compatibility & Integration

The 52-0402-000 is specifically designed for the Modicon Quantum automation platform. It supports RS-485/Modbus communication, making it compatible with Quantum processors, remote I/O drops, and other Modbus devices. The screw or plug-in terminal blocks accept standard industrial wiring, and the device is CE, UL, and RoHS compliant for global use.

Selection Guide & Purchasing Advice

When selecting a tap terminator for your Modicon Quantum network, verify that the part number matches your system requirements. The 52-0402-000 is the correct choice for terminating unused drop locations on RS-485/Modbus segments. Our team can confirm stock and provide fast shipping to keep your automation running.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
