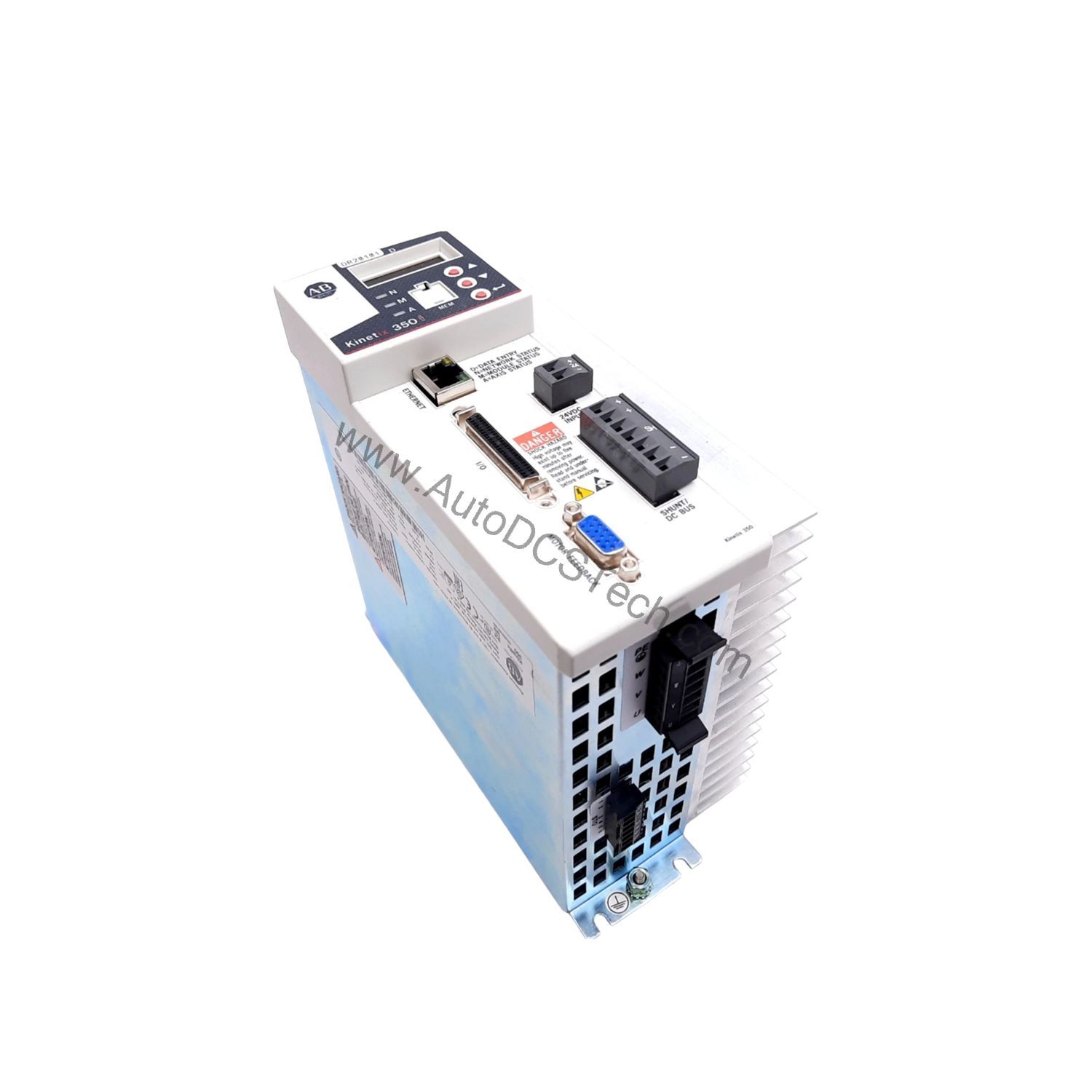

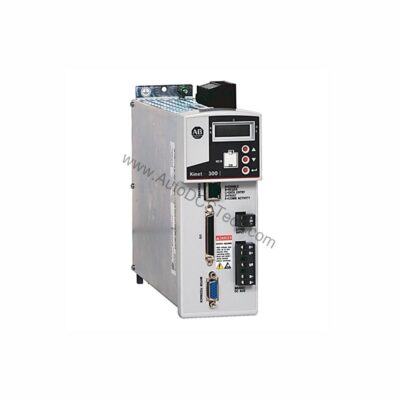

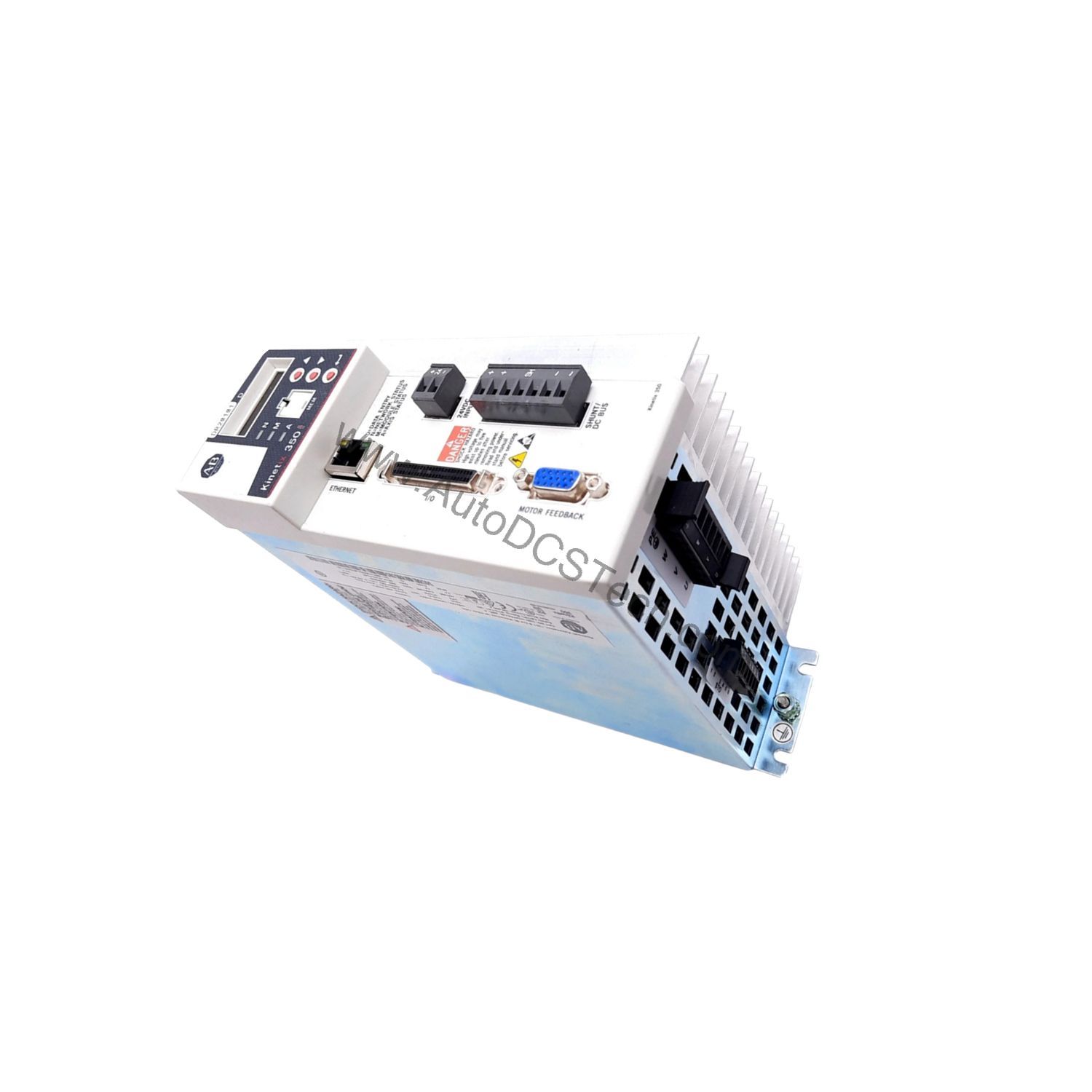

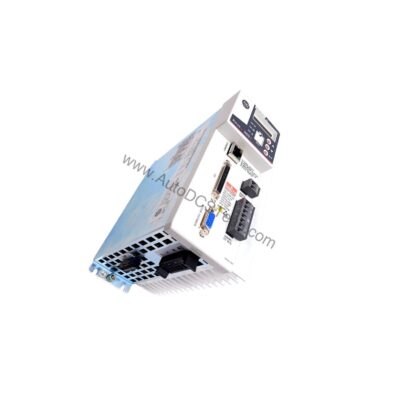

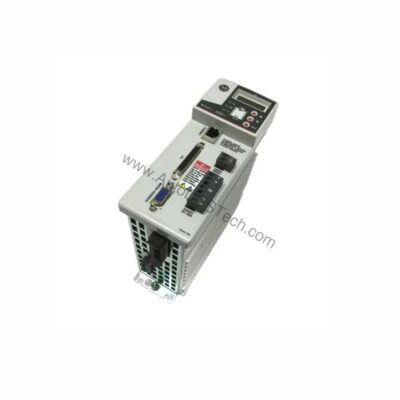

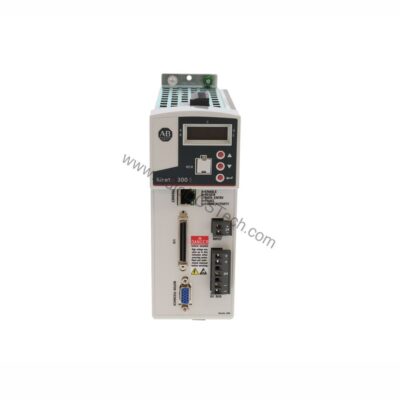

Allen-Bradley 2097-V34PR3 Kinetix 300 Ethernet/IP Indexing Servo Drive

Product Overview

The Allen-Bradley 2097-V34PR3 is a Kinetix 300 Ethernet I/P Indexing servo drive designed for precise motion control applications. This drive eliminates the need for a dedicated motion control network, simplifying wiring and panel design. With integrated Safe Torque-Off functionality certified to ISO 13849-1 PLd/SIL2, it enhances operator safety during maintenance and troubleshooting.

Technical Specifications Breakdown

Key parameters for the 2097-V34PR3 are listed below for quick reference:

Industry Applications

Its indexing capability supports precise position control for conveyor systems, rotary tables, and pick-and-place machines. The built-in memory module enables automatic device replacement, reducing downtime in high-volume production lines. Compared to similar drives without Safe Torque-Off, this model provides a cost-effective safety solution without external contactors.

Installation & Setup Guidance

Mount the drive on a vertical surface within the specified operating temperature range (0-40 °C). Ensure the installation surface does not exhibit vibration exceeding 5…2000 Hz @ 2.5 g peak. Connect 3-phase AC input voltage between 320-528V rms (480V nominal). Use the integrated Ethernet interface for communication with ControlLogix, CompactLogix, or MicroLogix controllers. The control power back-up input requires 20…26V DC at 500 mA nominal.

Maintenance & Reliability

Inspect the drive periodically for dust accumulation and ensure adequate airflow. The drive dissipates 39 Watts of power; maintain ambient temperature below 40°C. Relative humidity should stay between 5…95% non-condensing. The internal solid-state motor short-circuit protection reduces the need for external fuses.

Compatibility & Integration

The 2097-V34PR3 is compatible with Kinetix MP and TLY Rotary Motors, MPAI Heavy-duty Electric Cylinders, MPAR Electric Cylinders, LDAT-Series Linear Thrusters, LDC-Series and LDL-Series Linear Motors, and MPAS Integrated Linear Stages. It communicates via EtherNet/IP and works with remote I/O devices like the 1734-AENT POINT I/O adapter, PanelView terminals, and Rockwell Automation PACs.

Selection Guide & Purchasing Advice

When selecting a servo drive, consider the continuous output current (2.8 A) and power (1.0 kW) required for your motor. The 2097-V34PR3 includes Safe Torque-Off, which may eliminate the need for additional safety relays. For lifecycle status and availability, please verify with AutoDCSTech before ordering. AutoDCSTech stocks genuine Allen-Bradley drives and can assist with replacement or upgrade needs.
