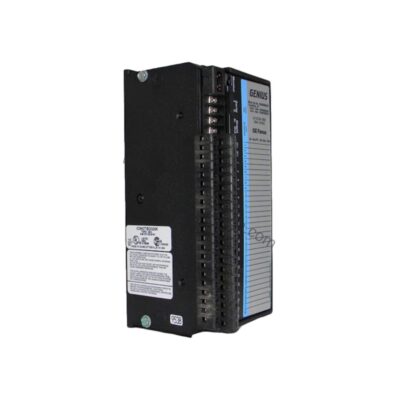

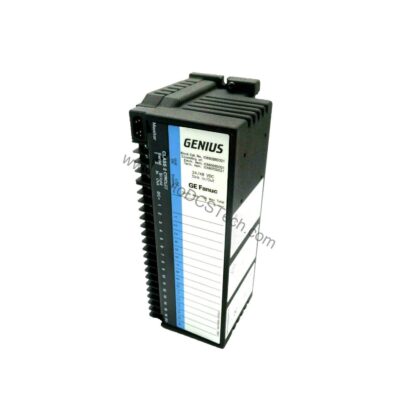

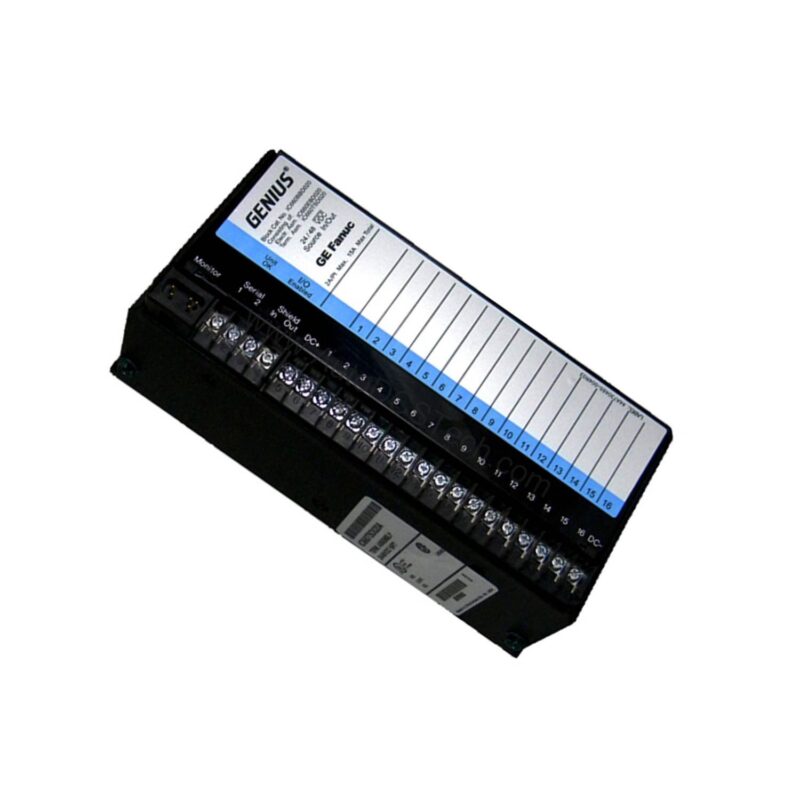

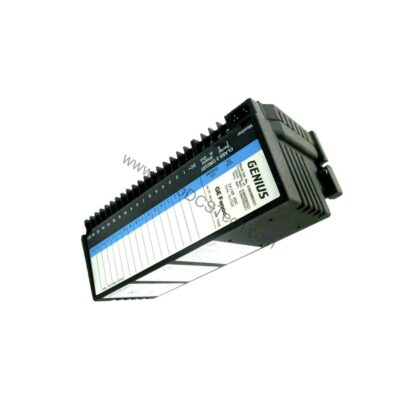

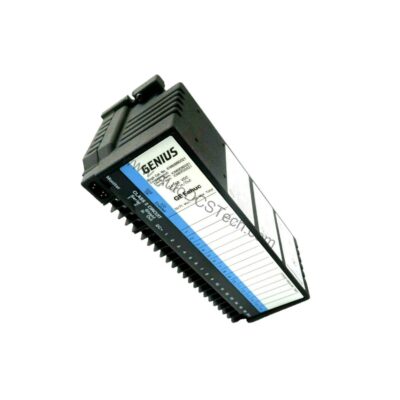

IC660BBS103: Discrete I/O Block
The IC660BBS103 is the Discrete I/O Block covered on this page. The attribute that decides whether it fits the existing installation without modification is 0 to 60 °C.
On this unit discrete i/o block is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. discrete i/o block sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0 to 60 °C against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660BBS103 |
| Input Voltage Range AC | 93-132 VAC |
| Input Voltage Range DC | 105-132 VDC |
| Nominal Input Voltage AC | 115 VAC |
| Nominal Input Voltage DC | 125 VDC |
| Output Current AC | 2 A RMS |
| Output Current DC | 2 A resistive (1 A inductive) |
| Peak Block Output | 15 Amps |
| Operating Temperature | 0 to 60 °C |
| Relative Humidity | 5 to 95% |
| Input Filter | 10 to 100ms in 10ms increments |
| Turn-On Delay AC | 0.5 Hz + 1ms |
| Turn-On Delay DC | 1ms |
| Fusing | Internal electronic short circuit trip, 100ms (AC), 10ms (DC) |
| Module Type | Discrete I/O Block |
| Number of Circuits | 8 |
| Circuit Type | Outputs |
| Voltage Rating | 115 Volts AC, 125 Volts DC |
| Failed Switch Diagnostic | No. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-fanuc-ic660bbs100-isolated-i-o-block-for-genius-i-o-series | confirm the configuration against your installation |
| ge-fanuc-ic660bbs101-genius-i-o-block-isolated-8-circuit-module | confirm the configuration against your installation |
| ge-ic660bbs102-genius-isolated-i-o-block-115vac-125vdc-8-circuits | confirm the configuration against your installation |
| ge-fanuc-ic660bbs104-genius-i-o-block-for-series-90-30-90-70-plcs | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660BBS103 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
