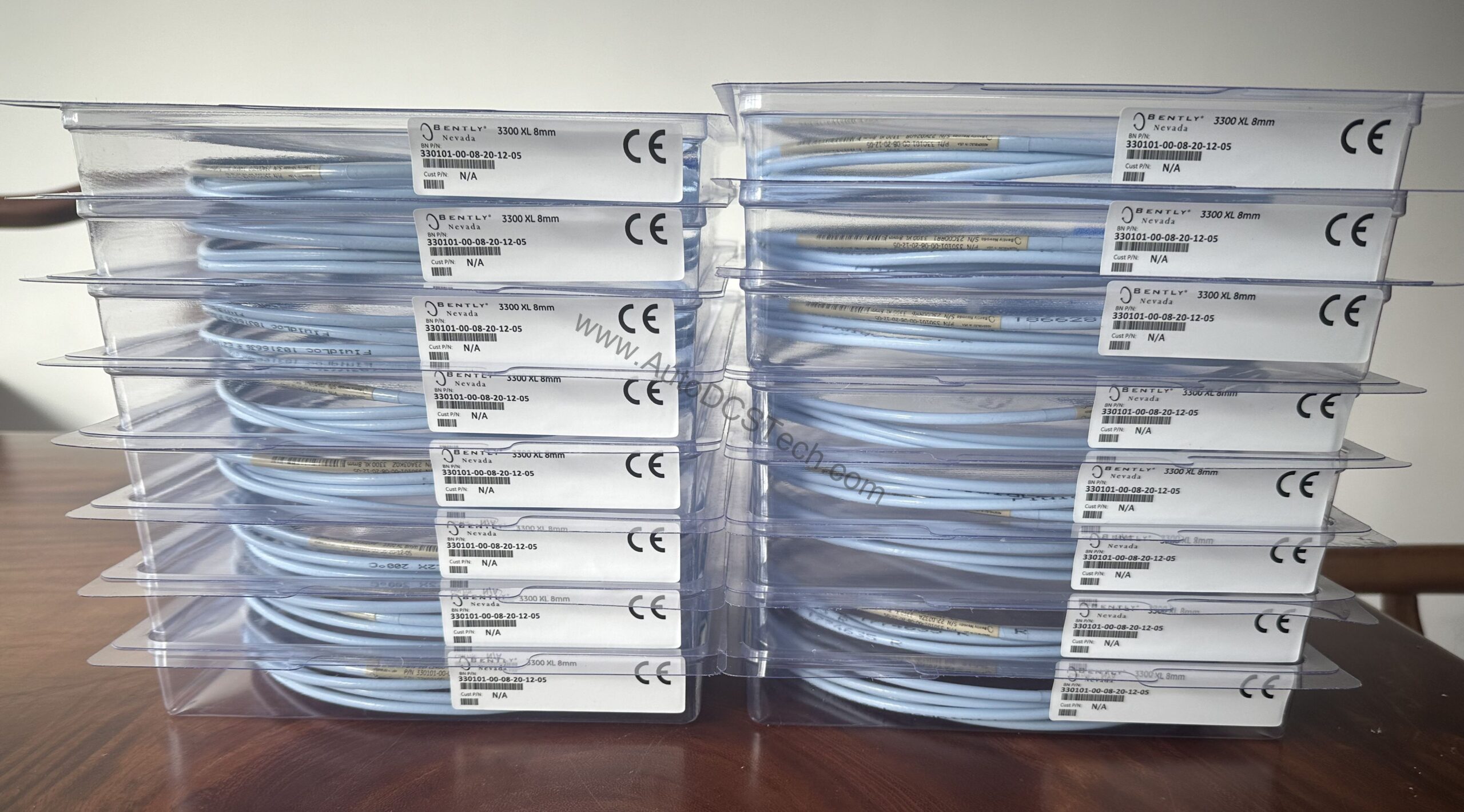

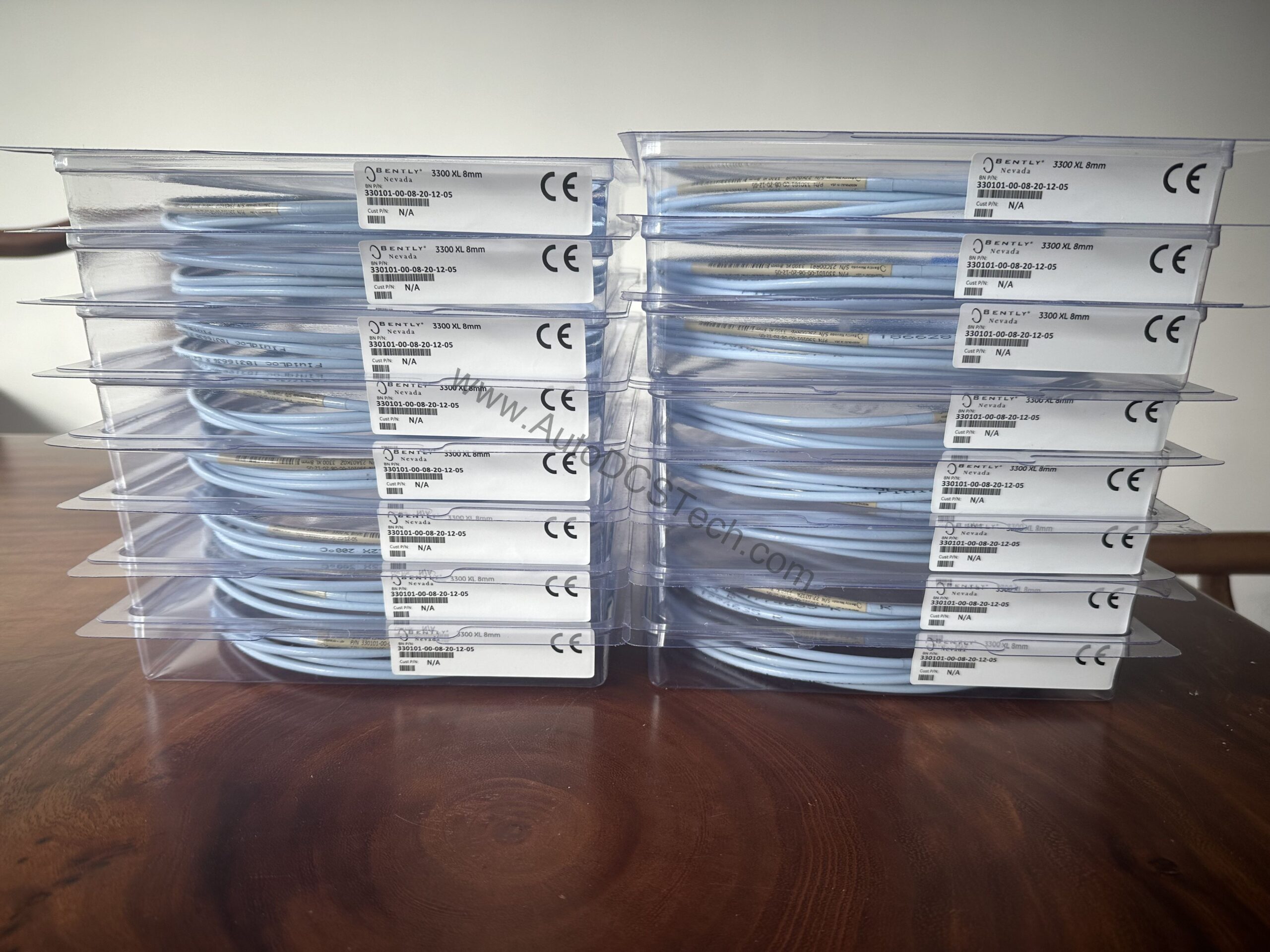

Bently Nevada 330101-00-32-10-02-05 3300 XL 8 mm Probe

Cost-Effective Vibration Monitoring with the Bently Nevada 330101-00-32-10-02-05

When protecting critical rotating machinery, every dollar spent on reliable monitoring reduces the risk of costly unplanned downtime. The Bently Nevada 330101-00-32-10-02-05 3300 XL 8 mm Probe delivers precision vibration measurement at a competitive total cost of ownership, thanks to its robust design and proven performance in harsh industrial environments.

Technical Specifications Breakdown

Key parameters for the 330101-00-32-10-02-05 are listed below for quick reference:

Industry Applications and Cost Impact

Steam Turbine Monitoring – In power generation, a single bearing failure can cost over $500,000 in lost production. The 330101-00-32-10-02-05 provides 2 mm linear range and -9 Vdc recommended gap setting for radial vibration, enabling early detection of shaft displacement. This reduces repair costs by allowing planned maintenance rather than emergency shutdowns.

Compressor Protection – For centrifugal compressors in oil and gas, the probe’s 7.87 V/mm scale factor ensures consistent measurement accuracy. The patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, minimizing cable damage and replacement expenses.

Pump Health Monitoring – In water treatment facilities, the probe’s stainless steel case and PPS tip resist corrosion, extending service life and lowering annual replacement costs.

Installation and Setup Guidance

Proper installation maximizes measurement accuracy and minimizes rework costs. For the 330101-00-32-10-02-05, use the 3/8-24 UNF thread with thread engagement up to 0.563 in. Apply recommended torque of 11.2 N•m (100 in•lbf) for standard forward mounted probes, and 7.5 N•m (66 in•lbf) for the first three threads. Field wiring should use 0.2 to 1.5 mm² (16 to 24 AWG) three-conductor shielded triad cable, with maximum length of 305 meters (1,000 feet) between the Proximitor Sensor and monitor.

Maintenance and Reliability

To maintain long-term cost efficiency, inspect the probe cable and connector periodically for wear. The probe operates reliably in temperatures from -52°C to +177°C (standard) and up to +218°C for extended range tips. Avoid exposing the probe to temperatures below -34°C to prevent premature pressure seal failure. The Viton O-ring seals differential pressure between tip and case.

Compatibility and Integration

The 330101-00-32-10-02-05 integrates with Bently Nevada 3300 XL Proximitor Sensors and monitoring systems. Its miniature coaxial ClickLoc connector simplifies installation and reduces connection failures, lowering troubleshooting costs.

Selection Guide and Purchasing Advice

When selecting a probe, consider total length, cable type, and agency approvals. The 330101-00-32-10-02-05 includes CSA, ATEX, and IECEx approvals, making it suitable for hazardous areas. For pricing and availability, contact AutoDCSTech, your trusted source for industrial automation parts.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
