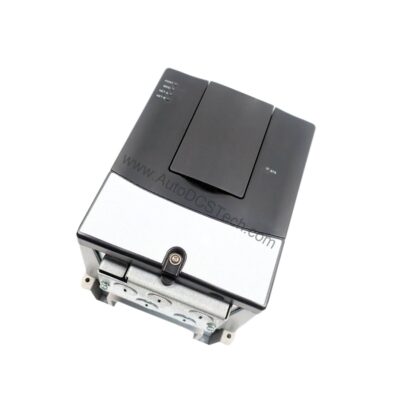

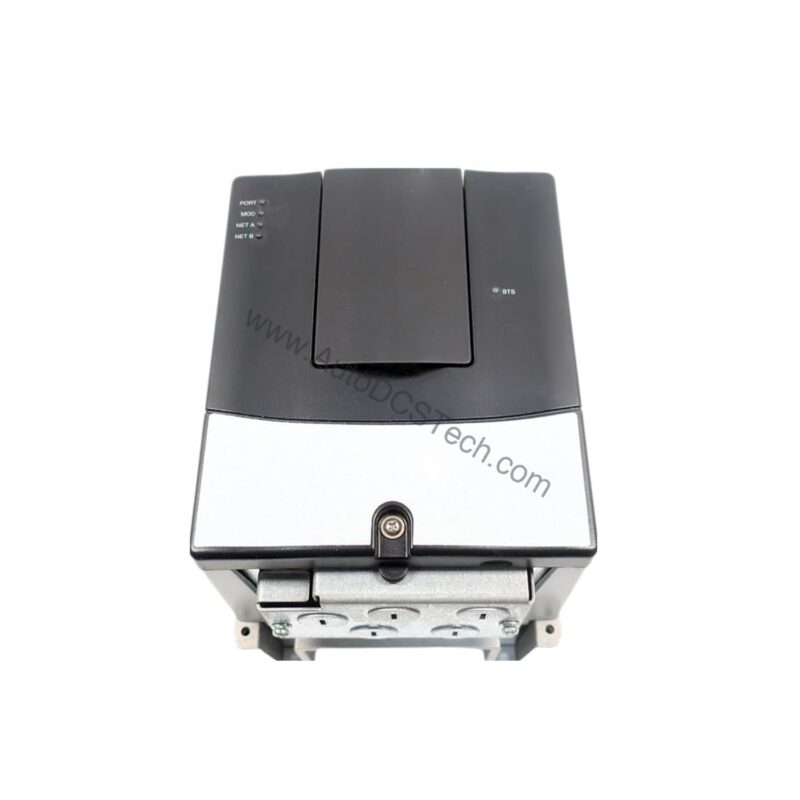

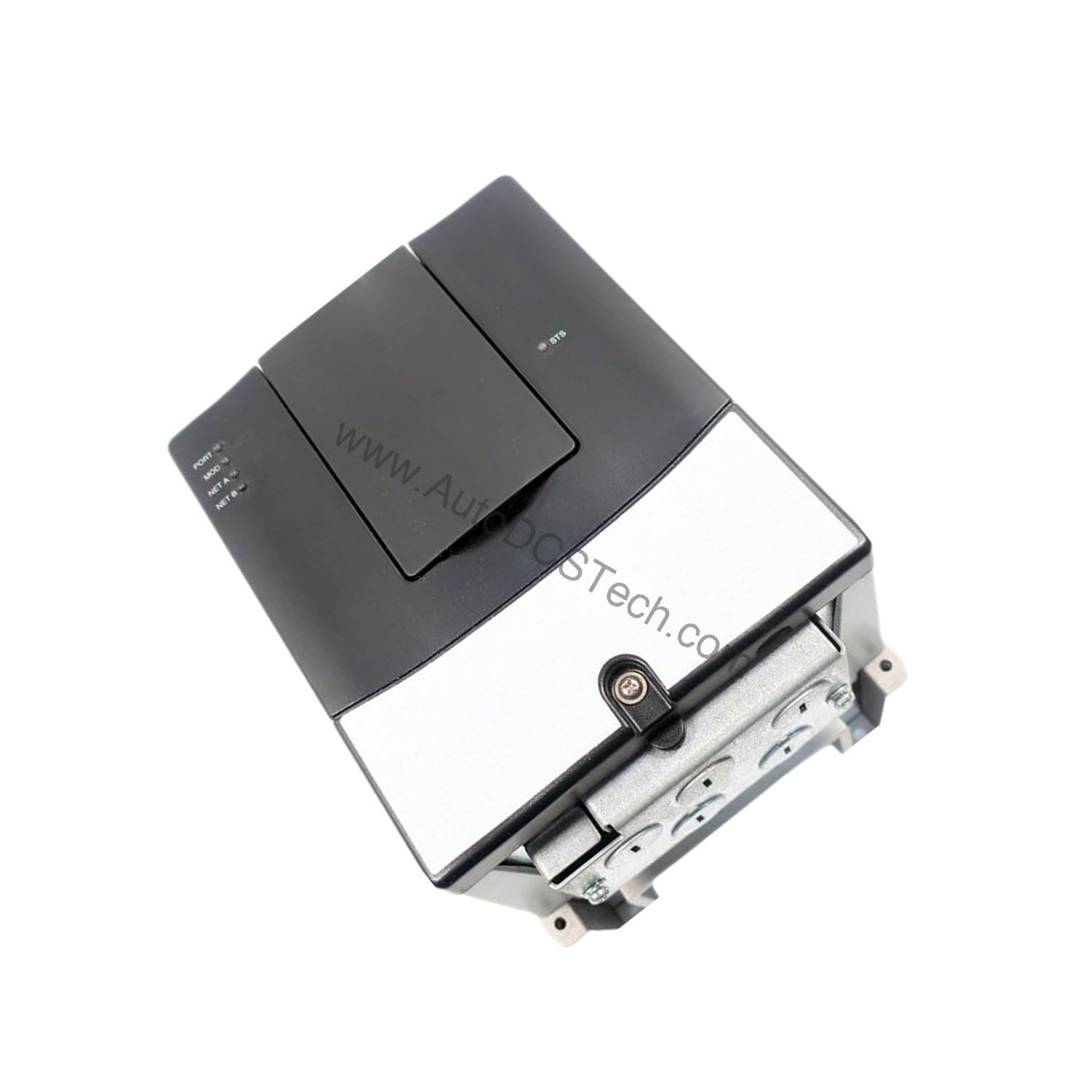

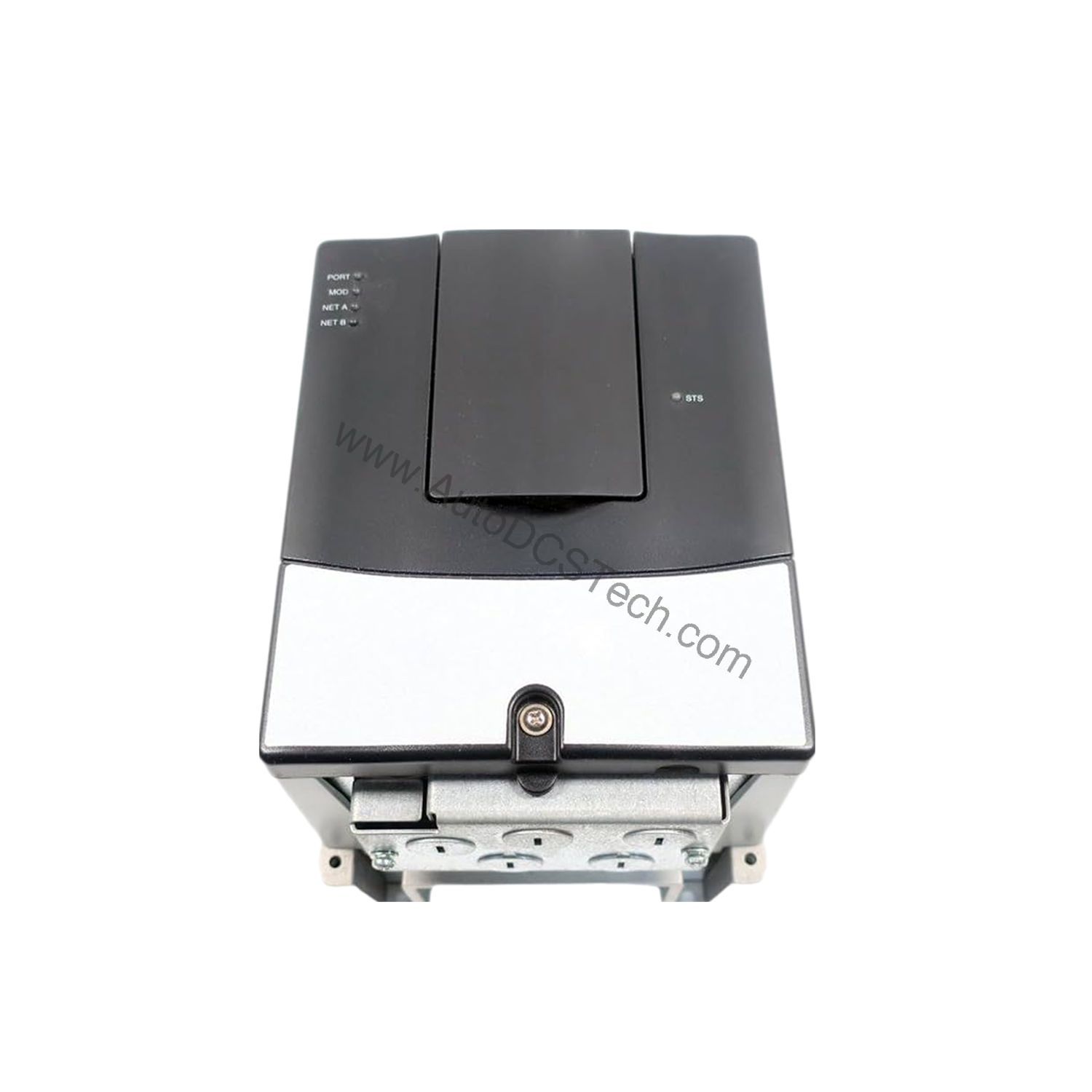

Allen-Bradley 20AD5P0A0AYNNNC0 PowerFlex 70 AC Drive, 480V, 5A

Product Overview

The 20AD5P0A0AYNNNC0 is a member of the Rockwell Automation PowerFlex 70 series of AC drives. It is a base drive configured with enhanced control, a built-in brake IGBT, and no human interface module (blank plate). Rated for 480 VAC, 3-phase input, it provides 5 Amps continuous output current, supporting 3 HP normal duty and 2 HP heavy duty loads.

Technical Specifications Breakdown

Key parameters for the 20AD5P0A0AYNNNC0 are listed below for quick reference:

Industry Applications

Typical uses include conveyors, fans, pumps, and mixers in manufacturing, material handling, and HVAC systems. The conformal coating protects circuit boards from humidity and mild chemical exposure, extending service life in food processing or textile plants. The enhanced control provides superior speed regulation and torque performance for demanding processes.

Installation & Setup Guidance

Mount the drive on a flat, vertical surface using the provided panel-mounting holes. Ensure adequate clearance around the heat sink for airflow — refer to the PowerFlex 70 installation manual for minimum spacing. Connect incoming 480 VAC, 3-phase power to the input terminals (R, S, T). The motor connects to output terminals (U, V, W). Since this unit has no HIM, initial configuration requires a remote HIM or software tool via the drive's serial port. Set motor nameplate parameters and control mode (Enhanced) before operation. The brake IGBT is pre-installed; if an external brake resistor is needed, connect it to the designated terminals (ensure resistor is not included with this model).

Maintenance & Reliability

Periodically inspect the drive for dust accumulation on the heat sink and fan. Clean with low-pressure dry air to prevent overheating. Verify all power connections remain tight. The conformal coating provides ongoing protection against moisture and contaminants, reducing the need for frequent board cleaning. Check the external fan (available as spare part SK-M9-FAN1-ABCD1) for proper operation annually. No internal adjustments are required beyond initial setup.

Engineering Challenge: Reliable Motor Control in Harsh Environments

Industrial facilities often face the challenge of maintaining precise motor speed and torque control while protecting sensitive electronics from dust, moisture, and corrosive atmospheres. The Allen-Bradley 20AD5P0A0AYNNNC0 PowerFlex 70 AC Drive directly addresses this need with a robust panel-mount design featuring conformal coating and an IP20 / NEMA Type 1 enclosure. This drive delivers consistent performance in demanding applications without requiring a separate cabinet.

Compatibility & Integration

The 20AD5P0A0AYNNNC0 is designed for standalone use or integration into a larger automation system. It can accept commands from a PLC via analog inputs or digital control signals. For safety applications, the optional DriveGuard Safe-Off board (catalog 20A-DG01) can be added to provide safe torque off functionality. The unit does not include a communication module, but optional modules can be installed to support networks such as DeviceNet, ControlNet, or EtherNet/IP. The enhanced control board supports advanced features like vector control and flying start.

Selection Guide & Purchasing Advice

When selecting this drive, confirm that the voltage, current, and horsepower ratings match your motor and application requirements. AutoDCSTech stocks this unit and offers fast shipping. Please verify current lifecycle status and availability with AutoDCSTech before ordering. For assistance with configuration or spare parts, contact our technical team.
