Product Overview

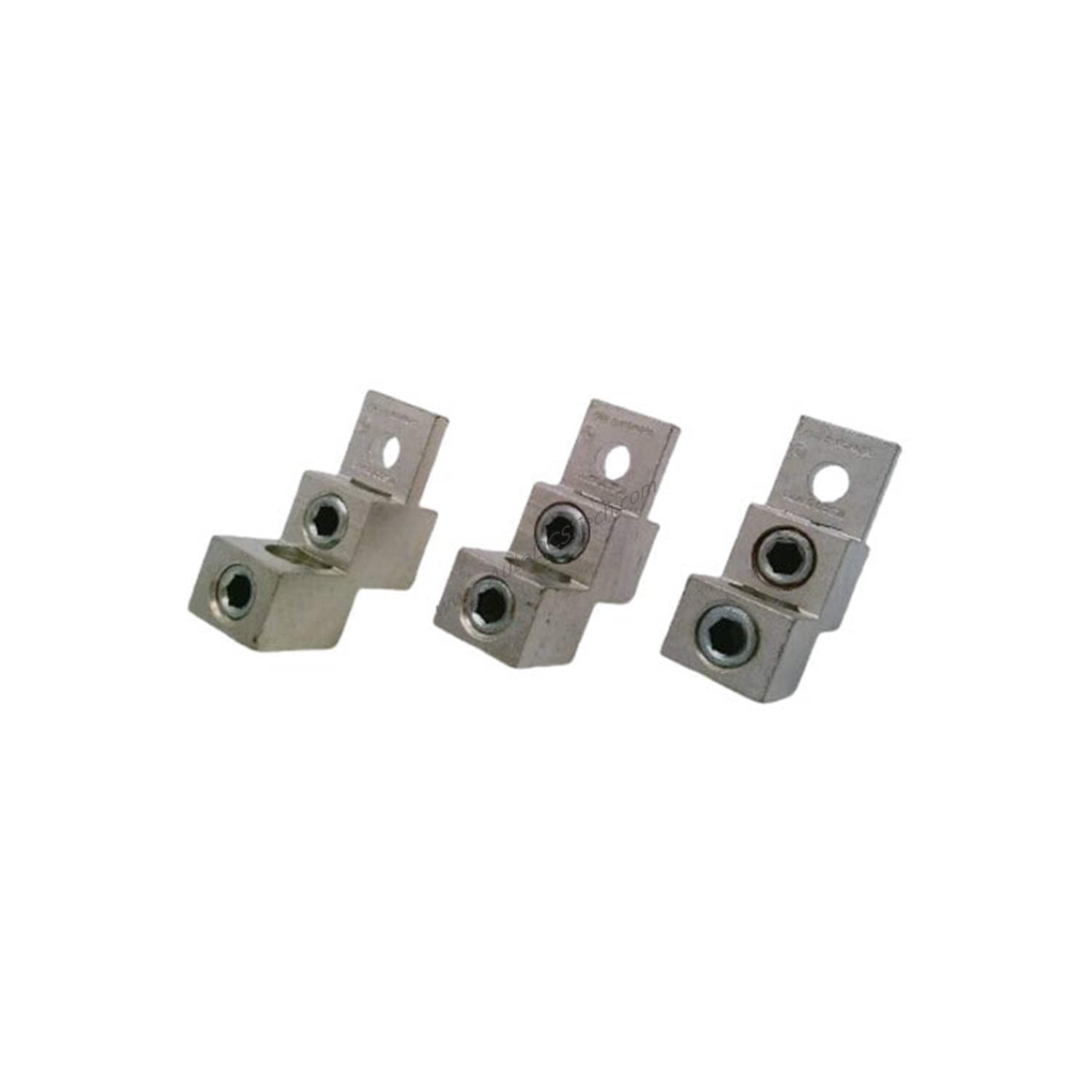

When maintaining industrial electrical systems, reliable grounding connections are critical for safety and equipment longevity. The Allen-Bradley 100-DL630 Terminal Lugs provide a robust solution for grounding applications. As part of the SMC-Flex series, these lugs deliver dependable performance in moderate environments.
Technical Specifications Breakdown
The 100-DL630 lugs come with a NEMA 1 enclosure rating and an IP20 protection class. This combination makes them suitable for indoor use where dust and incidental contact are concerns. The metal construction ensures durability and good conductivity. Operating temperature ranges from 0 to 40 degrees Celsius, covering most factory floor conditions. With a maximum operating humidity of 95% (non-condensing), these lugs handle high-moisture areas without condensation issues. The allowable installation height is 1000 MSL, making them suitable for most low-altitude facilities. Each lug weighs 5.00 lbs (2.27 kg), providing a solid feel during installation.
Industry Applications
These terminal lugs are ideal for panel builders and maintenance teams working on motor control centers or distribution panels. For example, in a manufacturing plant with high humidity from washdown processes, the 100-DL630's 95% non-condensing rating ensures reliable grounding even in damp conditions. The through-hole mount simplifies installation on standard backplanes, reducing downtime during retrofits.
Installation & Setup Guidance
Mounting the 100-DL630 is straightforward thanks to its through-hole design. Secure the lug to the panel using appropriate hardware (not included). Ensure the mounting surface is clean and flat for maximum contact. Torque connections to manufacturer specifications for the best electrical performance. Always verify proper grounding continuity after installation.
Maintenance & Reliability
From a maintenance engineer's perspective, the 100-DL630 offers low-maintenance reliability. The metal construction resists corrosion in non-condensing environments. Periodically inspect the lugs for signs of oxidation or loosening. The IP20 protection reduces dust accumulation, but occasional cleaning with a dry cloth helps maintain conductivity. Given the 0 to 40 degrees Celsius range, avoid placing these lugs near heat sources or in direct sunlight.
Selection Guide & Purchasing Advice
Before ordering, confirm your system requires NEMA 1 and IP20 protection levels. The 100-DL630 is a lug kit, so ensure you have compatible mounting hardware and conductors. For current lifecycle status and availability, contact SpareTechPLC. Our team can help verify stock and suggest alternatives if needed.
Frequently Asked Questions
Q: What is the weight of the 100-DL630 terminal lugs?
A: Each lug weighs 5.00 lbs (2.27 kg), making them sturdy yet manageable for installation.
Q: Can these lugs be used outdoors?
A: No, the NEMA 1 and IP20 ratings are for indoor use only. They are not weatherproof.
Q: What is the maximum operating humidity for the 100-DL630?
A: The maximum operating humidity is 95% (non-condensing). Avoid condensation to prevent corrosion.
Q: What mounting type does the 100-DL630 use?
A: It uses a through-hole mount for secure attachment to panels or backplanes.
Q: Is the 100-DL630 part of a specific product line?
A: Yes, it belongs to the Allen-Bradley SMC-Flex series.
