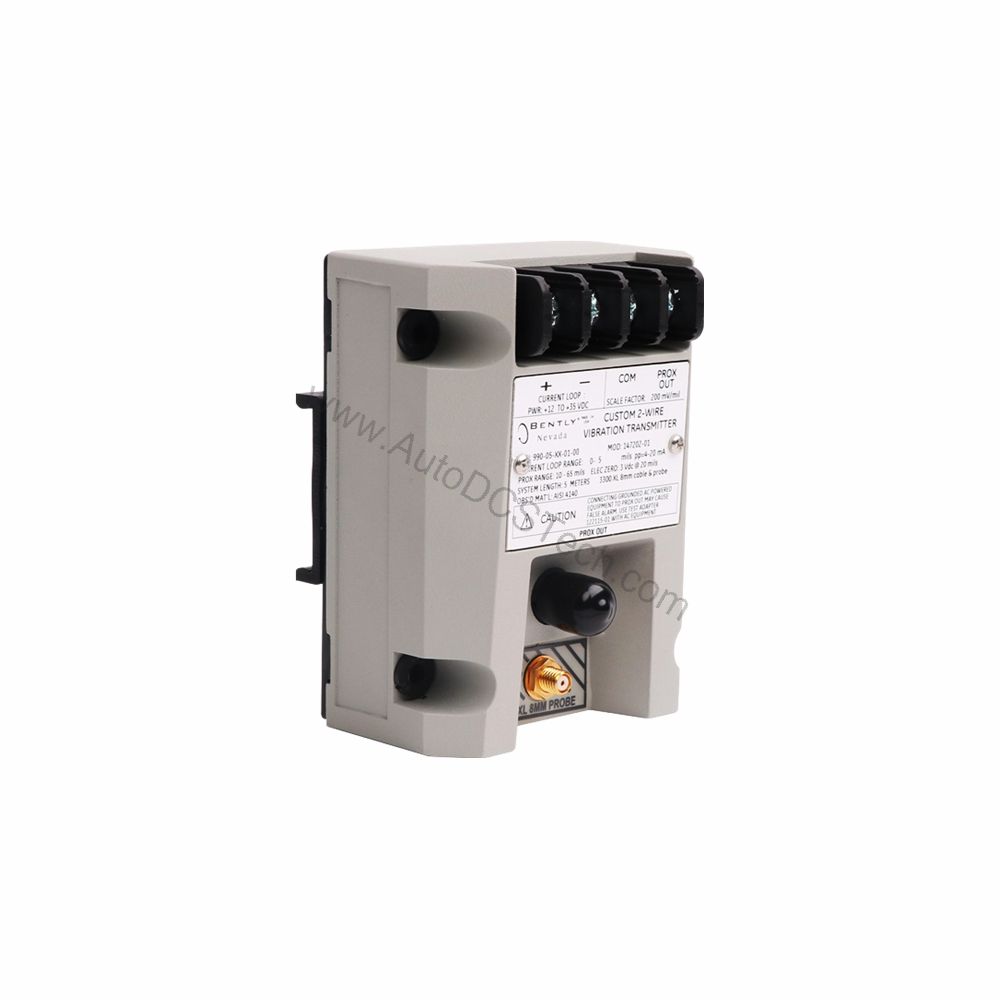

990-04-70-02-01 Vibration Transmitter Overview
When machine vibration threatens uptime, the 990-04-70-02-01 from Bently Nevada provides a reliable, loop-powered solution. This 990 Vibration Transmitter accepts a single non-contacting 3300 NSv Proximity Probe and extension cable, converting dynamic shaft vibration into a standard 4-20 mA signal. Designed for continuous monitoring in industrial environments, it helps operators detect developing faults before they cause unplanned downtime.
The transmitter is configured with a full-scale option of 04, meaning 0-4 mils peak-to-peak (0-100 μm pp). It includes a 7.0-meter (23.0 feet) system length and bulkhead screw mounting. The agency approval option 01 indicates CSA Division 2 certification, suitable for non-hazardous and Zone 2/Div 2 hazardous area locations when powered at 28 V.
Key Features and Technical Specifications
This section details the critical parameters that define the 990-04-70-02-01 performance. Each value is sourced directly from the manufacturer's data to ensure accuracy.
- Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
- Power: Requires +12 to +35 Vdc input at the transmitter terminal.
- Output: 4 to 20 mAdc over specified full-scale range in 2-wire configuration.
- Accuracy: Within ±1.5% over specified full-scale range (from TEST signal input to voltage across 250 Ω loop resistance).
- Probe Gap: Must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from target.
- Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc.
- Current Limiting: 23 mA typical.
- Frequency Response: 5 Hz to 6,000 Hz +0, 3 dB.
- Minimum Target Size: 9.5 mm (0.375 in) diameter.
- Leadwire Length: Maximum 3 meters (10 feet) for Proximitor Sensor Output (BNC connector).
- Zero and Span: Non-interacting external adjustments.
The 990-04-70-02-01 also features a NOT OK/signal defeat function: the output drops to less than 3.6 mA within 100 µs after a Not OK condition, and restores within 2-3 seconds after removal. This fast response is critical for alerting control systems to sensor faults.
Applications and Use Cases
This vibration transmitter is ideal for monitoring rotating machinery such as pumps, motors, fans, and compressors. In continuous process industries, early detection of shaft vibration prevents catastrophic failures. For example, in a petrochemical plant, the 990-04-70-02-01 can be installed on a critical pump to provide real-time vibration data to a DCS. The 4-20 mA signal integrates easily with existing control systems, enabling trend analysis and alarm management. Consequently, maintenance teams can schedule repairs based on actual machine condition rather than fixed intervals, reducing downtime and maintenance costs.
Installation and Setup
Proper installation is essential for accurate vibration measurement. The transmitter mounts using bulkhead screws, ensuring a secure fit. The proximity probe must be gapped correctly between 0.5 and 1.75 mm (20 and 55 mils) from the target shaft. Use the non-interacting zero and span adjustments to calibrate the output to the full-scale range. Ensure the loop resistance does not exceed 1,000 Ω at 35 Vdc to maintain specified accuracy. For hazardous area installations, verify that the power supply is 28 V as per the agency approval. Always follow the manufacturer's manual for detailed wiring and mounting instructions.
Maintenance and Reliability
Regular inspection of the probe and cable is recommended to ensure reliable operation. Check that the probe tip is clean and free from debris, and that the cable is not damaged. Periodically verify the transmitter's output against a known vibration source to confirm accuracy. Because the unit is loop-powered, there are no moving parts, reducing wear. The CSA Division 2 approval indicates suitability for certain hazardous environments, but always confirm that the installation meets local codes. Following these practices extends the service life of the 990-04-70-02-01 and maintains measurement integrity.
Compatibility and Integration
The 990-04-70-02-01 works with Bently Nevada 3300 NSv proximity probes and extension cables. The 4-20 mA output is universally accepted by PLCs, DCSs, and SCADA systems. The two-wire configuration simplifies wiring, and the maximum loop resistance of 1,000 Ω allows for long cable runs. For integration, ensure that the input impedance of the receiving device is compatible with the loop. The transmitter's fast NOT OK response (less than 3.6 mA within 100 µs) ensures that control systems can react quickly to sensor failures, enhancing overall system reliability.
Availability and Support
The 990-04-70-02-01 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Contact AutoDCSTech to check stock and lead times. Please verify current lifecycle status and availability before ordering.
