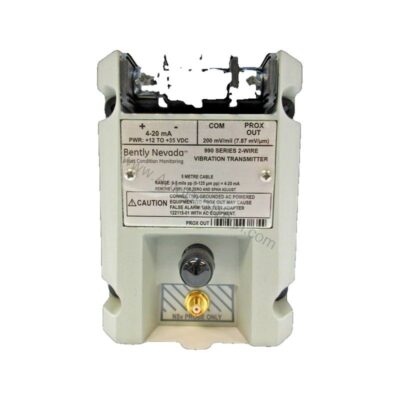

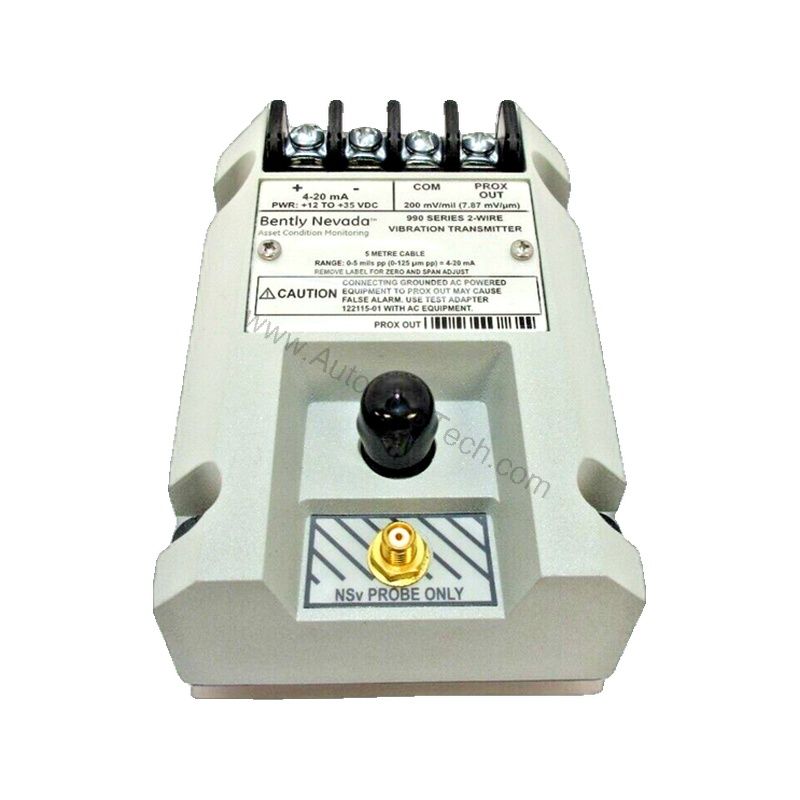

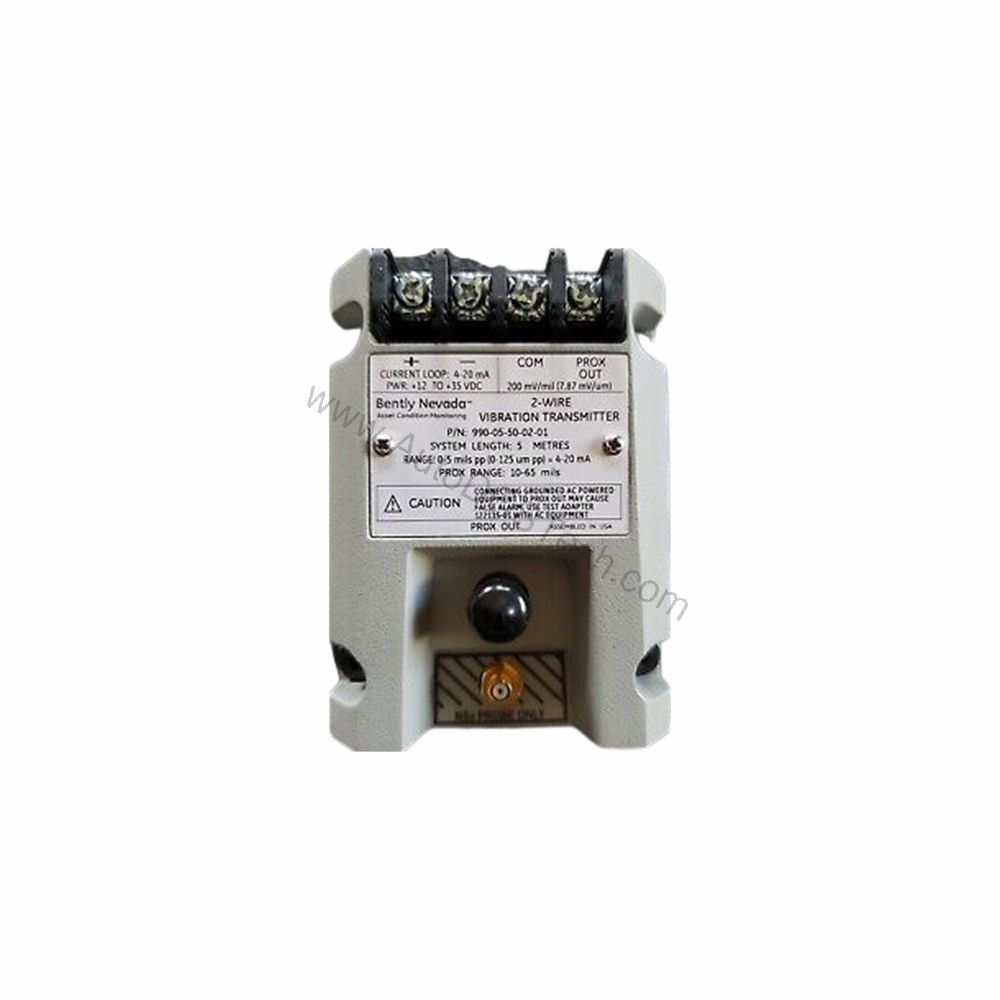

Introduction to the Bently Nevada 990-05-50-01-01
When rotating machinery vibration threatens uptime, the Bently Nevada 990-05-50-01-01 delivers a reliable 4-20 mA signal. This 990 Vibration Transmitter accepts one non-contacting 3300 NSv Proximity Probe and extension cable. It converts probe gap changes into a proportional current loop output. Maintenance engineers trust this unit for continuous vibration monitoring in critical applications.
Key Features and Technical Specifications
The 990-05-50-01-01 is engineered for precise, repeatable measurements. Its full-scale option is 0-5 mils pp (0-125 μm pp). The system length option is 0-5.0 metres (16.4 feet), and mounting is via 35 mm DIN rail clips. The unit carries CSA Division 2 agency approval for hazardous area locations.
- Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
- Power: Requires +12 to +35 Vdc input at the transmitter terminal.
- Signal output: 4 to 20 mAdc over specified full-scale range in 2-wire configuration.
- Loop accuracy: Within ±1.5% over specified full-scale range, rated from TEST signal input to voltage across a 250 Ω loop resistance.
- Maximum loop resistance: 1,000 Ω including cable at 35 Vdc.
- Current limiting: 23 mA typical.
- Frequency response: 5 Hz to 6,000 Hz +0, 3 dB.
- Minimum target size: 9.5 mm (0.375 in) diameter.
- Leadwire length: Maximum 3 meters (10 feet) for Proximitor Sensor Output (BNC connector).
The probe must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from the target to ensure full-scale range. Zero and span are non-interacting external adjustments, simplifying calibration.
Real-World Applications
This transmitter suits machinery protection on pumps, fans, compressors, and turbines. Its 4-20 mA output integrates easily with PLCs, DCS, and SCADA systems. The CSA Division 2 rating permits installation in potentially explosive atmospheres. For example, in a petrochemical plant, the 990-05-50-01-01 can monitor a cooling fan bearing, sending a signal to a control room. This enables early detection of shaft vibration, preventing unplanned downtime.
Installation and Setup
Mounting is straightforward with the 35 mm DIN rail clips. Ensure the probe is correctly gapped to the target. Connect the +12 to +35 Vdc power supply to the transmitter terminal. Wire the 4-20 mA loop to your monitoring system, keeping total loop resistance below 1,000 Ω. The maximum leadwire length is 3 meters, so place the transmitter close to the probe.
Maintenance and Reliability
Routine inspection should verify the probe gap and secure mounting. Check the loop current at zero and span points periodically. The non-interacting adjustments allow quick recalibration without disturbing the other setting. Because the unit is CSA Division 2 approved, follow all local safety regulations during maintenance. With proper care, this transmitter provides years of dependable service.
Compatibility and Integration
The 990-05-50-01-01 is designed for use with Bently Nevada 3300 NSv proximity probes. Its 4-20 mA output is universally accepted by most industrial control systems. No special communication protocols are required, simplifying integration into existing analog input modules. The 2-wire configuration reduces wiring complexity and cost.
Troubleshooting Common Issues
If the output is not proportional to vibration, first verify the probe gap. An incorrect gap can cause non-linearity. Check the loop resistance; exceeding 1,000 Ω may cause the transmitter to go into current limiting. If the signal drops below 3.6 mA, a Not OK condition exists. The output will restore within 2-3 seconds after the condition is removed. Always refer to the Bently Nevada manual for detailed diagnostics.
Product Support and Availability
The Bently Nevada 990-05-50-01-01 is available through AutoDCSTech. For pricing and lead time, contact our sales team. We provide genuine parts and fast shipping. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
