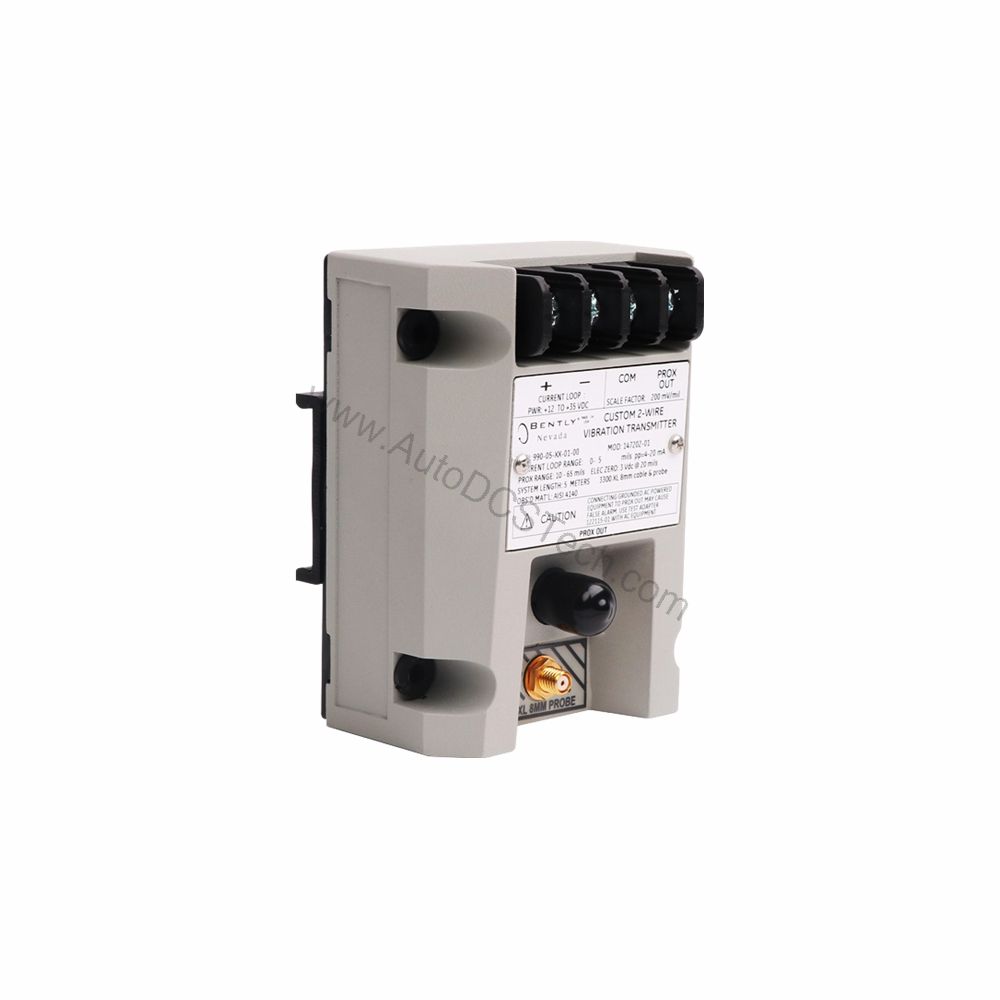

What Is the Bently Nevada 990-04-70-03-01?
The 990-04-70-03-01 is a 990 Vibration Transmitter from Bently Nevada, designed to convert proximity probe signals into a standard 4-20 mA loop. This unit accepts one non-contacting 3300 NSv Proximity Probe and extension cable, making it a direct interface for vibration monitoring in industrial rotating machinery.
With a full-scale range of 0-4 mils pp (0-100 μm pp), this transmitter is suited for applications requiring precise shaft vibration measurement. The 7.0-meter (23.0 feet) system length option provides flexibility in probe placement, while the DIN clips and screws mounting option simplifies installation on standard rails.
Key Features and Technical Specifications
Every specification below is taken directly from the manufacturer's data, ensuring accuracy for your engineering evaluation.
- Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
- Power: Requires +12 to +35 Vdc input at the transmitter terminal.
- Output: 4 to 20 mAdc over specified full-scale range in 2-wire configuration.
- Accuracy: Within ±1.5% over specified full-scale range, measured from TEST signal input to voltage across a 250 Ω loop resistance.
- Probe Gap: Must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from target to ensure full scale range.
- Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc.
- Current Limiting: 23 mA typical.
- Zero and Span: Non-interacting external adjustments.
- NOT OK/Signal Defeat: Output goes to less than 3.6 mA within 100 µs after a Not OK condition, restored within 2-3 seconds after removal.
- Frequency Response: 5 Hz to 6,000 Hz +0, 3 dB.
- Minimum Target Size: 9.5 mm (0.375 in) diameter.
- Leadwire Length: Maximum for Proximitor Sensor Output (BNC connector) is 3 meters (10 feet).
- Hazardous Area: CSA Division 2 approval, suitable for NonHazardous, Zone 2 or Div 2 locations.
Why Choose the 990-04-70-03-01 for Your Vibration Monitoring?
This transmitter stands out due to its robust design and precise signal conditioning. The 4-20 mA output is industry-standard, allowing easy integration with PLCs, DCS, and SCADA systems. The ±1.5% accuracy ensures reliable data for predictive maintenance, reducing unplanned downtime.
Furthermore, the fast NOT OK response—output dropping below 3.6 mA within 100 µs—provides immediate fault indication, protecting your machinery and personnel. This feature is critical in safety-critical environments where early detection of sensor failure is essential.
Installation and Setup Guide
Proper installation is key to achieving accurate measurements. The 990-04-70-03-01 comes with DIN clips and screws for mounting, simplifying panel integration. Follow these steps for optimal performance:
- Mount the transmitter on a standard DIN rail using the provided clips and screws.
- Connect the 3300 NSv Proximity Probe and extension cable to the input. Ensure the leadwire length does not exceed 3 meters (10 feet) for the Proximitor Sensor Output.
- Adjust the probe gap to between 0.5 and 1.75 mm (20 and 55 mils) from the target surface. Use the non-interacting zero and span adjustments to calibrate the output.
- Wire the 4-20 mA loop to your monitoring system, ensuring the total loop resistance (including cable) does not exceed 1,000 Ω at 35 Vdc.
- Apply power between +12 and +35 Vdc at the transmitter terminal. For hazardous area installations, use a 28 V power supply as indicated in the data.
Maintenance and Reliability Tips
Regular inspection of the probe and cabling is essential to maintain measurement integrity. Check the probe gap periodically, as thermal expansion or mechanical wear can alter it. Verify the loop resistance stays within the 1,000 Ω limit to avoid signal degradation.
Because this unit is rated for CSA Division 2, it is designed for reliability in harsh environments. However, always follow the manufacturer's manual for any maintenance procedures. For long-term reliability, consider redundant monitoring paths if vibration data is critical to your operation.
Compatibility and Integration
The 990-04-70-03-01 is designed to work with Bently Nevada's 3300 NSv Proximity Probe system. Its 4-20 mA output is universally compatible with most industrial control systems, including PLCs, DCS, and dedicated vibration monitors. The two-wire configuration simplifies wiring, reducing installation cost and complexity.
For new installations, verify that your existing probe and extension cable are compatible with the 7.0-meter system length option. If you are upgrading from an older transmitter, this model offers the same form factor and mounting options, making replacement straightforward.
Availability and Support
The Bently Nevada 990-04-70-03-01 is available through AutoDCSTech, your trusted industrial automation parts supplier. We stock this item and can ship promptly to minimize your downtime. For technical assistance or to verify lifecycle status, please contact our team.
