What Is the BMENOC0311?

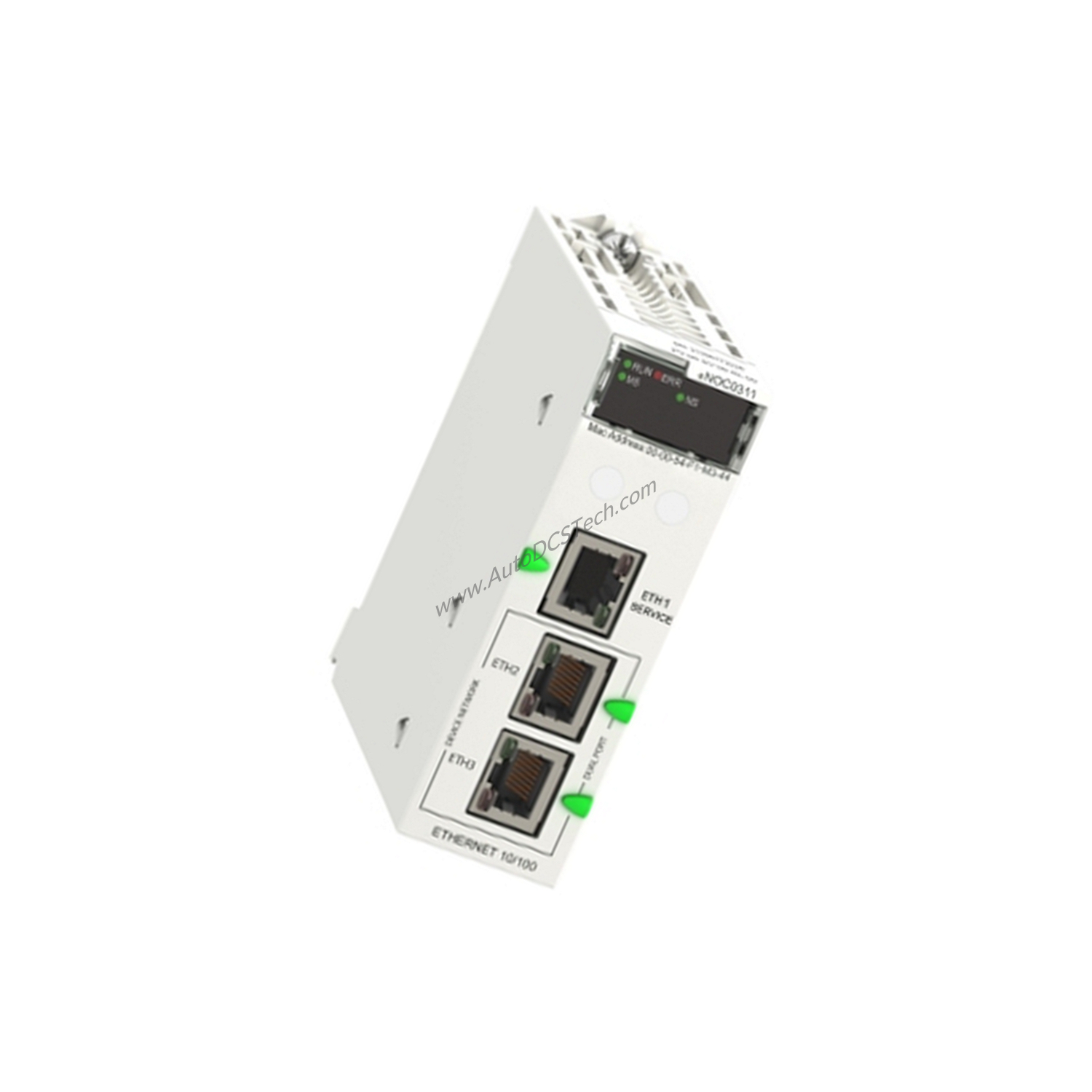

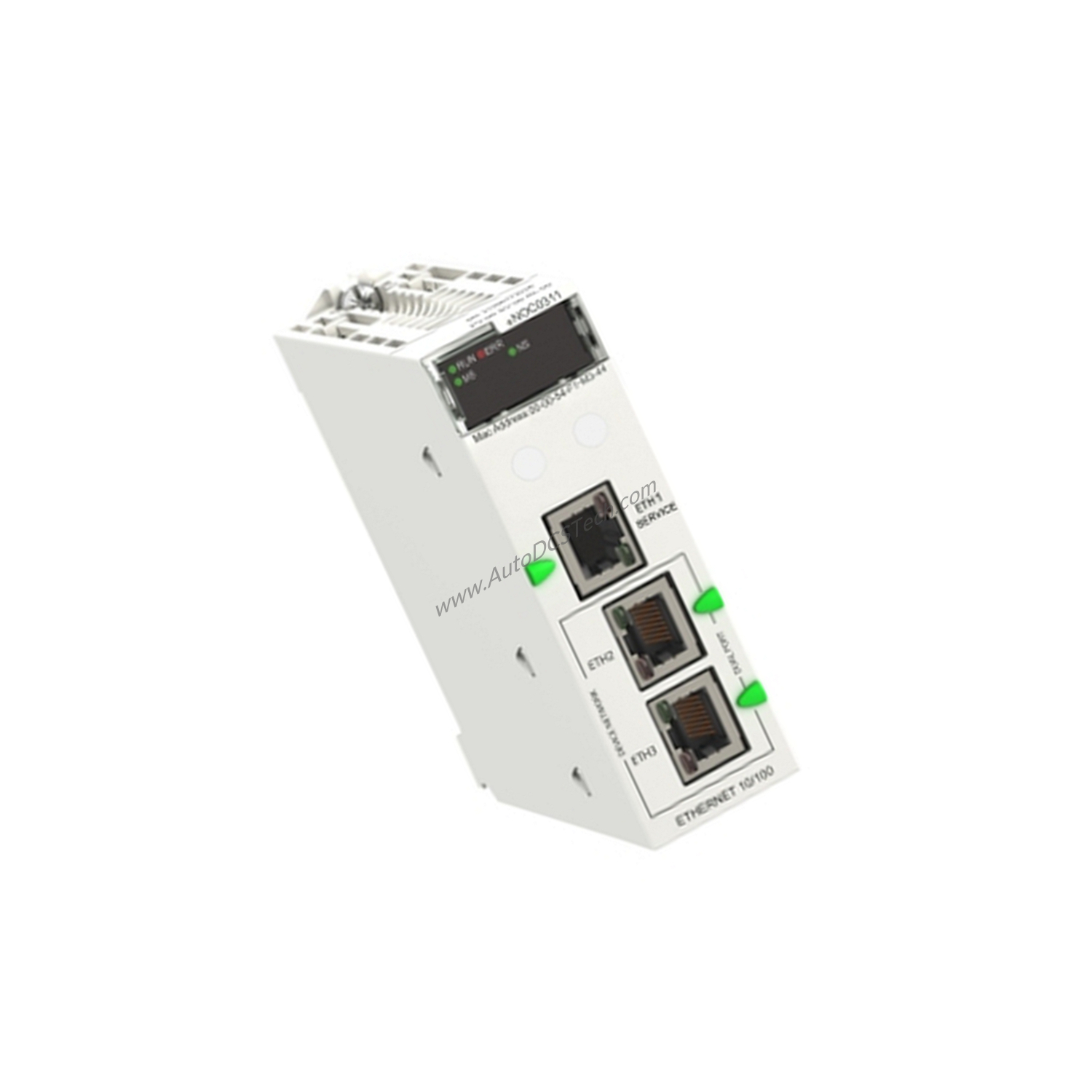

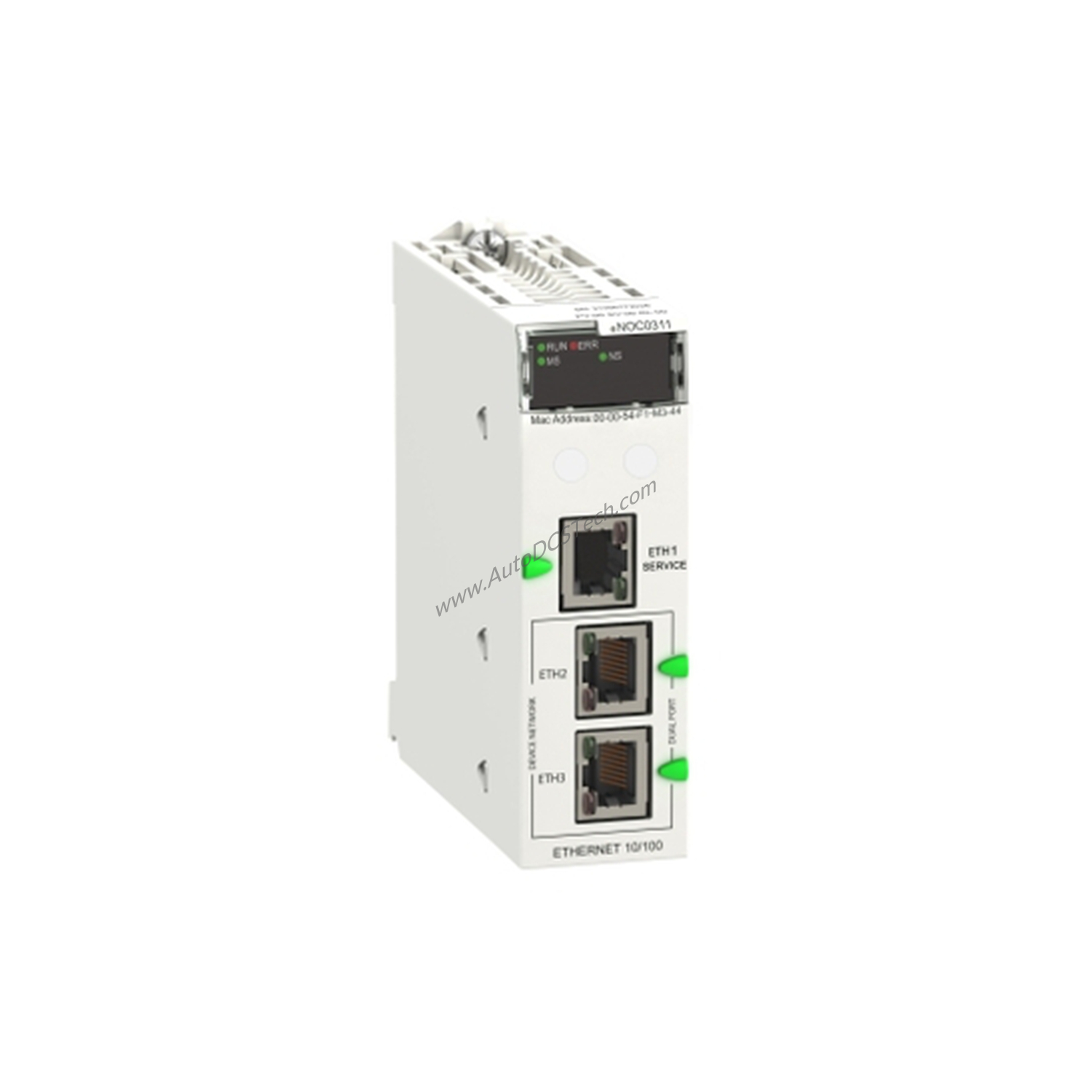

When your control system demands reliable, high-speed network communication, the Schneider BMENOC0311 delivers. This Modicon M580 FactoryCast Ethernet communication module provides seamless integration into your automation architecture. It connects via an internal power supply through the rack and supports three Ethernet RJ45 ports at 10/100 Mbit/s using double shielded twisted pair cabling.
Technical Specifications Breakdown
The BMENOC0311 offers robust performance with key specifications that matter. It consumes 900 mA at 3.3 V DC for product versions 13 or higher, and 1800 mA at 3.3 V DC for older versions. The module weighs 0.4 lb (US) or 0.2 kg, making it lightweight for rack installation. Its IP20 degree of protection suits indoor control cabinets. Operating temperature ranges from 32 to 140 °F (0 to 60 °C). The module bears CE marking and complies with low voltage directive 2014/35/EU and electromagnetic compatibility directive 2014/30/EU.
Industry Applications
In process manufacturing, the BMENOC0311 excels as a communication hub for distributed control systems. Its bandwidth management and FDR server support ensure stable data flow. For discrete manufacturing, the embedded multiport switch and port mirroring simplify network diagnostics. The module also supports RSTP for network redundancy, critical in continuous production lines.
Installation & Setup Guidance
Mount the BMENOC0311 on a BMEXBP Ethernet + X-bus rack. The module receives power internally through the rack, so no separate power supply is needed. Connect your Ethernet cables to the three RJ45 ports using double shielded twisted pair for optimal signal integrity. Verify the product version to ensure correct current consumption expectations.
Maintenance & Reliability
Regularly inspect the local signaling LEDs for status: green RUN LED indicates processor running, red ERR LED signals faults, and the green/red ETH MS and Eth NS LEDs show Ethernet port and network status. Keep the module within its operating temperature range to maximize reliability. Periodically check firmware updates from Schneider Electric for enhanced functionality.
Compatibility & Integration
The BMENOC0311 integrates seamlessly with Modicon M580 controllers and BMEXBP racks. It supports multiple communication services: Modbus TCP I/O Scanner and Messaging, EtherNet/IP I/O Scanner and Messaging, SNMP network administrator, and FactoryCast configurable web services. The embedded web server allows remote monitoring and configuration.
Selection Guide & Purchasing Advice
Before ordering, verify your system compatibility with the Modicon M580 platform and confirm the product version for accurate current consumption. SpareTechPLC stocks the BMENOC0311 and can assist with availability and lifecycle status. Contact our team to ensure this module meets your application requirements.
Frequently Asked Questions
Q: What is the power supply requirement for the BMENOC0311?
A: The module uses internal power supply via the rack. Current consumption is 900 mA at 3.3 V DC for version 13 or higher, and 1800 mA at 3.3 V DC for older versions.
Q: How many Ethernet ports does the BMENOC0311 have?
A: It has three Ethernet RJ45 ports supporting 10/100 Mbit/s with double shielded twisted pair cabling.
Q: What communication protocols does this module support?
A: It supports Modbus TCP I/O Scanner and Messaging, EtherNet/IP I/O Scanner and Messaging, SNMP, and FactoryCast web services.
Q: What is the operating temperature range?
A: The module operates from 32 to 140 °F (0 to 60 °C).
Q: Does the BMENOC0311 include an embedded web server?
A: Yes, it features an advanced FactoryCast configurable web server for remote monitoring.
