Introduction

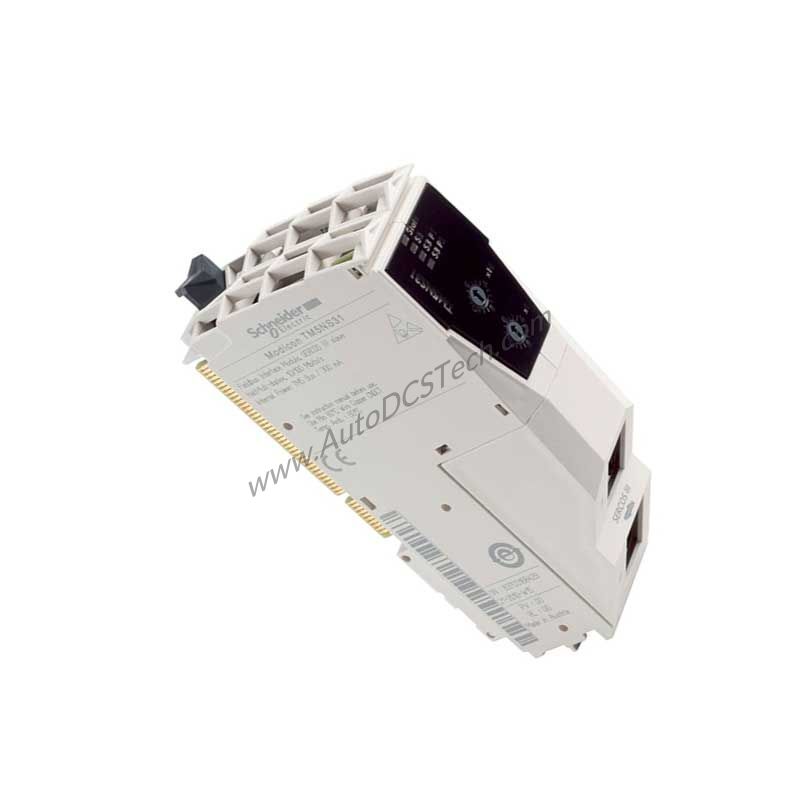

When motion control systems suffer from communication delays or signal interference, the Schneider TM5NS31 Sercos III communication module provides a reliable solution. Part of the Modicon TM5 family, this interface module ensures deterministic, high-speed data exchange between a motion controller and servo drives. It addresses the common pain point of synchronization errors in multi-axis applications by delivering consistent 100 Mbit/s communication over standard RJ45 connections.
Technical Specifications Breakdown
The TM5NS31 operates with a 5 V DC base current consumption and dissipates only 1.75 W, making it energy-efficient for compact control cabinets. It features two RJ45 connectors for Sercos III and an additional Ethernet/IP interface, enabling seamless integration into existing networks. The module includes four LEDs: one green/red for STAT, one green/red for Sercos III status, and two green LEDs for port activity on ports 1 and 2. This visual feedback simplifies troubleshooting by indicating link status and data transmission at a glance.
Industry Applications
In packaging machinery, the TM5NS31 synchronizes multiple servo axes for precise cut-to-length operations. Its 100 Mbit/s Sercos III ring topology reduces wiring complexity and eliminates the need for separate network switches. For robotic assembly cells, the module's resistance to electromagnetic fields (10 V/m from 80 MHz to 2 GHz) ensures stable communication in electrically noisy environments. This reliability minimizes unplanned downtime and improves overall equipment effectiveness.
Installation & Setup Guidance
Mount the TM5NS31 on a Modicon TM5 bus base, which must be ordered separately along with the power supply and terminal block. Connect the Sercos III ring using standard RJ45 cables, ensuring the ring is closed for proper operation. The module automatically detects the network topology and configures itself. No manual IP assignment is required for Sercos III communication, simplifying initial setup.
Maintenance & Reliability
Routine inspection of the RJ45 connectors and cable integrity prevents communication faults. The module's white enclosure and low 1.75 W power dissipation reduce thermal stress, extending service life. Its immunity to electrostatic discharge (4 kV contact, 8 kV air) and fast transients (1 kV I/O) protects against common industrial electrical disturbances. For critical applications, verify the firmware version compatibility with the LMC078 controller during scheduled maintenance.
Compatibility & Integration
The TM5NS31 is designed for use with Modicon LMC078 motion controllers. It supports both Sercos III and Ethernet/IP protocols, allowing connection to higher-level PLCs or SCADA systems. The two RJ45 ports enable daisy-chaining or ring topologies, reducing cabling costs. When integrating, ensure the bus base and power supply are selected from the Modicon TM5 range for proper mechanical and electrical fit.
Selection Guide & Purchasing Advice
Before purchasing the TM5NS31, confirm that your motion controller is a Modicon LMC078 and that you have the required TM5 bus base, power supply, and terminal block. The module weighs only 0.03 kg, so it adds negligible weight to the cabinet. For current lifecycle status and availability, contact SpareTechPLC. We stock genuine Schneider parts and can advise on suitable accessories for your specific application.
Frequently Asked Questions
Q: What is the power consumption of the TM5NS31?
A: The module dissipates 1.75 W and draws current from a 5 V DC base supply.
Q: Can the TM5NS31 be used with controllers other than LMC078?
A: The data specifies compatibility only with Modicon LMC078 motion controllers. Using other controllers may not be supported.
Q: How do I interpret the STAT LED on the TM5NS31?
A: The STAT LED is green/red. A steady green indicates normal operation; red signals a fault. Refer to the manual for detailed blink codes.
Q: Does the TM5NS31 support Ethernet/IP?
A: Yes, it includes an integrated Ethernet/IP connection with two RJ45 connectors operating at 100 Mbit/s.
Q: What environmental protections does the TM5NS31 offer?
A: It withstands electrostatic discharge up to 8 kV in air, electromagnetic fields up to 10 V/m, and fast transients up to 2 kV on power lines.
