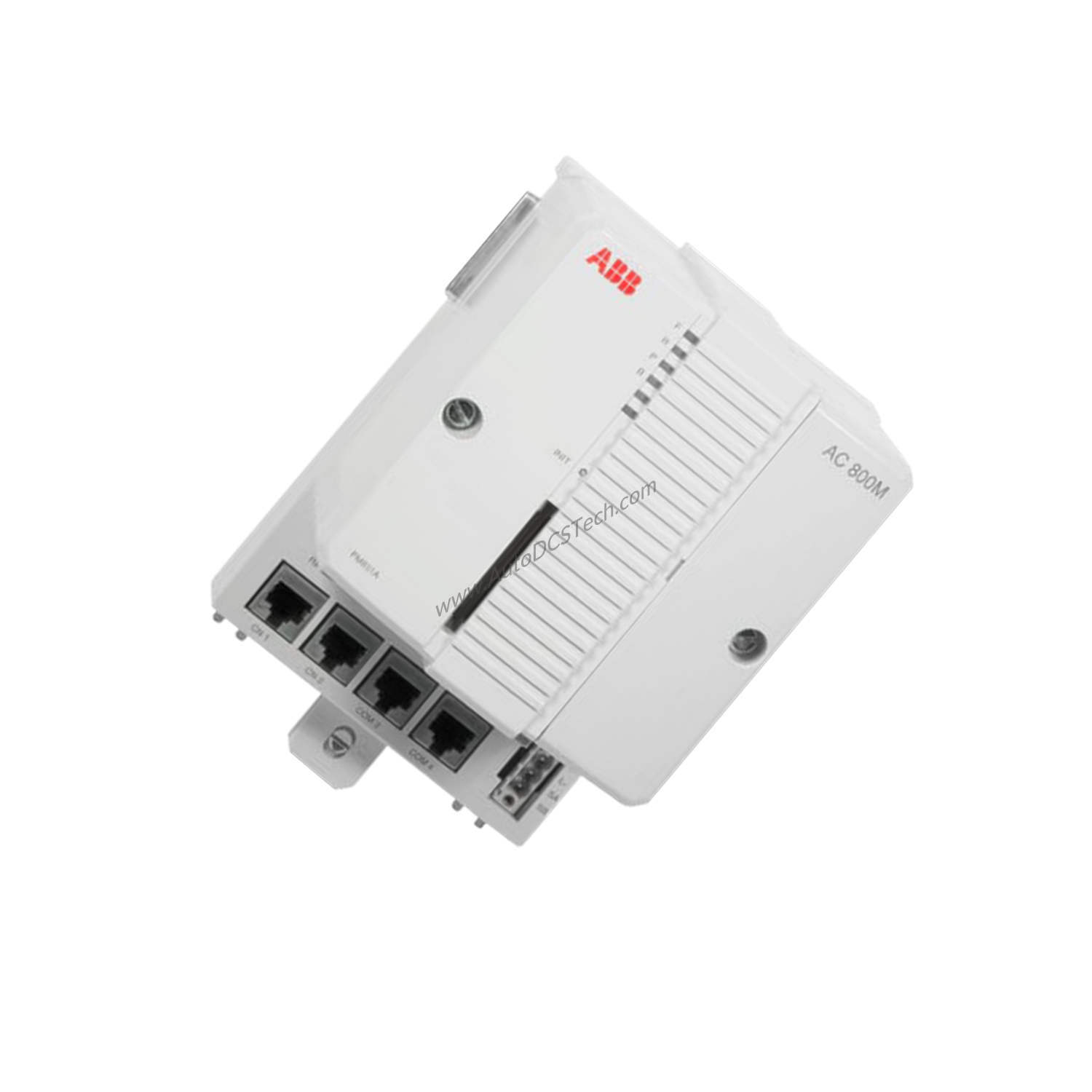

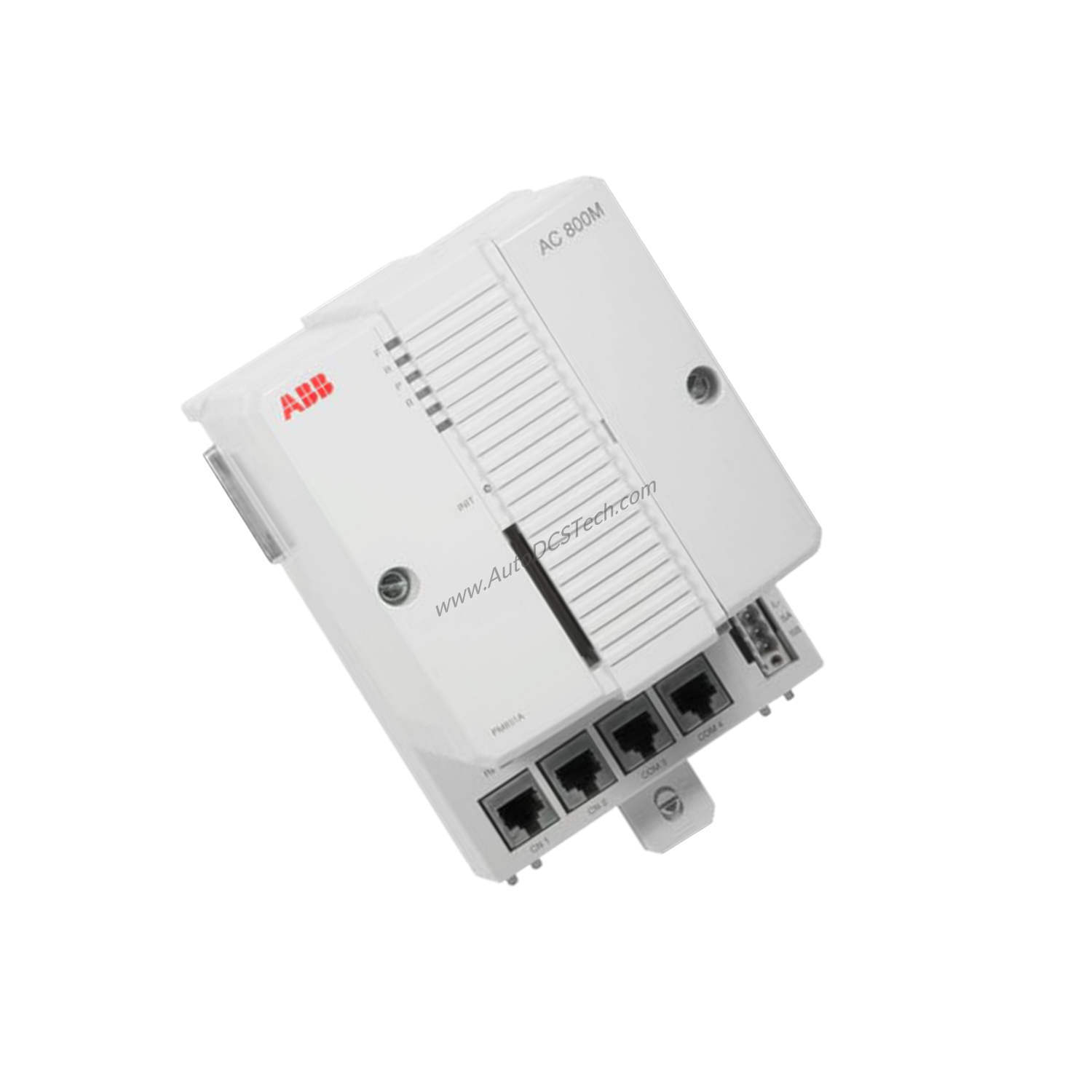

Product Overview
When integrating AC 800M controllers with Ethernet devices, the ABB CI867AK01 Modbus TCP Interface provides a reliable and cost-effective solution. This single-channel communication interface combines the CI867A module with the TP867 baseplate, enabling seamless Modbus TCP connectivity. By supporting both master and slave functionality, it reduces the need for additional hardware, lowering overall system costs.
Technical Specifications Breakdown
- Communication Protocol: MODBUS TCP – an open industry standard that simplifies integration and reduces licensing fees.
- Transmission Speed: 10/100 Mbit/s on Channel 1 – ensures fast data exchange, minimizing production delays.
- Number of Channels: 1 channel – sufficient for most applications, avoiding unnecessary complexity and expense.
- Maximum Slave Units: 70 slaves per CI867A – allows scaling without purchasing extra modules.
- Maximum Master Units: 8 masters per CI867A – supports distributed control architectures efficiently.
- Module Redundancy: Yes – hot swap capability reduces downtime, directly improving operational uptime and ROI.
- Operating Temperature: 0 to +55 °C – ensures stable performance in typical industrial environments, reducing climate control costs.
Industry Applications
In manufacturing plants, the CI867AK01 connects AC 800M controllers to remote I/O devices via Modbus TCP. For example, in a bottling line, it links sensors and actuators to the central controller, enabling real-time monitoring and reducing waste. In energy management systems, it aggregates data from multiple power meters, lowering energy costs through better load balancing. The redundancy feature ensures continuous operation, preventing costly production stoppages.
Installation Guide
Mount the CI867A onto the TP867 baseplate and secure it on a DIN rail within the control cabinet. Connect the +24 V DC supply via the CEX-Bus. Use an RJ-45 female connector to link the Ethernet cable to an external switch. Ensure the module is used with System 800xA version 6.0.3.3, 6.1.1, or later for proper operation. Verify that the CEX bus supports up to 12 units to avoid overloading.
Maintenance & Reliability
Routine inspection of the Ethernet connection and power supply every six months helps maintain reliability. The CI867AK01 operates in environments with pollution degree 2 and relative humidity from 5% to 95% non-condensing, reducing the need for frequent replacements. Its corrosion protection (G3 compliant) extends service life in harsh conditions, lowering total cost of ownership. Regular firmware updates, as recommended by ABB, ensure optimal performance and security.
Compatibility & Integration
This interface works exclusively with ABB AC 800M controllers and HI Controllers. It integrates with System 800xA versions 6.0.3.3, 6.1.1, and later. The CI867AK01 supports Modbus TCP, making it compatible with a wide range of Ethernet-enabled devices. It does not support line redundancy, but module redundancy with hot swap is available, ensuring high availability without extra hardware costs.
Selection Guide & Purchasing Advice
Before ordering, verify that your system runs a compatible System 800xA version. The CI867AK01 includes both the CI867A interface and TP867 baseplate. For redundant setups, purchase two units. Check that your cabinet has sufficient space (59 mm width, 185 mm height, 127.5 mm depth) and that the power supply provides +24 V DC. SpareTechPLC offers this module with fast shipping and expert support to help you select the right configuration.
Troubleshooting & Common Issues
If the module fails to communicate, first check the Ethernet cable connection and switch settings. Ensure the IP address is correctly configured for the Modbus TCP network. If the module does not power up, verify the +24 V DC supply on the CEX-Bus. For slave devices not responding, confirm that the maximum of 70 slaves is not exceeded. If hot swap fails, ensure the redundant module is properly seated and the system software is up to date.
Frequently Asked Questions
Q1: Can the CI867AK01 be used with older CI867 modules?
A1: No, the CI867A only works with System 800xA 6.0.3.3, 6.1.1, and subsequent versions, and uses a single Ethernet port at 100 Mbit/s.
Q2: What is the maximum number of slave devices supported?
A2: Up to 70 slave units can be connected per CI867A module.
Q3: Does the CI867AK01 support redundant operation?
A3: Yes, it supports module redundancy and hot swap, enhancing system reliability.
Q4: What certifications does the CI867AK01 hold?
A4: It is CE-marked, UL 61010-1 and UL 61010-2-201 certified, and compliant with hazardous location standards UL 60079-15 and cULus Class 1, Zone 2.
Q5: What is the operating temperature range?
A5: The module operates from 0 to +55 °C and can be stored from -40 to +70 °C.
