Introduction

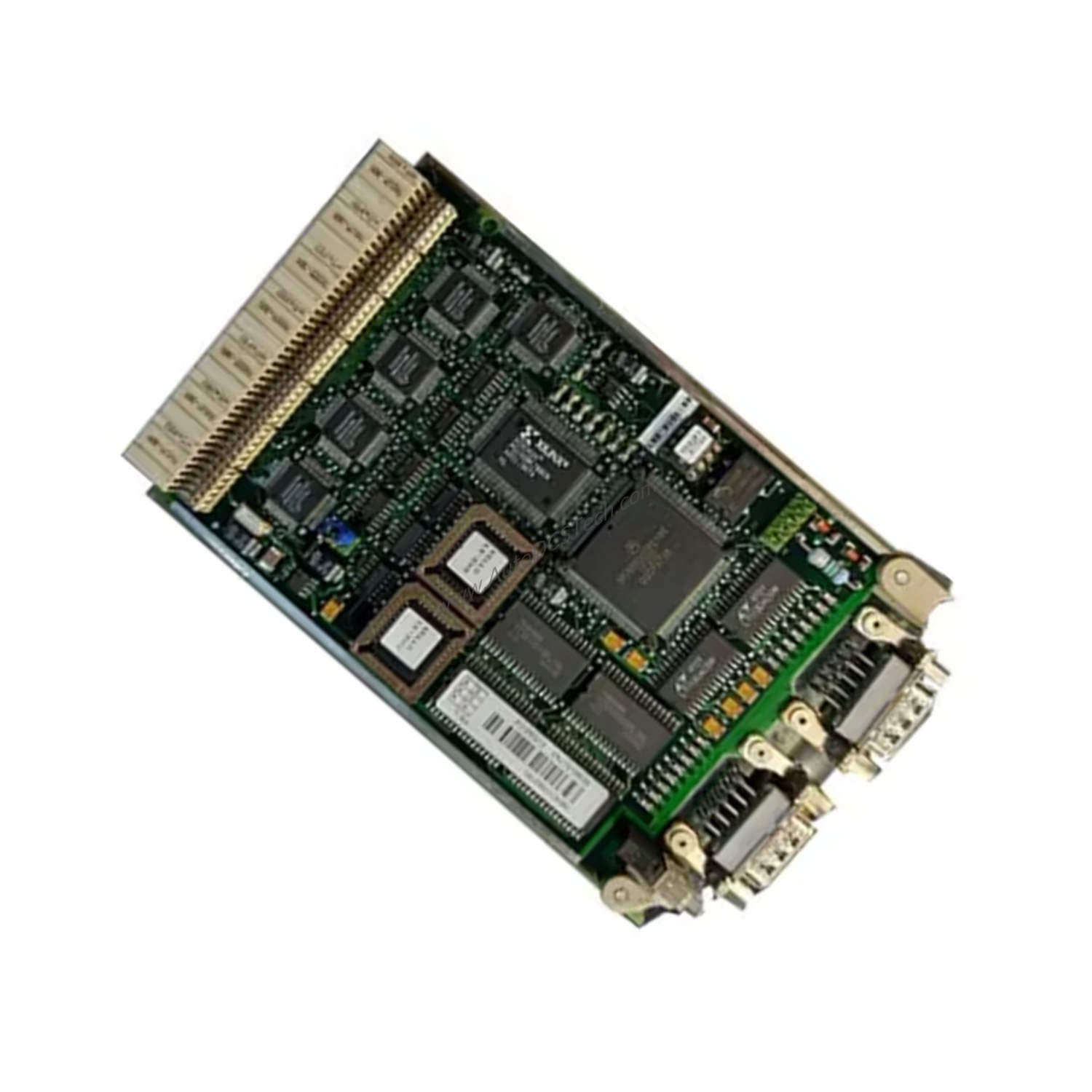

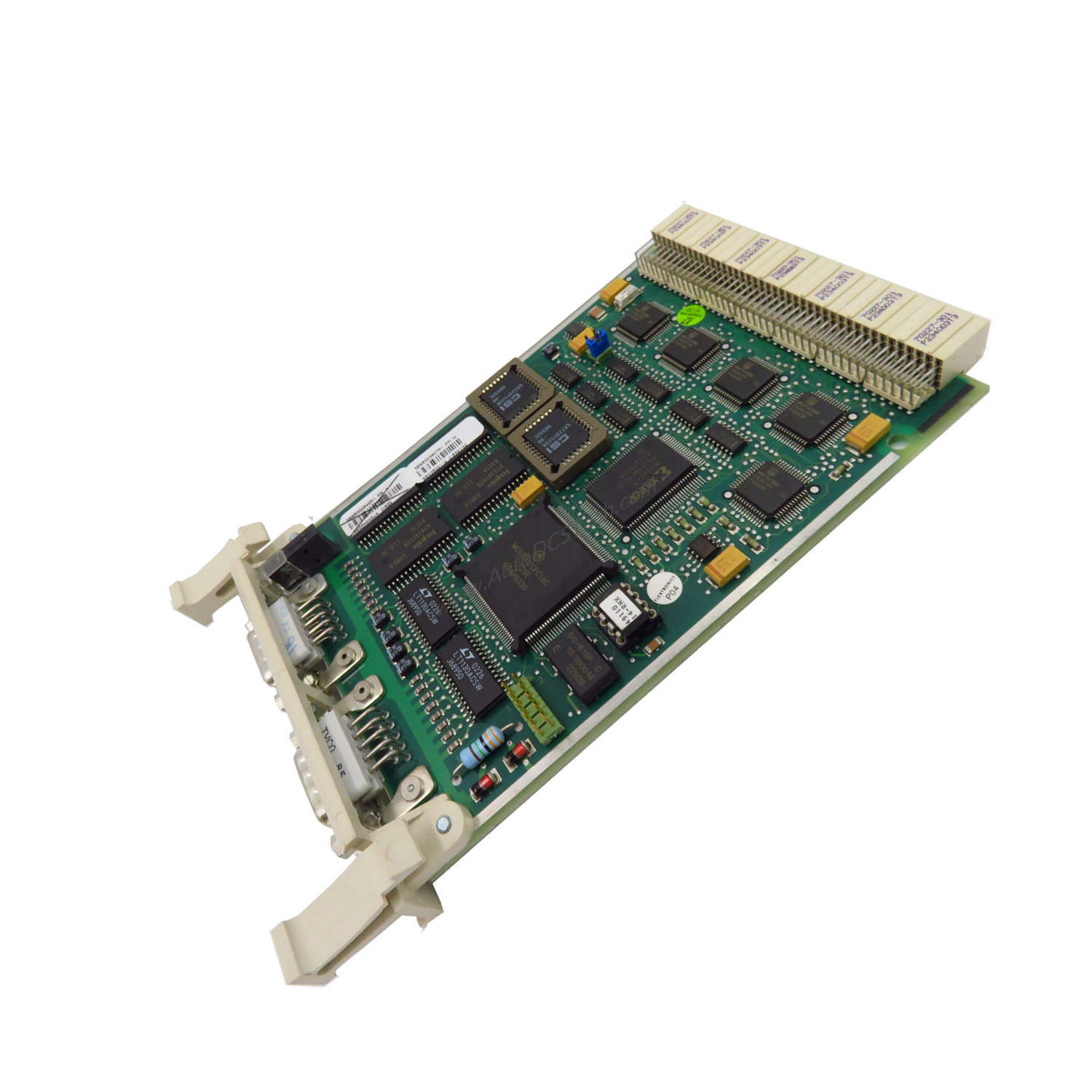

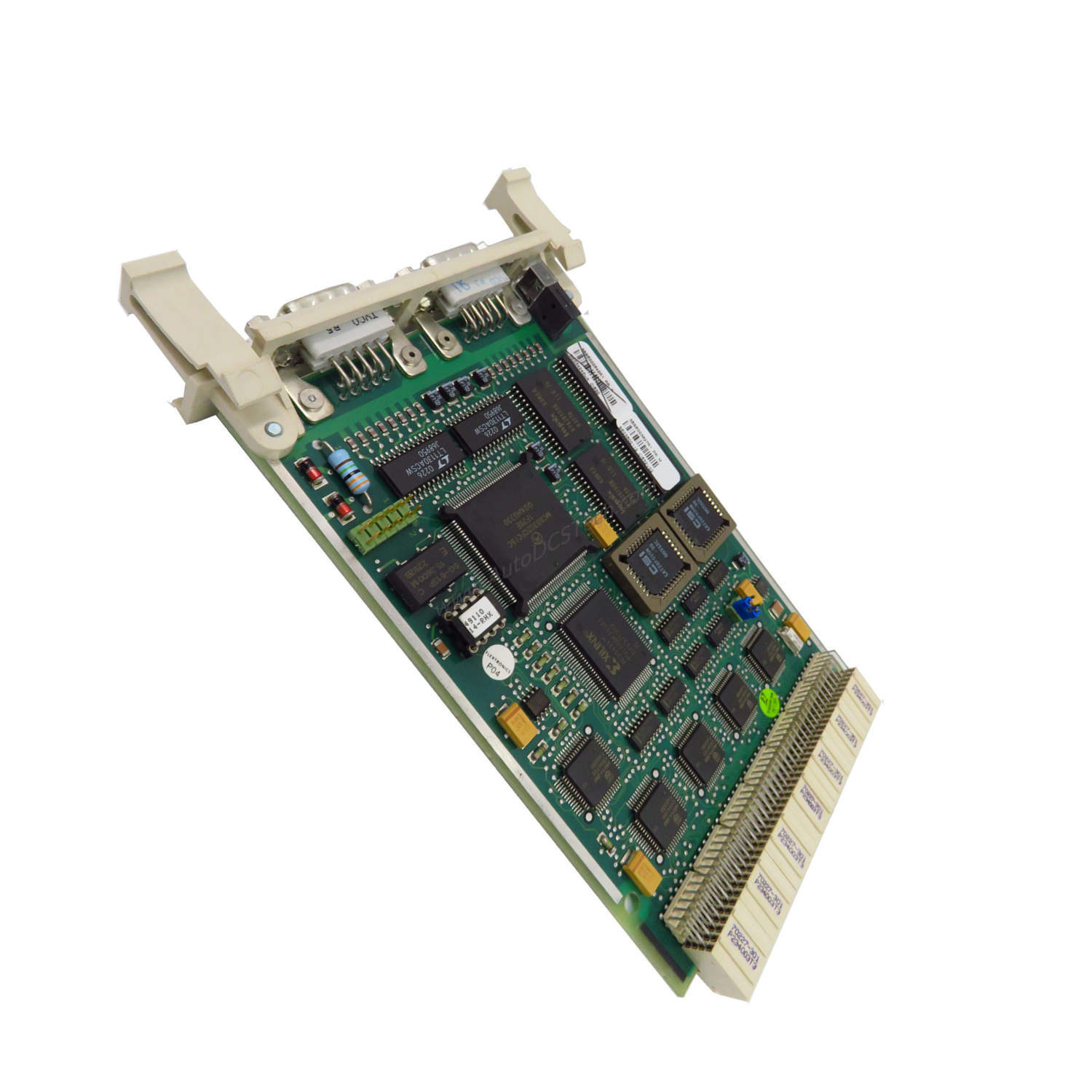

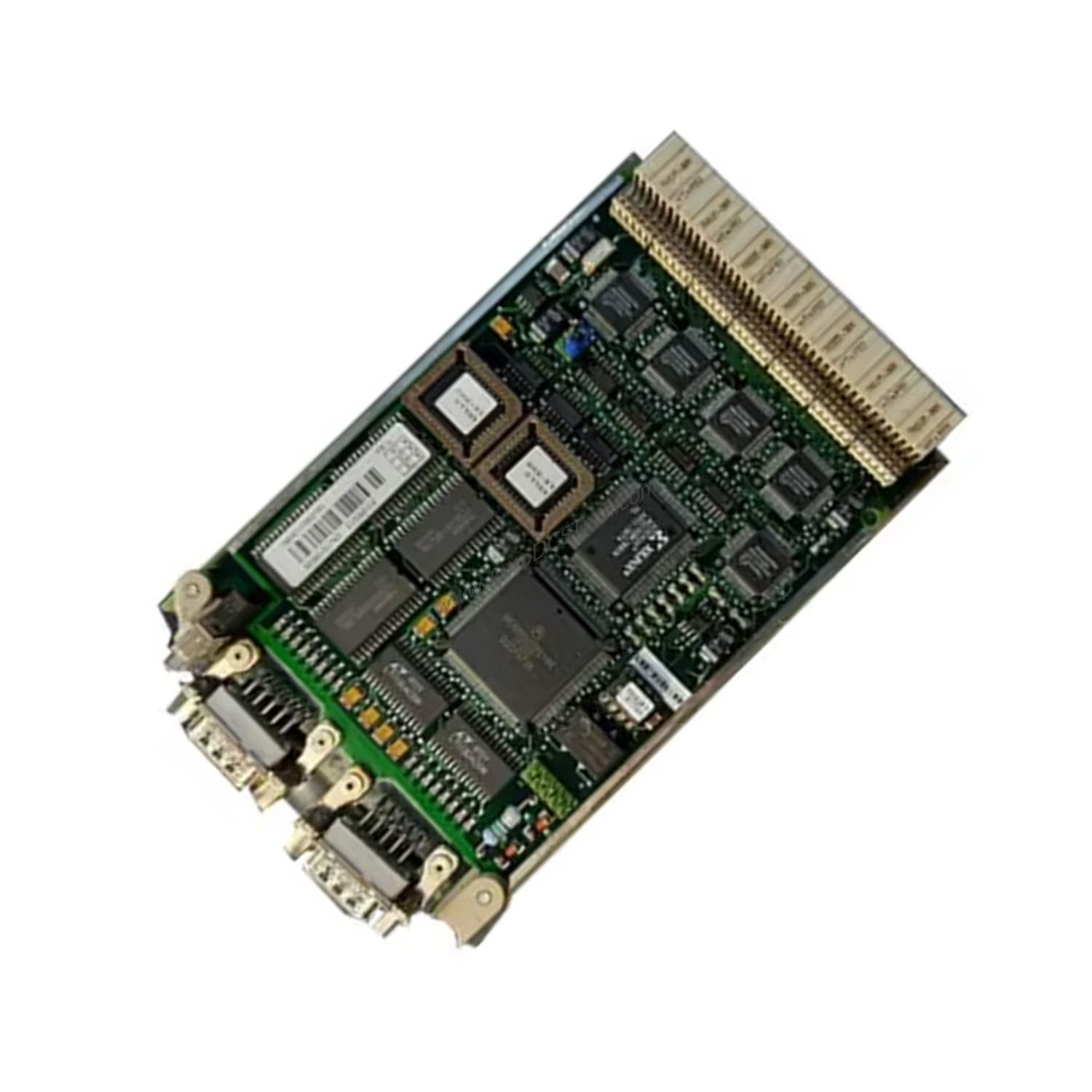

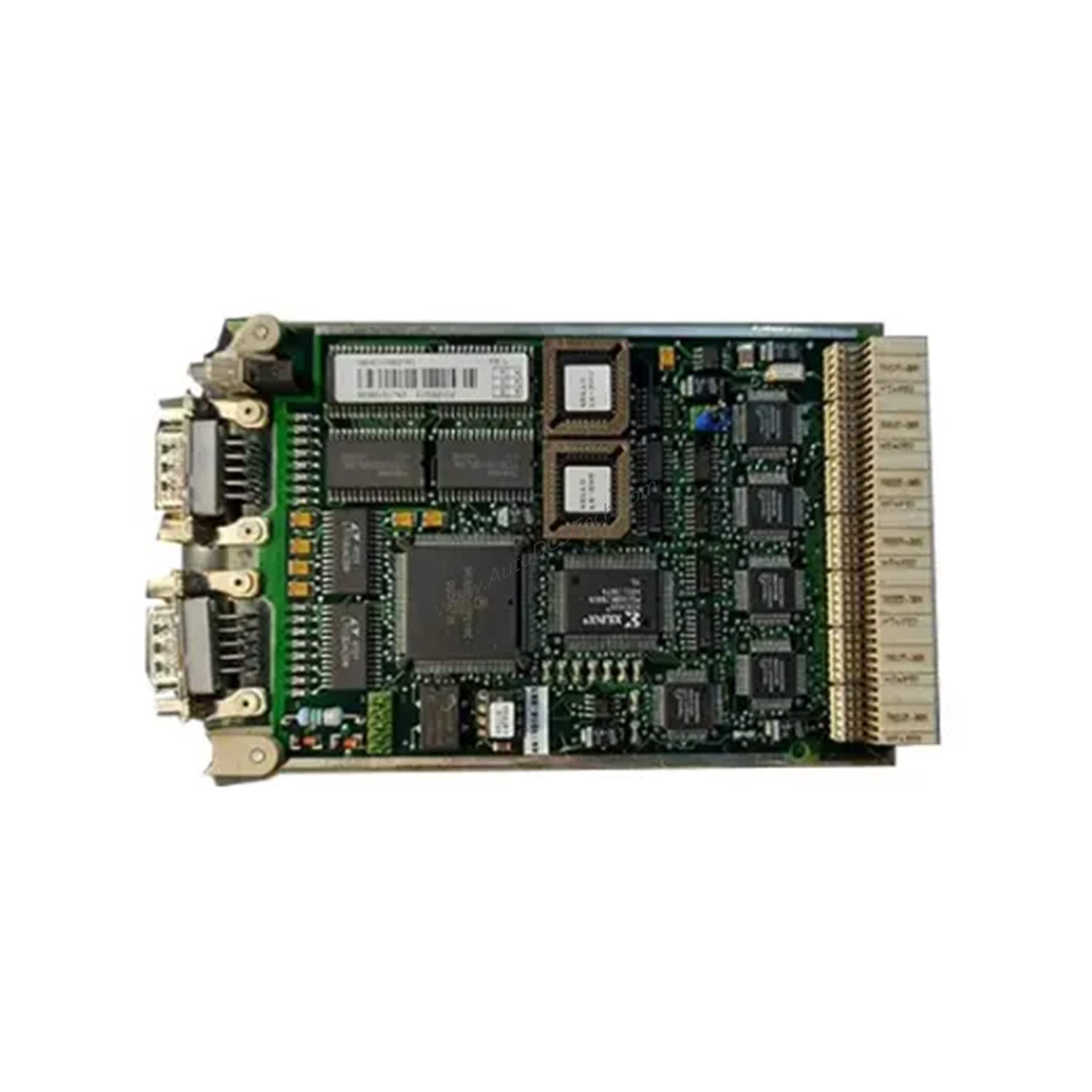

When industrial automation systems demand reliable and efficient communication between controllers and field devices, the ABB CI532V01 RCOM Interface Communication Module delivers a proven solution. As part of ABB's extensive automation portfolio, this submodule is engineered to handle two communication channels, enabling seamless data exchange in complex control environments. With the rise of interconnected manufacturing, having a dedicated interface module like the CI532V01 ensures that your system maintains high availability and low latency.
Technical Specifications Breakdown
The ABB CI532V01 offers a set of well-defined physical and electrical characteristics that support its role as a communication interface. Key specifications include:
- Product Net Depth / Length: 265 mm
- Product Net Height: 30 mm
- Product Net Width: 125 mm
- Product Net Weight: 0.16 kg
These compact dimensions make the CI532V01 suitable for installation in space-constrained cabinets. The low weight of 0.16 kg simplifies mounting and reduces mechanical stress on DIN rails or backplanes. The module is designed as a submodule, meaning it integrates into larger ABB system architectures without requiring additional enclosure space.
Industry Applications
In process industries such as chemical, oil and gas, and power generation, the CI532V01 serves as a critical link between control processors and remote I/O or fieldbus networks. For example, in a distributed control system (DCS), two-channel communication allows redundant paths for critical data, enhancing system reliability. The module's compact form factor also benefits applications in machine building, where space is at a premium but robust communication is non-negotiable.
Installation & Setup Guidance
Mount the CI532V01 onto a compatible ABB backplane or DIN rail following standard industrial practices. Ensure the module is securely fastened and that all connections are made with appropriate cabling for RCOM interfaces. The 30 mm height and 125 mm width allow for easy alignment in multi-module racks. Always power down the system before installation to prevent damage. Refer to the ABB system manual for specific slot assignments and addressing procedures.
Maintenance & Reliability
Routine inspection of the CI532V01 should focus on verifying secure connections and checking for any signs of environmental stress. The module's RoHS compliance (EU Directive 2011/65/EU) indicates adherence to environmental standards, contributing to long-term reliability. Given its low weight and solid-state design, the CI532V01 requires minimal maintenance under normal operating conditions. Periodic cleaning of the enclosure and connectors with a dry, lint-free cloth helps maintain signal integrity.
Compatibility & Integration
The CI532V01 is designed for integration with ABB's Advant Controller and similar automation platforms that support RCOM communication. It functions as a submodule, meaning it works in conjunction with a carrier or base module. Ensure your system's firmware supports the CI532V01's two-channel configuration. The module's compact dimensions and weight make it compatible with standard ABB mounting systems.
Selection Guide & Purchasing Advice
Before purchasing the CI532V01, verify that your system requires a two-channel RCOM interface. Confirm the physical dimensions (265 mm depth, 30 mm height, 125 mm width) fit your enclosure layout. SpareTechPLC offers this ABB module with detailed product information to help you make an informed decision. For legacy system upgrades or new installations, the CI532V01 provides a reliable communication solution.
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the ABB CI532V01?
A1: The CI532V01 is a 2-channel RCOM Interface submodule used for communication between ABB control systems and field devices.
Q2: What are the dimensions of the CI532V01?
A2: The module has a net depth of 265 mm, height of 30 mm, and width of 125 mm.
Q3: Is the CI532V01 RoHS compliant?
A3: Yes, it follows EU Directive 2011/65/EU for RoHS compliance.
Q4: Can the CI532V01 be used in redundant communication setups?
A4: Yes, its two-channel design supports redundant paths for critical data.
Q5: What is the weight of the CI532V01?
A5: The product net weight is 0.16 kg.
