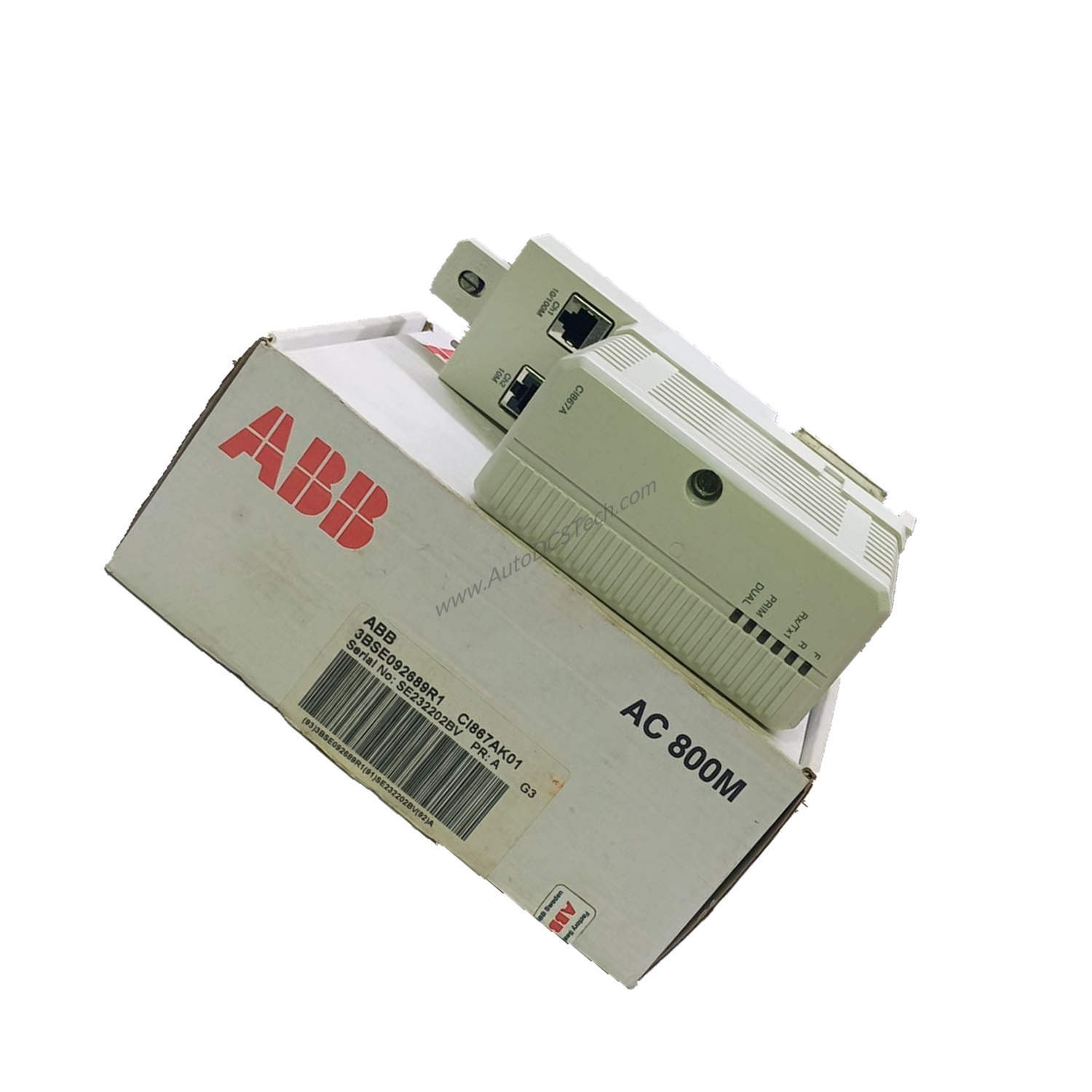

What Is the ABB CI867A?
When your control system demands reliable, open-standard communication, the ABB CI867A delivers. This MODBUS TCP interface module connects an AC 800M controller to external Ethernet devices using the widely adopted request-response protocol. By combining MODBUS RTU with standard Ethernet and TCP, the CI867A operates at layer 7 of the OSI model, ensuring seamless data exchange. Its ease of use and function-code-based services make it a cost-effective choice for industrial networks.
Technical Specifications Breakdown
The CI867A offers key specifications that directly impact your system's performance and total cost of ownership:
- Transmission Speed: 10/100 Mbit/s on Channel 1. This full-duplex capability supports high-speed data transfer, reducing communication bottlenecks and improving overall process efficiency. Faster data exchange means less downtime and higher throughput.
- Module Redundancy and Hot Swap: Yes for both. Redundancy minimizes the risk of a single point of failure, while hot swap allows replacement without system shutdown. This translates to lower maintenance costs and increased uptime.
- Environmental Tolerance: Operating temperature from +5 to +55 °C, storage from -40 to +70 °C, and 5 to 95% non-condensing humidity. This wide range ensures reliable operation in demanding industrial environments, reducing the need for costly climate control.
- Max Units on CEX Bus: 12. This scalability lets you expand your system cost-effectively without replacing the base controller.
Industry Applications
In process manufacturing, the CI867A connects AC 800M controllers to MODBUS TCP-enabled field devices like flow meters and valve actuators. Its master/slave functionality supports up to 70 slave and 8 master units per module, allowing centralized monitoring and control. This reduces wiring costs and simplifies maintenance.
For utilities and energy management, the module's 100 Mbps speed ensures real-time data from substations or renewable energy assets. The G3 corrosion protection (ISA 71.04) and IP20 enclosure make it suitable for moderately harsh environments, extending service life and lowering replacement expenses.
Installation & Setup Guidance
Mount the CI867A on a standard DIN rail within an AC 800M system. Connect the Ethernet cable to an external switch using the RJ-45 female connector. The module draws power from the +24 V supply via the CEX-Bus; no separate power wiring is needed. Ensure the system runs System 800xA version 6.0.3.3, 6.1.1, or later for compatibility. Configure the MODBUS TCP parameters using the engineering tool to define master or slave roles.
Maintenance & Reliability
Routine inspection of the Ethernet connection and environmental conditions helps maintain reliability. The CI867A's hot-swap capability allows you to replace a module without stopping the controller, reducing planned downtime. Periodic checks of the operating temperature and humidity within the specified ranges (+5 to +55 °C, 5-95% RH) prevent premature failures. This proactive approach lowers long-term maintenance costs.
Compatibility & Integration
The CI867A integrates exclusively with ABB's AC 800M controllers and requires System 800xA 6.0.3.3, 6.1.1, or later. It supports both master and slave MODBUS TCP modes over a single 100 Mbps Ethernet channel. The module works with HI Controllers and can be set redundant for critical applications. Note that line redundancy is not supported, so plan network topology accordingly to avoid single points of failure.
Buying Guide & Purchasing Advice
Before ordering the ABB CI867A (article number 3BSE092689R1), verify your AC 800M controller version and System 800xA compatibility. Confirm that your application requires only one Ethernet channel, as the CI867A uses a single port compared to the earlier CI867. For redundant setups, ensure your system supports module redundancy. SpareTechPLC stocks this module and can advise on current lifecycle status and availability. Contact us to confirm stock and lead times before placing your order.
