Product Introduction
When network reliability and bandwidth management are critical in industrial automation, the Schneider BMENOC0301C Communication module delivers a cost-effective solution. Part of the Modicon M580 family, this module integrates seamlessly into Ethernet + X-bus racks (BMEXBP...), supporting up to 4 modules per rack. Its internal power supply via the rack reduces wiring costs and simplifies installation, making it a smart choice for modern distributed control architectures.
Technical Specifications Breakdown

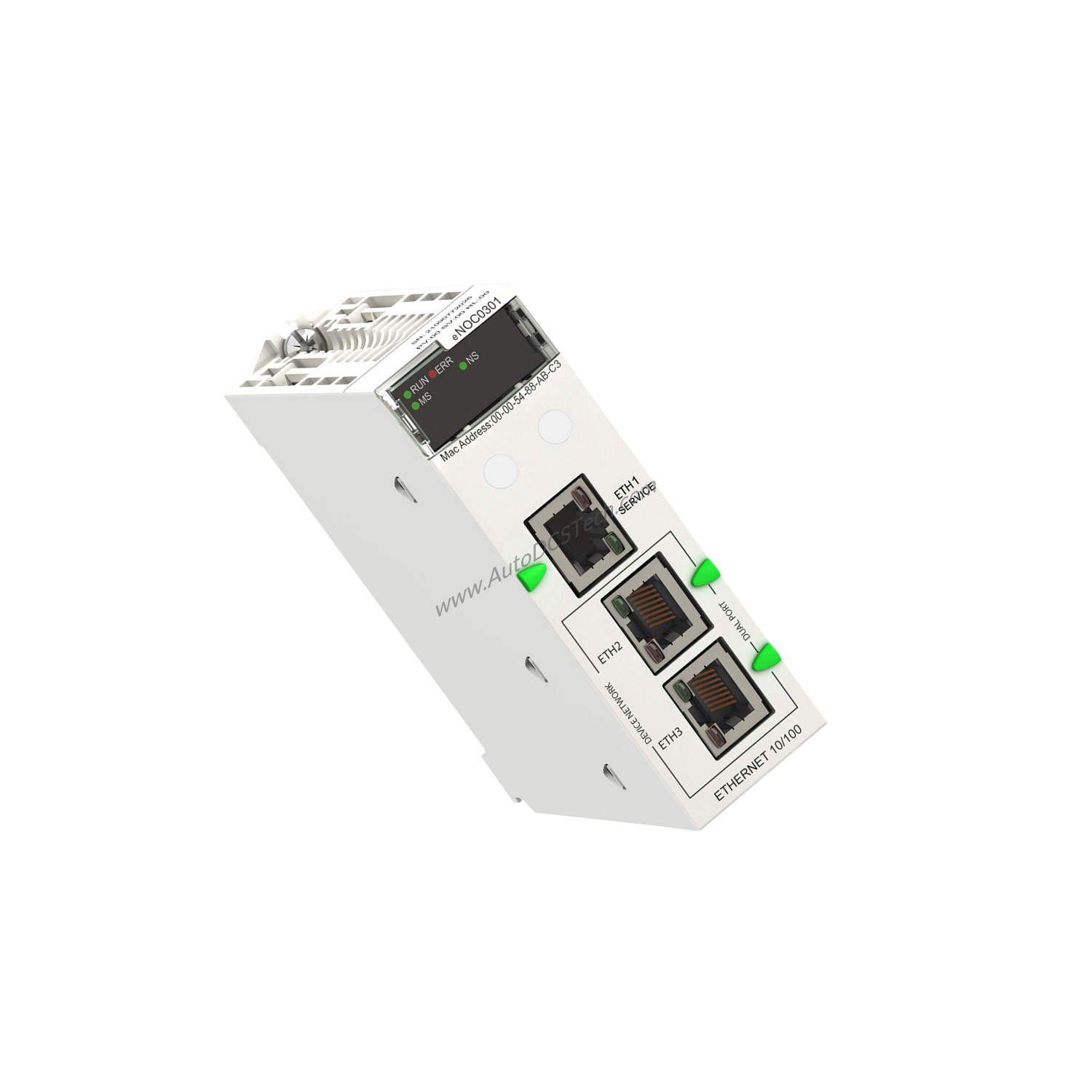

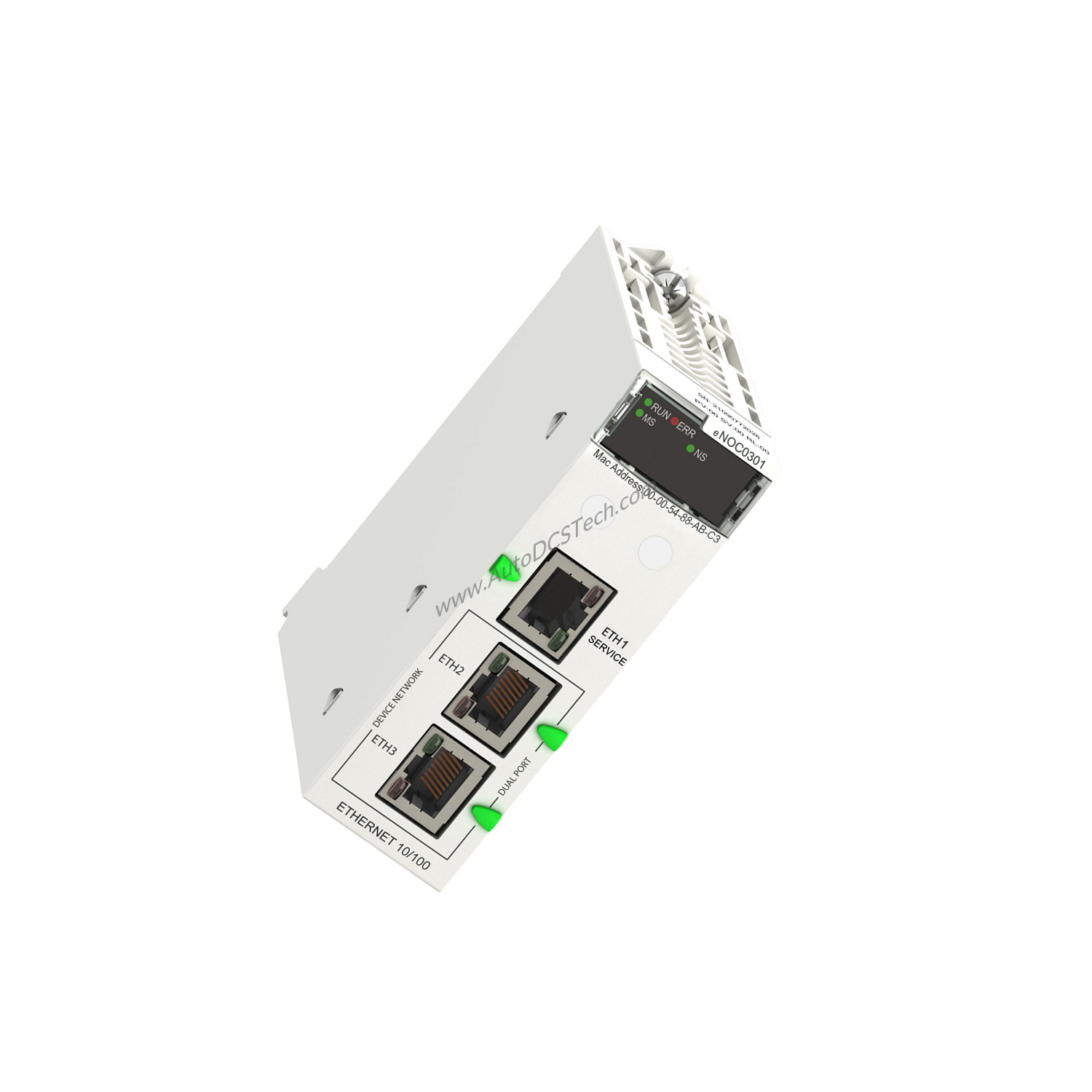

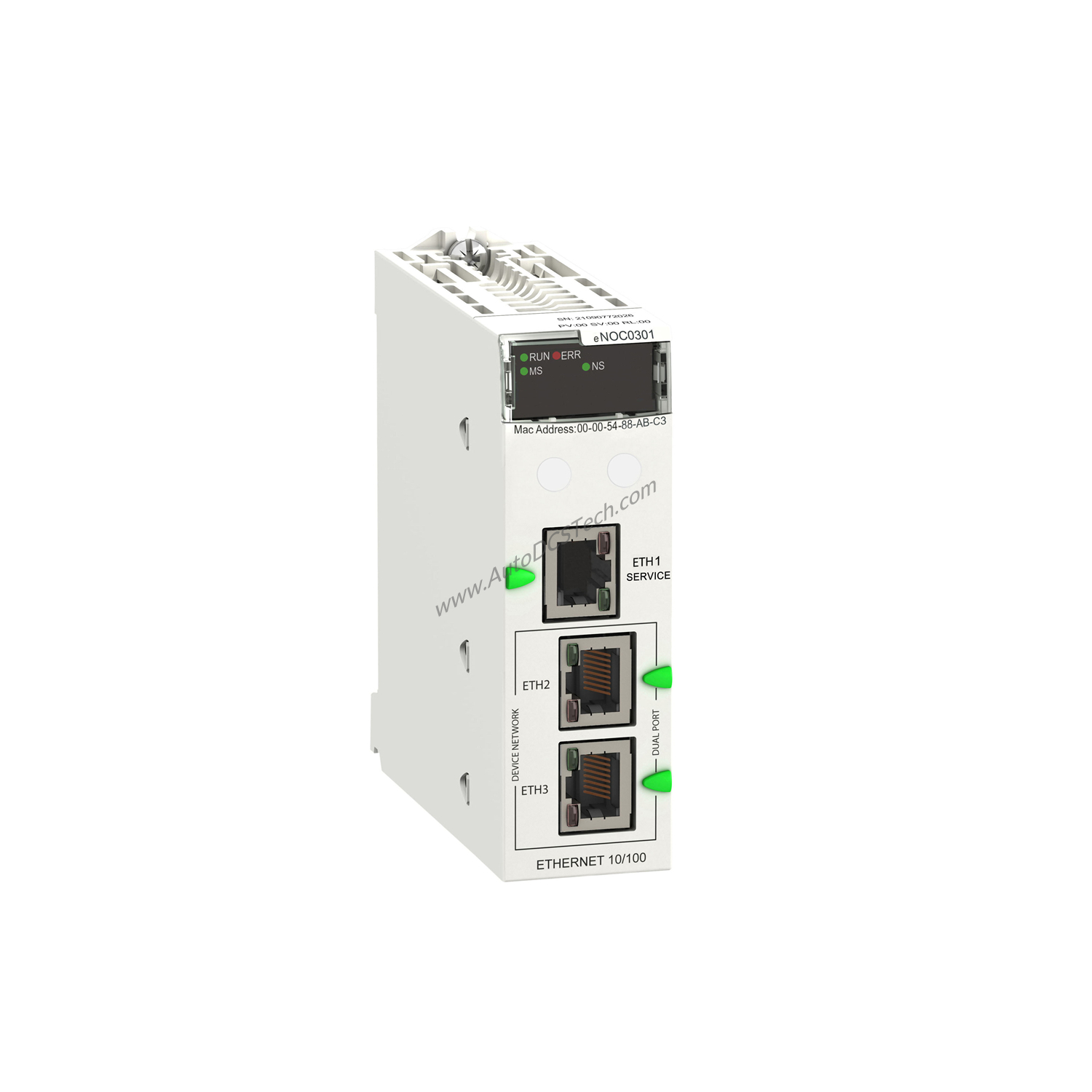

The BMENOC0301C offers three Ethernet RJ45 ports supporting 10/100 Mbit/s over double shielded twisted pair cables. This embedded multiport switch eliminates the need for external switches, reducing hardware costs and cabling complexity. The module consumes 900 mA at 3.3 V DC for versions >=13, or 1800 mA for older versions—this power efficiency translates to lower energy bills over the product's lifecycle.
Key communication services include Modbus TCP I/O Scanner and Messaging, EtherNet/IP I/O Scanner and Messaging, SNMP network administration, FDR server, and RSTP support. These protocols ensure interoperability with a wide range of devices, reducing integration costs. The built-in web server enables remote diagnostics, cutting downtime and travel expenses.
Industry Applications
In water treatment plants, the BMENOC0301C manages real-time data exchange between PLCs and remote I/O via Modbus TCP, ensuring precise control of pumps and valves. The bandwidth management feature prioritizes critical traffic, preventing bottlenecks that could cause costly process interruptions.
For manufacturing lines using EtherNet/IP, this module acts as an I/O scanner, coordinating drives and sensors. The embedded switch reduces network infrastructure costs, while port mirroring aids in troubleshooting without additional tools.
Installation & Setup Guidance
Mount the BMENOC0301C on a BMEXBP rack in slot 0-3. Ensure the rack provides internal power—no external supply needed. Connect Ethernet cables using RJ45 connectors with double shielded twisted pair for reliable communication. Configure the module via the web server or Unity Pro software. Set IP addresses, enable Modbus TCP or EtherNet/IP scanning, and activate RSTP for network redundancy. Always verify firmware version compatibility with your system.
Maintenance & Reliability
The BMENOC0301C features conformal coating for protection against harsh environments, reducing failure rates and maintenance costs. Its IP20 rating suits clean indoor installations. The module includes diagnostic LEDs: RUN (green), ERR (red), ETH MS, and Eth NS for quick status checks. Regular inspection of these indicators helps identify issues early, minimizing unplanned downtime. For hazardous locations, the module holds ATEX zone 2/22 and IECEx zone 2/22 certifications, ensuring safe operation in explosive atmospheres.
Compatibility & Integration
This module integrates with Modicon M580 controllers via the Ethernet backplane. It supports Modbus TCP and EtherNet/IP simultaneously, allowing mixed-protocol networks. The BMENOC0301C works with BMEXBP racks and is compatible with Schneider's EcoStruxure architecture. Its SNMP support enables integration with enterprise network management systems, providing a unified view of automation and IT networks.
Selection Guide & Purchasing Advice
Before ordering, verify your rack type (BMEXBP) and firmware version. The BMENOC0301C requires 3.3 V DC supply; ensure your rack provides adequate current (900 mA for version >=13). For new installations, choose version >=13 for lower power consumption. SpareTechPLC offers genuine Schneider modules with fast shipping and expert support. Contact us to confirm lifecycle status and availability.
Troubleshooting & Common Issues
If the ERR LED is red, check for power supply issues or rack slot conflicts. Verify that the module is properly seated and the rack is powered. If Ethernet communication fails, confirm cable quality (double shielded twisted pair) and IP address settings. Use port mirroring to capture traffic for analysis. For RSTP issues, ensure all switches in the ring support the protocol. The web server provides detailed logs for diagnostics.
