Product Introduction

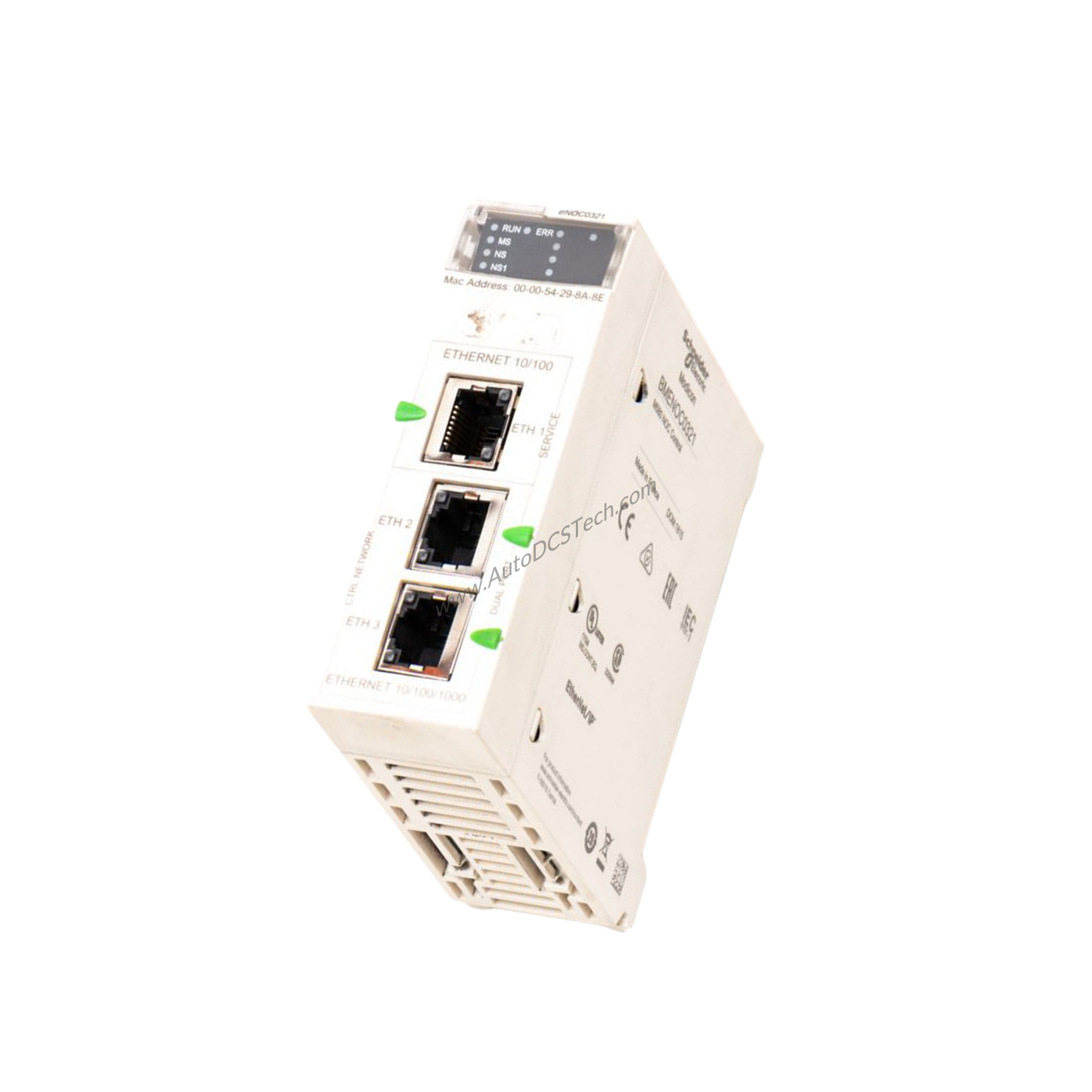

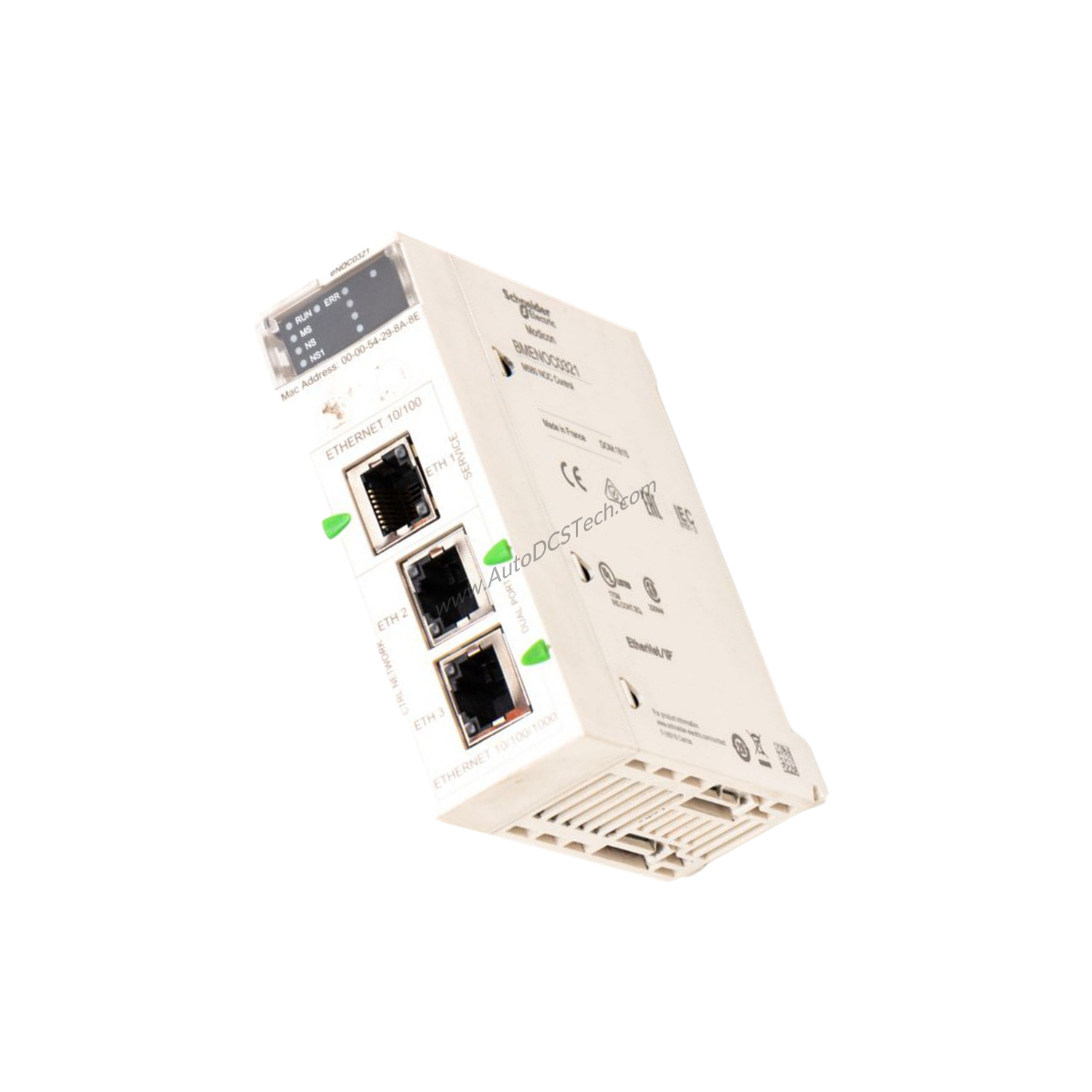

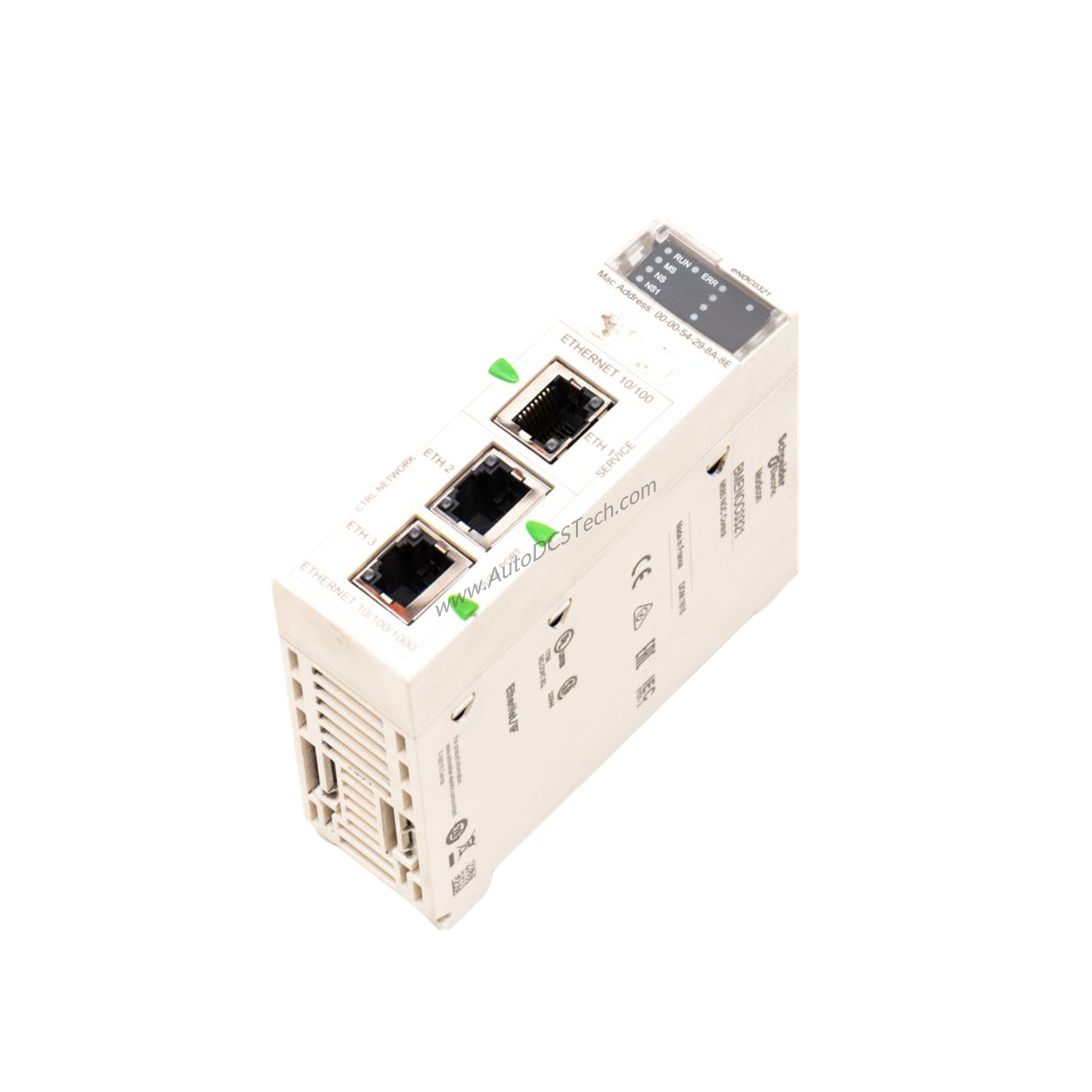

When network reliability is critical in a distributed control system, the Schneider BMENOC0321 communication module provides a robust Ethernet backbone for your Modicon M580 architecture. This module integrates seamlessly into the M580 ecosystem, acting as a control router that manages bandwidth, supports RSTP for network redundancy, and enables advanced web services. Designed for demanding industrial environments, the BMENOC0321 ensures deterministic data exchange between controllers, I/O racks, and supervisory systems.
Technical Specifications Breakdown
The BMENOC0321 draws 1800 mA at 3.3 V DC from the internal power supply via the rack, ensuring efficient operation without external power wiring. It features three Ethernet RJ45 ports supporting 10/100/1000 Mbps over double shielded twisted pair cable, providing high-speed connectivity for both control and information networks. The module includes an embedded 4-port switch, enabling daisy-chain or star topologies without additional hardware. Memory usage supports application saving and activation of the advanced web server, which hosts FactoryCast configurable web pages for remote monitoring. Local signaling includes six LEDs: one green for processor running, one red for processor or system fault, and four green/red LEDs for Ethernet port configuration status and network status (ETH MS, Eth NS, Eth NS1, Eth NS2). The module weighs 0.4 lb (US) (0.2 kg) and has an IP20 degree of protection. Operating ambient air temperature ranges from 32 to 140 °F (0 to 60 °C). It carries CE marking and complies with directives 2014/35/EU (low voltage) and 2014/30/EU (electromagnetic compatibility).
Industry Applications
In a water treatment plant, the BMENOC0321 connects multiple BMEXBP racks over an Ethernet backplane, enabling centralized control of pumps, valves, and sensors. Its FDR server simplifies device replacement by automatically restoring network parameters, reducing downtime. In a packaging line, the module's support for both Modbus TCP and EtherNet/IP I/O Scanner and Messaging allows integration with drives, vision systems, and HMIs from different vendors. The advanced web server provides operators with real-time dashboards without additional software.
Installation & Setup Guidance
Mount the BMENOC0321 into any compatible BMEXBP Ethernet + X-bus rack. The module is powered internally through the rack backplane, so no separate power supply connection is needed. Connect Ethernet cables to the RJ45 ports using double shielded twisted pair cable for reliable gigabit communication. Configure the module using the Unity Pro or EcoStruxure Control Expert software. Enable the FDR server for automatic parameter backup. Set up RSTP on the embedded switch to create a fault-tolerant network ring. Activate the advanced web server and FactoryCast pages for remote diagnostics.
Maintenance & Reliability
Regularly inspect the LED indicators to verify module health: the RUN LED should be green steady, and all ERR LEDs should be off. Keep the IP20 enclosure free of dust and debris to ensure adequate cooling. The module operates reliably in ambient temperatures from 32 to 140 °F (0 to 60 °C). Periodically review network traffic and bandwidth management settings to prevent congestion. Since the module has no user-serviceable parts, replacement is the recommended action if a fault persists. Always follow the manufacturer's safety guidelines when working with live equipment.
Compatibility & Integration
The BMENOC0321 is designed for the Modicon M580 platform and is compatible with BMEXBP racks that support Ethernet + X-bus backplane. It supports Modbus TCP I/O Scanner and Messaging, as well as EtherNet/IP I/O Scanner and Messaging, allowing seamless integration with a wide range of automation devices. The embedded 4-port switch supports RSTP for network redundancy. The module also provides IP forwarding and web services, including an advanced web server with FactoryCast configurable pages. This makes it suitable for both new installations and upgrades of existing Modicon systems.
Selection Guide & Purchasing Advice
Before purchasing the BMENOC0321, verify that your rack is a BMEXBP model with Ethernet + X-bus capability. Ensure your control software version supports this module. The module is available from SpareTechPLC, a trusted supplier of industrial automation parts. Check current lifecycle status and availability with SpareTechPLC before ordering. Consider ordering a spare unit to minimize potential downtime. The package includes one module (unit type PCE) with dimensions 2.17 x 4.41 x 4.65 inches (5.500 x 11.200 x 11.800 cm) and a weight of 8.924 oz (253.000 g).
Frequently Asked Questions
Q: What is the power consumption of the BMENOC0321?
A: The module consumes 1800 mA at 3.3 V DC, supplied internally via the rack backplane.
Q: How many Ethernet ports does the BMENOC0321 have?
A: It has three Ethernet RJ45 ports, each supporting 10/100/1000 Mbps with double shielded twisted pair cable.
Q: Does the BMENOC0321 support EtherNet/IP?
A: Yes, it supports EtherNet/IP I/O Scanner and Messaging, along with Modbus TCP I/O Scanner and Messaging.
Q: What is the operating temperature range for the BMENOC0321?
A: The module operates in ambient air temperatures from 32 to 140 °F (0 to 60 °C).
Q: What certifications does the BMENOC0321 have?
A: It carries CE marking and complies with low voltage directive 2014/35/EU and electromagnetic compatibility directive 2014/30/EU.
