Why Choose the 140CPU65160C for Your Control System?
When your production line demands reliable and fast processing, the Schneider 140CPU65160C Unity Processor delivers. This Modicon Quantum series module handles complex logic with ease, reducing downtime and improving throughput.
Product Overview

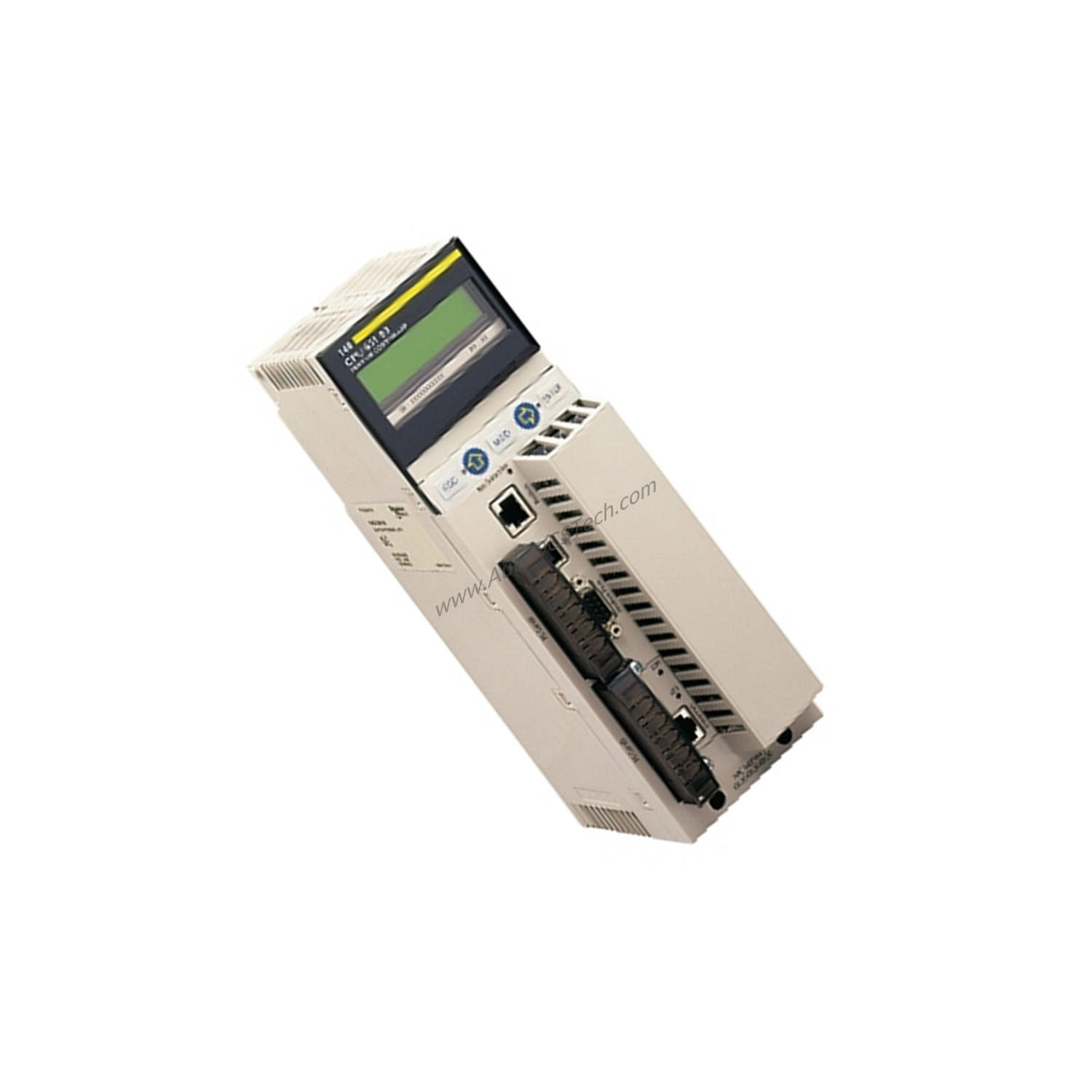

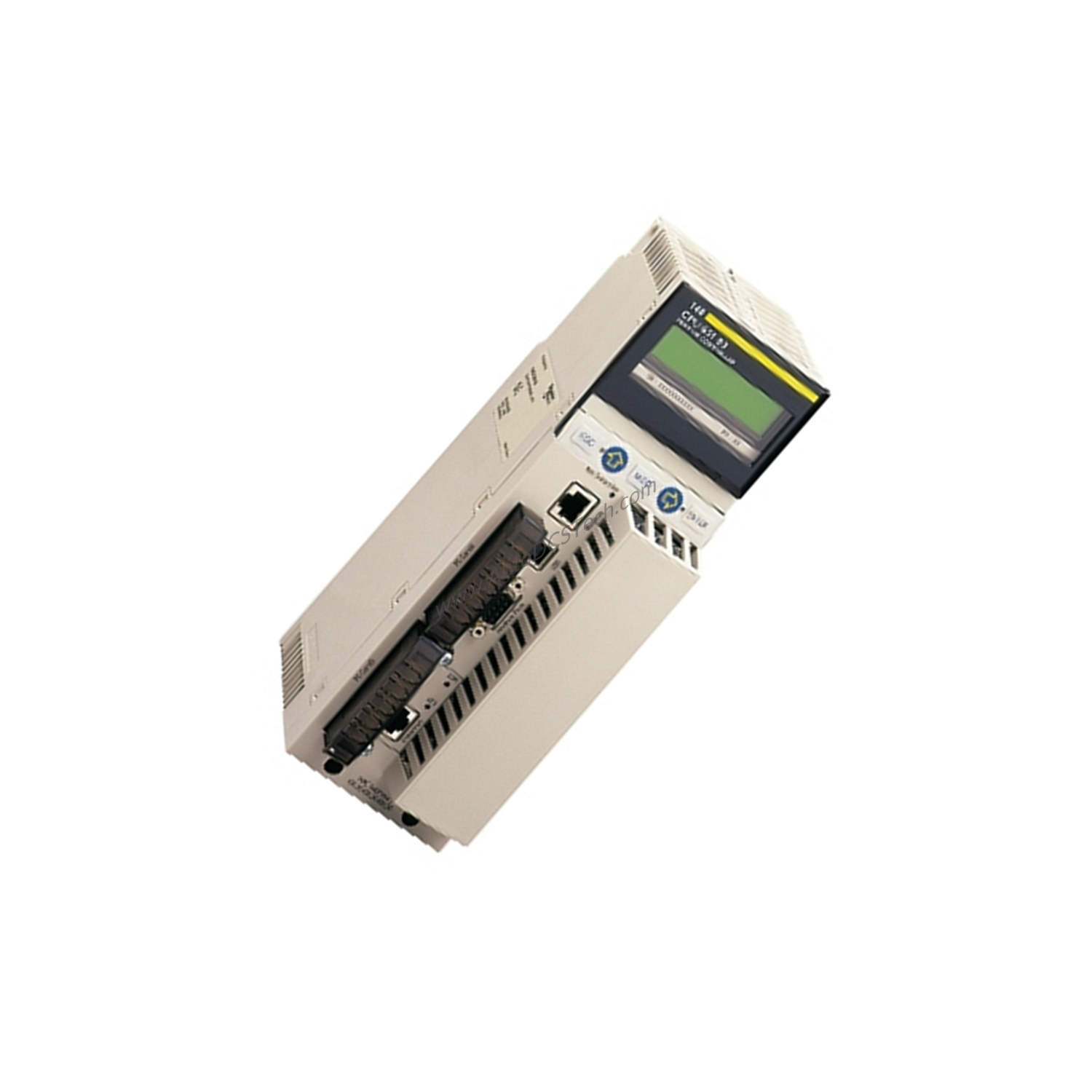

The 140CPU65160C is a Unity Processor from Schneider Electric's Modicon Quantum family. It operates at a clock frequency of 266 MHz and includes 1024 kB of internal RAM. For larger programs, expandable RAM supports up to 7168 kB for program memory and 8 MB for file storage. This processor fits into systems requiring up to 10 slots and 2 local racks.
Technical Specifications Breakdown
- Processing Speed: With an execution time of 0.4–0.5 µs for floating-point instructions and 0.0525–0.075 µs for Boolean operations, this processor handles fast logic and math tasks efficiently.
- Memory Capacity: Internal RAM of 1024 kB is standard. Expandable RAM reaches 7168 kB for programs and 8 MB for file storage, giving you room for complex applications.
- Network Support: Integrated connections include 1 Modbus Plus, 1 Ethernet TCP/IP, 1 Modbus, and 1 USB. It also supports up to 63 distributed I/O stations and 31 remote I/O stations.
- Optional Modules: You can add up to 6 optional communication modules for Ethernet, Modbus, Modbus Plus, Profibus DP, or Sy/Max.
Industry Applications
- Manufacturing Lines: Use the 140CPU65160C to control assembly robots and conveyor systems. Its fast Boolean execution (0.0525–0.075 µs) ensures precise timing.
- Process Control: In chemical or food processing plants, the processor manages multiple distributed I/O stations across three Modbus Plus networks, enabling centralized monitoring.
- Building Automation: With Ethernet router capabilities, this processor integrates HVAC and lighting systems into a single control network.
Installation & Setup Guidance
Mount the processor in a Modicon Quantum rack using the designated slot. Connect the power supply and verify the 266 MHz clock frequency is recognized by the software. For distributed I/O, configure the Modbus Plus networks and assign station addresses. Always follow Schneider Electric's manual for wiring and grounding to avoid signal interference.
Maintenance & Reliability
Inspect the processor periodically for dust accumulation and ensure proper ventilation. The 140CPU65160C's robust design supports continuous operation in industrial environments. Check connections to optional modules and network cables to prevent communication errors. Regular firmware updates from Schneider Electric maintain compatibility and performance.
Compatibility & Integration
This processor integrates seamlessly with Modicon Quantum I/O modules and remote racks. It supports up to 6 Ethernet TCP/IP local connections, 6 Modbus Plus local connections, and 6 Profibus DP local connections. Use the USB port for local programming or diagnostics. The 140CPU65160C also acts as an Ethernet router, simplifying network architecture.
Selection Guide & Purchasing Advice
Before ordering, verify your system's rack configuration and power supply requirements. The 140CPU65160C requires a compatible backplane and adequate power. At SpareTechPLC, we stock this processor and can advise on compatible accessories. Contact us to confirm availability and lifecycle status for your project.
Frequently Asked Questions
Q: What is the clock frequency of the 140CPU65160C?
A: The clock frequency is 266 MHz.
Q: How much RAM does this processor have?
A: Internal RAM is 1024 kB, expandable to 7168 kB for programs and 8 MB for file storage.
Q: Can I use this processor with remote I/O?
A: Yes, it supports up to 31 remote I/O stations via two S908 remote I/O racks.
Q: What communication protocols are integrated?
A: Integrated connections include 1 Modbus Plus, 1 Ethernet TCP/IP, 1 Modbus, and 1 USB.
Q: How many optional modules can I add?
A: You can add up to 6 optional modules for Ethernet, Modbus, Modbus Plus, Profibus DP, or Sy/Max.
