Product Overview

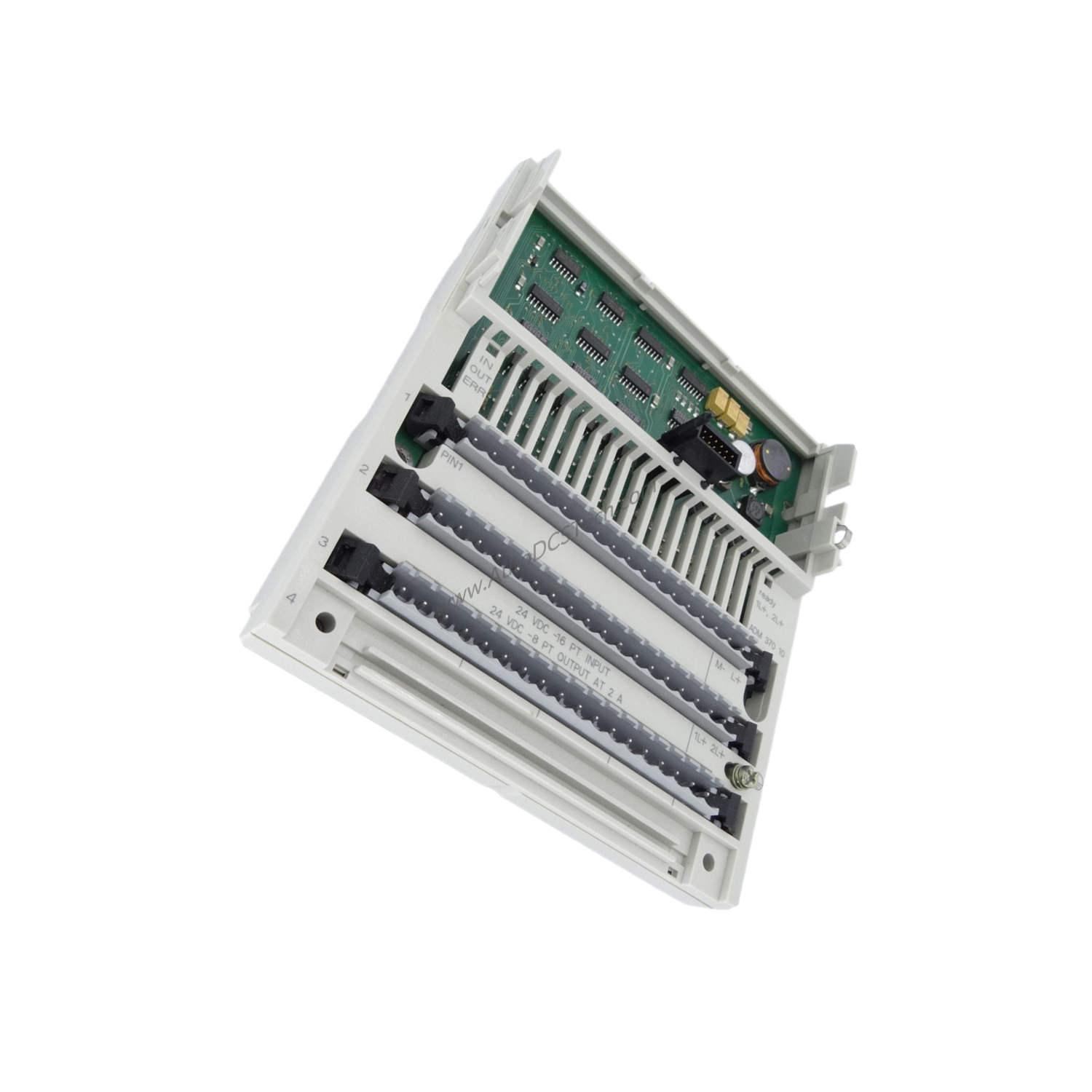

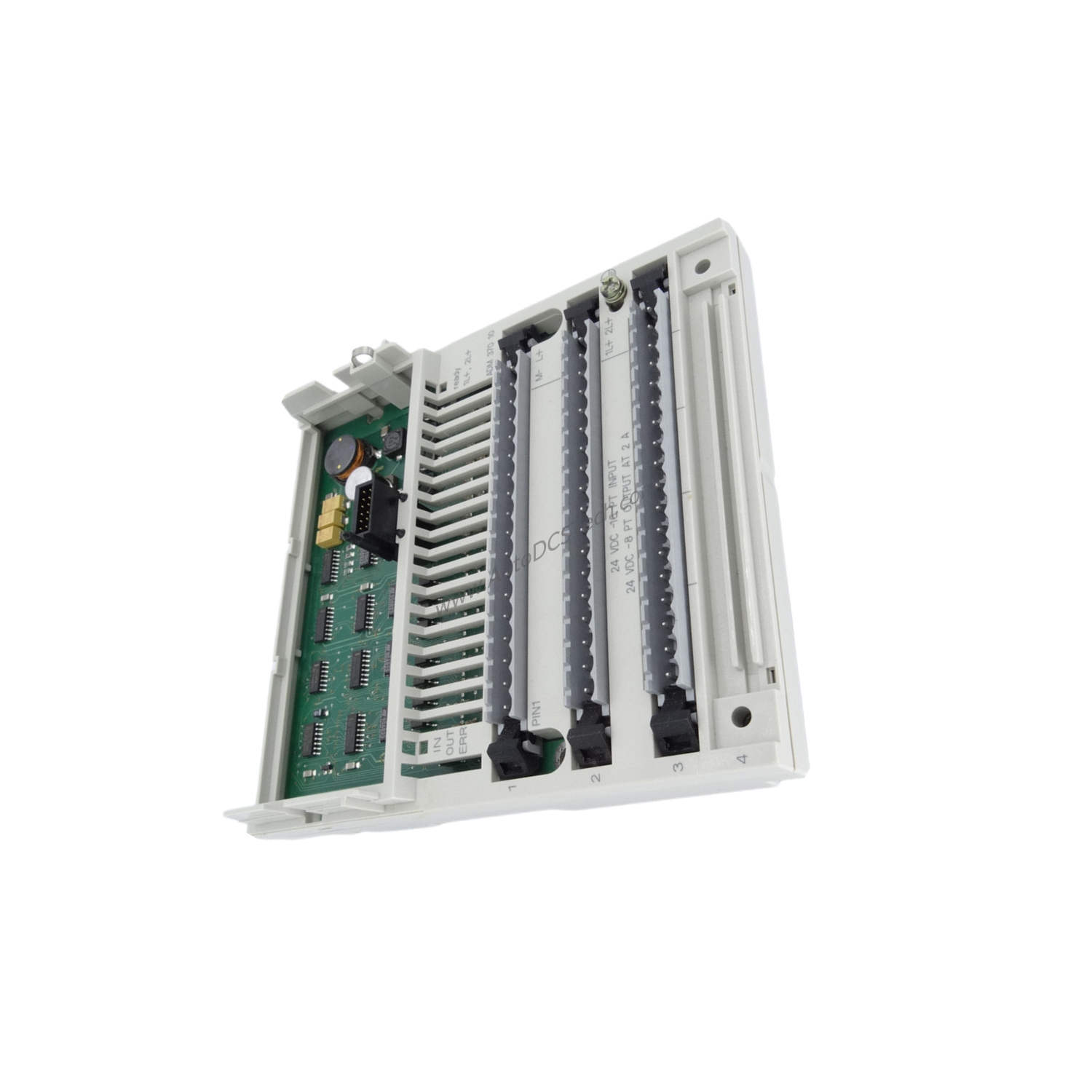

When your control system demands reliable discrete signal handling, the Schneider Electric 170ADM37010 Discrete I/O Base delivers structured connectivity within the Modicon Momentum series. This unit accommodates 16 discrete inputs and 8 outputs, organizing inputs into four groups and outputs into two groups for efficient wiring and troubleshooting.
Technical Specifications Breakdown
- Discrete Input Voltage: 24 V DC
- Discrete Output Voltage: 24 V DC, up to 30 V DC
- Input Logic: Positive
- Output Logic: Positive
- Output Type: Solid-state switch outputs supported
- Protective Treatment: TC treatment
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Maximum Relative Humidity: 95% without condensation
- Weight: 1.00 lbs (0.45 kg)
These specifications ensure the 170ADM37010 operates reliably in demanding industrial environments. The positive logic for both inputs and outputs simplifies integration with standard PLC systems. Solid-state outputs provide fast, maintenance-free switching.
Industry Applications
- Manufacturing Assembly Lines: Use the 170ADM37010 to monitor sensor inputs and control actuator outputs in automated assembly stations. The 24 V DC input voltage matches common industrial sensors, while the solid-state outputs handle solenoid valves and indicator lights.
- Material Handling Systems: In conveyor and sortation systems, the 170ADM37010 manages multiple discrete signals, with four input groups allowing organized connection of photo-eyes and limit switches. The two output groups control motor starters and diverters.
- Packaging Machinery: The compact form factor and TC treatment make the 170ADM37010 suitable for packaging equipment where space is limited and environmental protection is needed.
Installation & Setup Guidance
Mount the 170ADM37010 on a DIN rail within an enclosure that meets the operating temperature range of 0°C to 60°C. Ensure adequate ventilation to maintain reliability. Connect 24 V DC power to the input and output commons per the wiring diagram. Use twisted-pair wiring for long runs to minimize noise. Verify positive logic orientation before powering up.
Maintenance & Reliability
The TC treatment provides enhanced protection against corrosion and environmental stress, extending service life in humid or mildly corrosive atmospheres. Regularly inspect connections for tightness and check for signs of condensation. The solid-state outputs have no moving parts, reducing wear. Follow Schneider Electric's guidelines for periodic testing to ensure continued performance.
Compatibility & Integration
The 170ADM37010 integrates seamlessly with Modicon Momentum controllers and I/O modules. It uses standard 24 V DC discrete signals, making it compatible with a wide range of sensors, switches, and actuators. The positive logic ensures straightforward mapping to PLC input and output tables. For system expansion, pair this base with additional Momentum I/O modules.
Selection Guide & Purchasing Advice
Before ordering, verify your system's voltage requirements: the 170ADM37010 requires 24 V DC for inputs and supports outputs up to 30 V DC. Confirm that your controller supports positive logic. For replacement or new installations, check the number of input and output points needed. SpareTechPLC offers the 170ADM37010 with fast shipping and expert support to help you select the right components.
Frequently Asked Questions
Q1: What is the difference between input groups and output groups on the 170ADM37010?
A1: The 170ADM37010 has four input groups and two output groups. Each group shares a common connection, simplifying wiring and reducing the number of return wires needed.
Q2: Can the 170ADM37010 handle 30 V DC on the outputs?
A2: Yes, the discrete output voltage is rated 24 V DC, up to 30 V DC. Ensure your load does not exceed this maximum.
Q3: Does the 170ADM37010 support sinking or sourcing outputs?
A3: The 170ADM37010 uses positive logic for both inputs and outputs, meaning it sources current. Verify compatibility with your field devices.
Q4: What does TC treatment mean for the 170ADM37010?
A4: TC treatment is a protective coating that enhances resistance to moisture, dust, and corrosive atmospheres, improving reliability in harsh environments.
Q5: Is the 170ADM37010 still in production?
A5: Please verify current lifecycle status and availability with SpareTechPLC before ordering.
