Product Overview

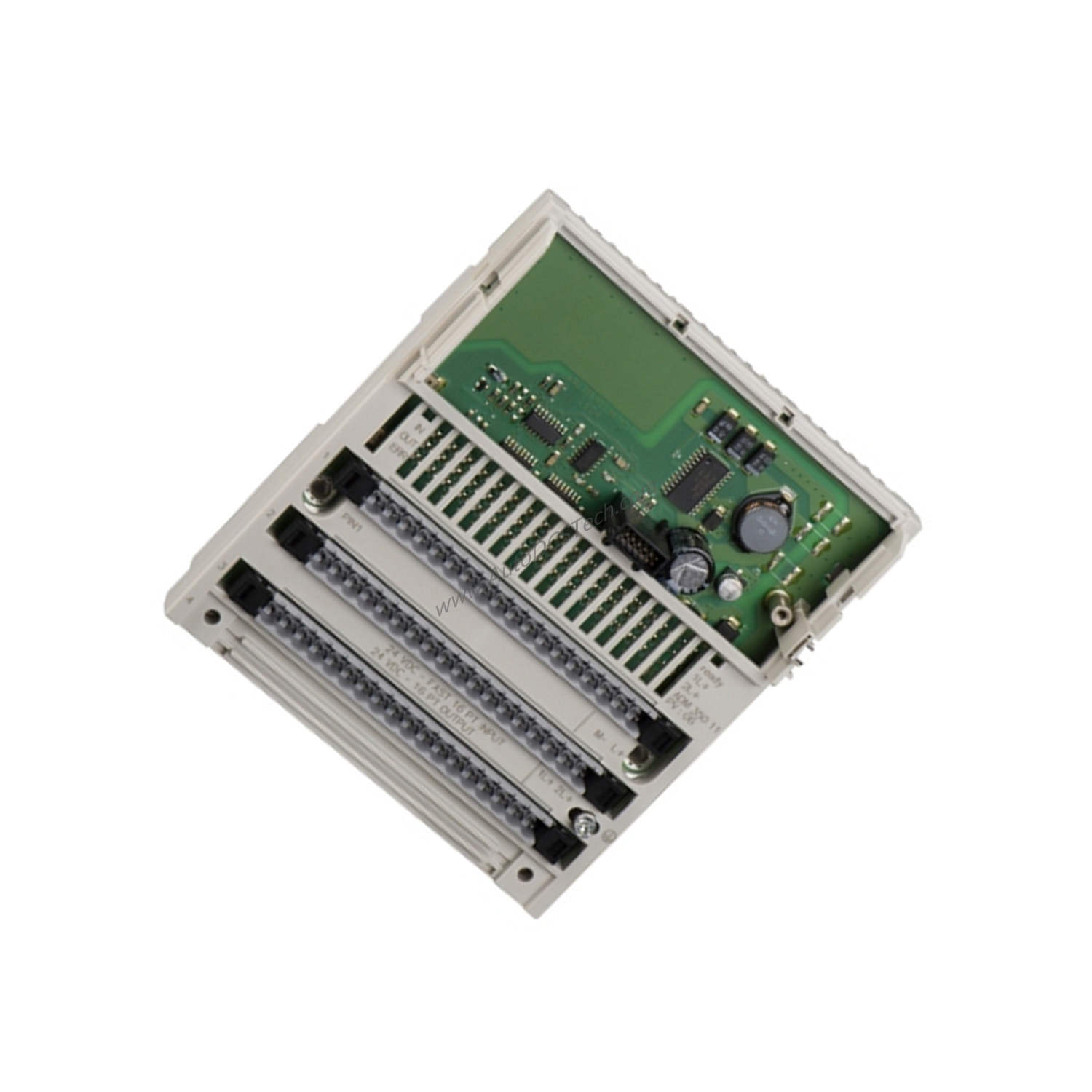

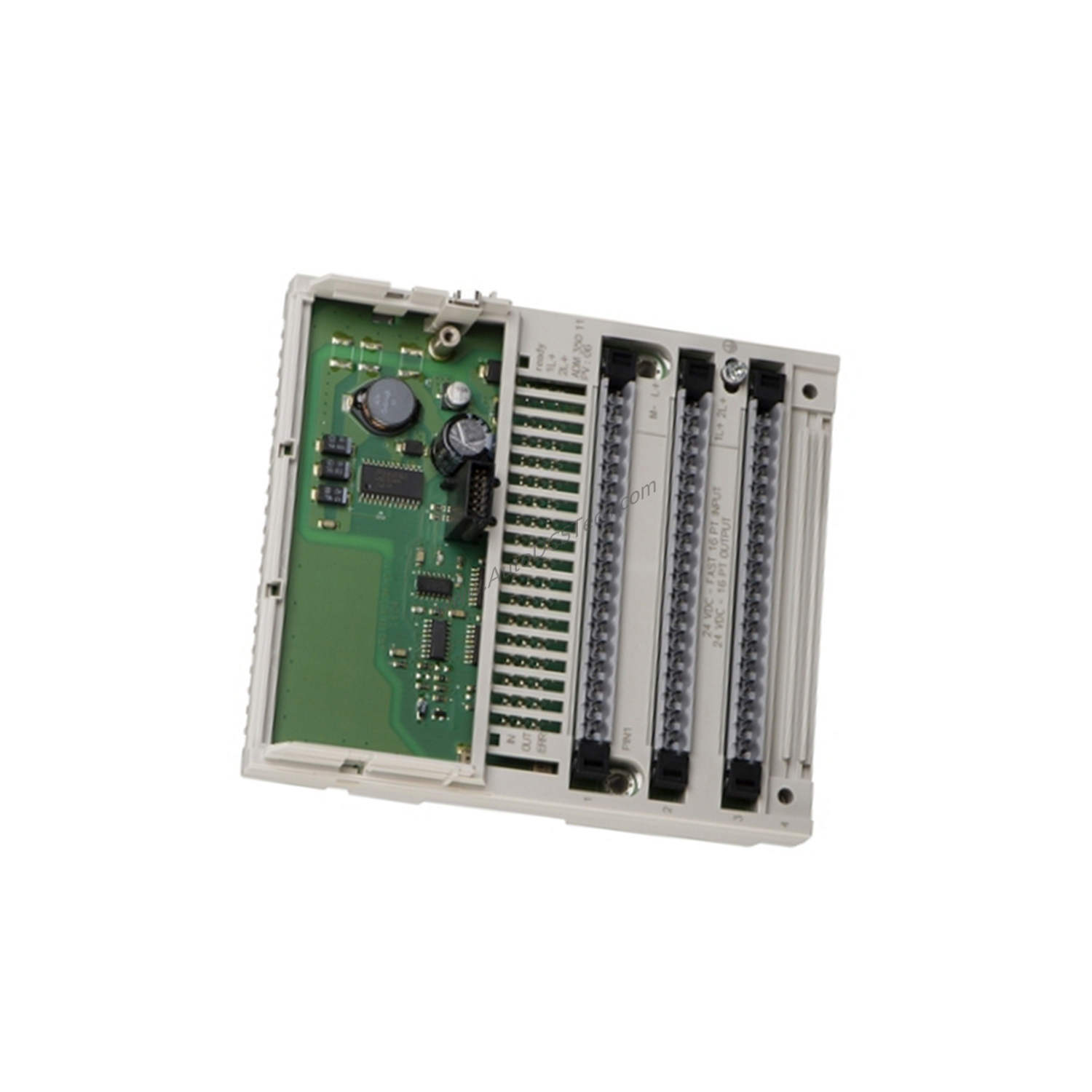

When your automation system demands reliable discrete I/O handling, the Schneider 170ADM35010 from the Modicon Momentum series delivers a solid-state solution. This discrete I/O base provides 16 inputs and 16 outputs, organized into two groups of eight outputs and one group of 16 inputs. Its positive logic design and TC protective treatment make it a durable choice for various industrial environments.
Technical Specifications Breakdown
Understanding the key specs helps you match this module to your application. The 170ADM35010 operates with a discrete input voltage of 24 V DC and a discrete output voltage of 24 V DC, supporting up to 30 V DC. Both input and output logic are positive, simplifying integration with standard PLC systems. The peak output current reaches 5 Amps, enabling it to drive moderate loads directly. For environmental resilience, it handles up to 95% relative humidity without condensation and operates from 0°C to 60°C, with storage from -40°C to 85°C. The input resistance is 4 kOhm, and isolation between channels and bus is 500 V AC.
Industry Applications
The 170ADM35010 fits well in discrete manufacturing, packaging lines, and material handling systems. For example, in a conveyor control system, the 16 inputs can monitor sensor status while the 16 outputs actuate motor starters or solenoids. The solid-state outputs ensure fast, silent switching and long service life, reducing downtime. Its TC protective treatment also suits environments with moderate humidity or mild contaminants.
Installation & Setup Guidance
Mount the 170ADM35010 on a DIN rail within a clean, dry enclosure. Ensure the bus connector aligns properly with the Momentum processor or adapter. Wire inputs according to the terminal descriptions: connect 24 V DC to (L+)PW_POS and common to (M-)PW_NEG. For outputs, use the (1L+)PW_POS and (2L+)PW_POS terminals for power. Verify that all wiring matches the positive logic scheme—sourcing inputs and outputs. After installation, power up and check the 16 LED indicators for channel status.
Maintenance & Reliability
Routine inspection of the 170ADM35010 should include checking for loose connections, verifying LED status, and ensuring the ambient temperature stays within 0°C to 60°C. The TC protective treatment helps resist corrosion, but avoid condensation by maintaining humidity below 95%. Periodically test outputs under load to confirm the 5A peak current capability remains available. Following these steps extends the module's life and prevents unexpected failures.
Compatibility & Integration
The 170ADM35010 integrates seamlessly with the Modicon Momentum automation platform. It connects to Momentum processors and adapters via the backplane bus, supporting standard I/O mapping. The positive logic inputs and outputs are compatible with most 24 V DC sensors and actuators. For system expansion, multiple I/O bases can be added to a single Momentum rack.
Selection Guide & Purchasing Advice
Before ordering the 170ADM35010, verify your system's voltage requirements (24 V DC) and logic type (positive). Confirm that your application's load current does not exceed 5A per output. Check the available space: the module measures 5.6 in (141.5 mm) high, 4.9 in (125 mm) wide, and 1.9 in (47.5 mm) deep. SpareTechPLC stocks this unit and can advise on compatibility with your existing Momentum setup. Contact us for current availability and lifecycle status.
Frequently Asked Questions
Q: What is the input voltage range for the 170ADM35010?
A: The discrete input voltage is 24 V DC, and the discrete output voltage is also 24 V DC, with support up to 30 V DC.
Q: How many outputs can be grouped together?
A: The 16 outputs are arranged in two groups of eight outputs each, allowing flexible wiring and load distribution.
Q: Does the 170ADM35010 support solid-state outputs?
A: Yes, it supports solid-state switch outputs, providing fast and reliable switching without moving parts.
Q: What is the peak output current per channel?
A: The peak output current is 5 Amps, suitable for driving moderate loads directly.
Q: What environmental conditions can this module withstand?
A: It operates from 0°C to 60°C, stores from -40°C to 85°C, and tolerates up to 95% relative humidity without condensation.
