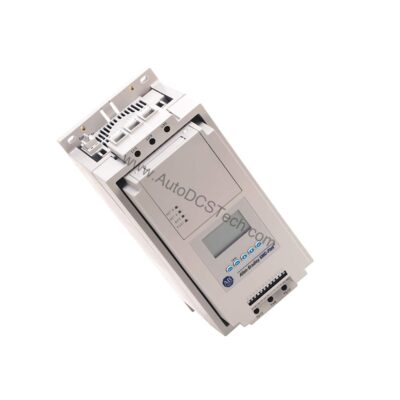

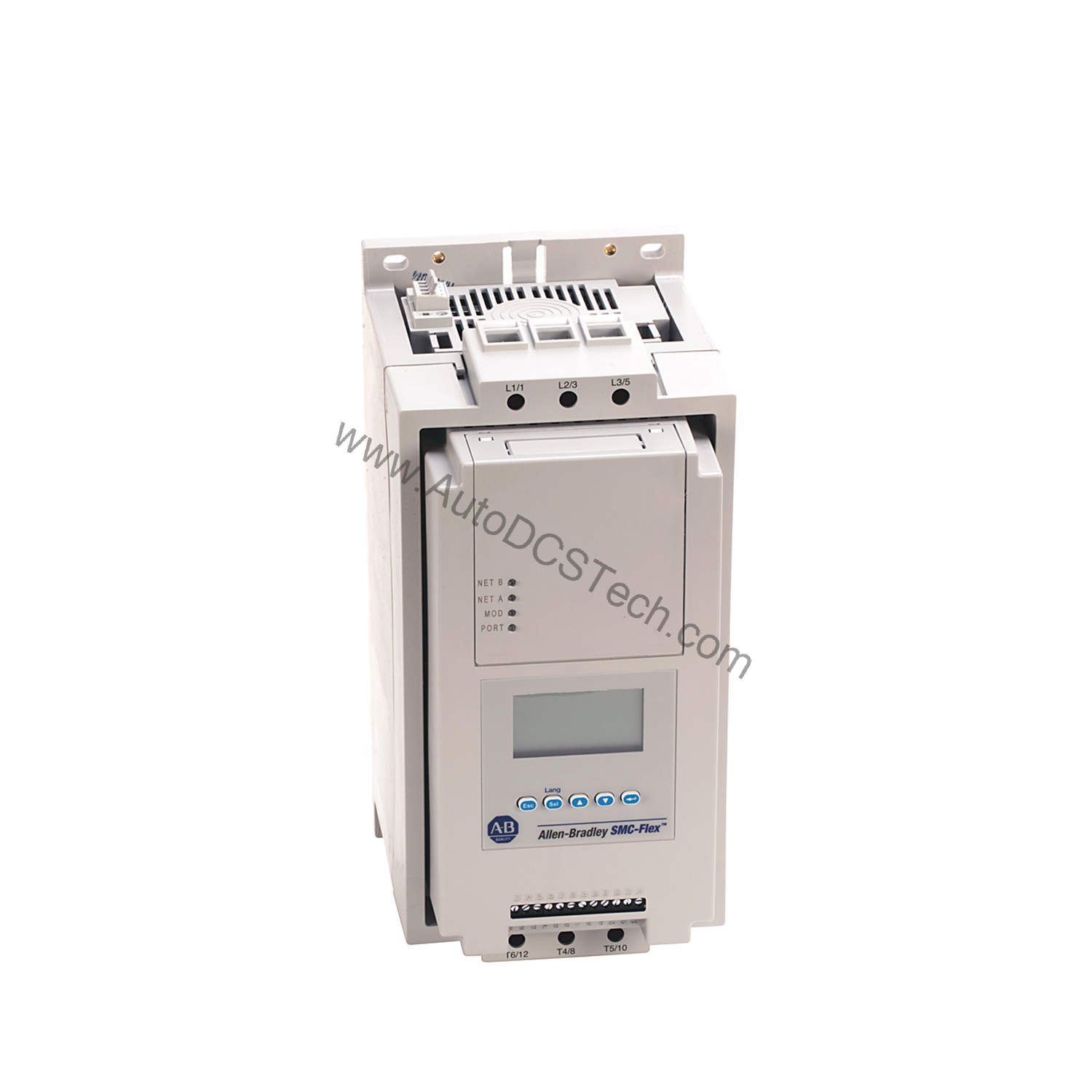

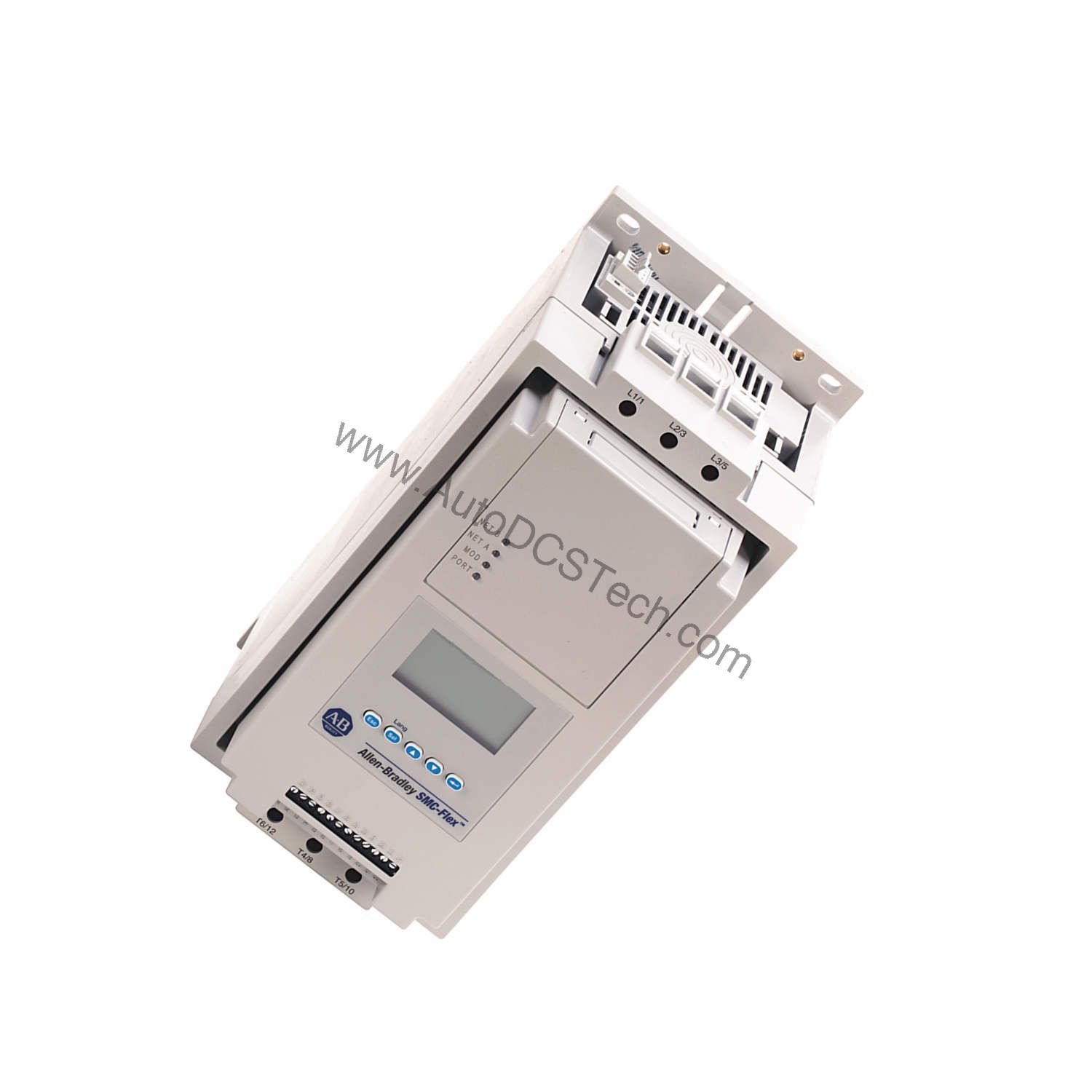

Allen-Bradley 150-F108FBD SMC-Flex Solid State Controller 108A

Technical Specifications Breakdown

Key parameters for the 150-F108FBD are listed below for quick reference:

Industry Applications and Operational ROI

Typical uses include conveyors, pumps, fans, and compressors in manufacturing, water treatment, and HVAC systems. By reducing mechanical shock and electrical stress during starts, the 150-F108FBD extends motor and driven equipment life, lowering total cost of ownership. The programmable HMI with backlit LCD allows operators to set initial torque, acceleration time, and restart delay, optimizing performance for each load.

Installation and Setup Guidance

Mount the controller in a clean, dry location with adequate ventilation. Ensure the supply voltage matches the 400-460V AC, 3-phase input line rating. The control voltage must be 100-240V AC for proper logic operation. When connecting multiple motors, the total nameplate current must not exceed 108 A. Disable jam and stall tracking features for multi-motor configurations to avoid nuisance trips.

Maintenance and Reliability

Periodically inspect the enclosure seals and cooling vents for debris. Verify that all power and control connections remain tight. The IP65 rating reduces contamination risks, but routine checks every six months help maintain long-term reliability. No internal adjustments are required beyond the user-accessible programming parameters.

Robust Enclosure and Power Handling

The 150-F108FBD is built for demanding environments. Its IP65 (Type 4/12) enclosure shields internal components from dust, water jets, and corrosion, making it suitable for washdown areas or outdoor installations. With a controller rating of 108 A and 75 Hp @ 460V AC, it handles substantial motor loads. The input line voltage range is 400-460V AC, 3-phase, 50 and 60 Hz, ensuring compatibility with global power systems.

Selection Guide and Purchasing Advice

When selecting a replacement or upgrade, verify that the motor full-load current is within the 108 A rating. The 150-F108FBD is a non-combination enclosed unit, so external branch circuit protection may be needed. AutoDCSTech stocks this Allen-Bradley SMC-Flex controller and can assist with lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

If the controller fails to start, check the input line voltage and control voltage supply. Verify that the HMI displays no active fault codes. Overload or ground fault trips may indicate motor winding issues or incorrect parameter settings. Refer to the user manual for detailed fault code interpretation. For persistent problems, consult a qualified industrial electrician.
