Technical Specifications Breakdown
Key parameters for the 170XTS02100 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | ModBus Plus Line Terminator |
| Product Line | Modicon Momentum |
| Mounting | DIN rail or panel mount |
| Power Supply | 24V DC |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mechanical Dimensions | 100 x 100 x 40 (mm) |
| Enclosure Protection | IP20 |
| Shock Resistance | 50g peak |
| Vibration Resistance | 5g RMS |
| Connection Type | RJ45 connectors for ModBus Plus communication |
| Certifications | CE, UL, and CSA certified |
Industry Applications: Conveyor and HVAC Systems
This line terminator is particularly suited for conveyor belt systems where reliable communication between PLCs and remote I/O is critical. By properly terminating the ModBus Plus network, it prevents data corruption and ensures consistent operation. In HVAC applications, the 170XTS02100 supports robust communication between building automation controllers, maintaining stable temperature and airflow control.
Installation and Setup Guidance
Mount the 170XTS02100 on a DIN rail or panel using the provided slots. Ensure the unit is securely fastened to avoid movement under vibration. Connect the ModBus Plus cable to the RJ45 connectors, verifying proper polarity and termination. The 24V DC power supply must be connected to the designated terminals, observing correct voltage and polarity. After installation, test network communication to confirm termination is effective.
Maintenance and Reliability
Periodically inspect the unit for dust accumulation or physical damage, especially in high-vibration areas. Clean the enclosure with a dry cloth if needed, but avoid solvents. The IP20 rating protects against solid objects larger than 12 mm, so keep the area free of debris. Verify that all connections remain tight and that the power supply is stable. No internal adjustments are required.
Robust Network Termination for Modicon Momentum Systems

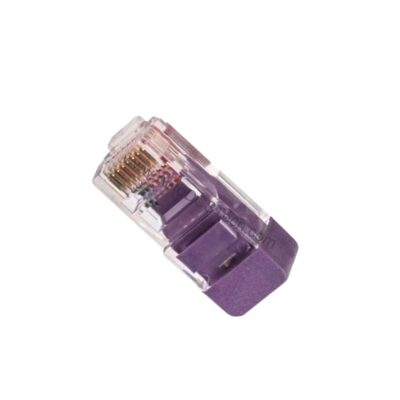

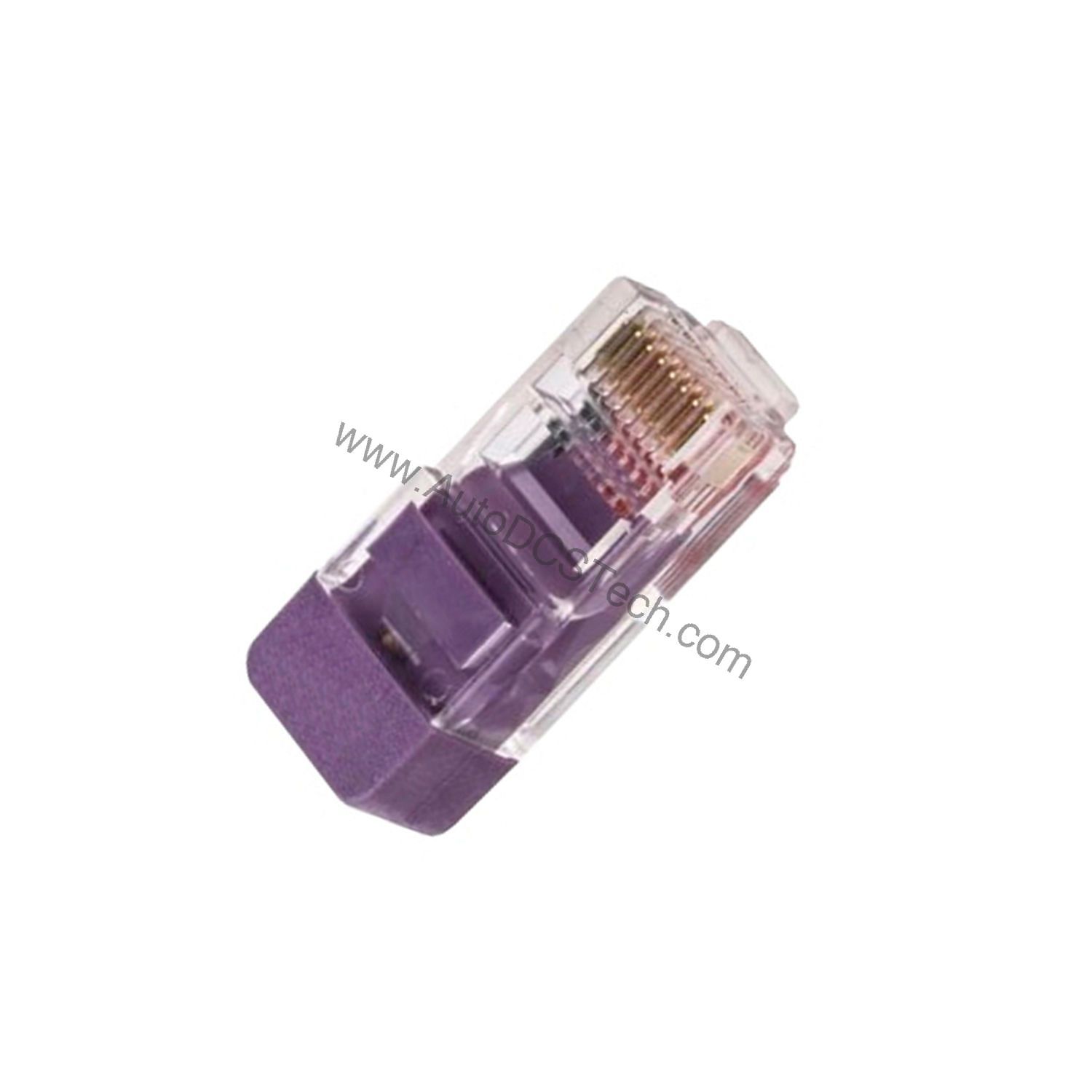

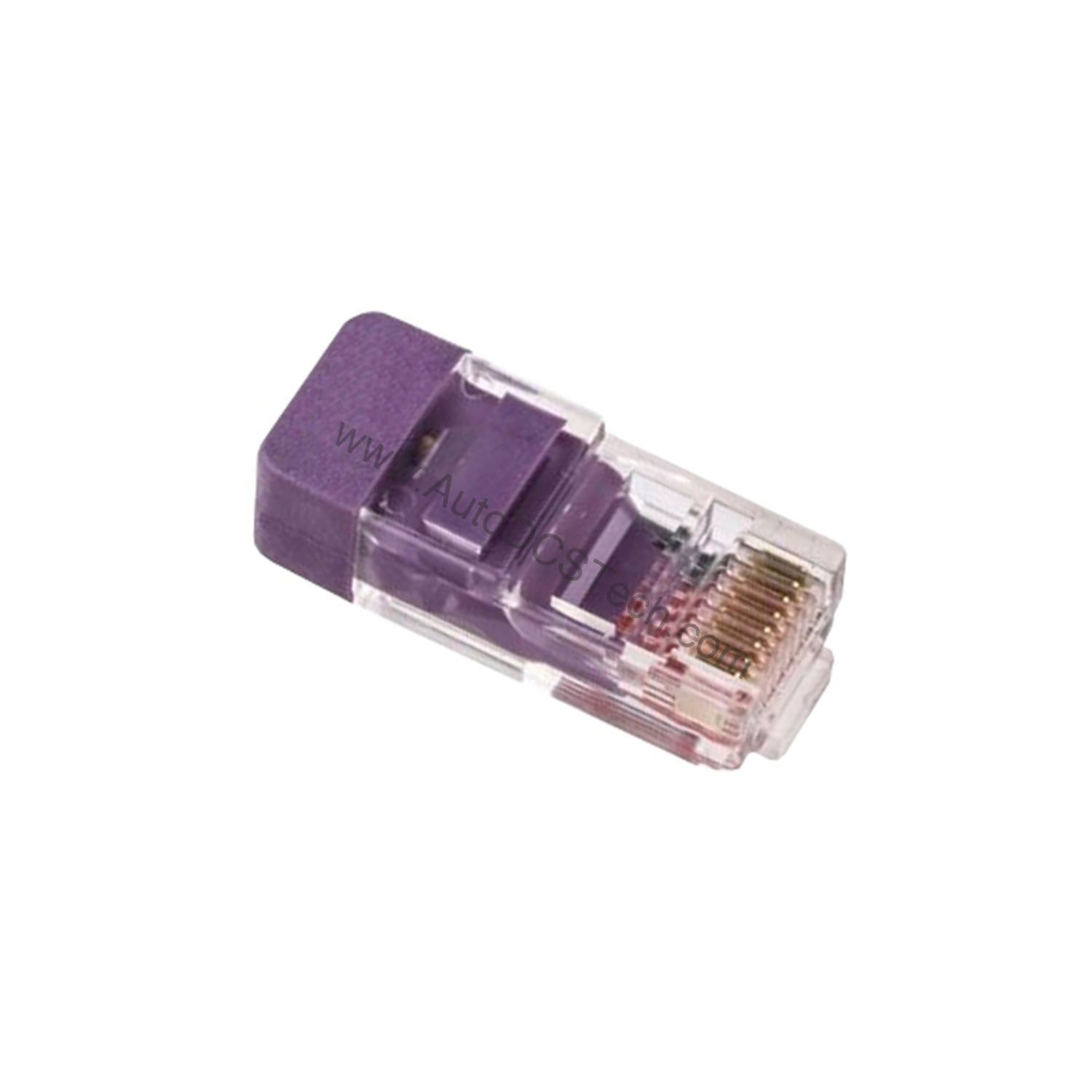

The Schneider Electric 170XTS02100 is a ModBus Plus line terminator from the Modicon Momentum series, engineered to ensure reliable communication termination in industrial automation networks. This component is essential for minimizing signal reflections and maintaining data integrity on ModBus Plus buses, particularly in demanding applications like conveyor belts and HVAC systems. Its compact design and robust construction make it a dependable choice for system integrators and plant engineers.
Compatibility and Integration
The 170XTS02100 is compatible with Modicon Premium, Momentum, and Quantum automation platforms. It uses standard RJ45 connectors for ModBus Plus communication, ensuring easy integration into existing networks. This terminator can be used in both new installations and as a replacement for failed units in legacy systems.
Selection Guide and Purchasing Advice
When selecting a line terminator, ensure it matches your network topology and platform. The 170XTS02100 is a reliable choice for Modicon Momentum systems. AutoDCSTech offers this unit with fast shipping and expert support. Please verify current lifecycle status and availability with AutoDCSTech before ordering to ensure compatibility with your application.
Availability & Condition at AutoDCSTech
| Part Number | 170XTS02100 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
