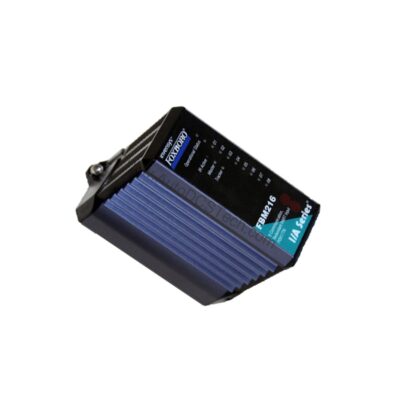

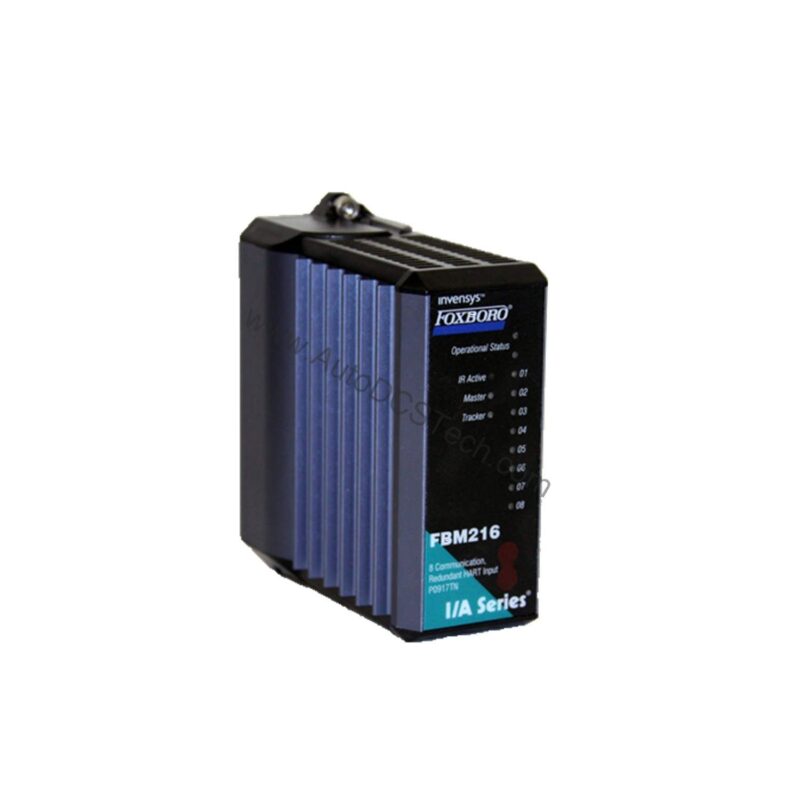

FBM216: HART Communication Redundant Input Interface Module by
The FBM216 is the HART Communication Redundant Input Interface Module by covered on this page. The attribute that decides whether it fits the existing installation without modification is 15 bits.
On this unit hart communication redundant input interface module by is the figure that decides fit and function. A communication or network module is judged by the protocol it carries and the bus it joins, not by its catalogue headline. hart communication redundant input interface module by sets which controllers and field devices it can bridge, and the isolation and termination it provides. Matching 15 bits against the existing network topology avoids a module that fits the rack but cannot talk to the rest of the system.
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Brand | Schneider |
| Part Number | FBM216 |
| Input Voltage Range (Redundant) | 24 V dc +5% -10% |
| Power Consumption | 7 W (max) |
| Heat Dissipation | 4 W (max) |
| Operating Temperature | -20 to +70°C |
| Relative Humidity | 5 to 95% noncondensing |
| Number of Channels | 8 |
| Analog Accuracy | ±0.075% of full scale |
| Resolution | 15 bits |
| Update Rate | 100 ms |
| Communication Speed | 2 messages per second |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| schneider-fbm230-foxboro-modbus-master-driver-module | confirm the configuration against your installation |
| fbm242-foxboro-by-schneider-discrete-output-interface-module | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | FBM216 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
