Overview

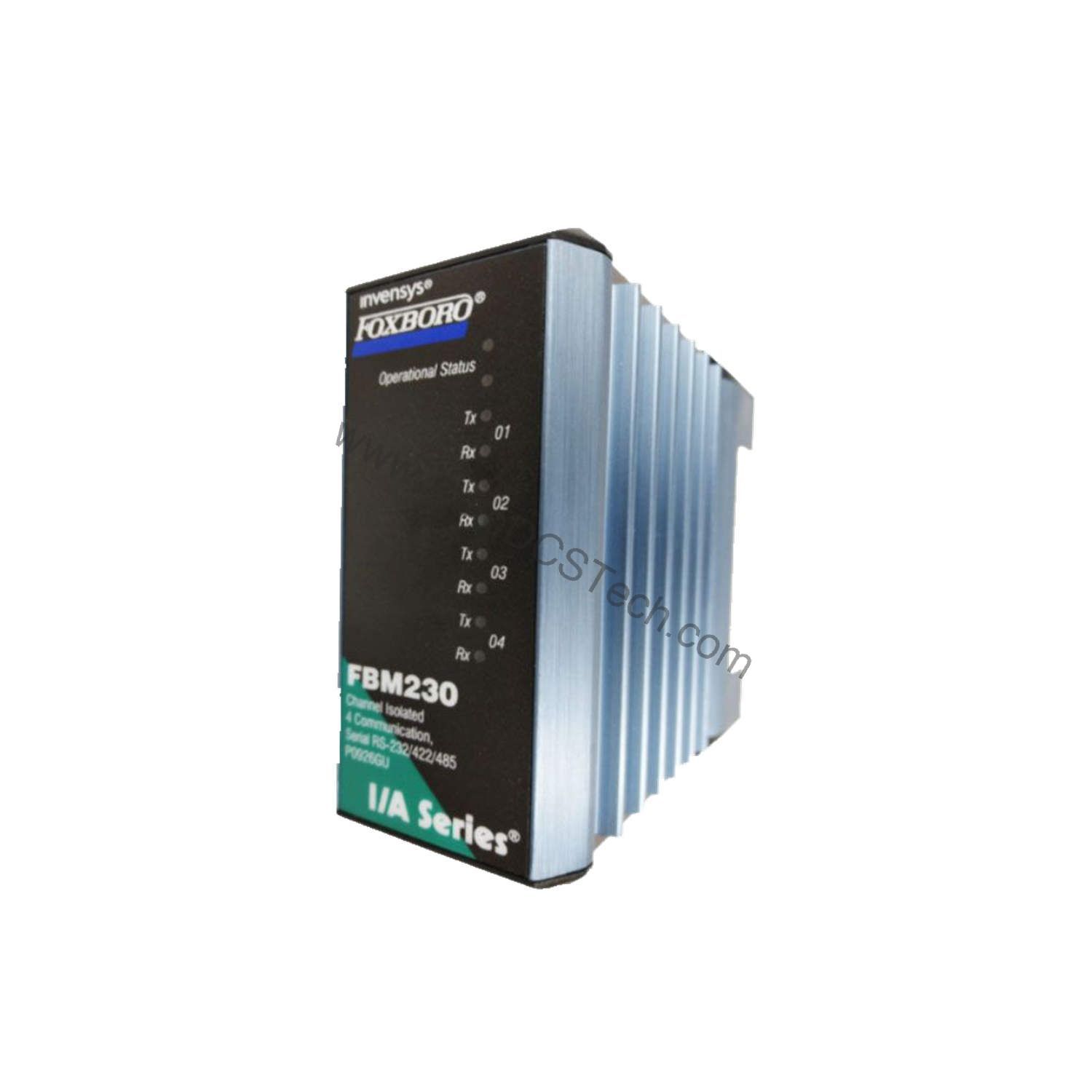

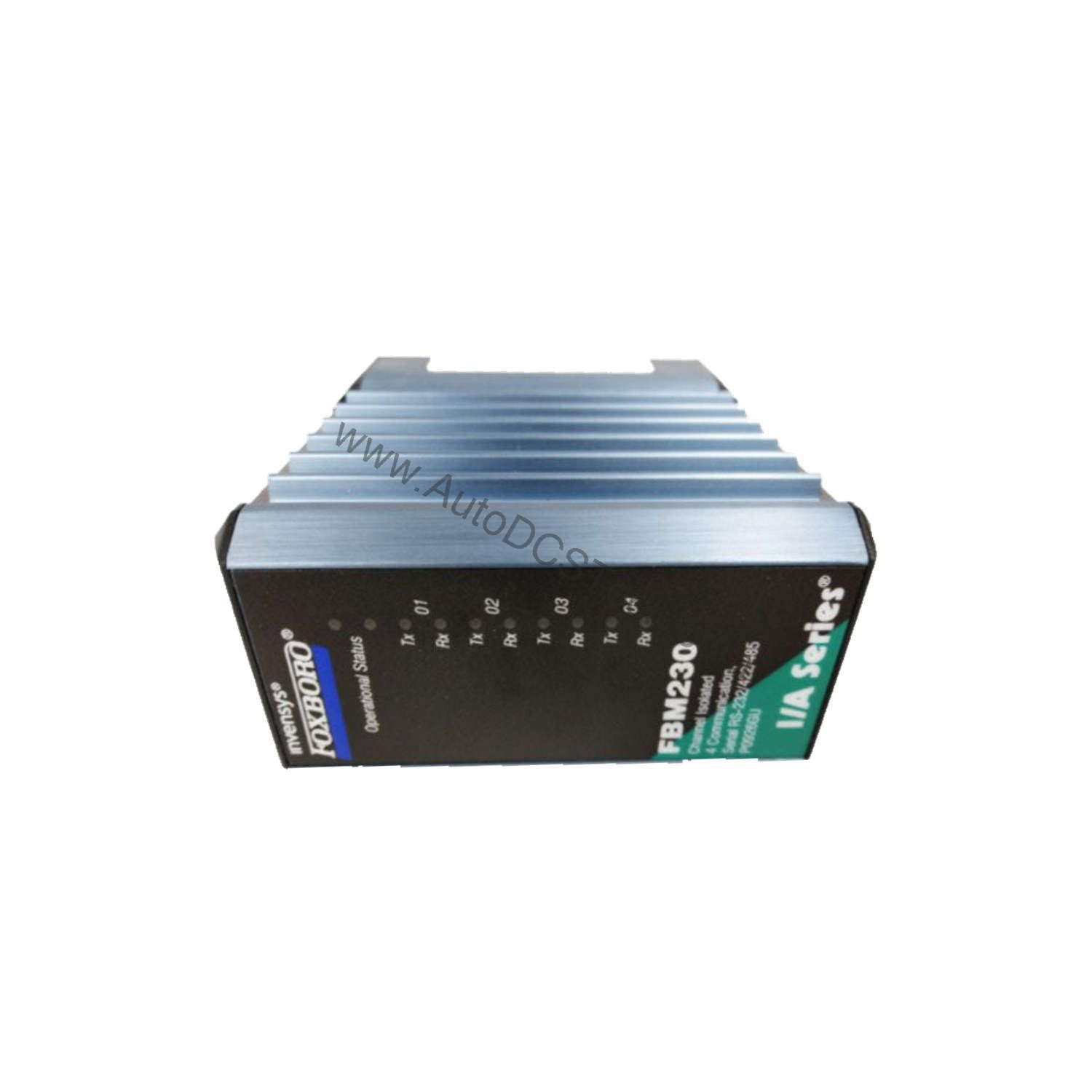

For maintenance engineers managing distributed control systems, the Schneider FBM230 Foxboro Modbus Master Driver provides a flexible and robust interface for integrating field devices. This module eliminates the need for multiple protocol converters by offering four individually configurable serial ports. Each port can be set to RS-232, RS-422, or RS-485, allowing direct connection to a wide range of equipment. Its ability to handle up to 2000 DCI block connections and communicate with up to 64 RS-485 devices makes it a powerful tool for expanding or upgrading existing Foxboro systems.
Technical Specifications Breakdown
Key parameters for the FBM230 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Port Configuration | Four ports, individually configurable for RS-232, RS-422, or RS-485 |
| Supported Protocols | Modbus RTU, Modbus ASCII, Modbus/TCP |
| Data Format | Big endian or little endian, configurable |
| Max DCI Block Connections | 2000 |
| Max RS-485 Devices | 64 (up to 16 per port) |
| Max Direct Connect RS-232/422 Devices | 4 |
| Input Voltage (Redundant) | 24 V dc +5%, -10% |
| Power Consumption | 7 W (maximum) |
| Heat Dissipation | 7 W (maximum) |
| Operating Temperature | -20 to +70°C (-4 to +158°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity (Operating/Storage) | 5 to 95% (noncondensing) |
| Environmental Rating | Class G3 (Harsh) per ISA S71.04 |
| Dimensions (H x W x D) | 102 mm x 45 mm x 104 mm (4 in x 1.75 in x 4.11 in) |
| Height with Mounting Lugs | 114 mm (4.5 in) |
Industry Applications
Oil & Gas Remote Terminal Units
In upstream oil and gas, the FBM230 connects multiple flow computers and pressure transmitters over long RS-485 multidrop links. Its support for Modbus RTU ensures reliable data acquisition in Class G3 harsh environments, reducing the need for additional signal conditioners.
Water & Wastewater Treatment Plants
For plant expansions, this module integrates legacy RS-232 pumps and modern Ethernet-based analyzers on separate ports. The configurable data format (big/little endian) simplifies mapping to the Foxboro DCS, cutting commissioning time.
Power Generation Auxiliary Systems
When retrofitting boiler controls, the FBM230 handles up to 2000 DCI blocks, allowing seamless integration of sootblower controllers and valve positioners. Its redundant 24 V dc input enhances system availability.
Installation & Setup Guidance
Mount the module in a suitable enclosure rated for the environment. Ensure the 24 V dc supply is within +5%/-10% tolerance. For RS-485 wiring, use twisted-pair shielded cable with proper termination resistors. Configure each port's physical interface via software before connecting field devices. Verify that the baud rate and parity match the slave devices. When using RS-232, limit cable length to 15 meters. For RS-422/485, observe the 1200-meter maximum distance.
Maintenance & Reliability
The FBM230 is designed for minimal maintenance. Inspect the module and termination assembly annually for dust accumulation or corrosion, especially in G3 environments. Verify that all cable shields are properly grounded. The module's 7 W heat dissipation allows passive cooling in most cabinets. Check that ambient temperature stays within -20 to +70°C range. No routine calibration is required.
Compatibility & Integration
This driver integrates directly with Foxboro I/A Series systems. It supports Modbus RTU and ASCII for serial devices and Modbus/TCP for Ethernet devices. The termination assembly (TA) accommodates intrinsic safety barriers for hazardous area connections.
Selection Guide & Purchasing Advice
When selecting the FBM230, confirm your system's software revision supports this module. AutoDCSTech stocks this unit and can verify compatibility with your existing Foxboro setup. Contact our team for lifecycle status and lead times before ordering.
Availability & Condition at AutoDCSTech
| Part Number | FBM230 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
