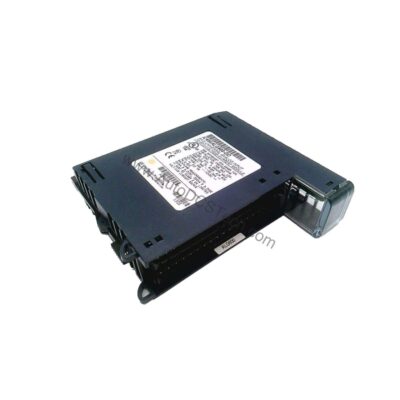

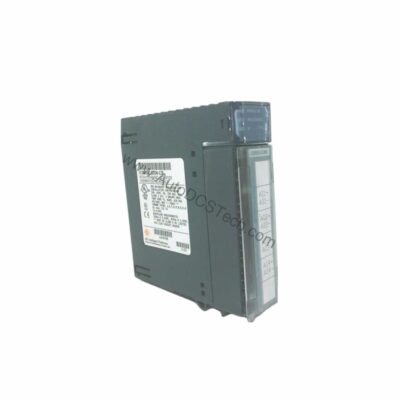

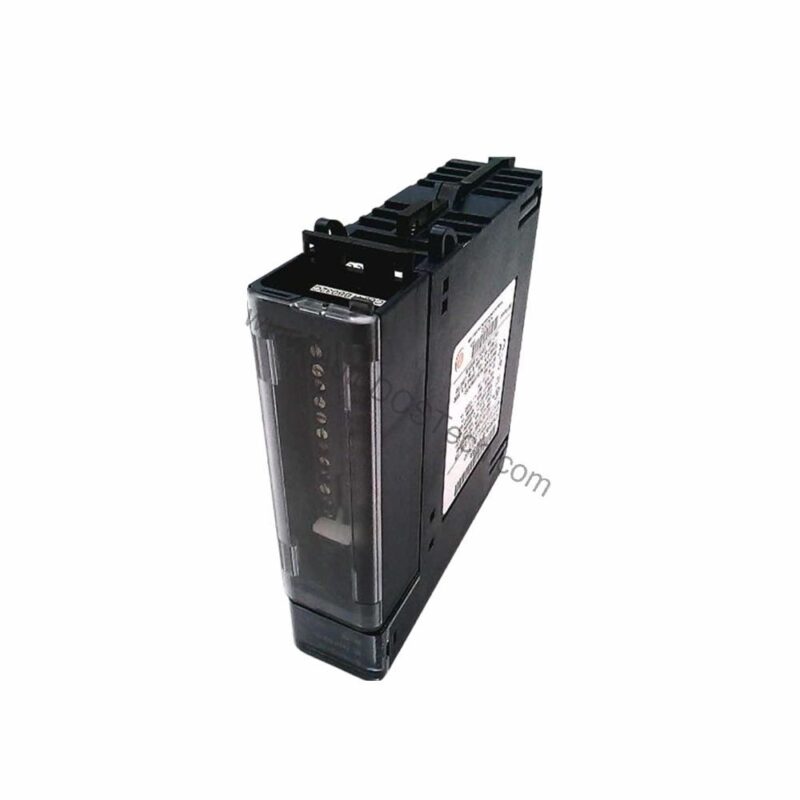

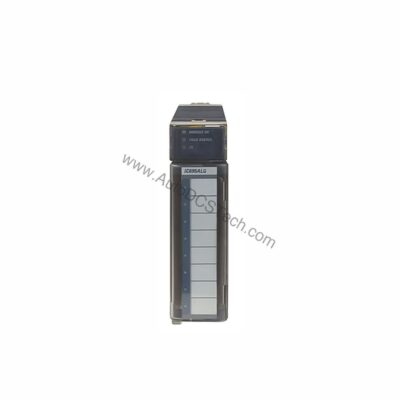

IC695ALG616: 16 Single-Ended or 8 Differential Inputs at 24-Bit
The IC695ALG616 is the high-channel-count analog input module for PACSystem RX3i, and its defining property is that the same 16 physical terminals serve as either 16 single-ended or 8 differential inputs. That configurability is what lets one module cover both a single-ended instrumentation load and a differential load without changing hardware.
It is a non-isolated module, which is the trade-off behind the channel density. Where ground potentials differ across the loops, a non-isolated module is the wrong choice — this one is for a rack where the loops share a common reference.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695ALG616 |
| Brand | GE Fanuc |
| Series | PACSystem RX3i |
| Manufacturer | Emerson Automation |
| Part Number | IC695ALG616 |
| Product Description | Non-isolated analog input module |
| Module Type | Analog Input |
| No of Channels | Sixteen (16) single-ended |
| Number of Inputs | 16 single-ended or 8 differential Inputs Channels |
| Input signals, Current | 0-20 mA |
| Internal Power | 3.3V at 450mA, 5V at 600mA |
| Input signals, Voltage | +/- 50 mV |
| Voltage Range | +/-10V DC, 0 to 10V DC, +/-5V DC, 0 to 5V DC, 1 to 5V DC |
| Configurable Input Filter | 8 Hz, 12 Hz, 16 Hz, 40 Hz, 200 Hz, 500 Hz |
| Current Range | 0 to 20mA, 4 to 20mA, +/-20mA |
| Module resolution | 24-bit ADC converted to Floating Point or Integer |
| Operating Temperature | 32 to 140 degrees Fahrenheit |
| Input Data Format | Configurable as floating point IEEE 32-bit or 16-bit integer in a 32-bit field |
| Storage Temperature | -40 to 185 degrees Fahrenheit |
| Overvoltage | ±60 VDC continuous, maximum |
| Humidity | 5 to 95%, non-condensing |
| Overcurrent | ±28mA continuous, maximum |
| Open Circuit Detection time | 1 second maximum |
| Input Impedance | >100 k? voltage inputs |
| Current Input Resistance | 249 ? ±1% |
| Autocalibration | Performed during power-up. |
RX3i Analog Input Modules
RX3i analog input modules differ in isolation, channel count, resolution and signal types accepted. All four determine whether a module fits both the rack and the loops:
| PACSystem Part Number | Isolation / Channels |
|---|---|
| IC694ALG223 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
| IC694ALG392 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
| IC695ALG106 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
| IC695ALG112 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
| IC695ALG306 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
| IC695ALG312 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
| IC695ALG412 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
| IC695ALG508 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
| IC695ALG600 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
| IC695ALG608 | PACSystem RX3i analog input module — confirm isolation topology and channel count |
Single-Ended Versus Differential: What Changes in the Field
Single-ended reads one signal wire against module common; differential reads the signal across a pair. Differential rejects common-mode noise and is the right choice on long runs or in a noisy environment; single-ended halves the wiring and is adequate where the loop is short and quiet.
The failure mode when the mode is wrong is subtle: a differential loop configured as single-ended will read approximately half the expected value rather than failing, so it can pass a quick functional check while being wrong. Confirm the configuration against how the loops are actually wired.
Resolution and When It Matters
24-bit resolution is meaningful where the measurement is a small fraction of the full-scale range. Where the process value sits at mid-scale, a lower-resolution module would be adequate and a higher-resolution one buys nothing. Confirm where in the range the loops actually operate before treating resolution as a deciding factor.
