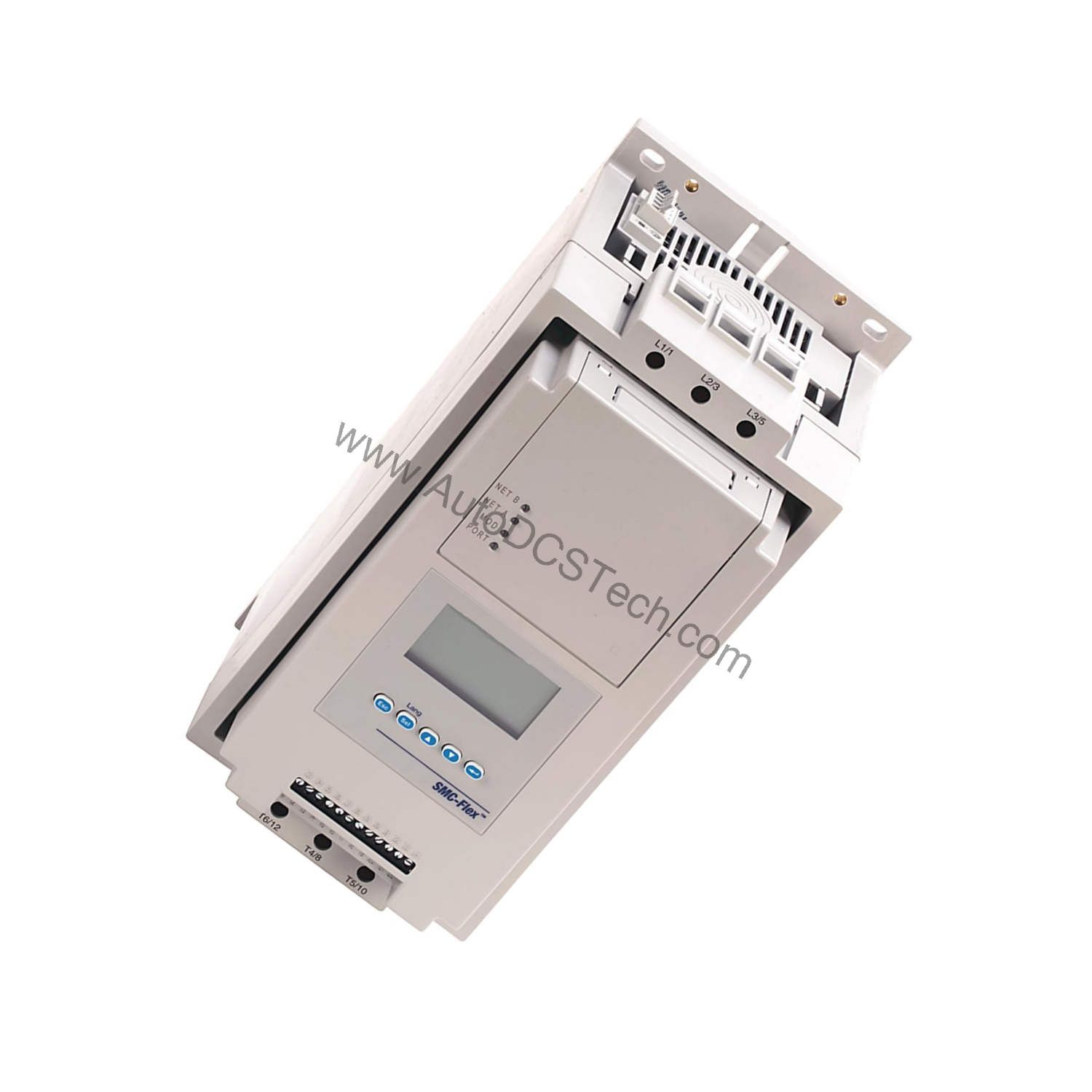

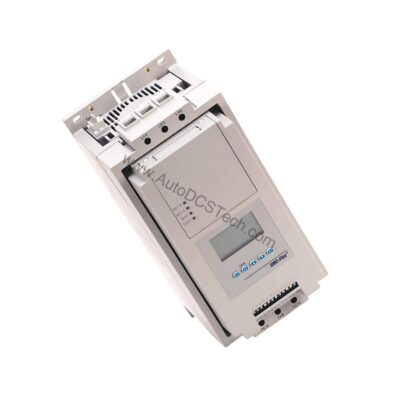

Allen-Bradley 150-F480NBD SMC Flex Smart Motor Controller 480A

Technical Specifications Breakdown

Key parameters for the 150-F480NBD are listed below for quick reference:

Application-Driven Operating Modes

The 150-F480NBD supports sixteen operating modes to match diverse motor control needs. For pump applications, Pump Start and Pump Stop reduce hydraulic shock. Smart Motor Braking and Slow Speed with Braking enable controlled deceleration for conveyors. Current Limit Start and Dual Ramp Start allow customization for varying load conditions. Accu-Stop provides precise stopping for indexing applications. These modes are configured via the controller's embedded parameters, eliminating the need for external timers or relays.

Installation and Setup Guidance

Mount the open-type enclosure in a clean, dry environment with adequate ventilation. Ensure the line voltage matches the 200…460V AC, 3-phase, 50/60 Hz supply. The control voltage must be 100…240V AC for units rated up to 480 A. Connect the motor to the output terminals, observing torque specifications. Use the DPI ports to attach an optional Human Interface Module (HIM) for local programming. For network integration, install a communication module supporting DF1, Profibus DP, ControlNet, Interbus, MODBUS TCP, DeviceNet, Ethernet/IP, HVAC communication adapter, or ControlNet Fiber media adapter.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation on heatsinks and verify that all power connections remain tight. Monitor the built-in metering functions—amps, volts, kW, kWh, power factor, and motor thermal capacity usage—to detect developing issues. The controller provides protection against power loss, line fault, voltage unbalance, excessive starts per hour, phase reversal, undervoltage, overvoltage, controller overtemperature, stall, jam, open gate, overload, underload, and communication faults. Replace the unit if any internal fault persists after cycling power.

Overcoming High-Inertia Starting Challenges

In industrial environments, starting large AC motors driving high-inertia loads—such as centrifuges, conveyors, or pumps—often leads to mechanical stress, voltage sags, and excessive wear. The Allen-Bradley 150-F480NBD SMC Flex Smart Motor Controller provides a programmable solution to mitigate these issues. This solid-state controller, part of the SMC-Flex line, uses a built-in microprocessor to manage motor acceleration and deceleration smoothly.

Compatibility and Integration

The 150-F480NBD includes two DPI ports: one for a HIM and one for a communication module. This allows simultaneous local monitoring and remote network control. The four fully programmable auxiliary contacts can be configured as normally open or normally closed for status indication—normal, up-to-speed, fault, alarm, network—or as an external bypass (N.O. only).

Selection Guidance and Purchasing Advice

When selecting a motor controller, confirm that the 150-F480NBD's 480 A continuous rating and 400 HP at 460V AC match your motor nameplate. The open enclosure is suitable for panel mounting in controlled environments. For applications requiring additional protection, consider a NEMA-rated enclosure separately. AutoDCSTech stocks this model and can assist with lifecycle status verification. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
